DS-T084BXJWA-02 8.4-inch 1024×768 IPS wide-temperature industrial TFT LCD, front view

8.4 inch1024×768IPS1000 cd/m²

8.4-Inch 1024×768 1000-Nit IPS LVDS TFT for Wide-Temperature HMI

Name: 8.4-Inch 1024×768 1000-Nit IPS LVDS TFT for Wide-Temperature HMI
SKU: DS-T084BXJWA-02

DS-T084BXJWA-02 is an 8.4-inch 1024×768 IPS industrial TFT LCD with 1000 cd/m² luminance, -30 to 80 °C operating temperature, LVDS 8-bit 20-pin VESA interface and no touch panel.

ModelDS-T084BXJWA-02

Size8.4 inch

Resolution1024×768

PanelIPS

Luminance1000 cd/m²

InterfaceLVDS 8-bit, 20-pin VESA

Request Sample / Project Review Check Specs

Confirm the current datasheet, pinout and approved mechanical drawing before design-in.

Potential project fit

An 8.4-inch 1024×768 wide-temperature TFT LCD for industrial equipment.

Industrial HMI

Evaluate the 4:3 active area, mounting approach, LVDS host connection and full front-stack design against the equipment requirements.

Factory automation

Consider the operating-temperature range, ambient-light conditions and enclosure thermal design together during system selection.

Control and measurement

Assess display readability, mechanical integration and controller configuration against the complete instrument specification.

Verified product facts

Specification

Item	DS-T084BXJWA-02
Diagonal size	8.4 inch
Resolution	1024×768
LCD type	IPS
Luminance	1000 cd/m²
Module interface	LVDS 8-bit, 20-pin VESA
LCD driver IC	JD9168S
Touch panel	No TP
Bonding type	Not specified in the supplied module list
Active area (W×H)	170.50×127.87 mm
Module outline (W×H×D)	199.50×149.00×9.60 mm
Operating temperature	−30 to 80 °C
Storage temperature	−30 to 80 °C

Module views

Product and application references.

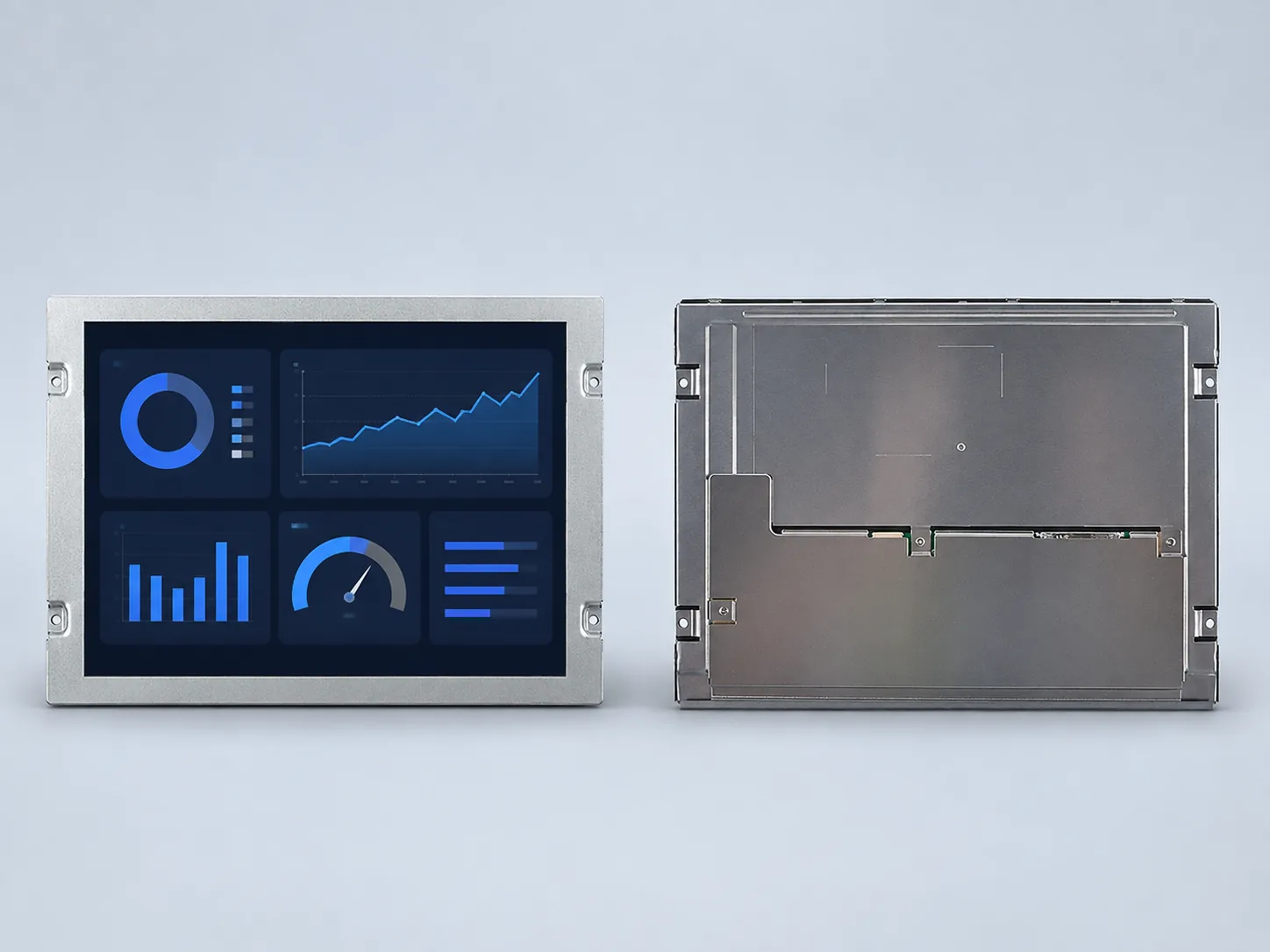

Front and rear reference views of DS-T084BXJWA-02 8.4-inch industrial TFT LCD

Front and rear view

Reference views of the display face and rear housing.

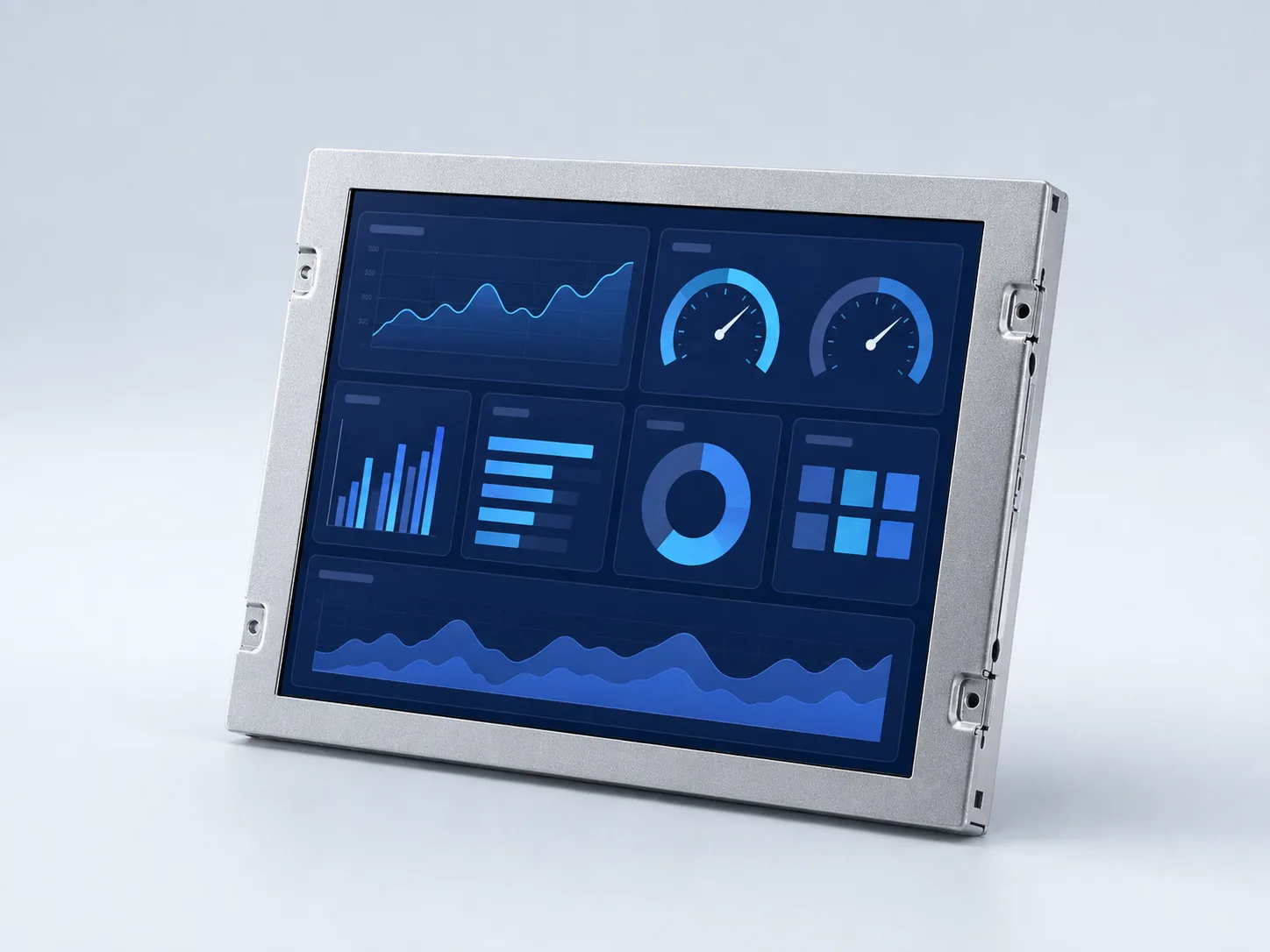

Angled reference view of DS-T084BXJWA-02 industrial TFT LCD

Angled module view

Confirm the approved drawing for mounting, connector routing and tolerances.

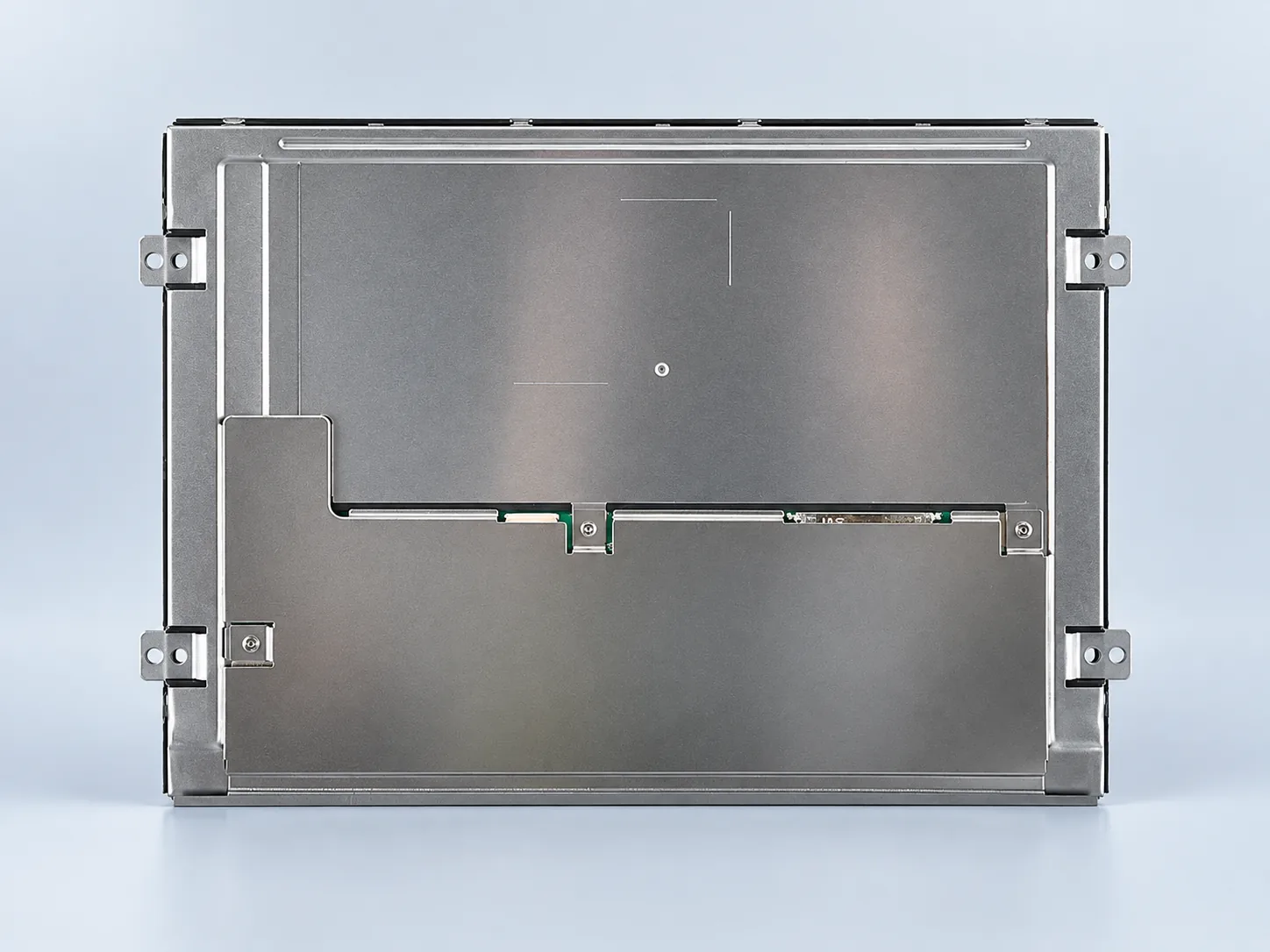

Rear reference view of DS-T084BXJWA-02 industrial TFT LCD

Rear view

Use current approved mechanical and electrical documentation for design details.

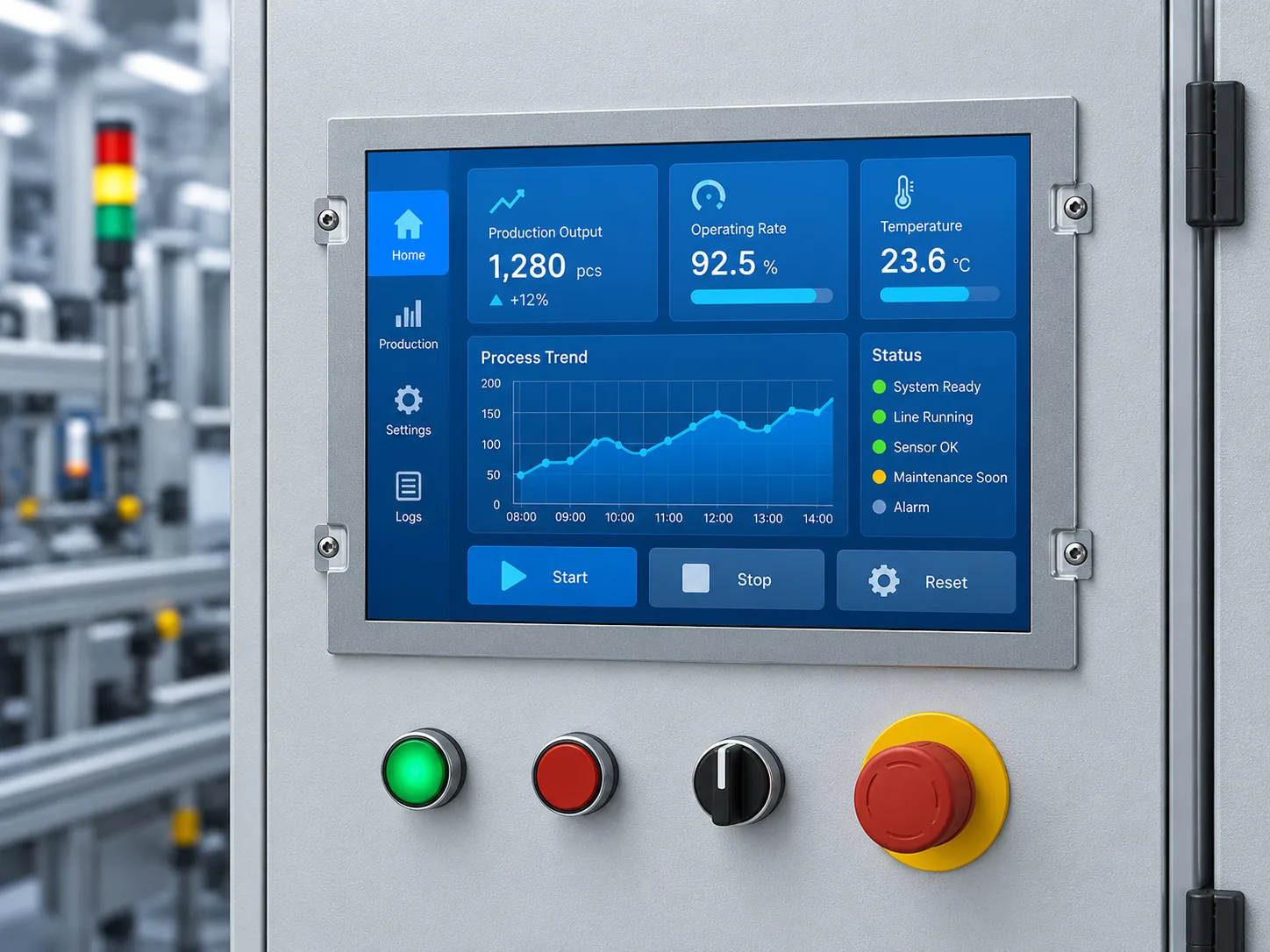

Application concept

An illustrative industrial control-panel concept, not a documented customer deployment or a mechanical integration drawing.

Illustrative industrial control-panel application using an 8.4-inch TFT LCD

Engineering reference

Use this visual reference only during integration review. Confirm the approved mechanical drawing and electrical limits before production release.

Illustrative engineering workbench reference for an 8.4-inch industrial TFT LCD

Mechanical reference

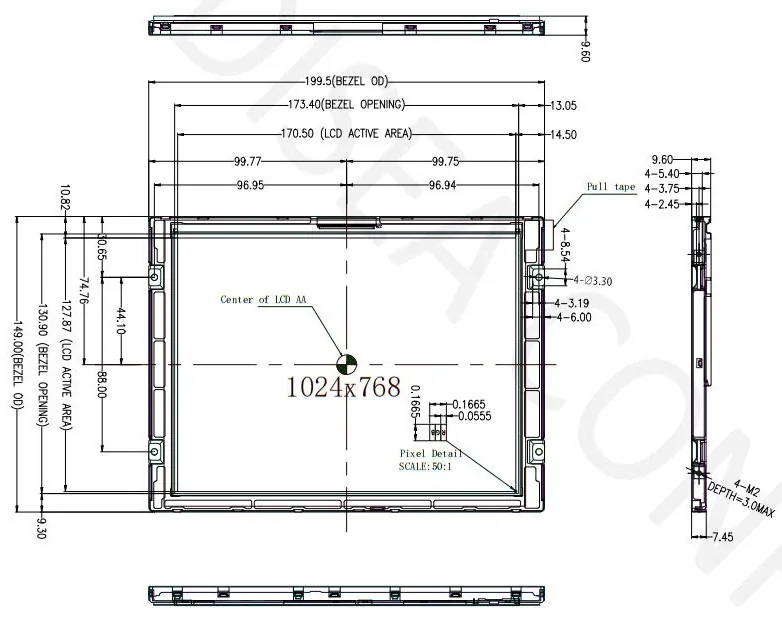

Mechanical drawing

Mechanical reference image published with the supplied product material.

The supplied module list gives DS-T084BXJWA-02 an active area of 170.50×127.87 mm and an outline of 199.50×149.00×9.60 mm. Confirm the current approved DS-T084BXJWA-02 drawing revision, pinout and keep-out zones before design lock.

Engineering checks before design-in

Request the current datasheet and approved drawing before locking enclosure, host-board and optical-stack details.

Mechanical fit

Confirm active area, outline, thickness, mounting holes, connector route and keep-out zones.

Host connection

Validate the LVDS 8-bit 20-pin VESA pinout, timing, driver configuration and electrical limits.

Operating environment

Review high brightness, reflections, power and thermal design as part of the complete system.

Review DS-T084BXJWA-02 against your project.

Send the host platform, enclosure constraints, target quantity and viewing environment for a fit review.
