DS-T080BXEA-05 is an 8-inch 1024×768 IPS industrial TFT LCD with 950 cd/m² luminance, LVDS 6/8-bit 40-pin interface and no touch panel.
Confirm the current datasheet, pinout and mechanical drawing before design-in.
DS-T080BXEA-05 combines an 8-inch 1024×768 IPS panel, 950 cd/m² luminance and a 6/8-bit LVDS, 40-pin interface. Its published −30 to 70 °C operating range may be relevant to an instrument enclosure with a cold ambient requirement, but a current approved mechanical drawing is still needed to confirm fit before releasing the design.
Consider where the 4:3 active area, high-brightness target and LVDS host connection fit the panel design and viewing conditions.
Evaluate enclosure mechanics, active area, interface timing and optical performance against the instrument requirements.
950 cd/m² supports high-brightness design goals; final readability also depends on the cover lens, reflections and complete front stack.
| Item | DS-T080BXEA-05 |
|---|---|
| Diagonal size | 8.0 inch |
| Resolution | 1024×768 |
| LCD type | IPS |
| Luminance | 950 cd/m² |
| Module interface | LVDS 6/8-bit, 40-pin |
| LCD driver IC | JD9165A |
| Touch panel | No TP |
| Bonding type | Not specified in the supplied module list |
| Active area (W×H) | 162.05×121.54 mm |
| Module outline (W×H×D) | 183.00×141.00×5.55 mm |
| Operating temperature | −30 to 70 °C |
| Storage temperature | −30 to 80 °C |

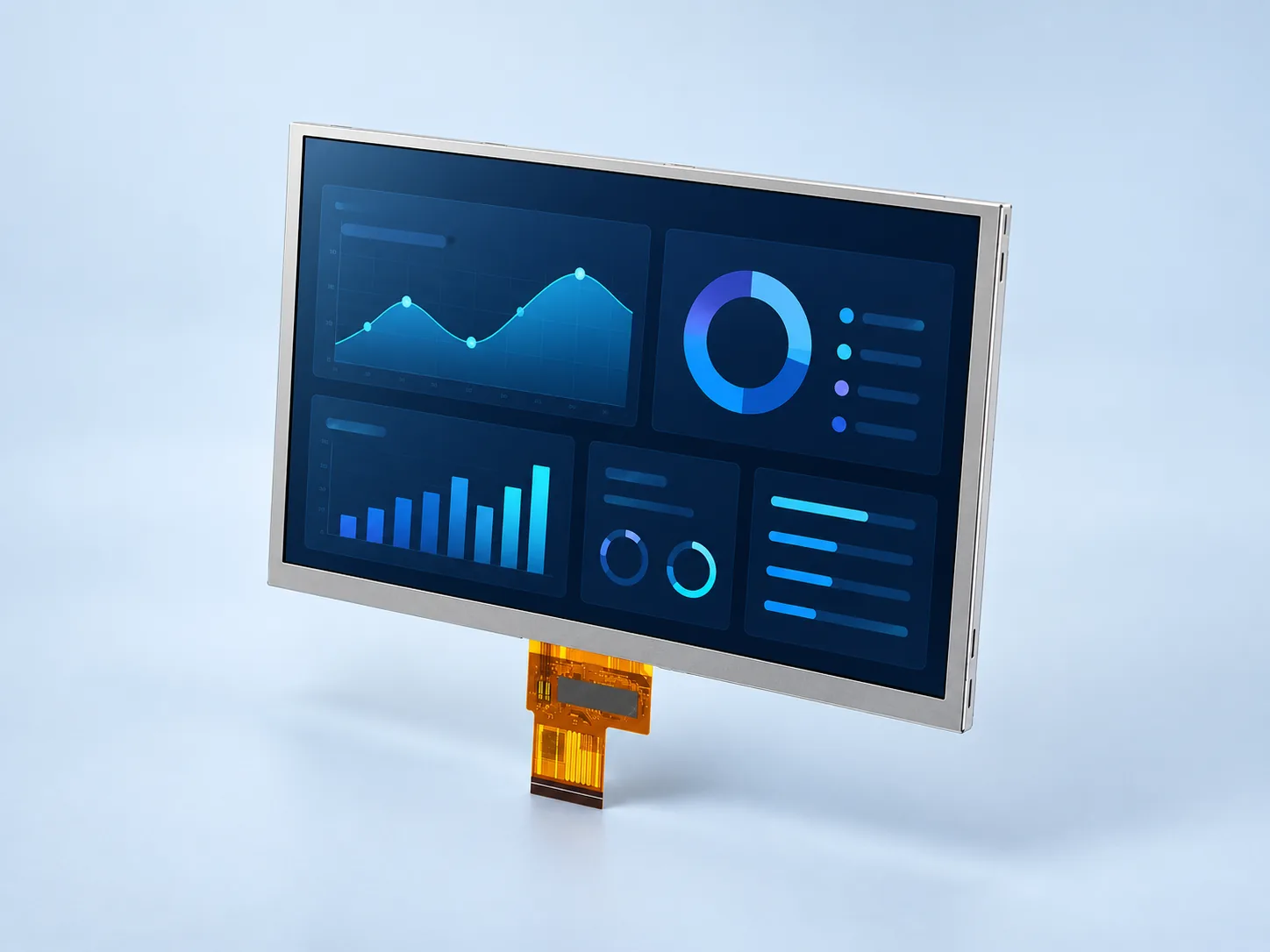

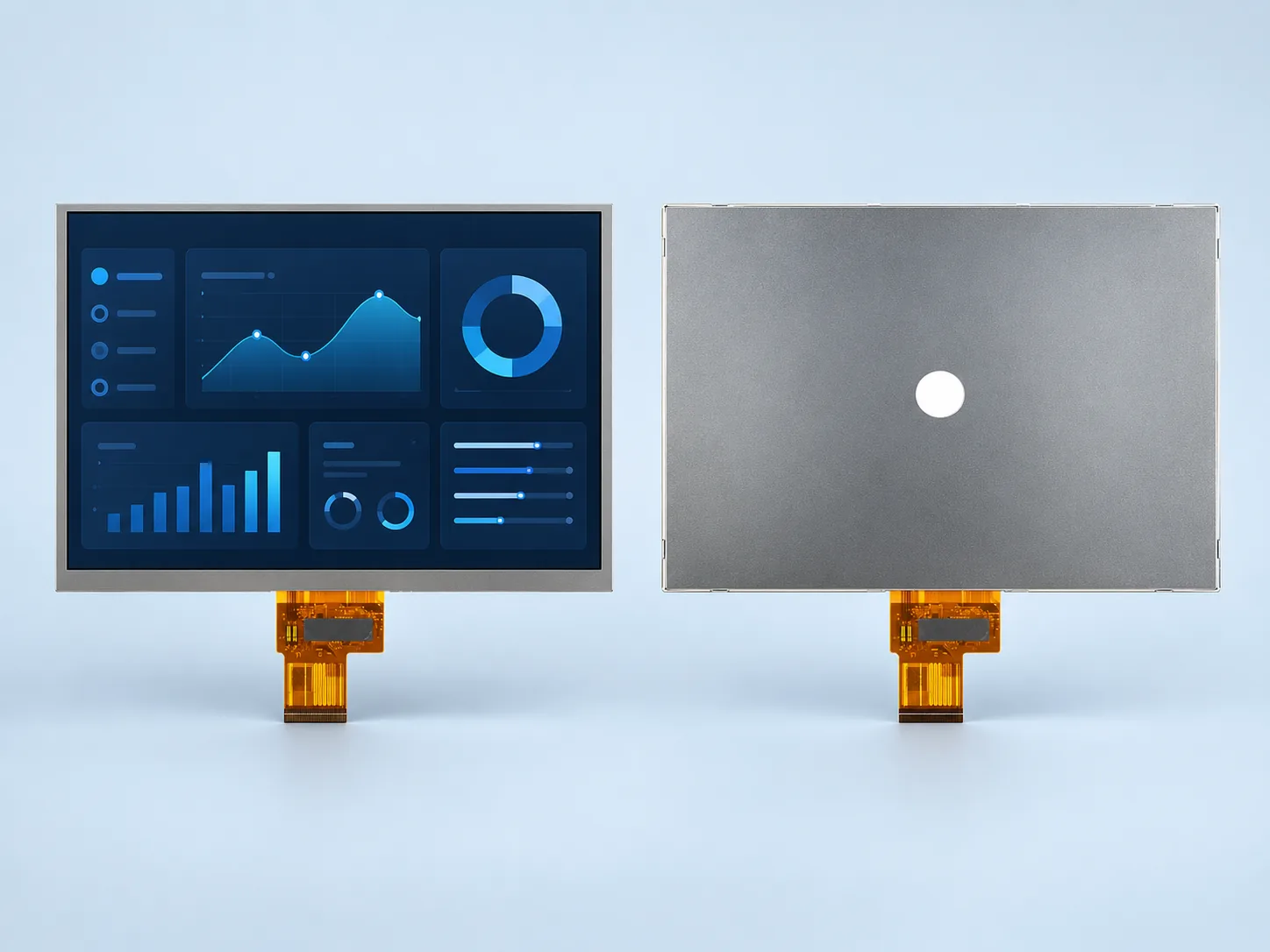

Product-view reference for the display face and rear housing.
For visual reference only; confirm dimensions with the current approved drawing.

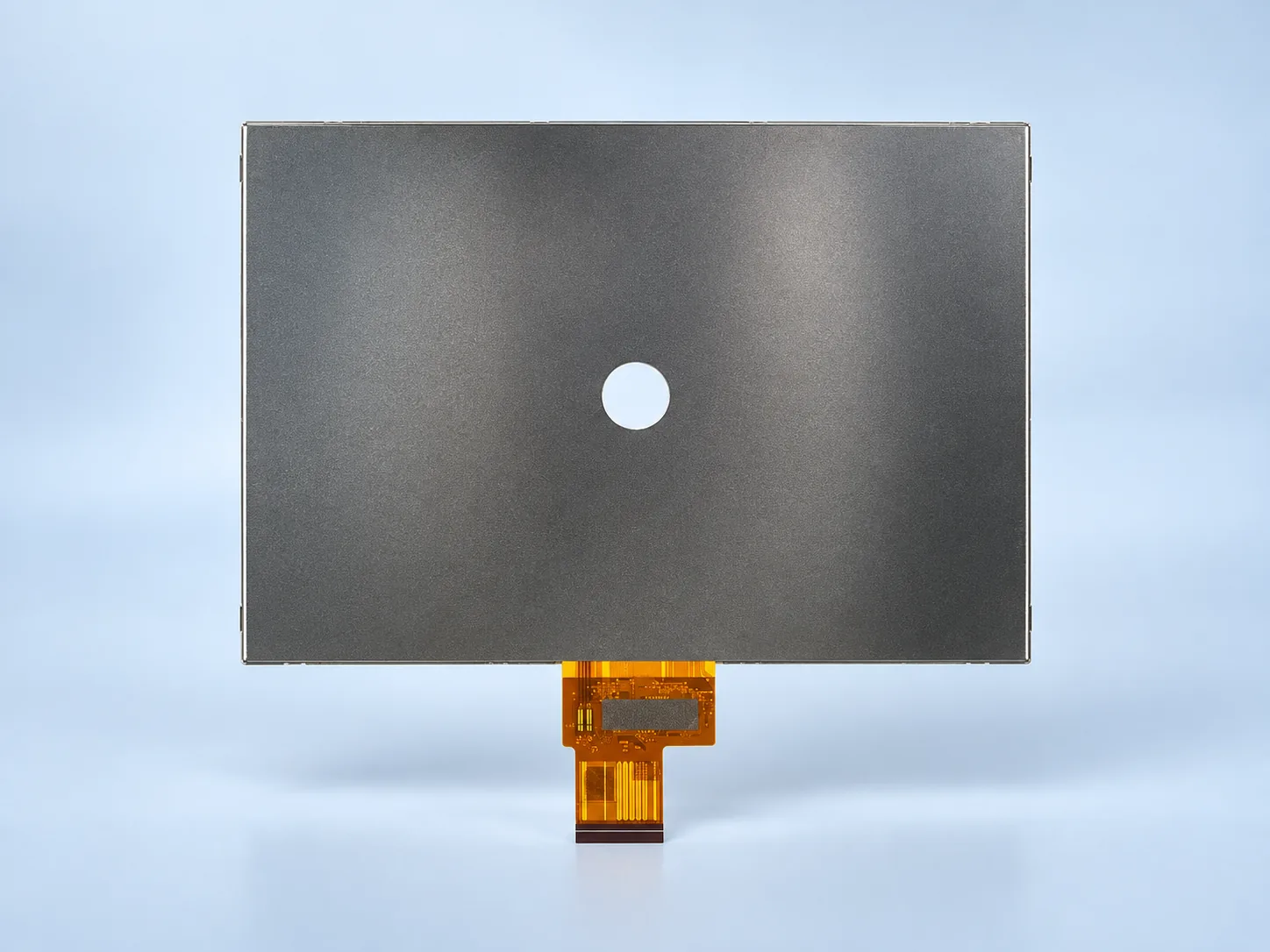

Confirm the approved drawing for FPC routing, pinout and tolerances.
An illustrative industrial control-panel concept. It is not a documented customer deployment or a mechanical integration drawing.
Use this visual reference only when reviewing integration. Confirm the current approved drawing, connector mating and electrical limits before production release.
The mechanical drawing is not published on this page yet. Request the current approved drawing and datasheet before locking enclosure, FPC and host-board details.
DISEA standard TFT LCD module list · DS series 2026 V2.1 · PDF, 5 pages, 160 KB.
View the catalog reference (page 4) · Download full catalog ↓
Summary specifications only, not the controlled model-specific datasheet. Confirm the current datasheet, pinout and approved drawing for this exact model before design-in.
A mechanical drawing is not published on this page. Request the current datasheet, controlled drawing, display timing, connector/pinout and backlight electrical requirements before design-in.
Include the host output, enclosure constraints, application and viewing environment, sample quantity and expected demand. Documentation revision, availability and commercial terms are confirmed during review; the public catalog does not imply stock availability or replace controlled model-specific documents.
Compare related published module configurations. Check the native host interface and sample validation checklist before approving a substitute or custom stack.
Send the host platform, enclosure constraints, target quantity and viewing environment for a fit review.
