DS-T104QXHA-03

10.4-Inch 1024×768 850-Nit IPS LVDS TFT for 4:3 Industrial HMI

DS-T104QXHA-03 is a 10.4-inch 1024×768 IPS industrial TFT LCD with 850 cd/m² typical luminance, −30 to +80 °C operation and a 6/8-bit LVDS interface.

ModelDS-T104QXHA-03

Size10.4 inch

Resolution1024×768

PanelIPS

Luminance850 cd/m² typ.

InterfaceLVDS 6/8-bit, 30-pin

Request Sample / Project Review Check Specs

Confirm the current datasheet, pinout and approved mechanical drawing before design-in.

Potential project fit

A 10.4-inch 4:3 industrial TFT LCD for equipment interfaces.

DS-T104QXHA-03 provides a 10.4-inch 1024×768 IPS panel with 850 cd/m² typical luminance and a 6/8-bit LVDS, 30-pin interface. Its published 3.3 V LCD input, 2×13-LED backlight configuration and −30 to +80 °C operating range give an engineering starting point for a 4:3 instrument or HMI; confirm backlight drive requirements and any required touch assembly in the current documentation.

Industrial HMI

Evaluate the 4:3 active area, mounting layout, LVDS host connection and enclosure design against equipment requirements.

Factory automation

Review the operating-temperature range, optical environment, backlight supply and thermal design together during system selection.

Control and measurement

Assess display readability, mechanical integration and controller configuration against the complete instrument specification.

Verified product facts

Specification

Item	DS-T104QXHA-03
Diagonal size	10.4 inch
Resolution	1024×768
LCD type	IPS TFT
Display colors	16.7M
Luminance (typ.)	850 cd/m²
Contrast ratio (typ.)	1000:1
Viewing angle	85° minimum at CR≥10 (3/6/9/12 o'clock)
Module interface	6/8-bit LVDS, 30-pin LCD connector
Input voltage	3.3 V
Backlight	2×13 white LEDs
Active area (W×H)	210.43×157.82 mm
Module outline (W×H×D)	238.60×175.80×6.45 mm; 9.20 mm max.
Operating temperature	−30 to +80 °C
Storage temperature	−30 to +80 °C

Module views

Product and application references.

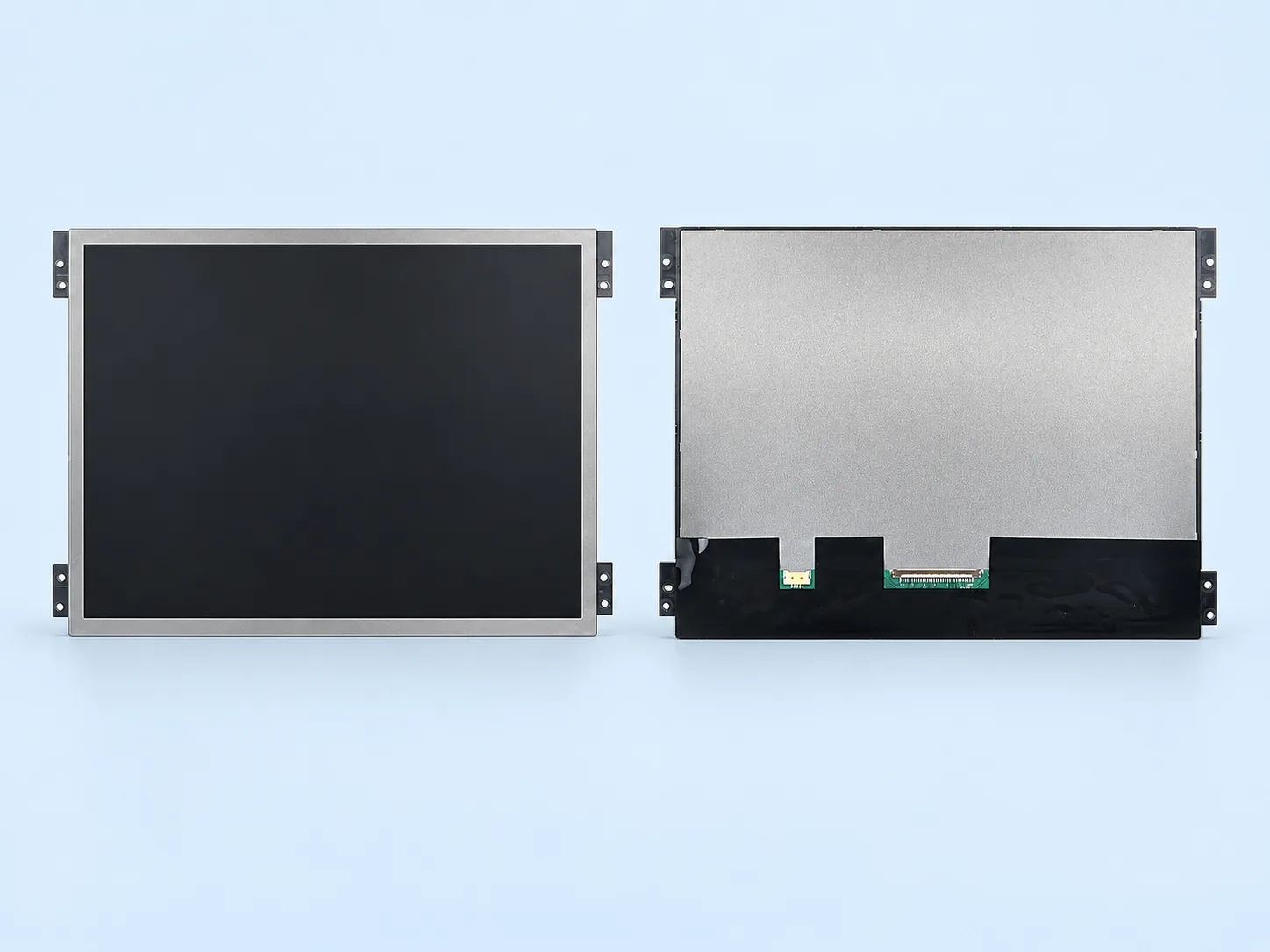

Front and rear reference views of DS-T104QXHA-03 10.4-inch industrial TFT LCD

Front and rear view

Reference views of the display face and rear housing.

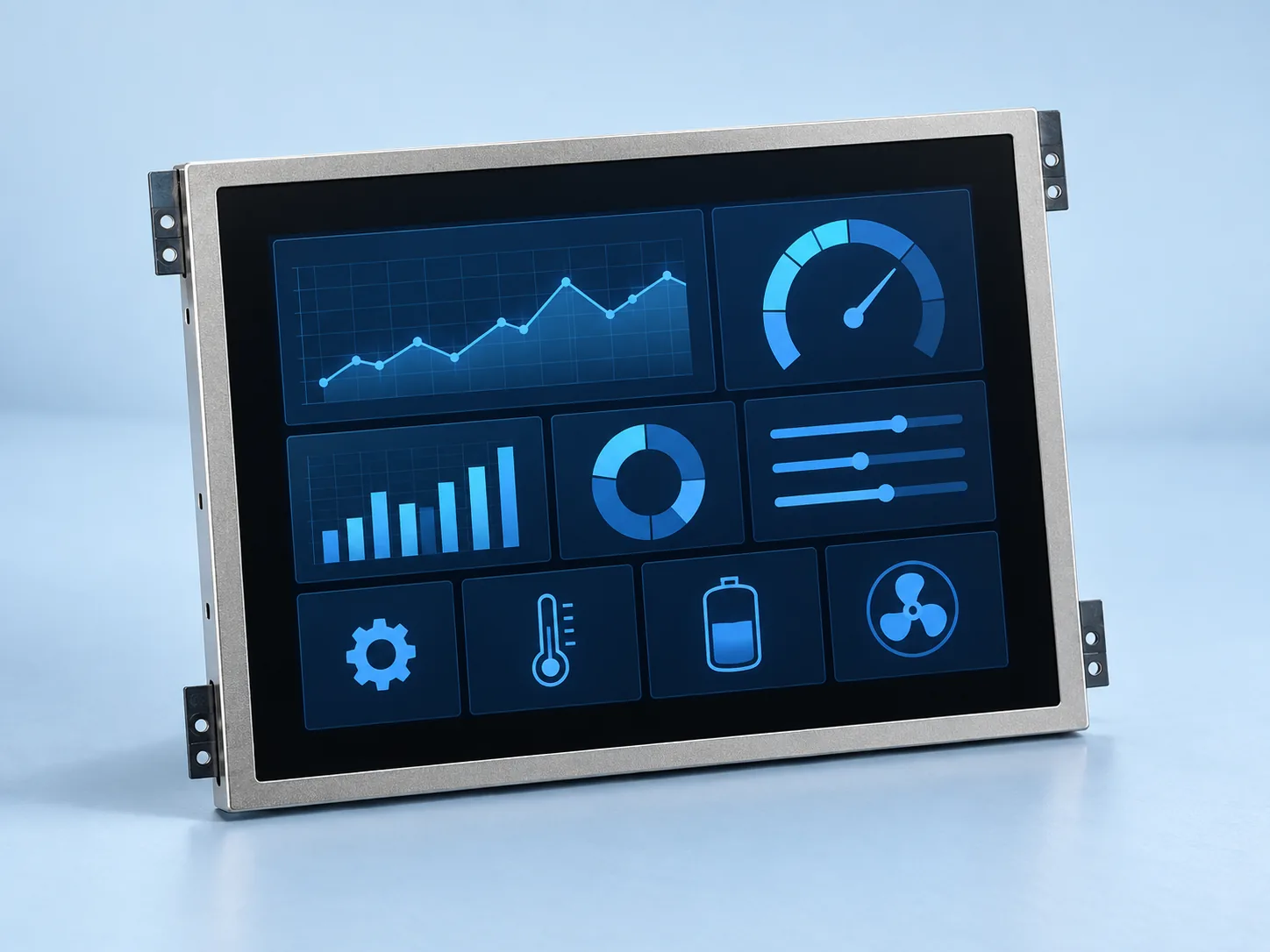

Angled reference view of DS-T104QXHA-03 10.4-inch industrial TFT LCD

Angled module view

Confirm the approved drawing for mounting, connector routing and tolerances.

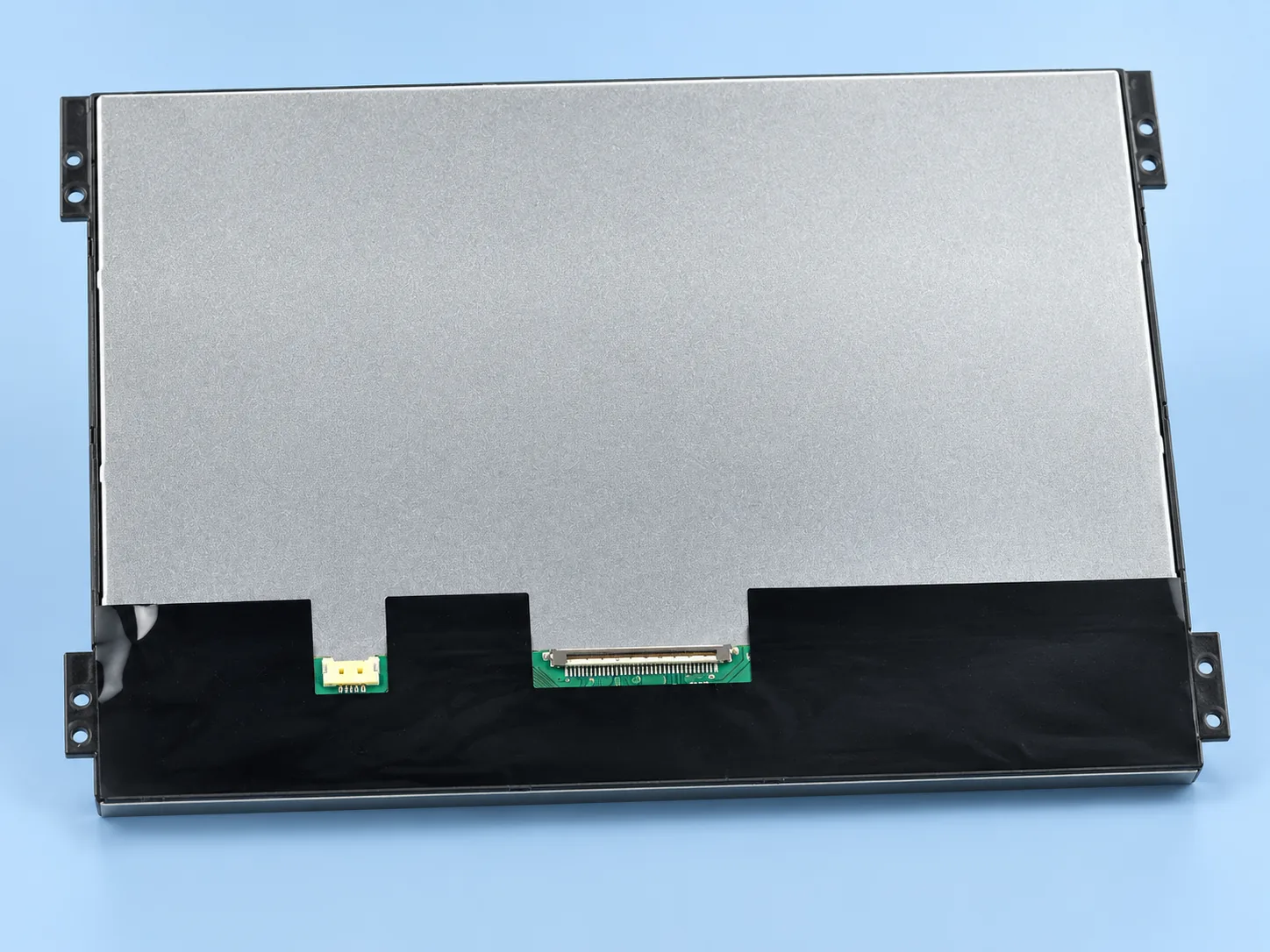

Rear reference view of DS-T104QXHA-03 10.4-inch industrial TFT LCD

Rear view

Use current approved mechanical and electrical documentation for design details.

Application concept

An illustrative industrial control-panel concept, not a documented customer deployment or a mechanical integration drawing.

Illustrative industrial control-panel application using a 10.4-inch TFT LCD

Engineering reference

Use this visual reference only during integration review. Confirm the approved mechanical drawing and electrical limits before production release.

Engineering workbench reference featuring DS-T104QXHA-03 front and rear module views

Mechanical reference

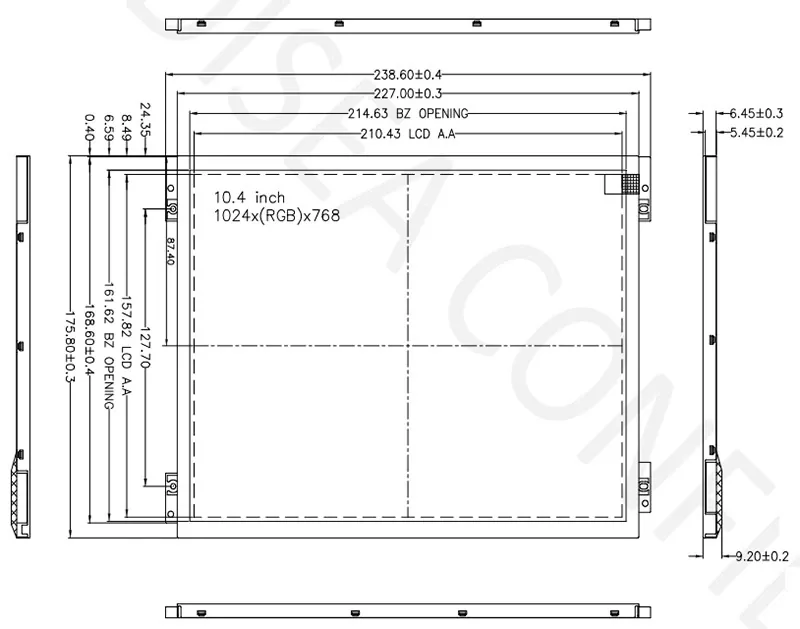

Mechanical drawing

Mechanical reference drawing published with the supplied product material.

The supplied datasheet gives DS-T104QXHA-03 an active area of 210.43×157.82 mm and an outline of 238.60×175.80×6.45 mm, with 9.20 mm maximum depth. Confirm the current approved drawing revision, pinout and keep-out zones before design lock.

Engineering checks before design-in

Request the current datasheet and approved drawing before locking enclosure, host-board and optical-stack details.

Mechanical fit

Confirm active area, outline, thickness, mounting holes, connector route and keep-out zones.

Host connection

Validate the LVDS 6/8-bit, 30-pin pinout, timing, backlight drive and electrical limits.

Operating environment

Review high brightness, reflections, power and thermal design as part of the complete system.

Engineering-led selection

DS-T104QXHA-03 datasheet, pinout and sample review

Engineering document request

The visible mechanical drawing is a reference image. Request the current datasheet, controlled drawing, display timing, connector/pinout and backlight electrical requirements before design-in.

Include the host output, enclosure constraints, application and viewing environment, sample quantity and expected demand. Documentation revision, availability and commercial terms are confirmed during review; no downloadable PDF or stock promise is implied.
