10.1-Inch 1280×800 1000-Nit IPS LVDS TFT for Wide-Temperature HMI

Name: 10.1-Inch 1280×800 1000-Nit IPS LVDS TFT for Wide-Temperature HMI
SKU: DS-T101HIEWA-01

DS-T101HIEWA-01 is a 10.1-inch 1280×800 IPS industrial TFT LCD with 1000 cd/m² luminance, −30 to +85 °C operation, an LVDS 6/8-bit 40-pin interface and no touch panel.

ModelDS-T101HIEWA-01

Size10.1 inch

Resolution1280×800

PanelIPS

Luminance1000 cd/m²

InterfaceLVDS 6/8-bit, 40-pin

Request Sample / Project Review Check Specs

Confirm the current datasheet, pinout and approved mechanical drawing before design-in.

Potential project fit

A 10.1-inch 1280×800 high-brightness wide-temperature TFT LCD for industrial equipment.

Industrial HMI

Evaluate the 16:10 active area, LVDS host connection, mounting approach and front-stack design against equipment requirements.

Factory automation

Review the operating-temperature range, ambient-light conditions and enclosure thermal design together during system selection.

Control and measurement

Assess display readability, mechanical integration and controller configuration against the complete instrument specification.

Verified product facts

Specification

Item	DS-T101HIEWA-01
Diagonal size	10.1 inch
Resolution	1280×800
LCD type	IPS
Luminance	1000 cd/m²
Module interface	LVDS 6/8-bit, 40-pin
LCD driver IC	EK79202
Touch panel	No TP
Active area (W×H)	216.96×135.60 mm
Module outline (W×H×D)	229.46×149.10×4.80 mm (8.15 mm max)
Viewing direction	ALL
Operating temperature	−30 to +85 °C
Storage temperature	−30 to +85 °C

Module views

Product and application references.

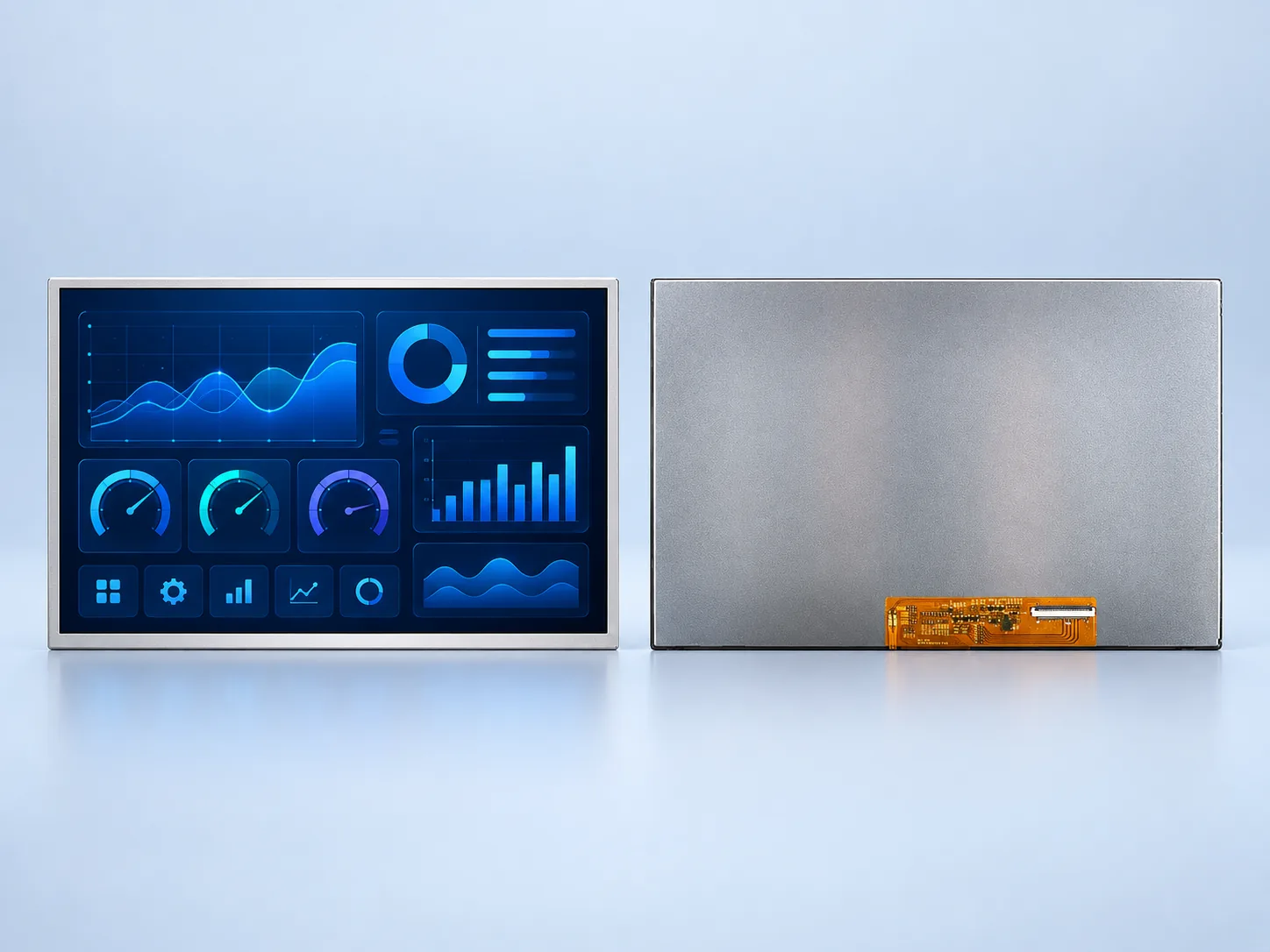

Front and rear reference views of DS-T101HIEWA-01 10.1-inch industrial TFT LCD

Front and rear view

Reference views of the display face, rear housing and bottom FPC.

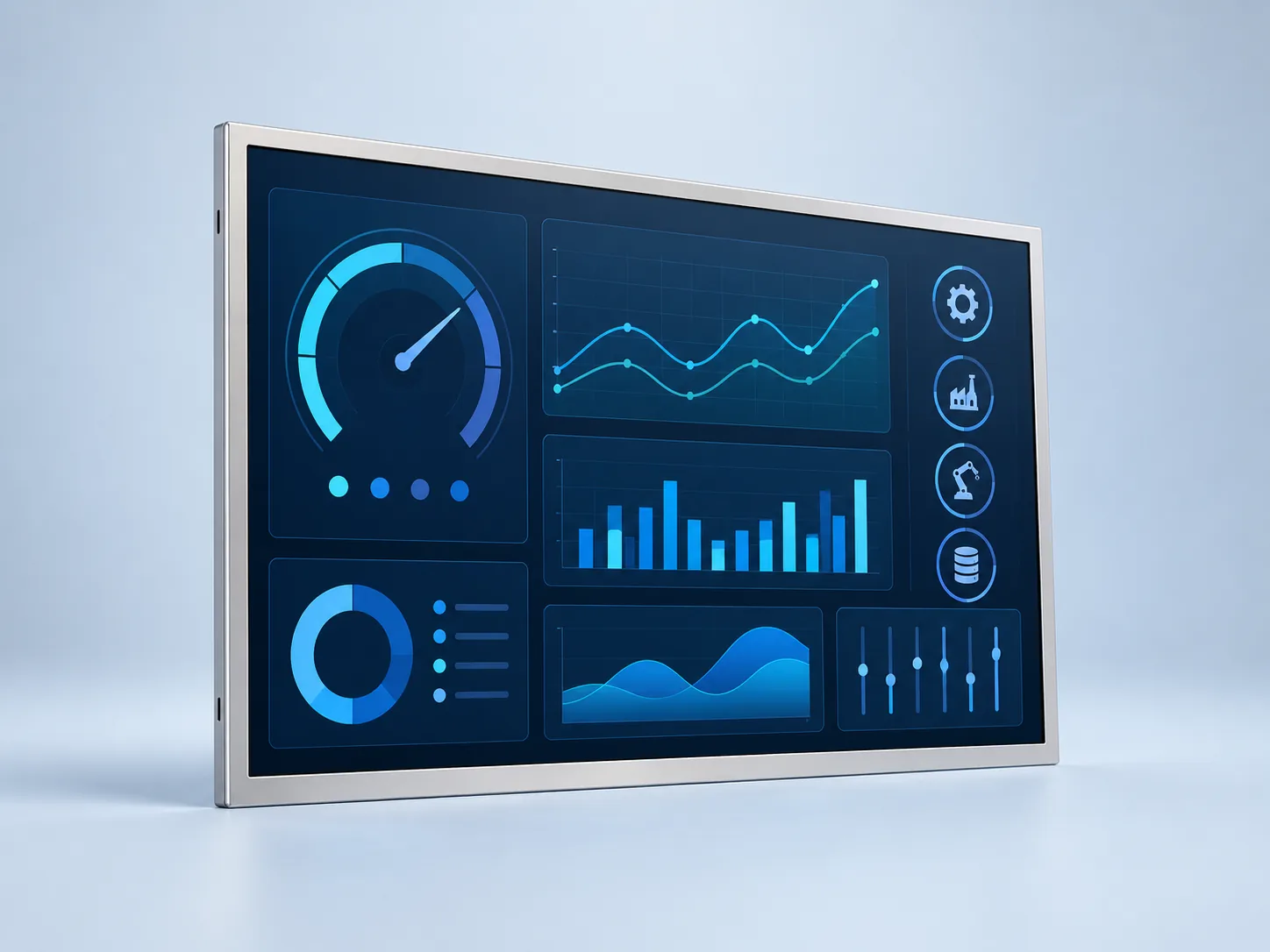

Angled reference view of DS-T101HIEWA-01 industrial TFT LCD

Angled module view

Confirm the approved drawing for mounting, connector routing and tolerances.

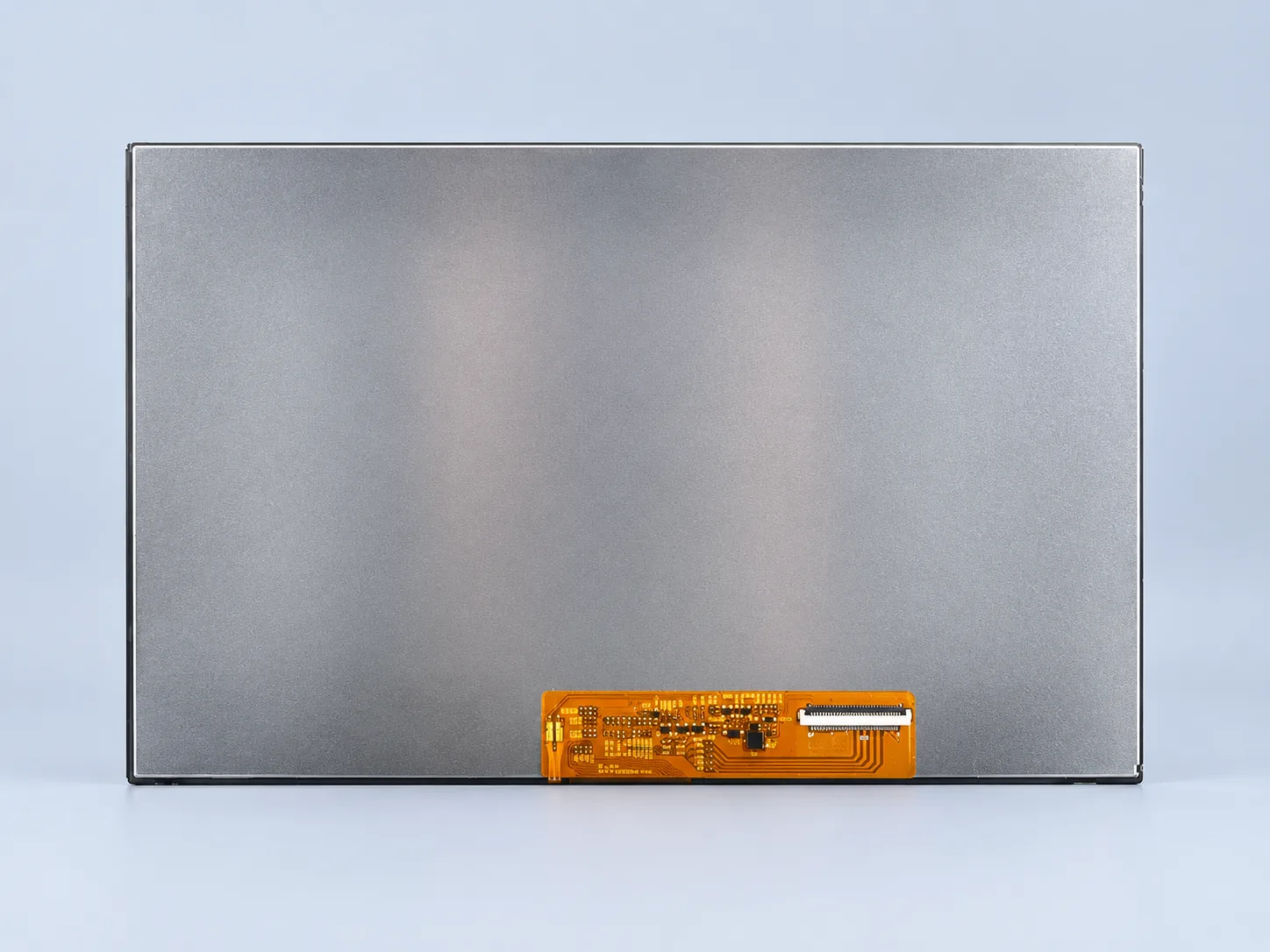

Rear reference view of DS-T101HIEWA-01 industrial TFT LCD

Rear view

Use current approved mechanical and electrical documentation for design details.

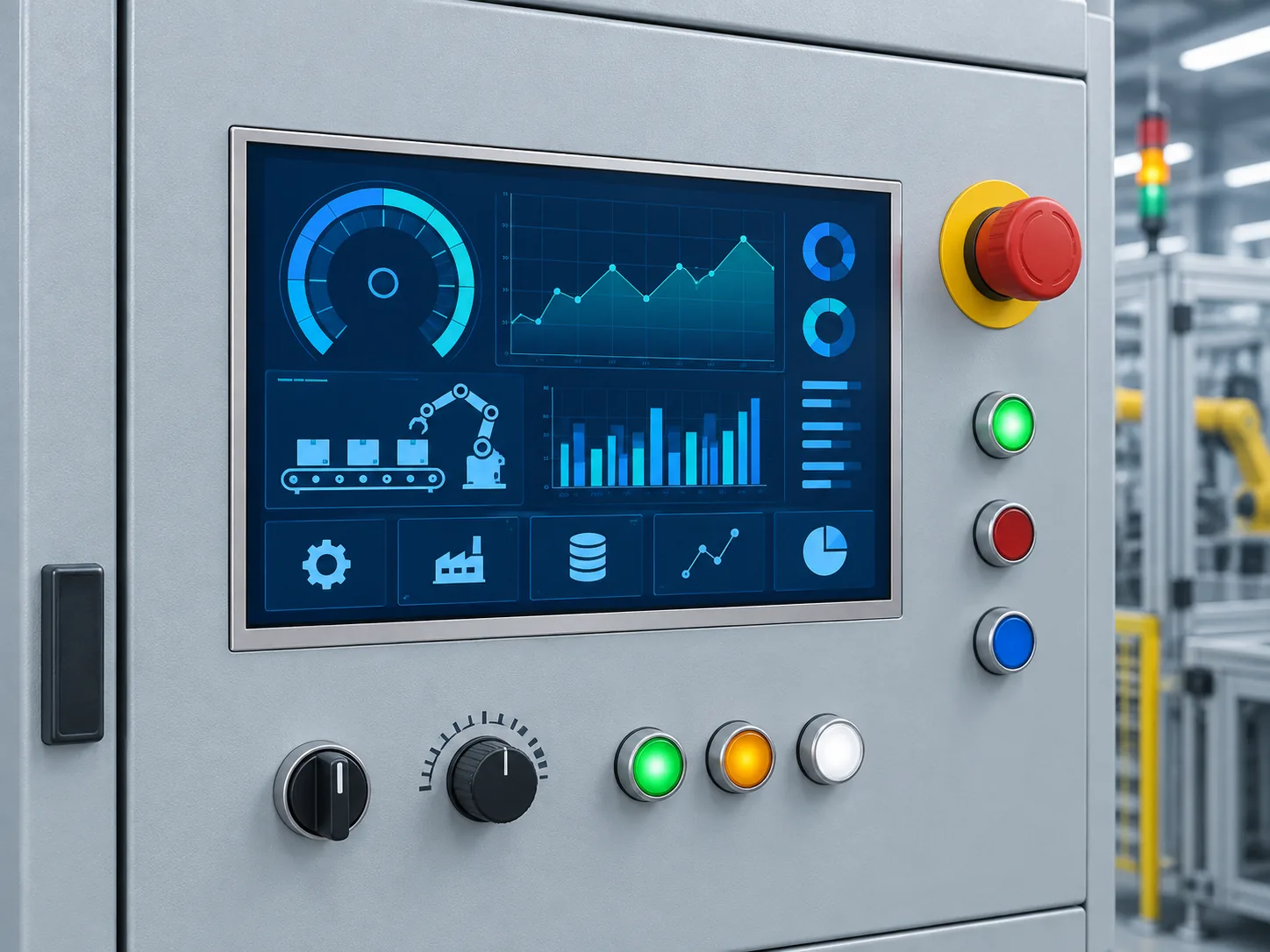

Application concept

An illustrative industrial control-panel concept, not a documented customer deployment or a mechanical integration drawing.

Illustrative industrial control-panel application using a 10.1-inch TFT LCD

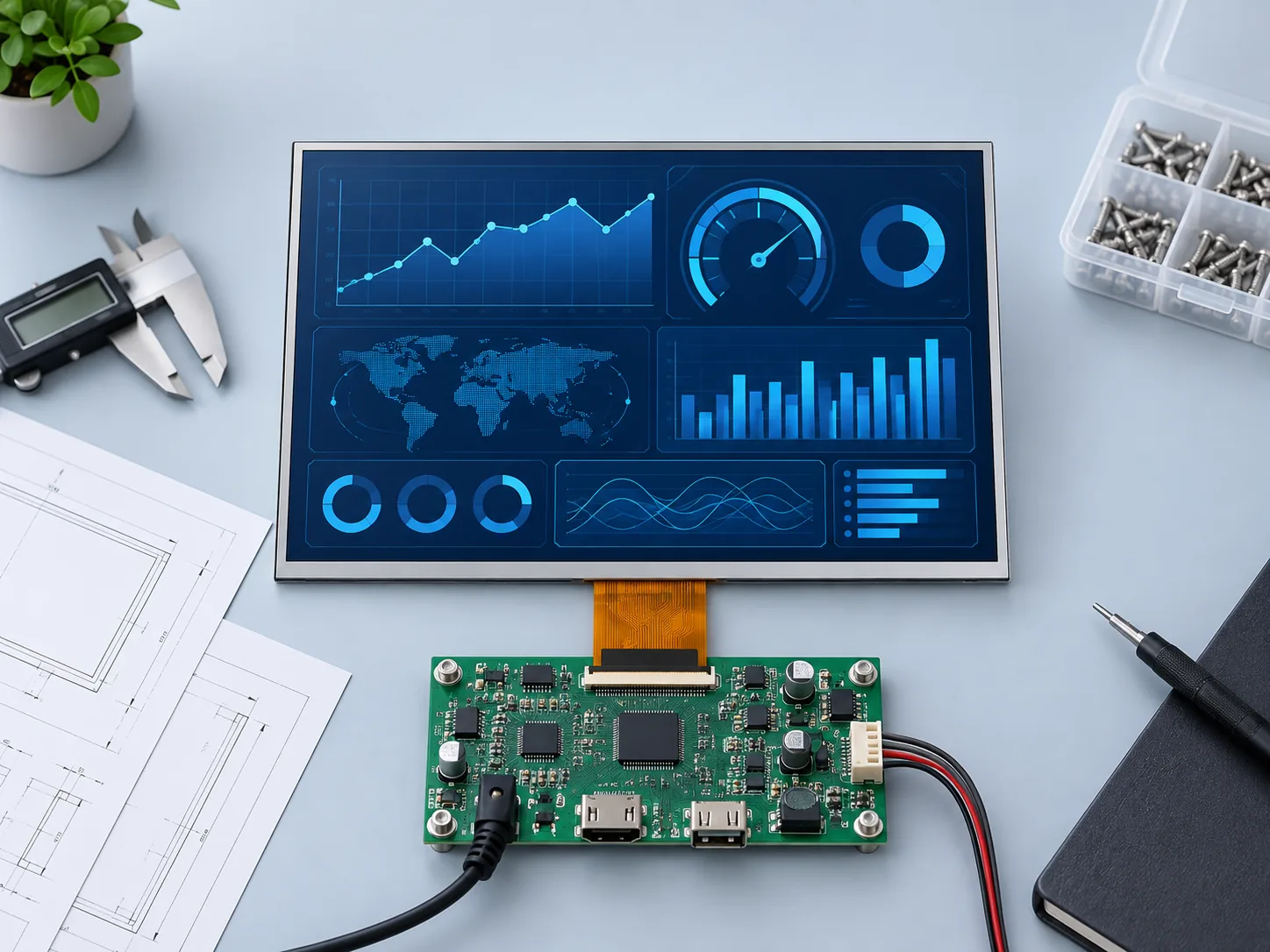

Engineering reference

Use this visual reference only during integration review. Confirm the approved mechanical drawing and electrical limits before production release.

Engineering workbench reference for DS-T101HIEWA-01 10.1-inch industrial TFT LCD

Mechanical reference

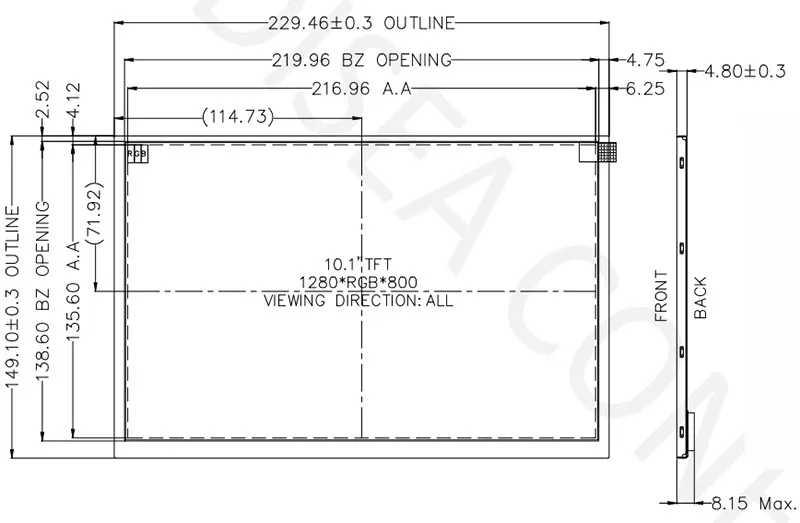

Mechanical drawing

Mechanical reference image published with the supplied product material.

The drawing gives DS-T101HIEWA-01 an active area of 216.96×135.60 mm and an outline of 229.46×149.10×4.80 mm, with 8.15 mm maximum depth indicated. Confirm the current approved drawing revision, pinout and keep-out zones before design lock.

Engineering checks before design-in

Request the current datasheet and approved drawing before locking enclosure, host-board and optical-stack details.

Mechanical fit

Confirm active area, outline, thickness, mounting holes, connector route and keep-out zones.

Host connection

Validate the LVDS 6/8-bit 40-pin pinout, timing, driver configuration and electrical limits.

Operating environment

Review high brightness, reflections, power and thermal design as part of the complete system.

Configuration comparison

Base 10.1-inch module or bonded PCAP assembly?

These are separately documented configurations. The shared diagonal and resolution do not make their front stack, outline or brightness interchangeable.

View the PCAP assembly →

Verified item	DS-T101HIEWA-01 base module	DS-T101HIEWA-01CP assembly
Display	10.1 inch, 1280×800 IPS	10.1 inch, 1280×800 IPS
Published luminance	1000 cd/m²	850 cd/m²
Display interface	LVDS 6/8-bit, 40-pin	LVDS 6/8-bit, 40-pin
Touch and bonding	No TP; no integrated touch assembly is documented	PCAP with ILI2511 controller; optical bonding
Published outline	229.46×149.10×4.80 mm; 8.15 mm maximum depth indicated	260.00×170.00×6.95 mm assembly
Operating temperature	−30 to +85 °C	−30 to 85 °C

On narrow screens, scroll the comparison table horizontally.

Choose the base module when the front-panel and touch design will be reviewed separately. Shortlist the documented CP assembly when integrated PCAP and bonding match the project, then validate the cover, touch FPC, controller, enclosure opening and optical result. Do not assume that adding touch to the base module reproduces the CP specification.

Use the current controlled drawings and electrical documents for either model before tooling or sample approval. Read the optical bonding design guide for front-stack review.

Product questions

DS-T101HIEWA-01 FAQ

Does DS-T101HIEWA-01 include a touch panel?

No. The verified DS-T101HIEWA-01 configuration is recorded as “No TP”. Touch and cover-lens requirements need a separate assembly review; PCAP modules are a distinct selection path.

What are the documented interface and temperature limits?

The documented module interface is LVDS 6/8-bit 40-pin, and operating and storage temperatures are both −30 to +85 °C. Confirm the current electrical and thermal documentation for the complete system, including the source-to-panel LVDS link.

Which outline should be used for DS-T101HIEWA-01 tooling?

The published module outline is 229.46×149.10×4.80 mm, with 8.15 mm maximum depth indicated. Release tooling only against the current approved mechanical drawing and tolerances.

Is DS-T101HIEWA-01 interchangeable with the bonded PCAP DS-T101HIEWA-01CP?

No. This base model is documented at 1000 cd/m² with no touch and a 229.46×149.10 mm module outline. The separate DS-T101HIEWA-01CP is documented at 850 cd/m² with PCAP, optical bonding and a 260.00×170.00 mm assembly outline. Compare the controlled drawings, touch interface, backlight and host requirements.

Review DS-T101HIEWA-01 against your project.

Send the host platform, enclosure constraints, target quantity and viewing environment for a fit review.
