DS-T043BPSA-02 is a 4.3-inch 480×272 TFT LCD with IPS viewing, 1000-nit luminance, RGB 24-bit 40-pin interface and no touch panel.
Confirm the current datasheet, pinout and mechanical drawing before design-in.
DS-T043BPSA-02 is the 4.3-inch 480×272 IPS no-touch option with 1000 cd/m² luminance and a 24-bit RGB, 40-pin interface. For a compact control display, confirm that the UI remains readable at this resolution and that the published −20 to 70 °C range covers the enclosure conditions; integrated PCAP belongs to a different configuration.
Consider where the 4.3-inch landscape format, mounting outline and RGB interface fit the enclosure and host platform.
Evaluate active area, interface timing and optical performance against the instrument mechanics and viewing conditions.
1000 cd/m² supports high-brightness design goals; final readability also depends on cover lens, reflection and the complete front stack.
| Item | DS-T043BPSA-02 |
|---|---|
| Diagonal size | 4.3 inch |
| Resolution | 480×272 |
| LCD type | IPS |
| Luminance | 1000 cd/m² |
| Module interface | RGB 24-bit, 40-pin |
| LCD driver IC | ST7282A |
| Touch panel | No TP |
| Bonding type | Not specified in the supplied module list |
| Active area (W×H) | 95.04×53.86 mm |
| Module outline (W×H×D) | 105.50×67.20×2.95 mm |
| Operating temperature | −20 to 70 °C |
| Storage temperature | −30 to 80 °C |
The public page shows verified selection specifications and a mechanical reference for DS-T043BPSA-02. Obtain the current controlled datasheet before committing a pinout, timing configuration or production tooling.

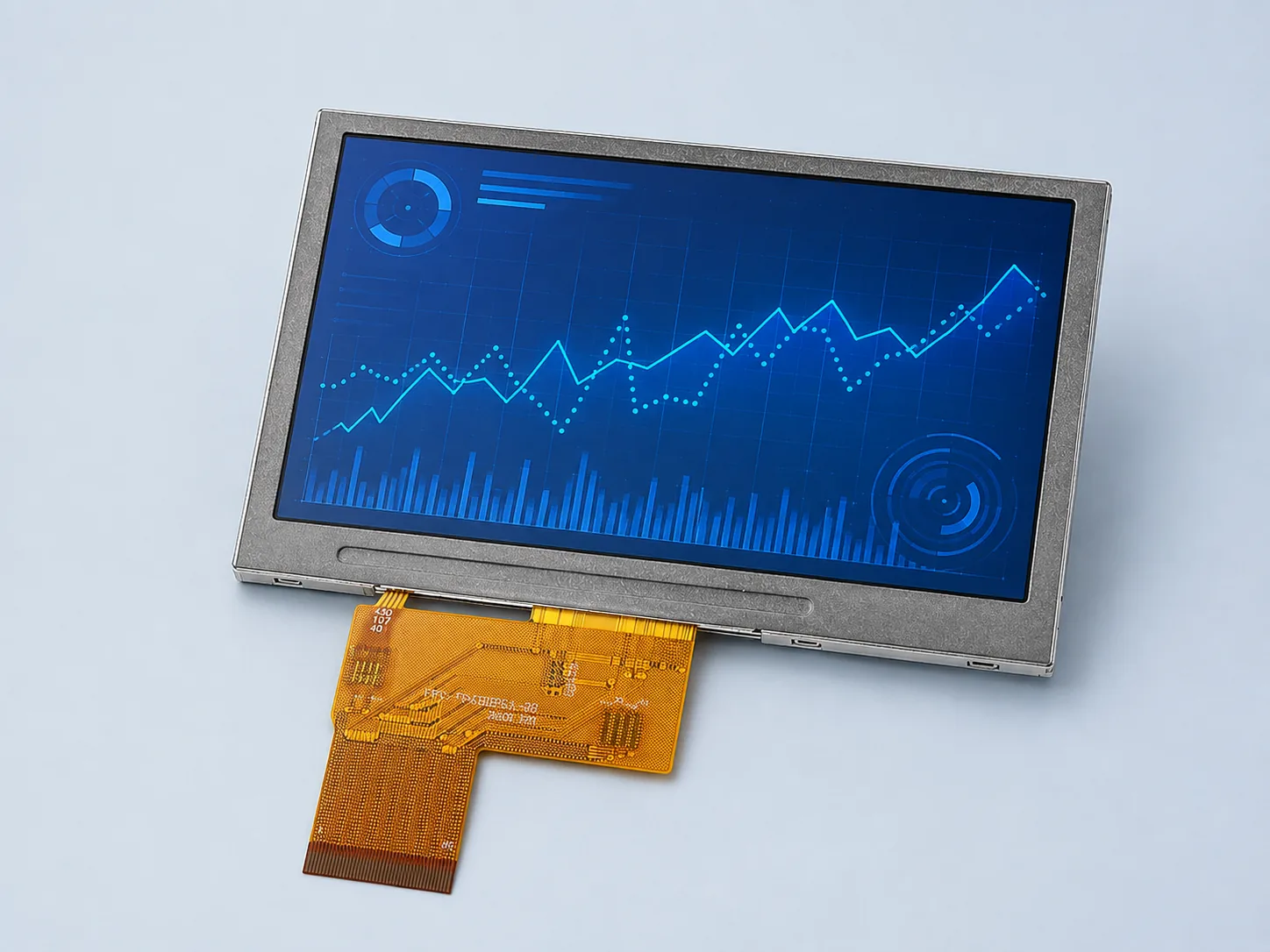

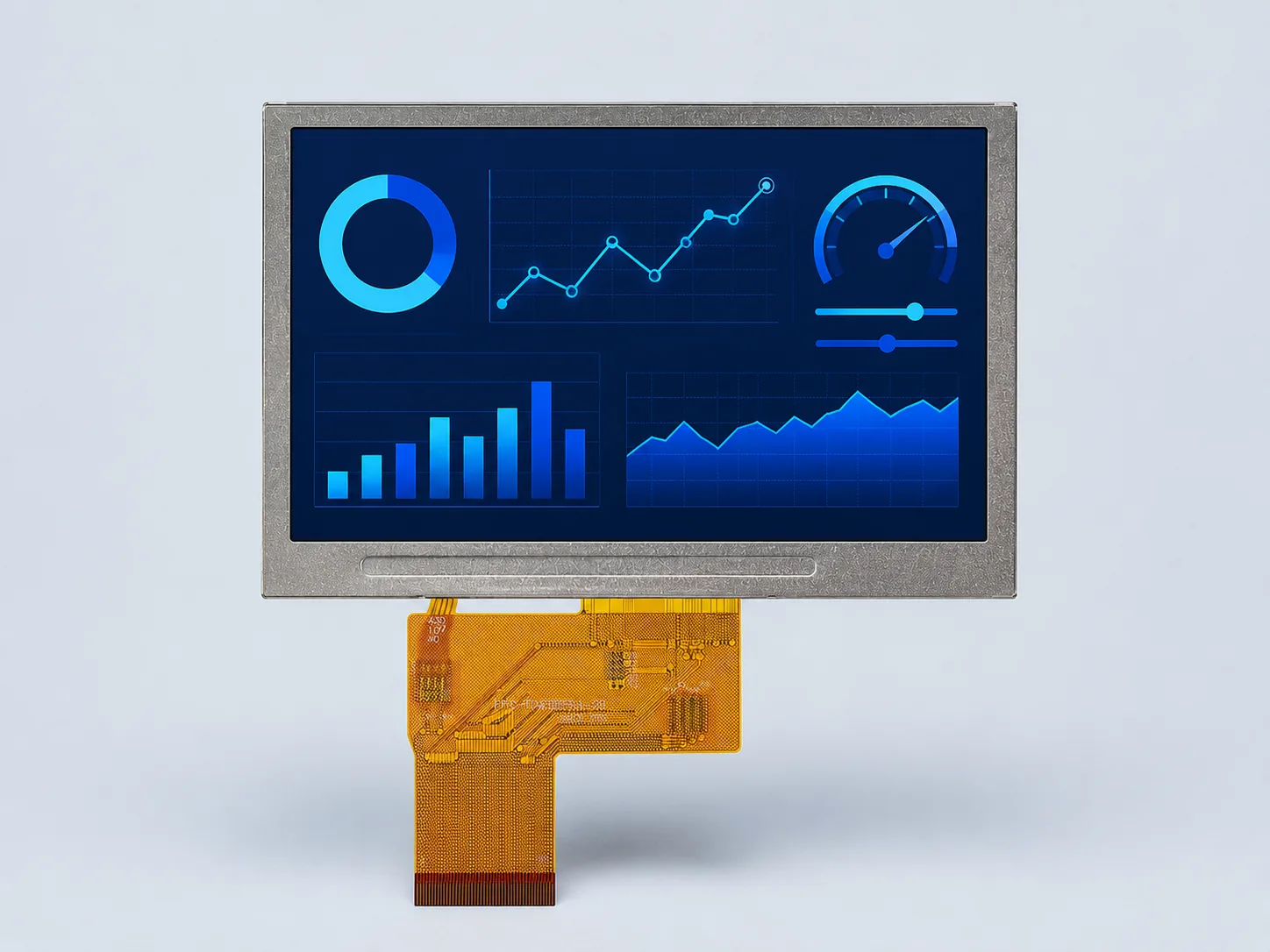

Module front with the complete FPC route visible.
For visual reference only; use the mechanical drawing for dimensions.

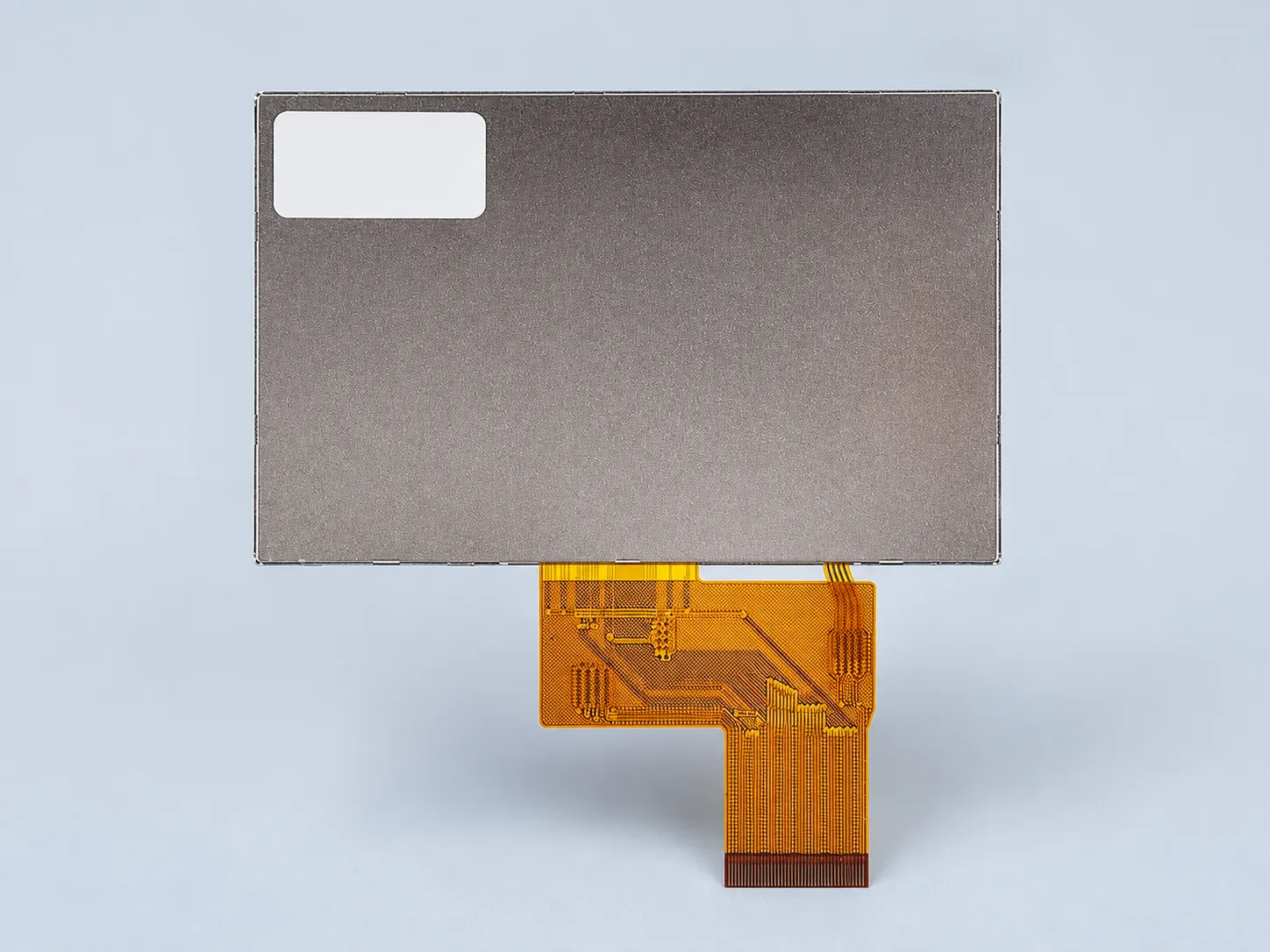

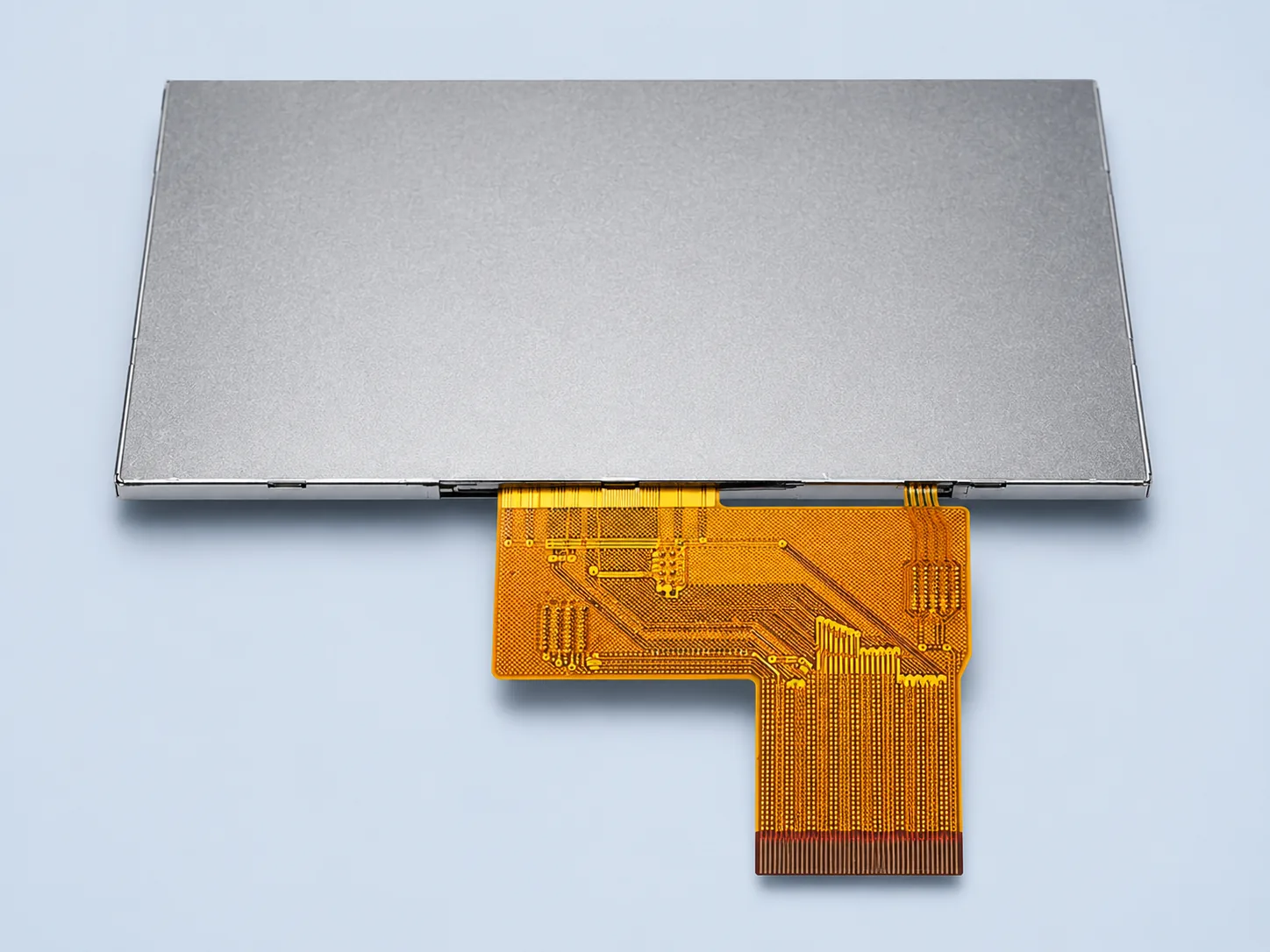

Backplate and complete FPC routing reference.
Use this view only as a visual reference; verify the approved drawing for routing, pinout, tolerances and keep-out zones.
An illustrative high-brightness display concept for outdoor test equipment. It is not a documented customer deployment or a mechanical integration drawing.

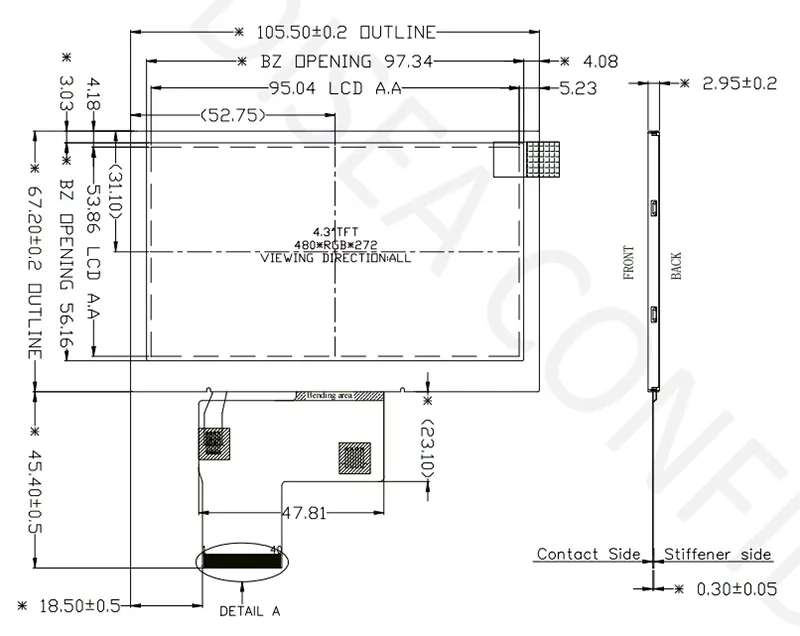

Use the current approved drawing for production release, tolerances and keep-out zones.
DS-T043BPSA-02 is listed with an RGB 24-bit, 40-pin module interface. The current approved datasheet is the authority for the exact pin assignment and electrical limits.
Use the current datasheet and drawing to validate the design details that cannot be established from a product list alone.
Review host interface, enclosure integration, viewing angle and touch requirements for an operator interface.
Explore HMI requirements →Review data readability, host architecture, interface fit and mechanical integration for instruments.
Explore test equipment →Evaluate cover lens reflection, thermal design and environmental constraints alongside the listed 1000 cd/m² luminance.
Explore outdoor considerations →Review UI density, host memory, timing and the mechanical consequences of 480×272 versus 800×480.
Read the 4.3-inch guide →Use luminance as one input alongside reflection, cover stack, power and thermal conditions.
View high-brightness options →Compare active area, FPC route, interface and touch requirements with the complete handheld system.
Explore handheld displays →DISEA standard TFT LCD module list · DS series 2026 V2.1 · PDF, 5 pages, 160 KB.
View the catalog reference (page 2) · Download full catalog ↓
Summary specifications only, not the controlled model-specific datasheet. Confirm the current datasheet, pinout and approved drawing for this exact model before design-in.
The visible mechanical drawing is a reference image. Request the current datasheet, controlled drawing, display timing, connector/pinout and backlight electrical requirements before design-in.
Include the host output, enclosure constraints, application and viewing environment, sample quantity and expected demand. Documentation revision, availability and commercial terms are confirmed during review; the public catalog does not imply stock availability or replace controlled model-specific documents.
Compare related published module configurations. Check the native host interface and sample validation checklist before approving a substitute or custom stack.
