Home / Industrial TFT / DS-T101BFHA-01CP

10.1 inch1920×1200IPS1000 cd/m²PCAPOptical bonding

DS-T101BFHA-01CP

10.1-Inch 1920×1200 1000-Nit Optically Bonded PCAP TFT for HMI

Q: Does DS-T101BFHA-01CP include touch and optical bonding?

Yes. The verified configuration uses PCAP touch with an ILI2511 touch controller and optical bonding.

DS-T101BFHA-01CP is a 10.1-inch 1920×1200 IPS LCD assembly with 1000 cd/m² luminance, optically bonded PCAP and dual-channel 8-bit LVDS through a 45-pin connection. Review the display link and separate touch connection against the actual HMI host.

ModelDS-T101BFHA-01CP

Size10.1 inch

Resolution1920×1200

PanelIPS

Luminance1000 cd/m²

TouchPCAP

Request Sample / Project Review Check Specs

Confirm the current datasheet, pinout and approved mechanical drawing before design-in.

Project fit

Choosing DS-T101BFHA-01CP for your equipment

DS-T101BFHA-01CP supplies a 10.1-inch 1920×1200 IPS display with ILI2511 PCAP and optical bonding for detailed operator or instrument layouts. The 1000 cd/m² assembly uses two-channel, 8-bit LVDS through a 45-pin connection and lists −20 to 70 °C operation, making host bandwidth, pinout and the 260.00×170.00×6.73 mm front assembly important checks.

Verified product facts

DS-T101BFHA-01CP specification

Item	DS-T101BFHA-01CP
Diagonal size	10.1 inch
Resolution	1920×1200
LCD type	IPS
Luminance	1000 cd/m²
Module interface	LVDS 2-channel, 8-bit, 45-pin
Touch panel	CTP / PCAP
Touch controller	ILI2511
Bonding type	Optical bonding
Active area (W×H)	216.81×135.50 mm
PCAP assembly outline (W×H×D)	260.00×170.00×6.73 mm
Operating temperature	−20 to 70 °C
Storage temperature	−30 to 80 °C

Module views

Complete PCAP module and FPC references.

Front reference view of DS-T101BFHA-01CP 10.1-inch PCAP TFT LCD with black cover glass

Front assembly reference

Black PCAP cover glass and the active display area are visible.

Angled reference view of DS-T101BFHA-01CP 10.1-inch PCAP industrial TFT LCD

Angled module view

Use the approved drawing for mounting, connector routing and tolerances.

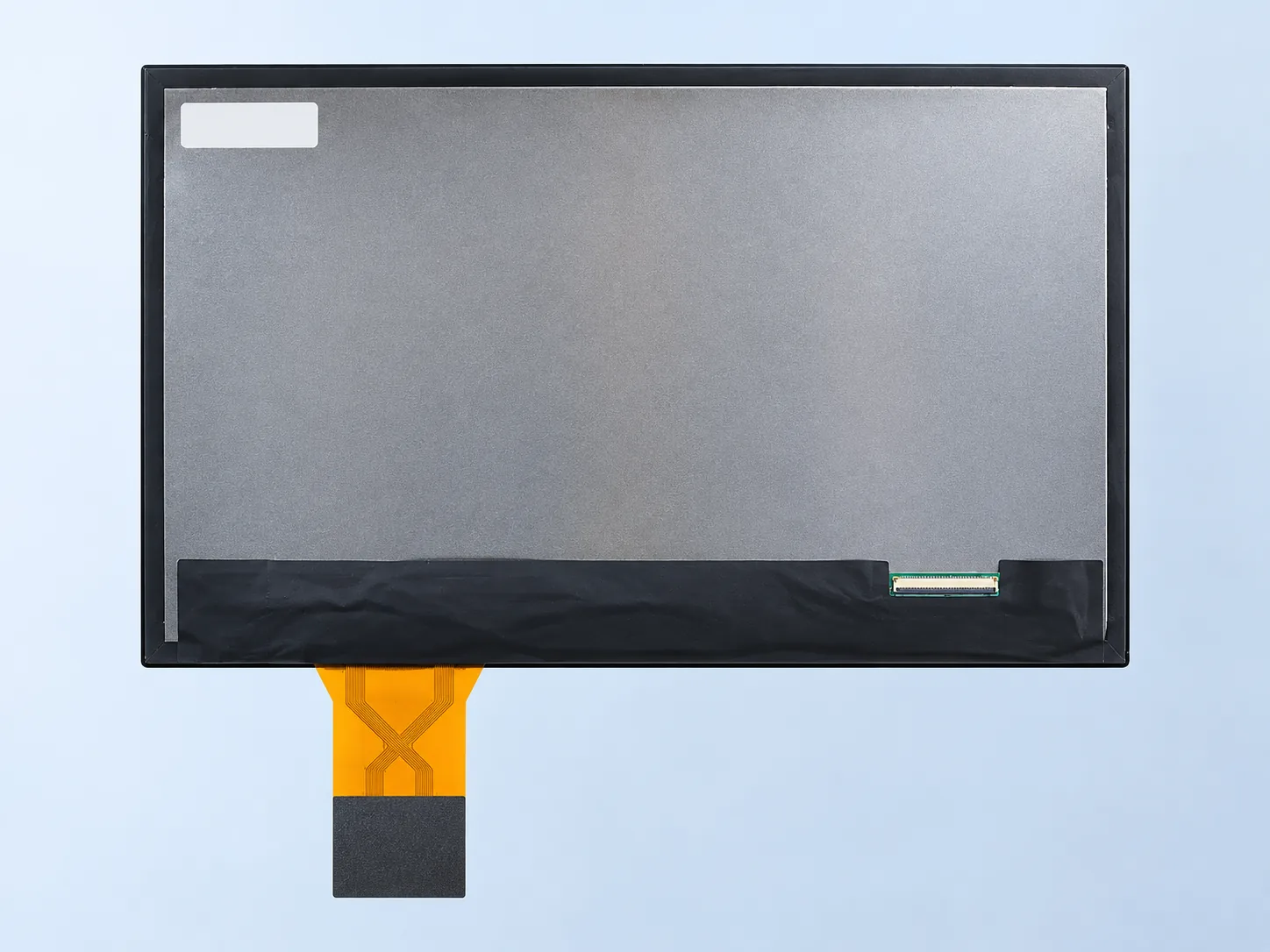

Rear reference view of DS-T101BFHA-01CP showing the metal backplate and FPC assembly

Rear view

Use current approved mechanical and electrical documentation for design details.

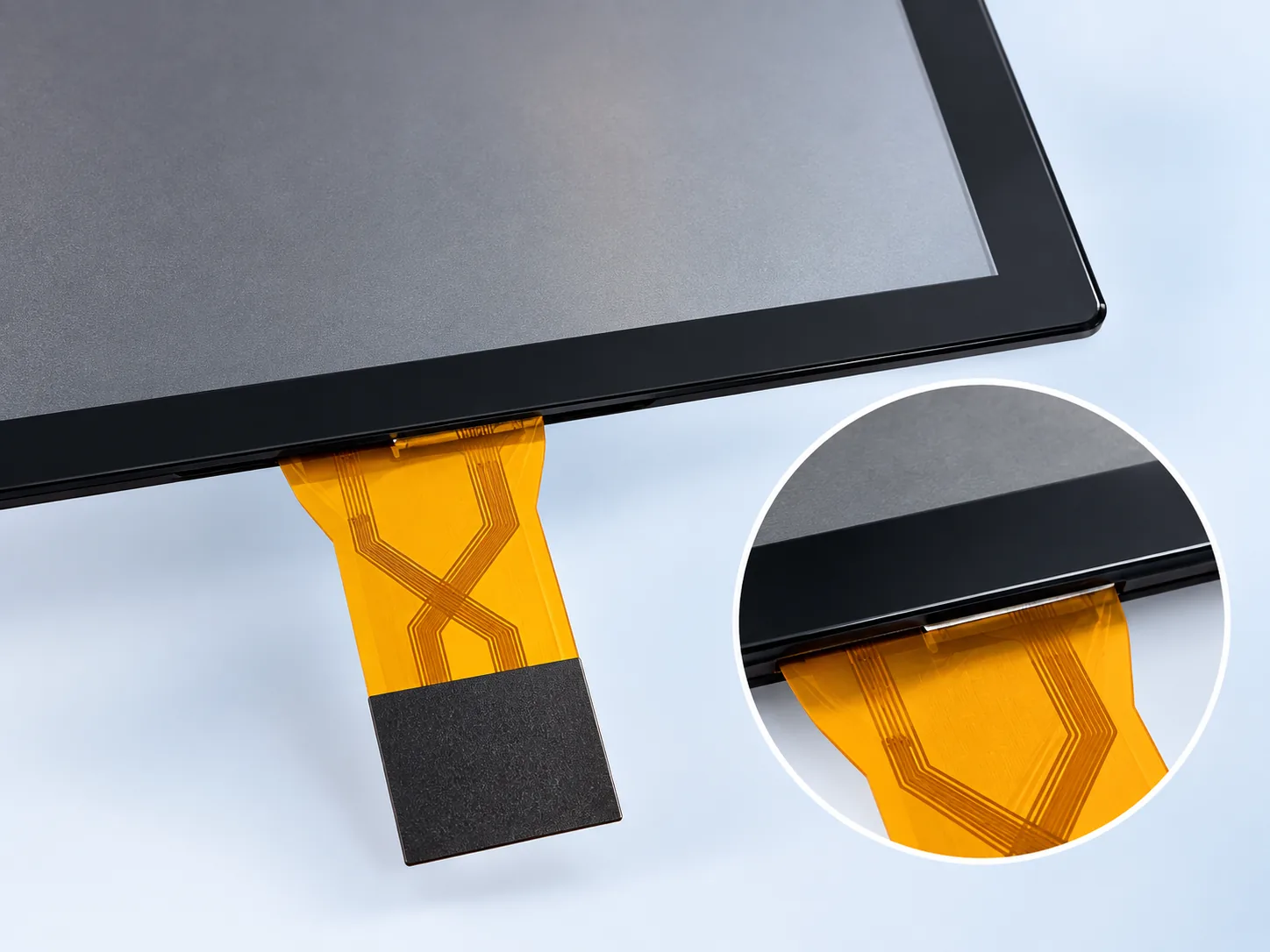

PCAP and FPC detail

The touch FPC detail is shown for visual orientation. Verify the approved drawing, pinout and keep-out zones before tooling.

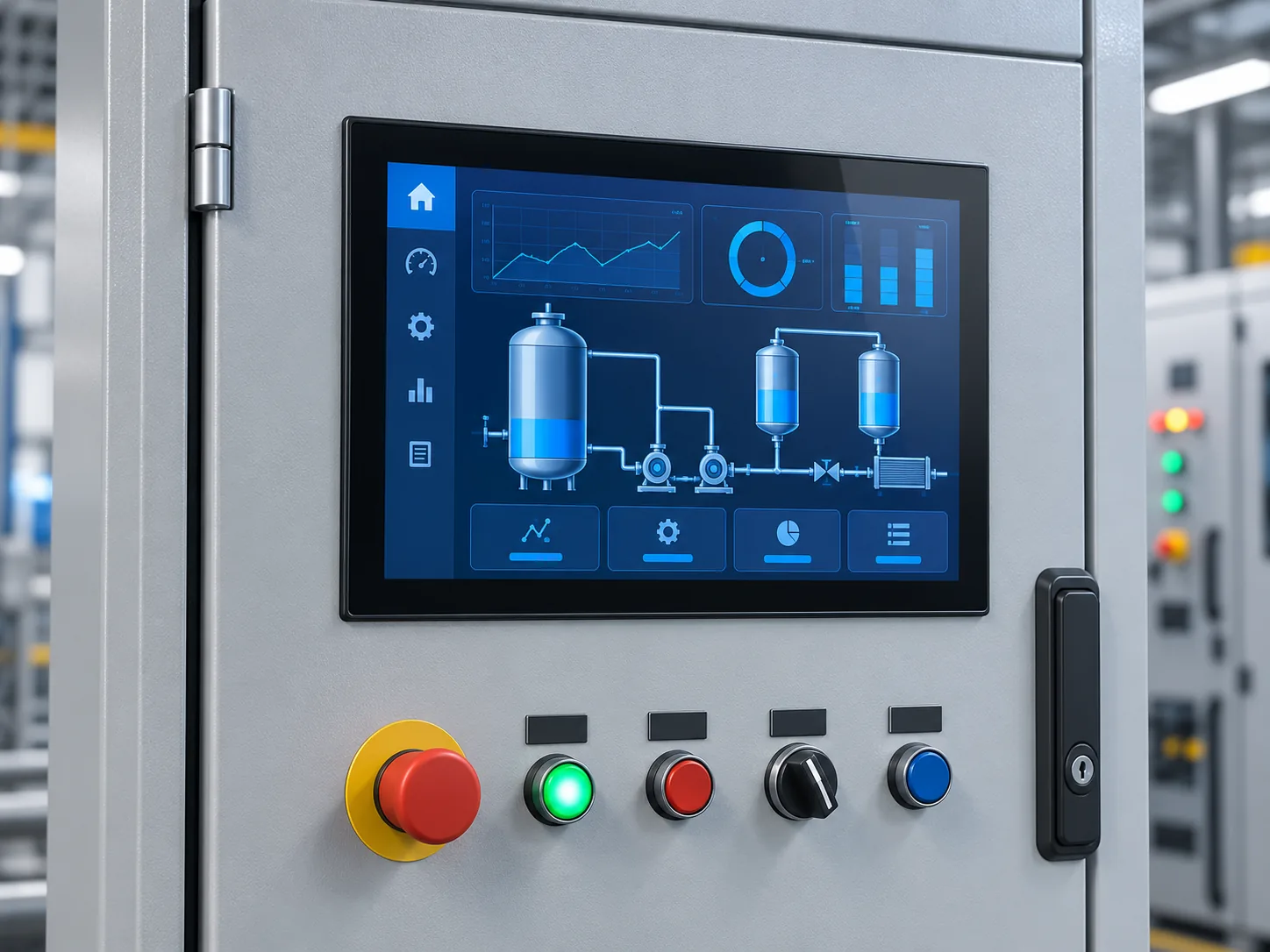

Application concept

Illustrative industrial HMI concept only; it is not a documented customer deployment or mechanical integration drawing.

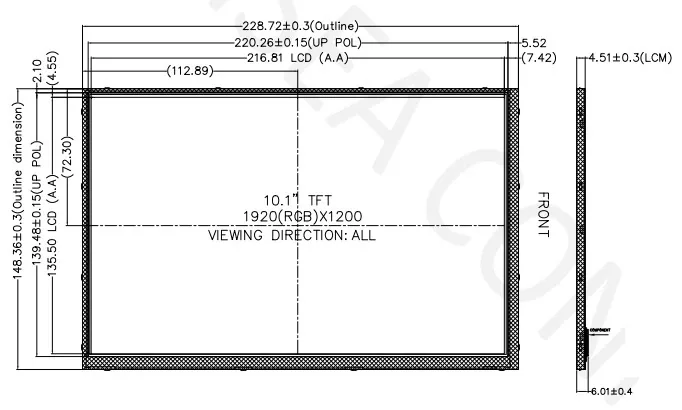

Base LCD reference

Supplied DS-T101BFHA-01 base LCD mechanical drawing.

DS-T101BFHA-01 base LCD mechanical drawing showing a 228.72×148.36×4.51 mm outline and 216.81×135.50 mm active area

This supplied drawing is for the DS-T101BFHA-01 base LCD, not the DS-T101BFHA-01CP PCAP assembly. For CP enclosure and tooling work, use the CP assembly outline in the specification table and confirm the current approved DS-T101BFHA-01CP drawing, pinout and keep-out zones.

Engineering selection

When should DS-T101BFHA-01CP be shortlisted?

Shortlist this verified configuration when the project boundary calls for a 10.1-inch 1920×1200 IPS display, a 1000 cd/m² target, integrated PCAP touch, optical bonding and the documented dual-channel LVDS link. Confirm host bandwidth, the complete front stack and the CP assembly drawing before release.

Review industrial HMI requirements →

Budget for the native pixel count

1920×1200 contains 2.304 million pixels per frame. Verify that the host, memory path and display output can generate the exact native timing through the documented dual-channel 8-bit LVDS interface and 45-pin connector.

Treat 1000 cd/m² as one system input

The documented panel luminance is not a guarantee of finished outdoor readability. Review the cover surface, optical stack, ambient reflection, UI contrast, backlight drive and enclosure temperature with the outdoor brightness guide.

Release from the CP assembly drawing

The product table records a 260.00×170.00×6.73 mm PCAP assembly outline. The drawing shown below is explicitly a base-LCD reference, so obtain and approve the current DS-T101BFHA-01CP assembly drawing before enclosure tooling.

Compare resolution without assuming interchangeability

If 1280×800 is sufficient, compare DS-T101HIEWA-01CP. Its pixel count, documented LVDS connection, stack depth and temperature limits differ; the two 10.1-inch modules are not drop-in substitutes.

Product questions

DS-T101BFHA-01CP FAQ

What host interface does DS-T101BFHA-01CP use?

The documented module interface is dual-channel, 8-bit LVDS with a 45-pin connector. Confirm the current pinout, mapping, timing and electrical limits before design-in. See the TFT LCD interface guide for the wider selection workflow.

Does DS-T101BFHA-01CP include touch and optical bonding?

Yes. This verified configuration uses PCAP touch with an ILI2511 touch controller and optical bonding. Touch behavior, cover construction and the bonded stack should still be validated in the actual enclosure and use conditions.

Which drawing should be used for the DS-T101BFHA-01CP enclosure?

Use the current approved drawing for the complete CP assembly. The supplied drawing shown on this page is for the DS-T101BFHA-01 base LCD, while the documented CP assembly outline is 260.00×170.00×6.73 mm.

How does this 1920×1200 model differ from the 1280×800 10.1-inch option?

This model is documented at 1920×1200, 1000 cd/m² and dual-channel 8-bit LVDS 45-pin. The separate DS-T101HIEWA-01CP is documented at 1280×800, 850 cd/m² and LVDS 6/8-bit 40-pin. Compare host bandwidth, pinout, temperature range, stack depth and thermal conditions before choosing.

Engineering-led selection

DS-T101BFHA-01CP datasheet, pinout and sample review

Public catalog reference for DS-T101BFHA-01CP

DISEA standard TFT LCD module list · DS series 2026 V2.1 · PDF, 5 pages, 160 KB.

View the catalog reference (page 4) · Download full catalog ↓

Summary specifications only, not the controlled model-specific datasheet. Confirm the current datasheet, pinout and approved drawing for this exact model before design-in.

Engineering document request

The visible mechanical drawing is a reference image. Request the current datasheet, controlled drawing, display timing, connector/pinout and backlight electrical requirements before design-in, plus touch-controller and touch-connection documentation for this assembly.

Include the host output, enclosure constraints, application and viewing environment, sample quantity and expected demand. Documentation revision, availability and commercial terms are confirmed during review; the public catalog does not imply stock availability or replace controlled model-specific documents.

Request datasheet and sample review Discuss customization

Compare before choosing

Compare related published module configurations. Check the native host interface and sample validation checklist before approving a substitute or custom stack.

Review DS-T101BFHA-01CP against your project.

Send the host platform, enclosure constraints, target quantity, touch environment and viewing conditions for a fit review.

Request Project Review
