DS-T070TISA-01

7-Inch 1280×800 IPS LVDS TFT for High-Resolution Industrial HMI

DS-T070TISA-01 combines a 7-inch 1280×800 IPS panel, 400 cd/m² luminance, LVDS 8-bit 40-pin interface and no touch panel for industrial display integration.

ModelDS-T070TISA-01

Size7.0 inch

Resolution1280×800

PanelIPS

Luminance400 cd/m²

InterfaceLVDS 8-bit, 40-pin

Request Sample / Project Review Check Specs

Confirm the current datasheet, pinout and mechanical drawing before design-in.

Potential project fit

A 7-inch 1280×800 IPS TFT LCD for detailed industrial interfaces.

DS-T070TISA-01 is a 7-inch 1280×800 IPS module for reviewing denser instrument or operator-interface layouts with an 8-bit LVDS, 40-pin host connection. The documented 400 cd/m² luminance and −20 to 70 °C operation differ from the brighter 7-inch alternatives, so evaluate the actual viewing environment instead of selecting by resolution alone.

Industrial HMI

Consider where the 7-inch 16:10 format, module outline and LVDS interface fit the control enclosure and host platform.

Medical and test equipment

Evaluate the verified optical, mechanical and electrical characteristics against the application and regulatory requirements.

1280×800 resolution

The higher pixel count supports information-rich interfaces; validate UI scale, viewing distance and host timing before design-in.

Verified product facts

DS-T070TISA-01 specification

Item	DS-T070TISA-01
Diagonal size	7.0 inch
Resolution	1280×800
LCD type	IPS
Luminance	400 cd/m²
Module interface	LVDS 8-bit, 40-pin
LCD driver IC	ST5821C + ST5084C
Touch panel	No TP
Bonding type	Not specified in the supplied module list
Active area (W×H)	149.76×93.60 mm
Module outline (W×H×D)	161.00×107.00×3.35 mm
Operating temperature	−20 to 70 °C
Storage temperature	−30 to 80 °C

Module views

Front, rear and slim metal-structure references.

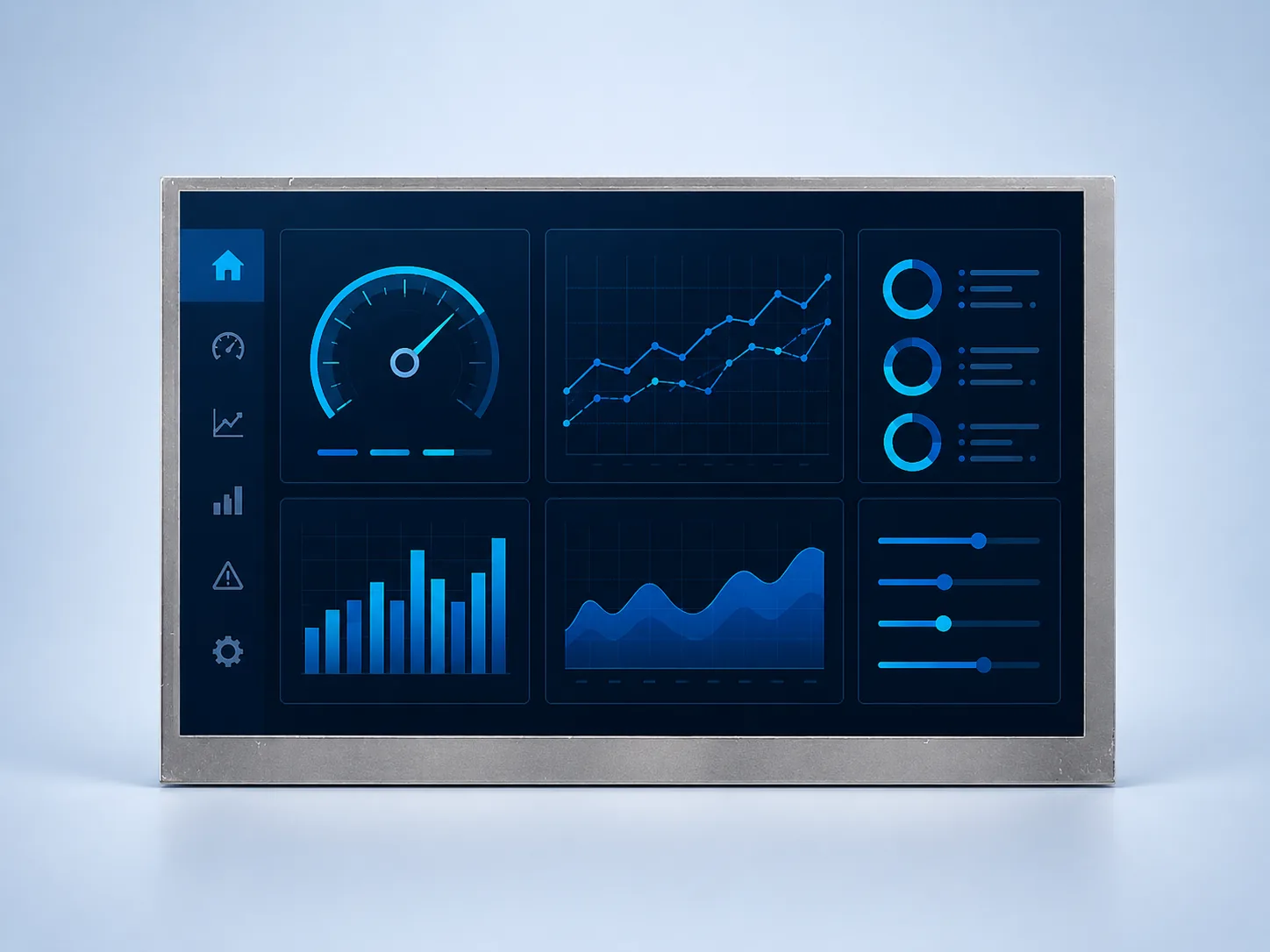

Front view

Complete front module and silver metal bezel reference.

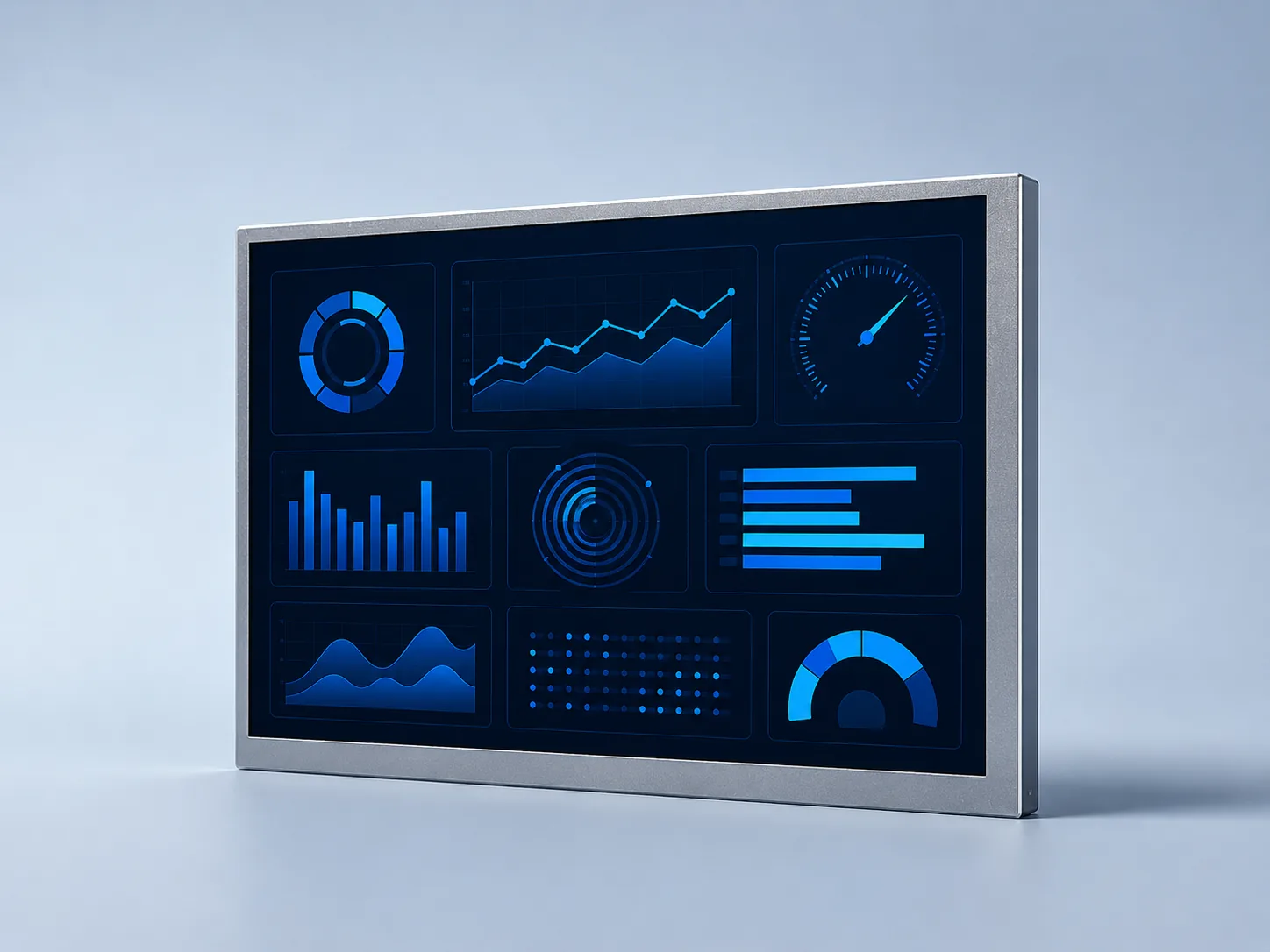

Angled view

Visual reference only; use the mechanical drawing for dimensions.

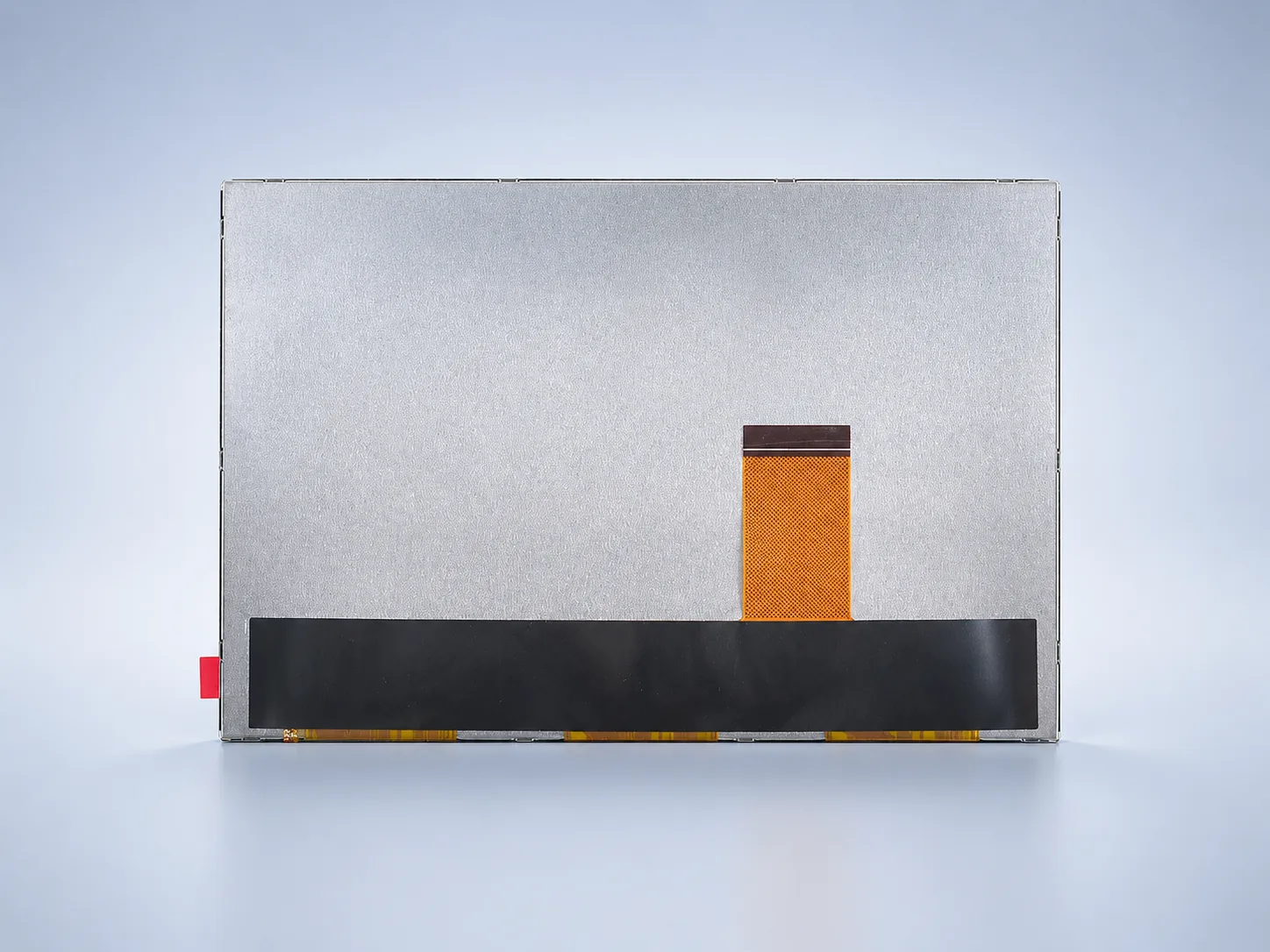

Rear view

Backplate, FPC routing and insulating-strip reference.

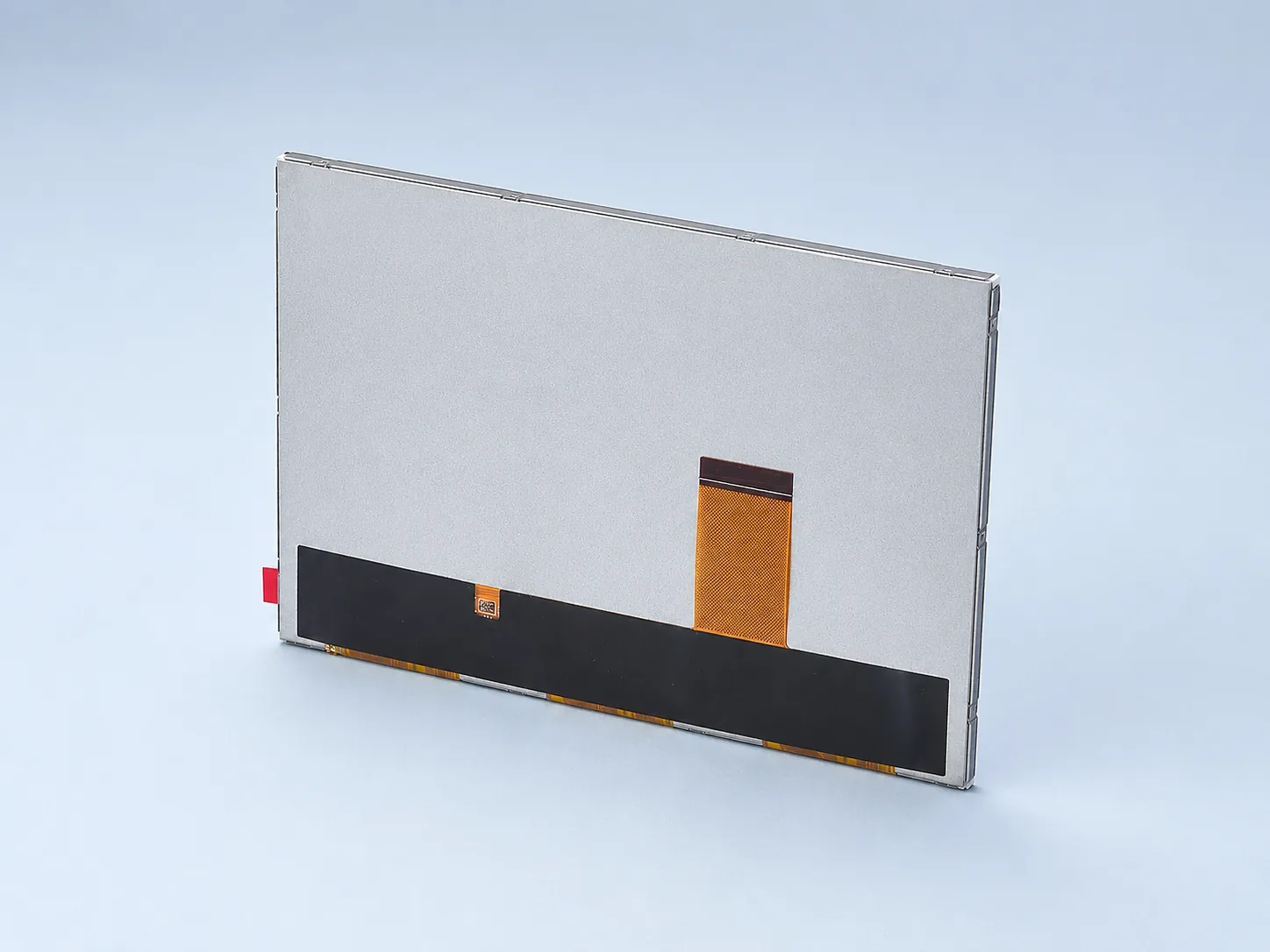

Rear structure detail

Use this view only as a visual reference; verify the approved drawing for connector position, tolerances and keep-out zones.

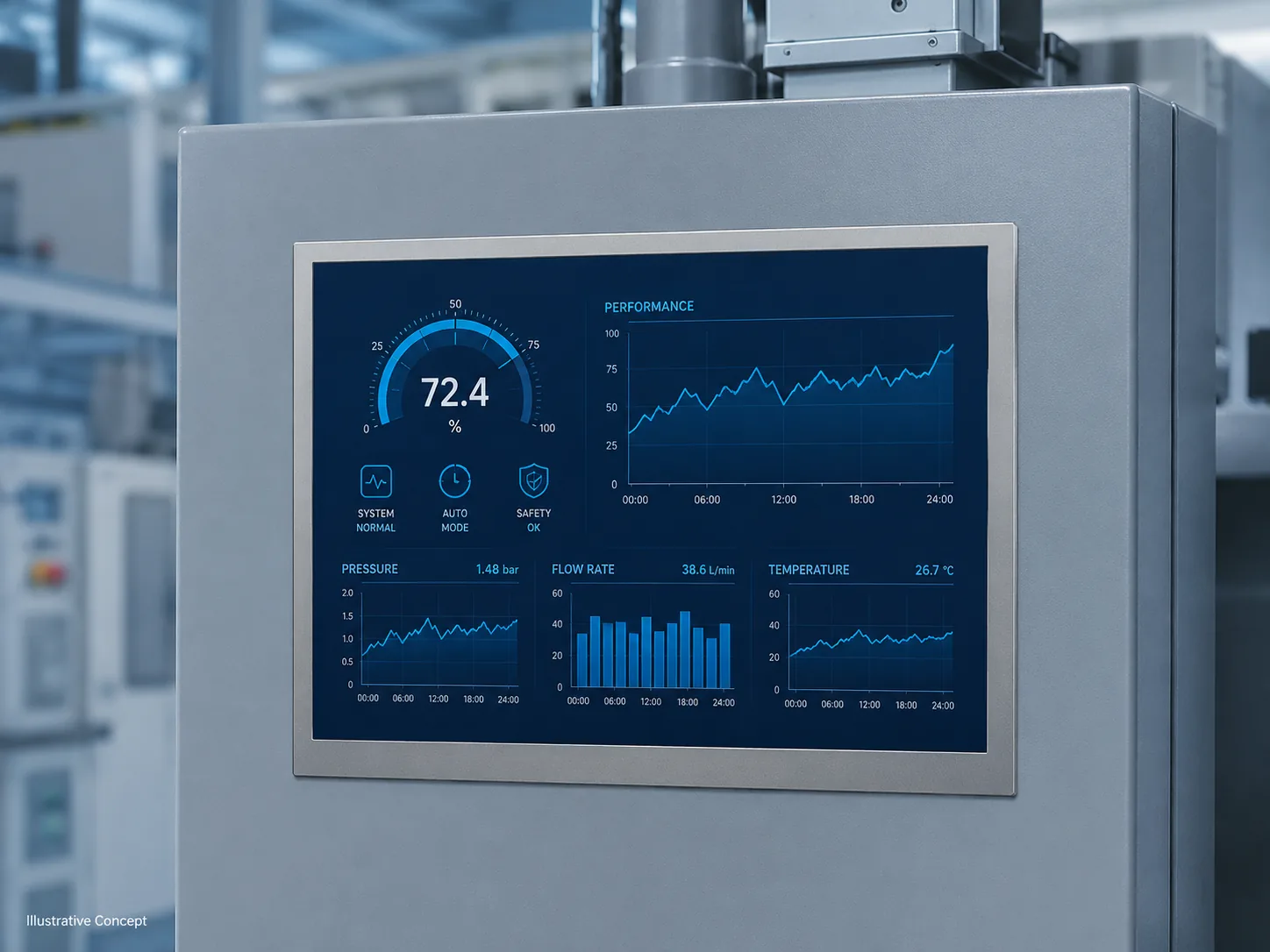

Application concept

An illustrative industrial HMI concept only; it is not a documented customer deployment or a mechanical integration drawing.

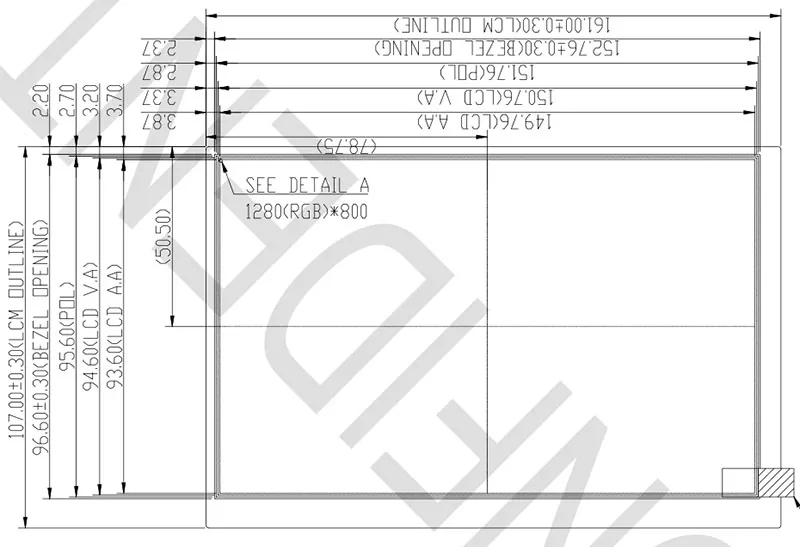

Mechanical reference

Outline, active area and viewing-area reference drawing.

DS-T070TISA-01 mechanical drawing showing outline, active area, thickness and viewing-area references

Use the current approved drawing for production release, tolerances and keep-out zones.

Engineering checks before design-in

Use the current datasheet and drawing to validate the design details that cannot be established from a product list alone.

Compare this exact model with the other 7-inch candidates in the 7-inch TFT LCD resolution selection guide before choosing between 800×480, 1024×600 and 1280×800.

Mechanical fit

Confirm active area, outline, connector position and keep-out zones against the enclosure.

Host connection

Validate LVDS 8-bit timing, 40-pin pinout, driver configuration and electrical limits. Review the LVDS cable-length selection workflow before freezing the harness.

Optical and viewing design

Confirm reflection, cover lens, UI scale, viewing distance and the complete product environment.

Engineering-led selection

DS-T070TISA-01 datasheet, pinout and sample review

Public catalog reference for DS-T070TISA-01

DISEA standard TFT LCD module list · DS series 2026 V2.1 · PDF, 5 pages, 160 KB.

View the catalog reference (page 3) · Download full catalog ↓

Summary specifications only, not the controlled model-specific datasheet. Confirm the current datasheet, pinout and approved drawing for this exact model before design-in.

Engineering document request

The visible mechanical drawing is a reference image. Request the current datasheet, controlled drawing, display timing, connector/pinout and backlight electrical requirements before design-in.

Include the host output, enclosure constraints, application and viewing environment, sample quantity and expected demand. Documentation revision, availability and commercial terms are confirmed during review; the public catalog does not imply stock availability or replace controlled model-specific documents.
