5.0 inch800×480IPS1000 cd/m²Wide temperature

DS-T050BWSWA-02

5-Inch 800×480 1000-Nit RGB TFT for Wide-Temperature HMI

DS-T050BWSWA-02 combines a 5-inch 800×480 IPS panel, 1000 cd/m² luminance, RGB 24-bit 40-pin interface, no touch panel and a −30 to 80 °C operating range.

ModelDS-T050BWSWA-02

Size5.0 inch

Resolution800×480

PanelIPS

Luminance1000 cd/m²

InterfaceRGB 24-bit, 40-pin

Request Sample / Project Review Check Specs

Confirm the current datasheet, pinout and mechanical drawing before design-in.

Potential project fit

A 5-inch 800×480 IPS TFT LCD for bright, wide-temperature industrial interfaces.

For a compact control panel that needs 1000 cd/m² luminance and a published −30 to 80 °C operating range, DS-T050BWSWA-02 pairs an 800×480 IPS panel with a 24-bit RGB, 40-pin interface. The module has no integrated touch panel; a touch front stack and cold-start performance need separate review in the finished enclosure.

Industrial controls

Consider where the 5-inch landscape format, module outline and RGB interface fit the enclosure and host platform.

Test & measurement

Evaluate active area, interface timing and optical performance against the instrument mechanics and viewing conditions.

1000-nit LCD display

1000 cd/m² supports high-brightness design goals; final readability also depends on cover lens, reflection and the complete front stack.

Verified product facts

DS-T050BWSWA-02 specification

Item	DS-T050BWSWA-02
Diagonal size	5.0 inch
Resolution	800×480
LCD type	IPS
Luminance	1000 cd/m²
Module interface	RGB 24-bit, 40-pin
LCD driver IC	ST7265
Touch panel	No TP
Bonding type	Not specified in the supplied module list
Active area (W×H)	108.00×64.80 mm
Module outline (W×H×D)	120.70×75.80×2.85 mm
Operating temperature	−30 to 80 °C
Storage temperature	−30 to 80 °C

Module views

Product, rear and FPC references.

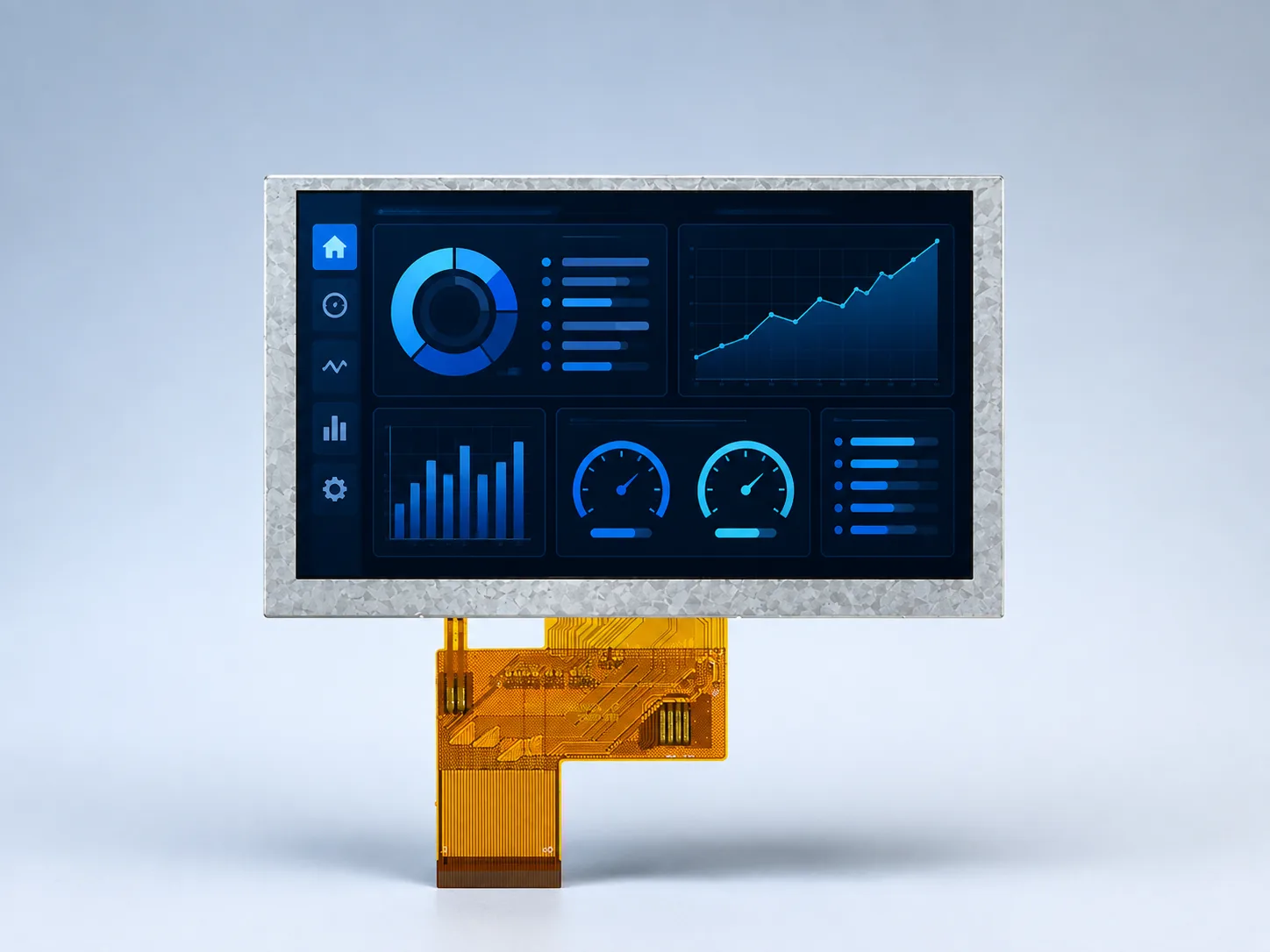

Front view

Module front with the complete FPC route visible.

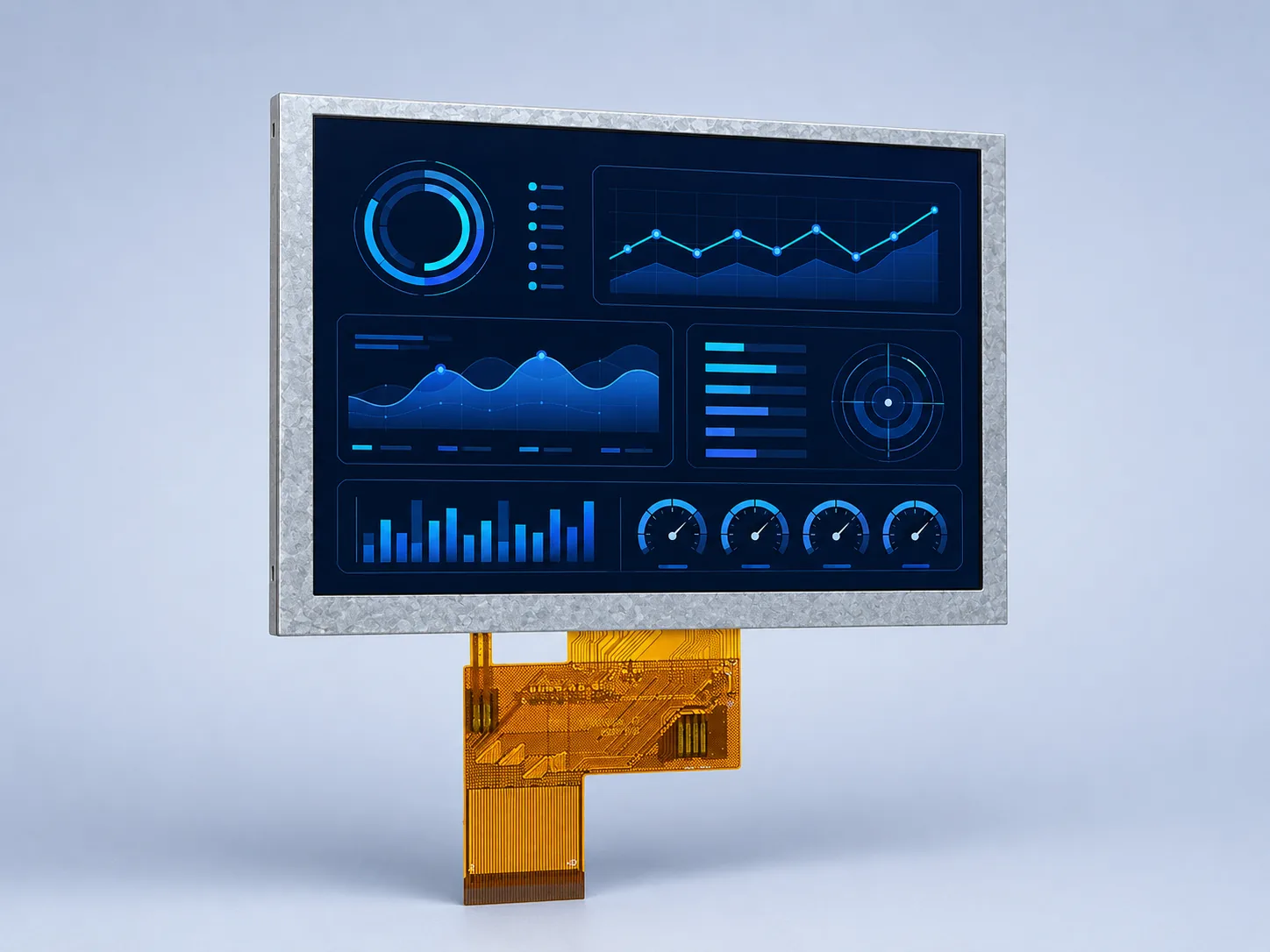

Angled view

Visual reference only; use the mechanical drawing for dimensions.

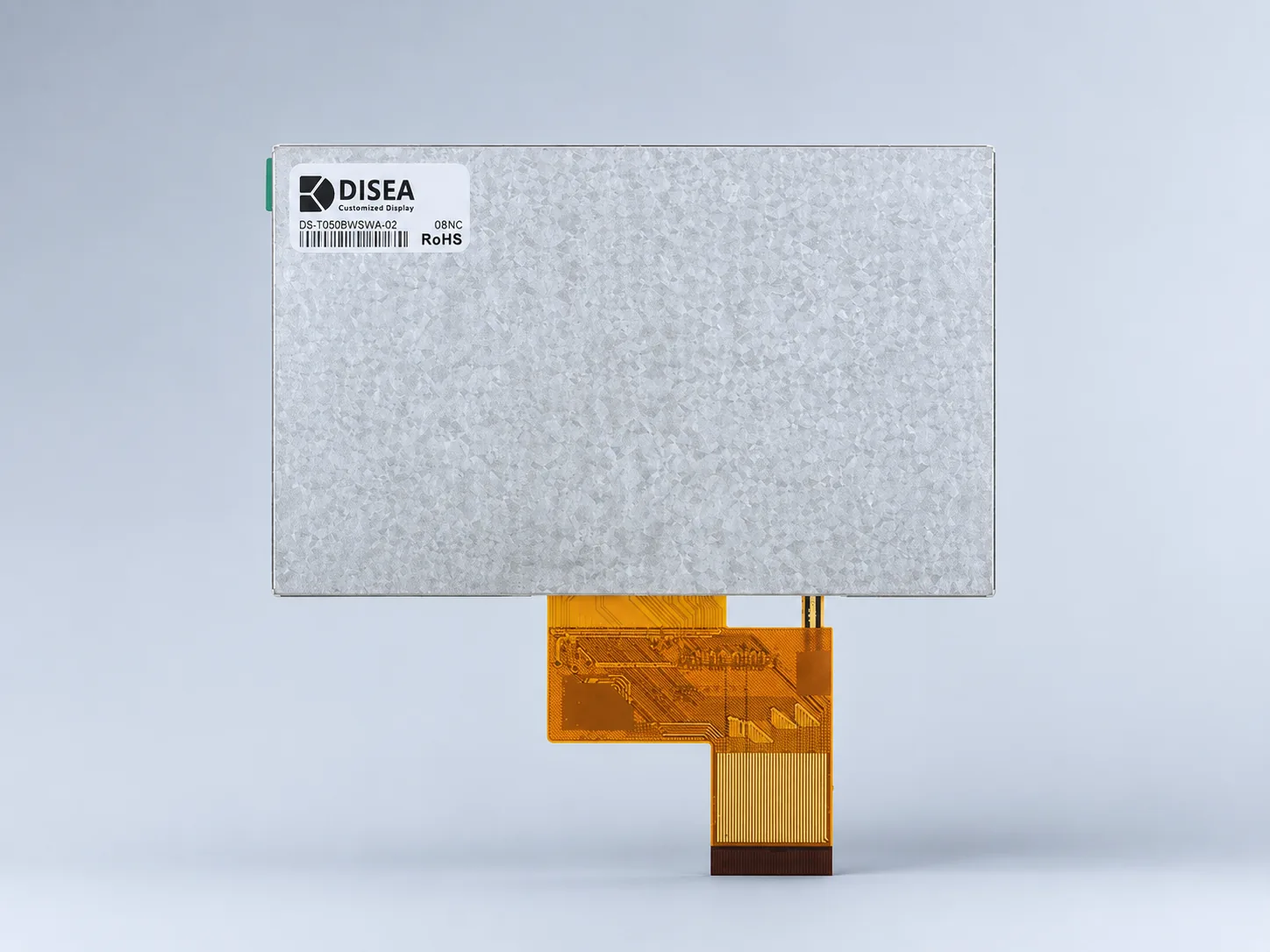

Rear view

Backplate and complete FPC routing reference.

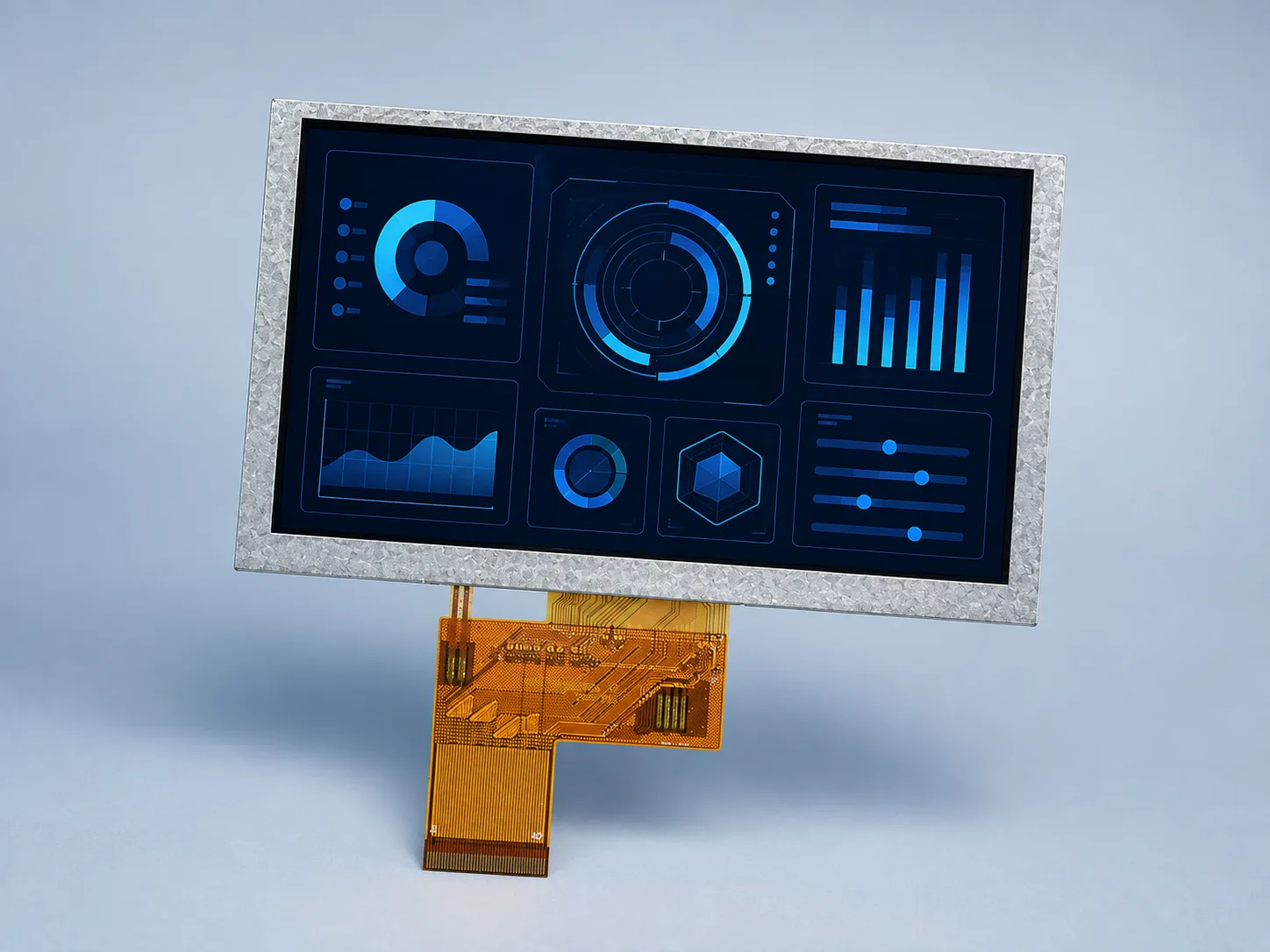

FPC detail view

Use this view only as a visual reference; verify the approved drawing for routing, pinout, tolerances and keep-out zones.

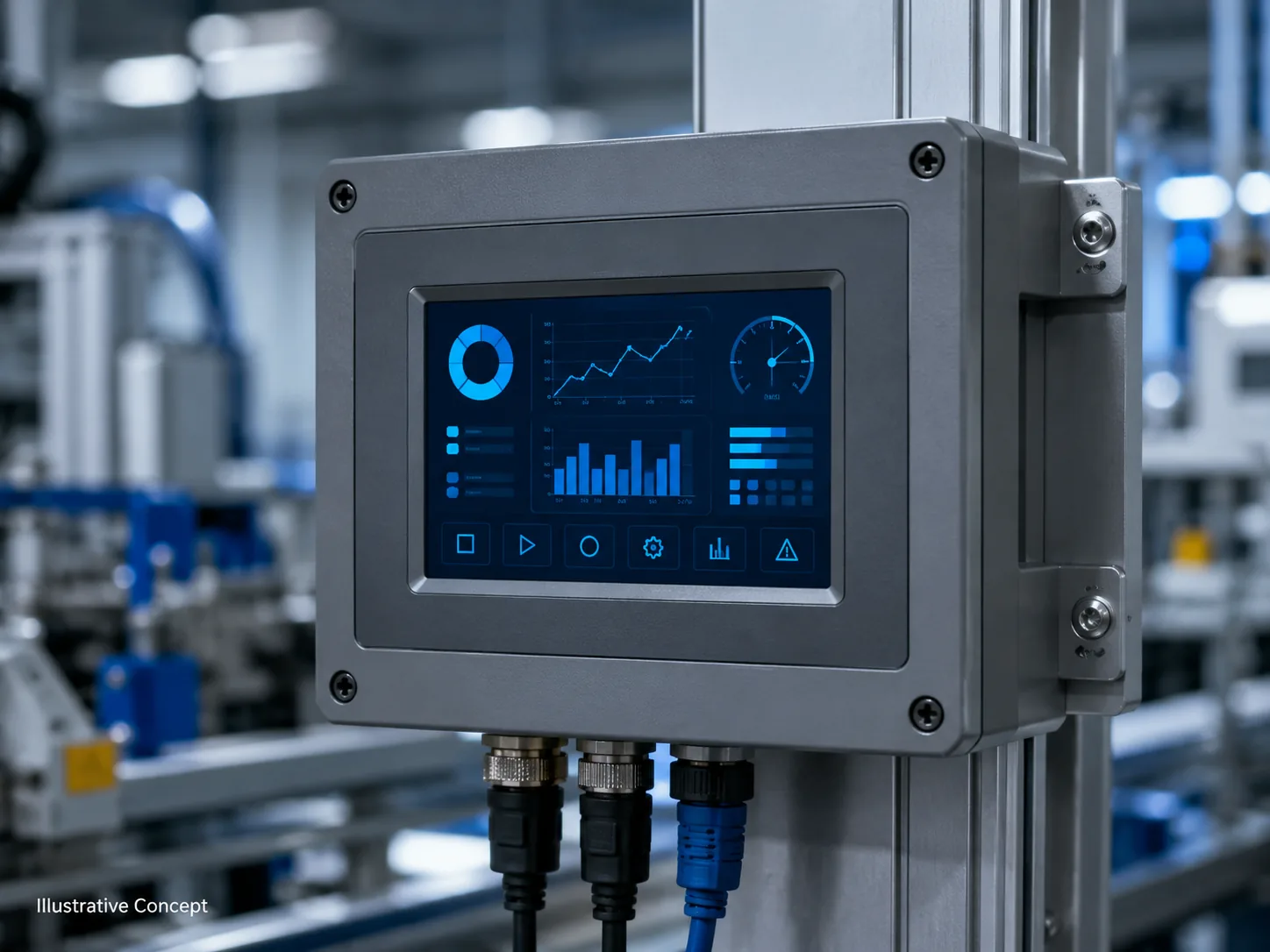

Application concept

An illustrative industrial HMI concept only; it is not a documented customer deployment or a mechanical integration drawing.

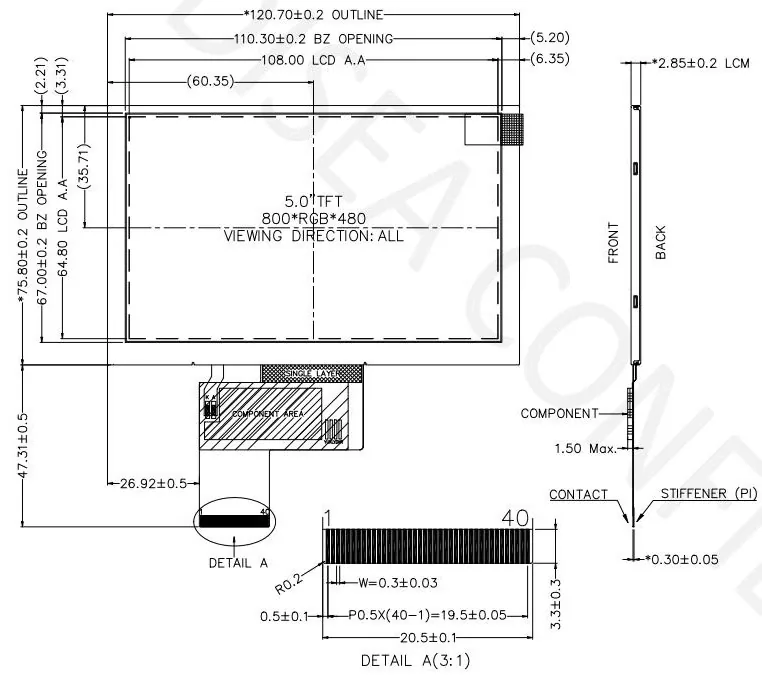

Mechanical reference

Outline and FPC reference drawing.

DS-T050BWSWA-02 mechanical drawing showing module outline, active area and 40-pin FPC reference

Use the current approved drawing for production release, tolerances and keep-out zones.

Engineering checks before design-in

Use the current datasheet and drawing to validate the design details that cannot be established from a product list alone.

Use the wide-temperature selection guide to plan cold-start and enclosure validation. For the viewing environment, review the outdoor luminance comparison; 1000 cd/m² does not by itself prove installed sunlight readability.

Mechanical fit

Confirm active area, outline, FPC route and keep-out zones against the enclosure.

Host connection

Validate RGB 24-bit timing, 40-pin pinout, driver configuration and electrical limits.

Temperature and viewing environment

Confirm start-up conditions, reflection, cover lens, power and thermal design for the full product system.

Engineering-led selection

DS-T050BWSWA-02 datasheet, pinout and sample review

Public catalog reference for DS-T050BWSWA-02

DISEA standard TFT LCD module list · DS series 2026 V2.1 · PDF, 5 pages, 160 KB.

View the catalog reference (page 2) · Download full catalog ↓

Summary specifications only, not the controlled model-specific datasheet. Confirm the current datasheet, pinout and approved drawing for this exact model before design-in.

Engineering document request

The visible mechanical drawing is a reference image. Request the current datasheet, controlled drawing, display timing, connector/pinout and backlight electrical requirements before design-in.

Include the host output, enclosure constraints, application and viewing environment, sample quantity and expected demand. Documentation revision, availability and commercial terms are confirmed during review; the public catalog does not imply stock availability or replace controlled model-specific documents.

Request datasheet and sample review Discuss customization

Compare before choosing

Compare related published module configurations. Check the native host interface and sample validation checklist before approving a substitute or custom stack.

Review DS-T050BWSWA-02 against your project.

Send the host platform, enclosure constraints, target quantity, temperature condition and viewing environment for a fit review.

Request Project Review

Find Display Request Review

Still choosing the configuration? Compare all three 5-inch 800×480 RGB modules by luminance, touch, temperature and outline before requesting a sample.
