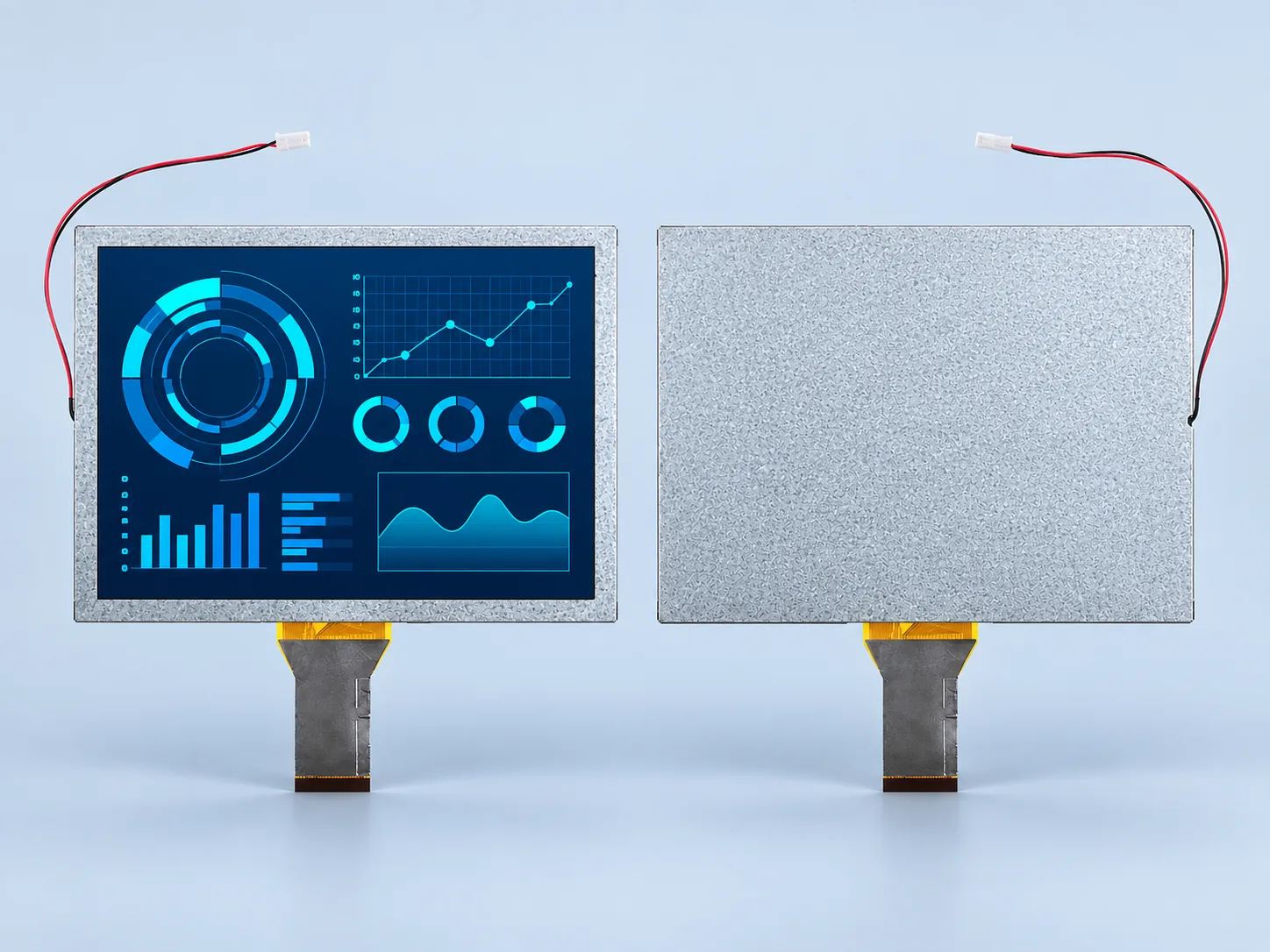

Front and rear view
Form-factor reference; confirm physical details against the approved drawing.
8.0 inch800×600TN1200 cd/m²

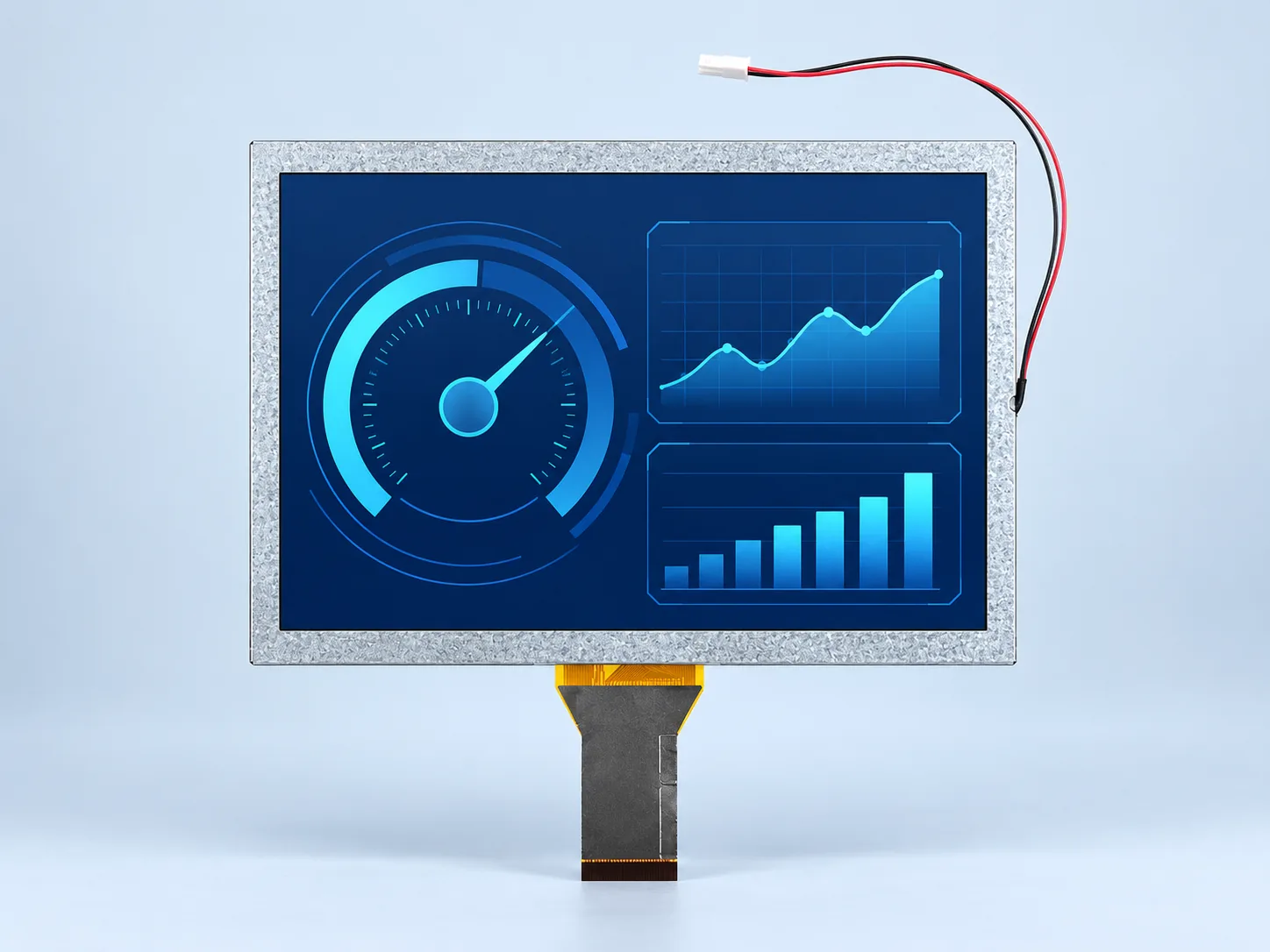

8-Inch 800×600 1200-Nit High-Brightness TFT LCD for Industrial HMI
DS-T080QGH-09 is an 8-inch 800×600 TN TFT LCD with 1200 cd/m² listed luminance, an RGB 24-bit 50-pin interface and no touch panel. Its 4:3 format may suit industrial HMI projects that retain an 800×600 layout.
ModelDS-T080QGH-09
Size8.0 inch
Resolution800×600
PanelTN
Luminance1200 cd/m²
InterfaceRGB 24-bit, 50-pin
Check the current approved datasheet, pinout and drawing before design-in or replacement approval.
Potential project fit
A bright 4:3 display candidate for industrial HMI.
800×600 HMI layouts
Consider the native 800×600 format when maintaining a 4:3 user interface. It is not a confirmed drop-in replacement for another module.
Bright ambient equipment
1200 cd/m² is the listed module luminance. Installed readability still depends on reflections, the front stack and lighting conditions.
Industrial controls
Evaluate the RGB host connection, mechanical opening and −20 to +70 °C operating range against the finished equipment requirements.
Module-list facts
DS-T080QGH-09 specification
| Item | DS-T080QGH-09 |
|---|---|
| Diagonal size | 8.0 inch |
| Resolution | 800×600 |
| LCD type | TN |
| Luminance | 1200 cd/m² |
| Module interface | RGB 24-bit, 50-pin |
| LCD driver IC | To be confirmed; module list states TBD |
| Touch panel | No TP |
| Active area (W×H) | 162.00×121.50 mm |
| Module outline (W×H) | 183.00×141.00 mm |
| Operating temperature | −20 to +70 °C |
| Storage temperature | −30 to +80 °C |
The supplied module list and mechanical drawing differ on thickness (5.20 mm versus 5.50±0.3 mm). Confirm the latest approved drawing before setting depth or tooling.
Module views
Product and integration references.

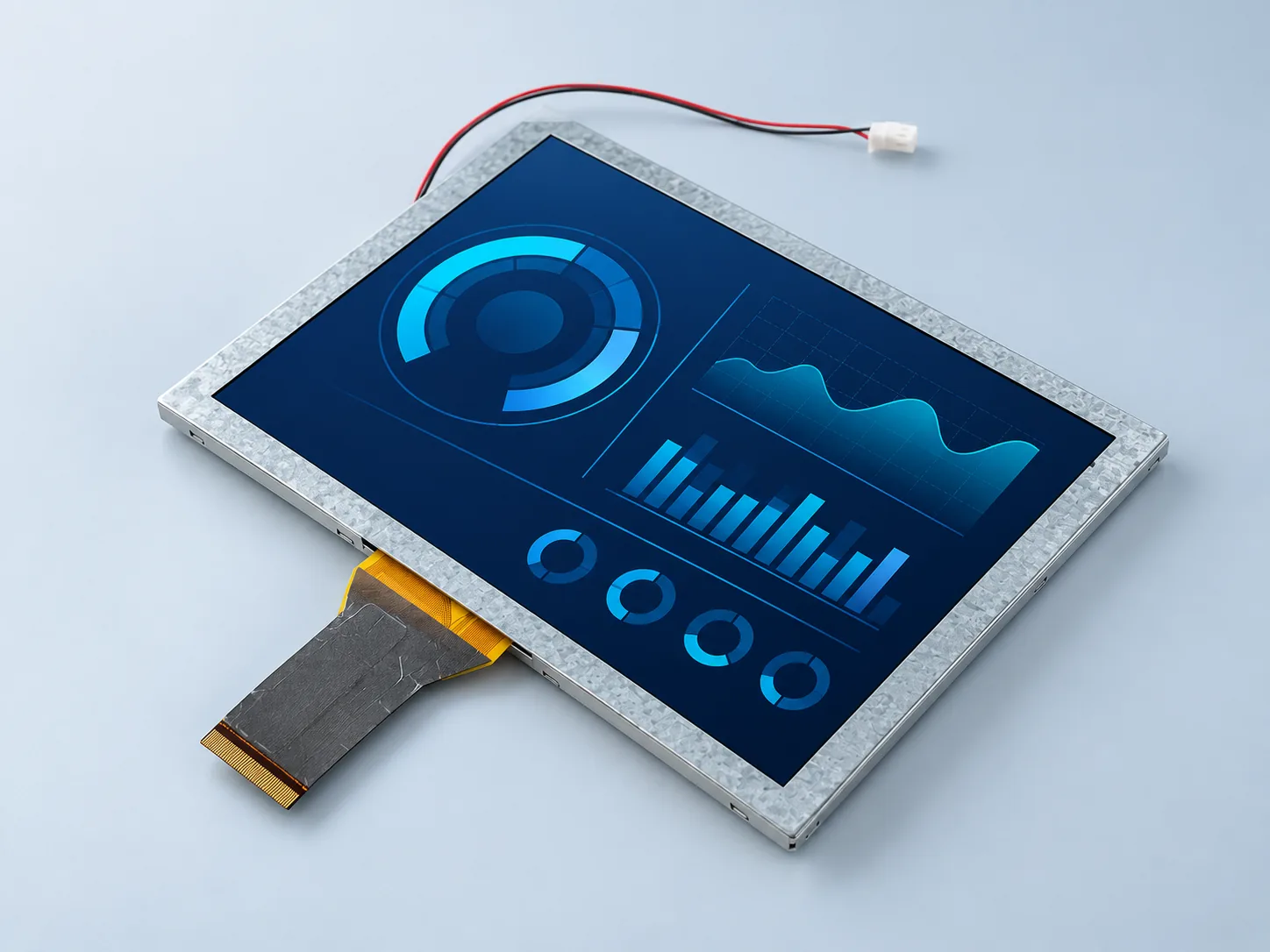

Angled view
Visual reference only, not a dimensioned integration drawing.

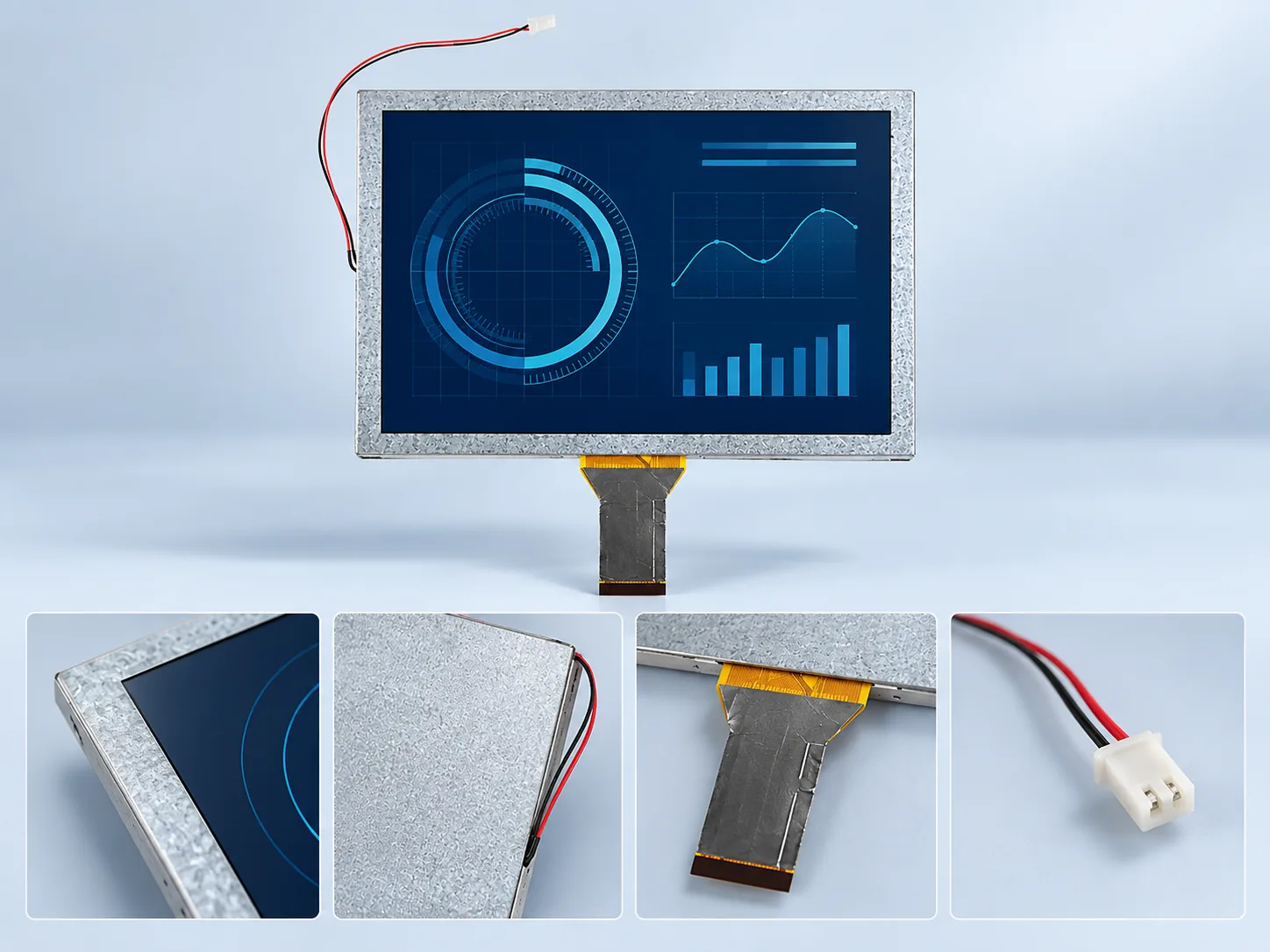

Module details
Validate connector, FPC and backlight lead against the current documents.

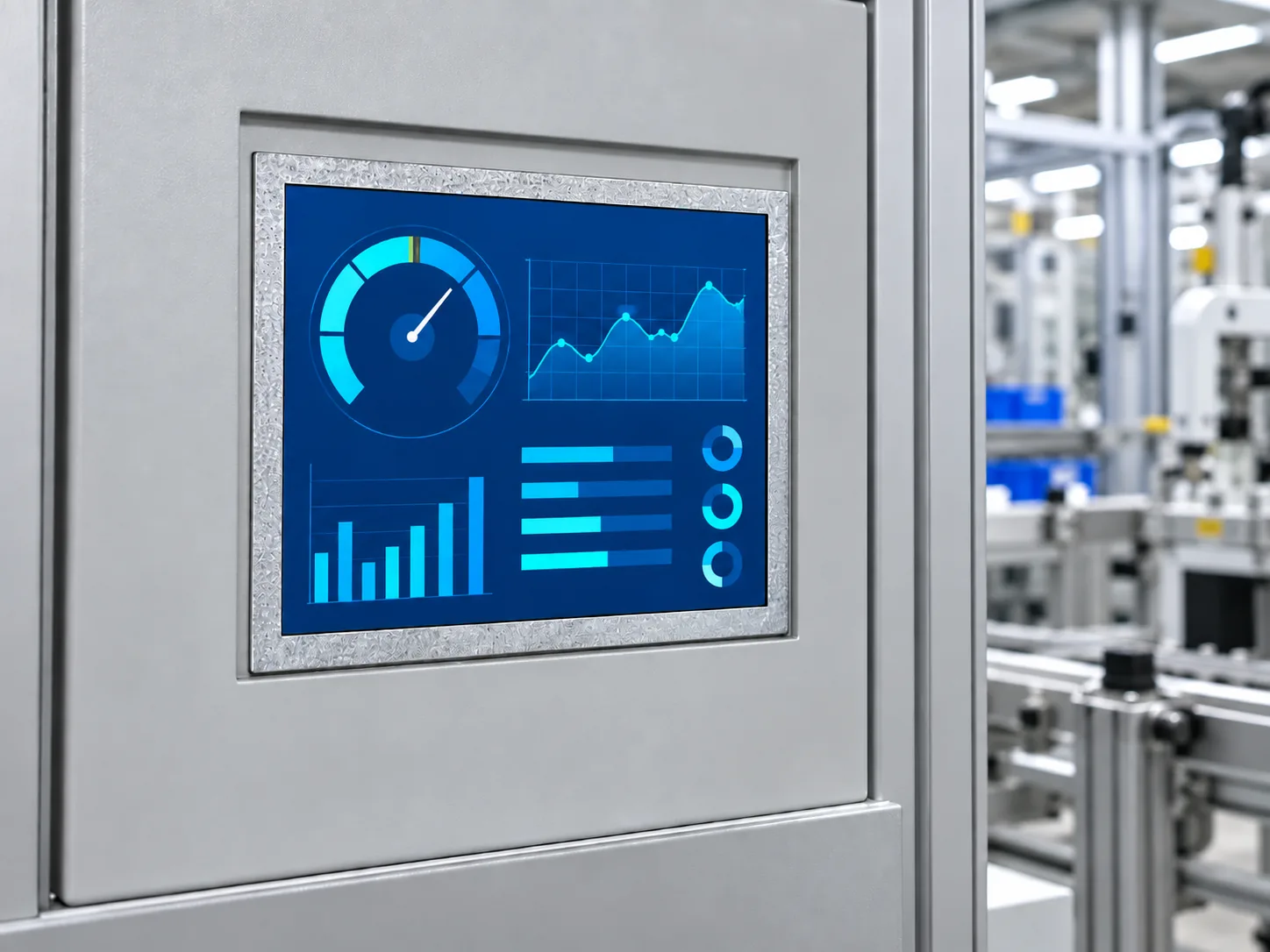

Application concept
Illustrative industrial control-panel concept only. It is not a documented customer deployment or proof of sunlight readability.

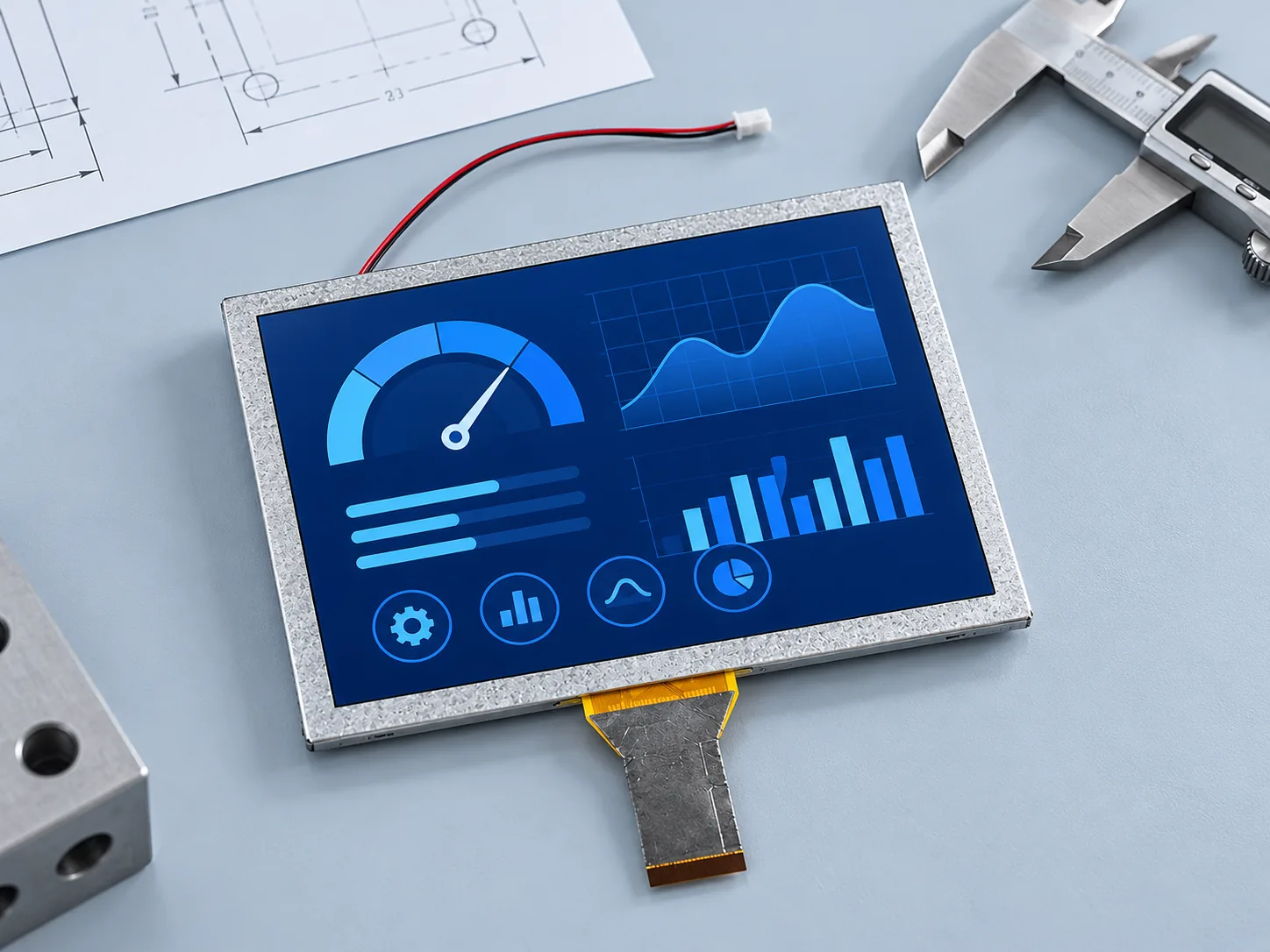

Engineering bench concept
Use the image as a design-review illustration. It does not establish measured dimensions, electrical limits or interchangeability.

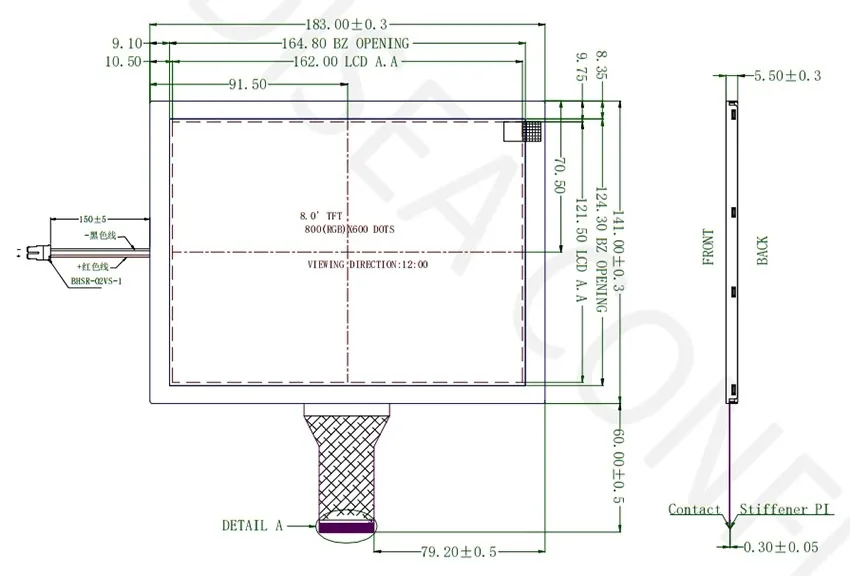

Mechanical reference
DS-T080QGH-09 outline drawing.
The drawing is a supplied reference. Resolve its thickness discrepancy with the module list and obtain the current approved revision before tooling.
Engineering checks before design-in
For a legacy 800×600 HMI, matching resolution alone does not establish mechanical or electrical compatibility. See the LCD replacement guide for a broader validation checklist.
1
Mechanical fit
Compare active area, outline, depth, mounting and FPC exit to the existing enclosure.
2
Host connection
Confirm RGB timing, 50-pin mapping, supply and backlight drive from the approved electrical specification.
3
Viewing environment
Test ambient reflection, TN viewing direction, cover stack and thermal behavior in the complete system.
