7.0 inch800×480IPS1000 cd/m²Wide temperature

DS-T070SWHWA-01

7-Inch 800×480 IPS LVDS TFT for Wide-Temperature HMI, 1000 Nits

DS-T070SWHWA-01 combines a 7-inch 800×480 IPS panel, 1000 cd/m² luminance, LVDS 6/8-bit 20-pin interface, no touch panel and a −30 to 85 °C operating range.

ModelDS-T070SWHWA-01

Size7.0 inch

Resolution800×480

PanelIPS

Luminance1000 cd/m²

InterfaceLVDS 6/8-bit, 20-pin

Request Sample / Project Review Check Specs

Confirm the current datasheet, pinout and mechanical drawing before design-in.

Potential project fit

A 7-inch 800×480 IPS TFT LCD for bright, wide-temperature industrial interfaces.

DS-T070SWHWA-01 combines a 7-inch 800×480 IPS panel with 1000 cd/m² luminance, a 20-pin 6/8-bit LVDS interface and a published −30 to 85 °C operating range. It is a no-touch module with a 169.80×109.70×8.90 mm outline, so check enclosure depth and native host timing before treating it as a replacement for another 7-inch display.

Factory automation

Consider where the 7-inch landscape format, module outline and LVDS interface fit the control enclosure and host platform.

Outdoor equipment

Evaluate the verified temperature range together with start-up conditions, enclosure thermal design and the complete optical stack.

1000-nit LCD display

1000 cd/m² supports high-brightness design goals; final readability also depends on cover lens, reflection and the complete front stack.

Verified product facts

DS-T070SWHWA-01 specification

Item	DS-T070SWHWA-01
Diagonal size	7.0 inch
Resolution	800×480
LCD type	IPS
Luminance	1000 cd/m²
Module interface	LVDS 6/8-bit, 20-pin
LCD driver IC	HX8249-A01 + HX8678-C01
Touch panel	No TP
Bonding type	Not specified in the supplied module list
Active area (W×H)	152.40×91.44 mm
Module outline (W×H×D)	169.80×109.70×8.90 mm
Operating temperature	−30 to 85 °C
Storage temperature	−35 to 85 °C

Module views

Front, rear and metal-structure references.

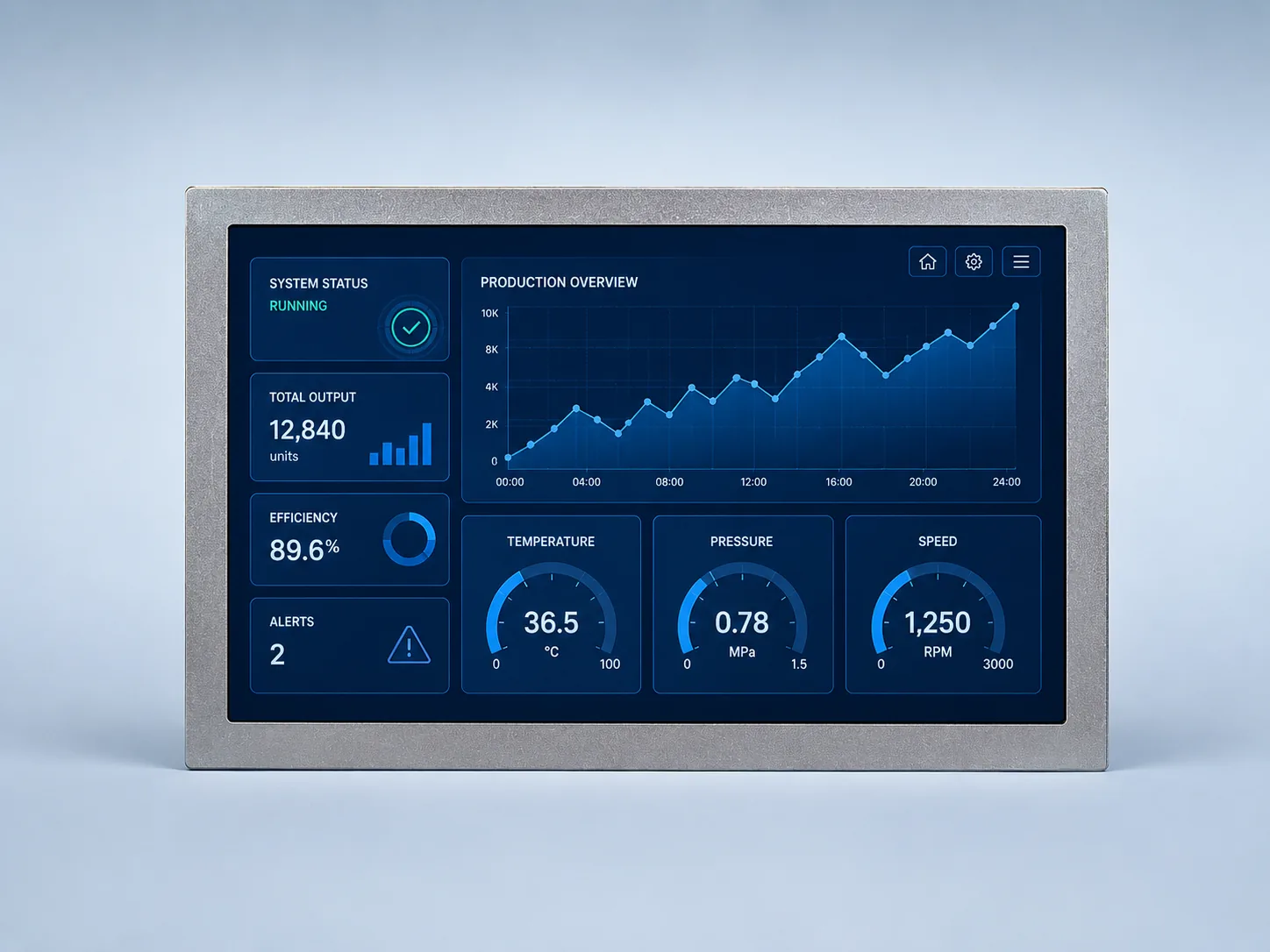

Front view

Complete front module and metal bezel reference.

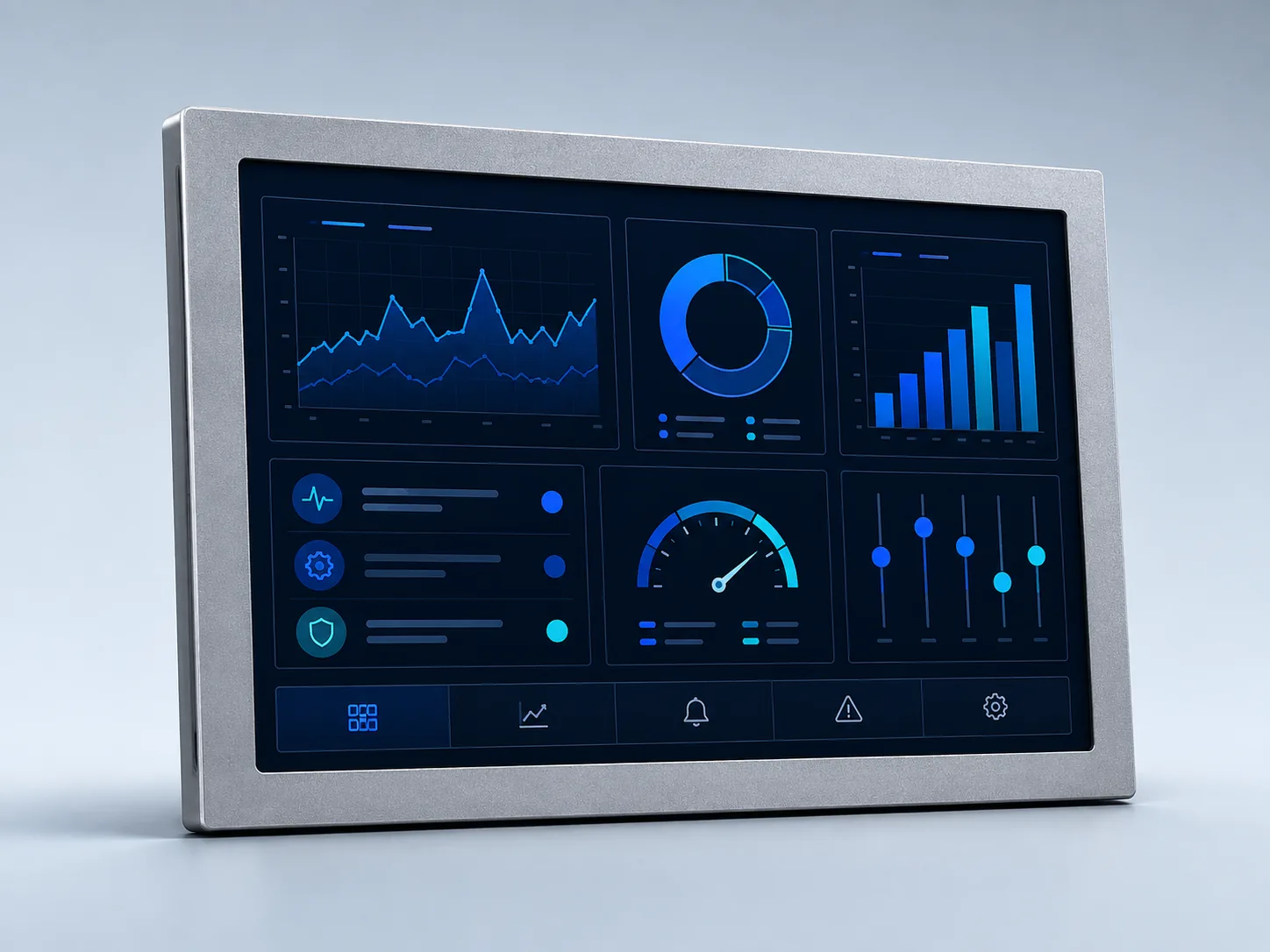

Angled view

Visual reference only; use the mechanical drawing for dimensions.

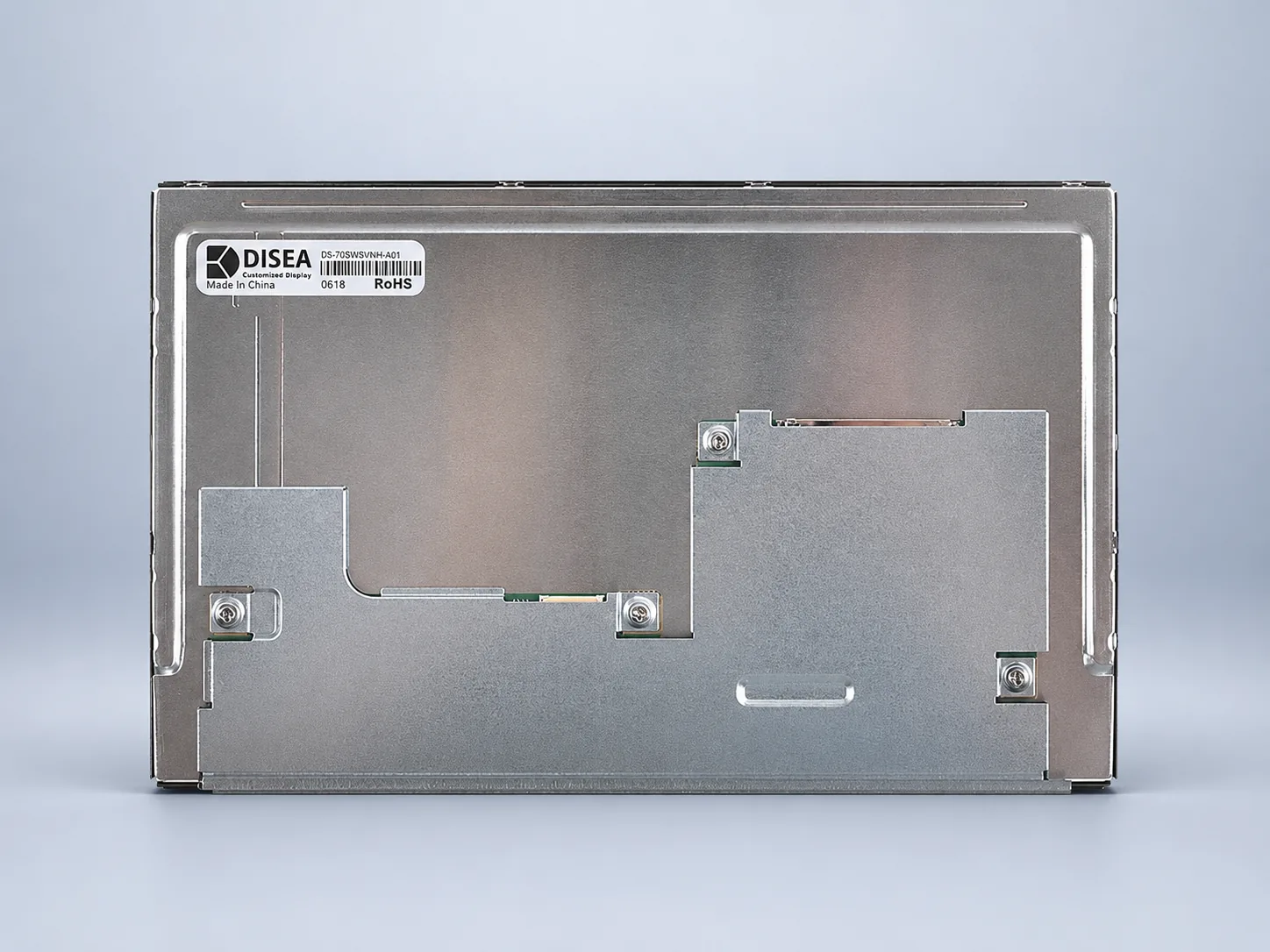

Rear view

Backplate, fastener and mounting-structure reference.

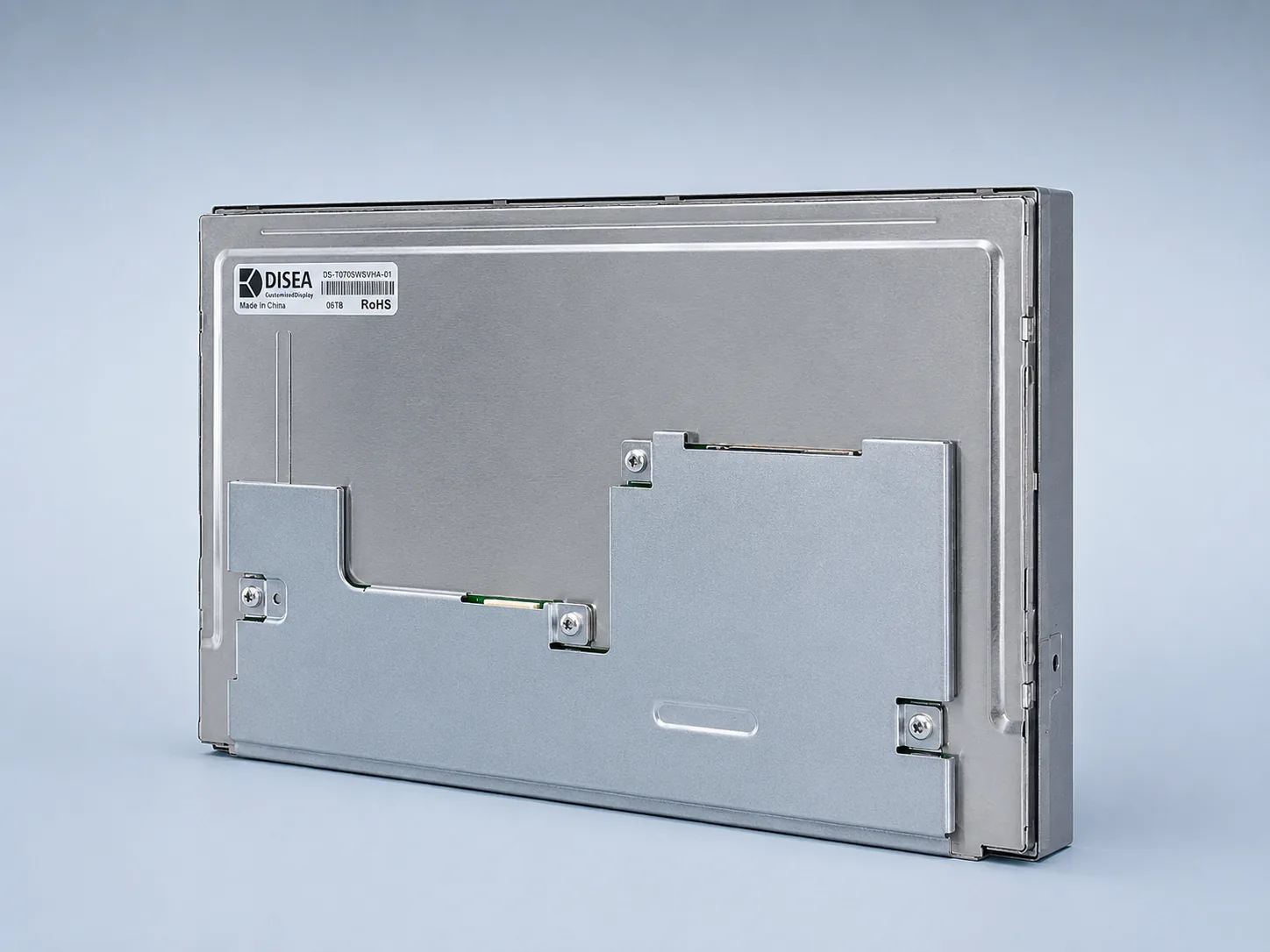

Rear structure detail

Use this view only as a visual reference; verify the approved drawing for mounting, connector position, tolerances and keep-out zones.

Application concept

An illustrative industrial HMI concept only; it is not a documented customer deployment or a mechanical integration drawing.

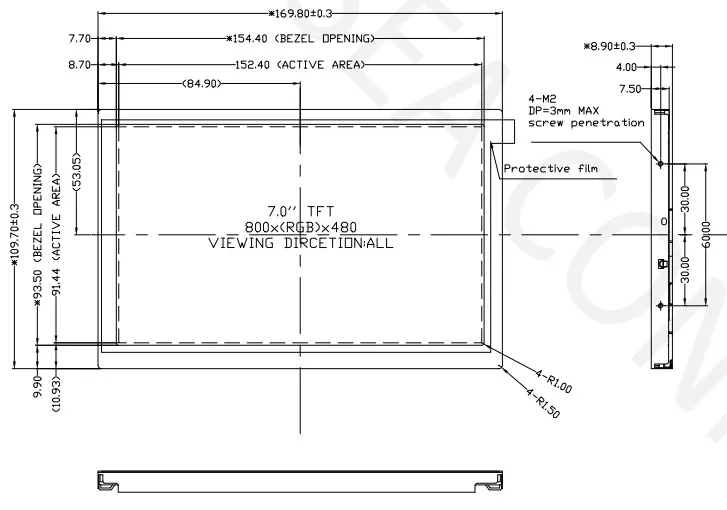

Mechanical reference

Outline, active area and mounting reference drawing.

DS-T070SWHWA-01 mechanical drawing showing outline, active area, thickness and mounting references

Use the current approved drawing for production release, tolerances and keep-out zones.

Engineering checks before design-in

Use the current datasheet and drawing to validate the design details that cannot be established from a product list alone.

Compare this exact model with the other 7-inch candidates in the 7-inch TFT LCD resolution selection guide before choosing between 800×480, 1024×600 and 1280×800.

Mechanical fit

Confirm active area, outline, mounting points, connector position and keep-out zones against the enclosure.

Host connection

Validate LVDS 6/8-bit timing, 20-pin pinout, driver configuration and electrical limits.

Temperature and viewing environment

Confirm start-up conditions, reflection, cover lens, power and thermal design for the full product system.

Engineering-led selection

DS-T070SWHWA-01 datasheet, pinout and sample review

Public catalog reference for DS-T070SWHWA-01

DISEA standard TFT LCD module list · DS series 2026 V2.1 · PDF, 5 pages, 160 KB.

View the catalog reference (page 3) · Download full catalog ↓

Summary specifications only, not the controlled model-specific datasheet. Confirm the current datasheet, pinout and approved drawing for this exact model before design-in.

Engineering document request

The visible mechanical drawing is a reference image. Request the current datasheet, controlled drawing, display timing, connector/pinout and backlight electrical requirements before design-in.

Include the host output, enclosure constraints, application and viewing environment, sample quantity and expected demand. Documentation revision, availability and commercial terms are confirmed during review; the public catalog does not imply stock availability or replace controlled model-specific documents.
