DS-T070BAHA-02

7-Inch 1024×600 IPS LVDS TFT for High-Brightness Industrial HMI, 1000 Nits

DS-T070BAHA-02 combines a 7-inch 1024×600 IPS panel, 1000 cd/m² luminance, LVDS 6/8-bit 40-pin interface and no touch panel for industrial display integration.

ModelDS-T070BAHA-02

Size7.0 inch

Resolution1024×600

PanelIPS

Luminance1000 cd/m²

InterfaceLVDS 6/8-bit, 40-pin

Request Sample / Project Review Check Specs

Confirm the current datasheet, pinout and mechanical drawing before design-in.

Potential project fit

A 7-inch 1024×600 IPS TFT LCD for bright industrial interfaces.

The 1024×600 pixel format of DS-T070BAHA-02 offers a different UI layout from the 800×480 and 1280×800 7-inch options, while retaining 1000 cd/m² luminance. Its IPS panel uses 6/8-bit LVDS on a 40-pin connection, has no integrated touch and lists −20 to 70 °C operation; resolution, connector mapping and environmental limits must all match the intended equipment.

Industrial HMI

Consider where the 7-inch landscape format, module outline and LVDS interface fit the control enclosure and host platform.

Factory automation

Validate mechanical fit, connection details, operating conditions and the complete front stack against the current project requirements.

1000-nit LCD display

1000 cd/m² supports high-brightness design goals; final readability also depends on cover lens, reflection and the complete optical stack.

Verified product facts

DS-T070BAHA-02 specification

Item	DS-T070BAHA-02
Diagonal size	7.0 inch
Resolution	1024×600
LCD type	IPS
Luminance	1000 cd/m²
Module interface	LVDS 6/8-bit, 40-pin
LCD driver IC	HX8282A11 + HX8696A01
Touch panel	No TP
Bonding type	Not specified in the supplied module list
Active area (W×H)	154.21×85.92 mm
Module outline (W×H×D)	164.80×99.80×5.65 mm
Operating temperature	−20 to 70 °C
Storage temperature	−30 to 80 °C

Module views

Front, rear and metal-structure references.

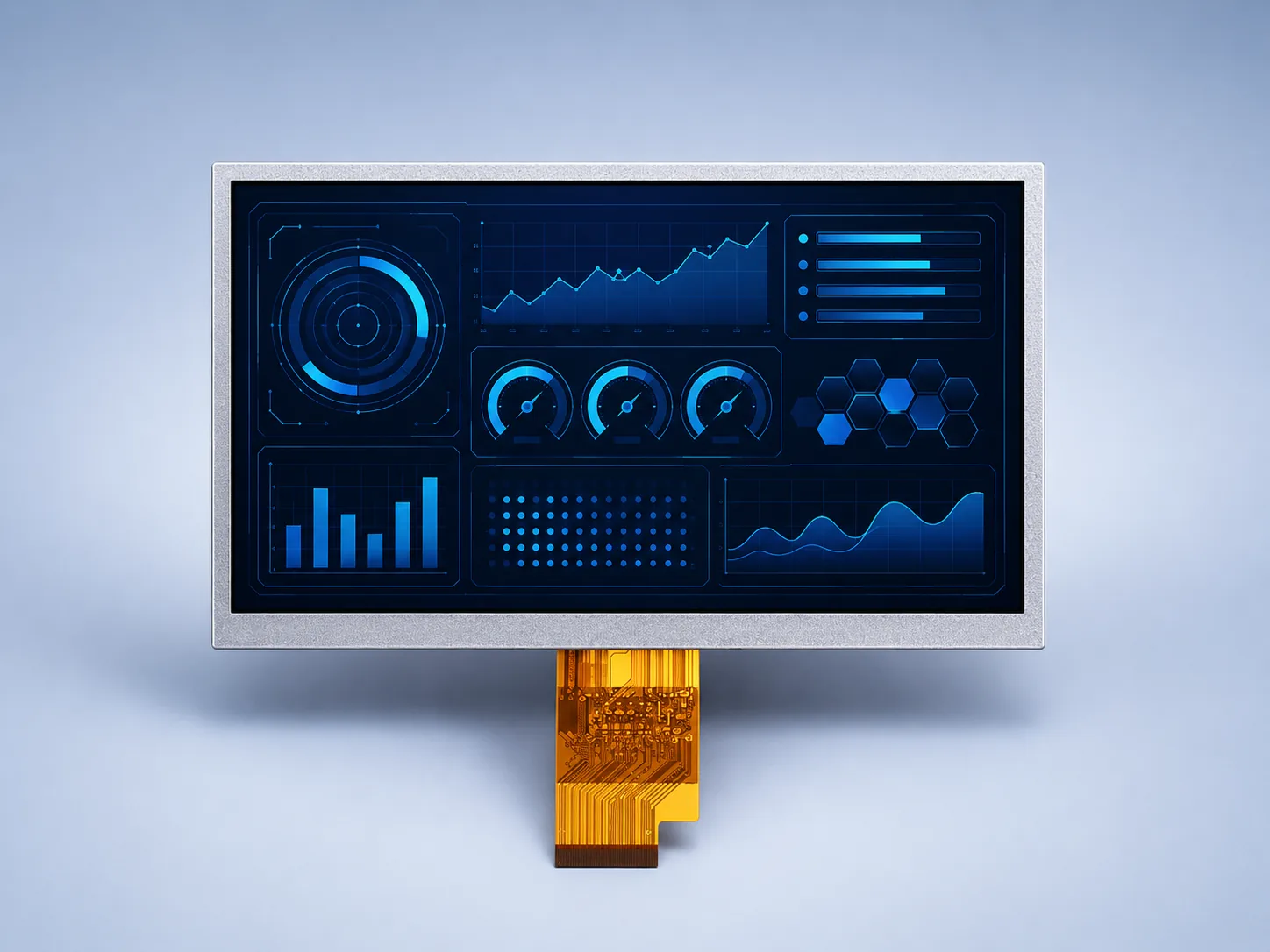

Front view

Complete front module, metal bezel and FPC reference.

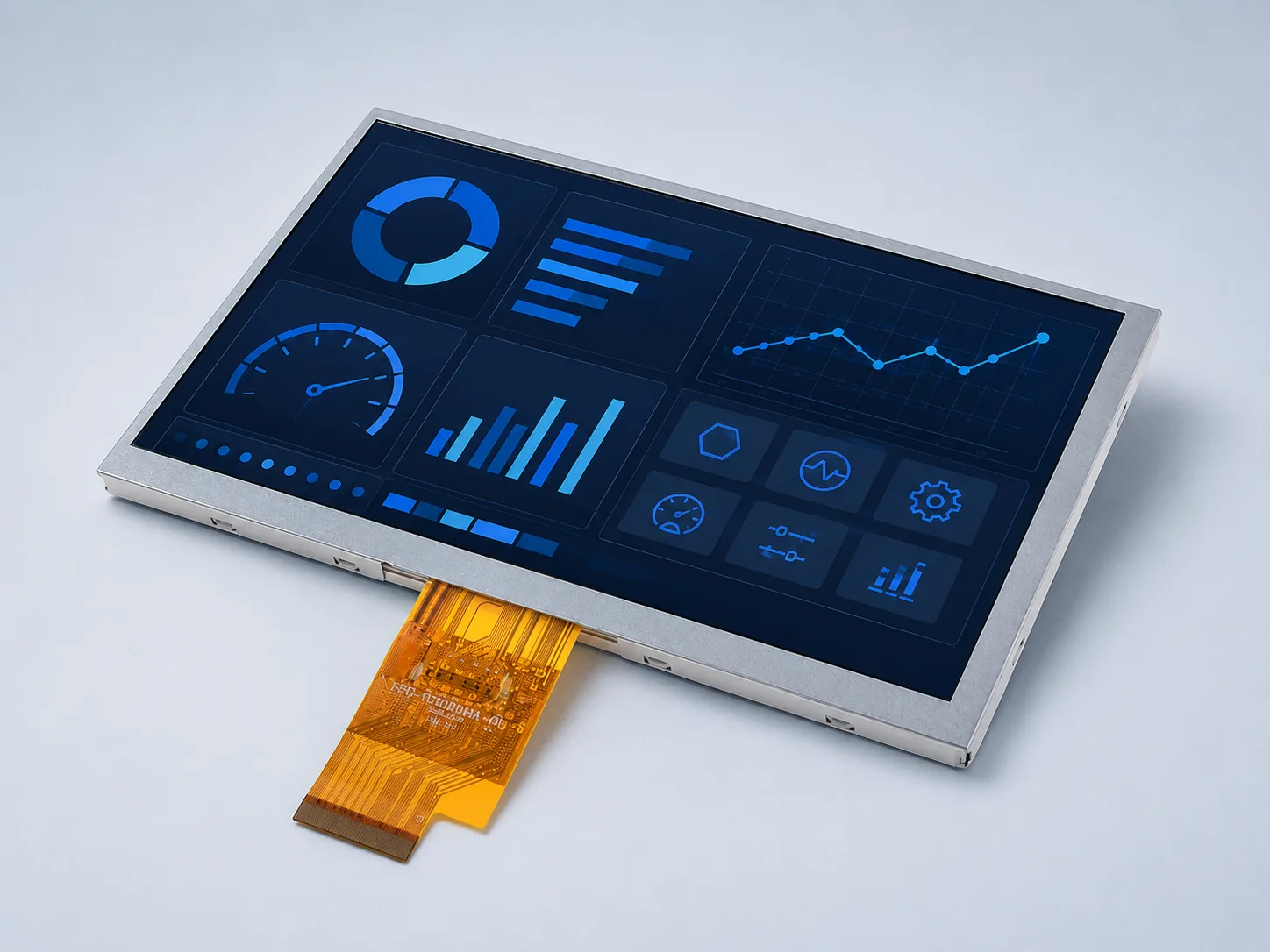

Angled view

Visual reference only; use the mechanical drawing for dimensions.

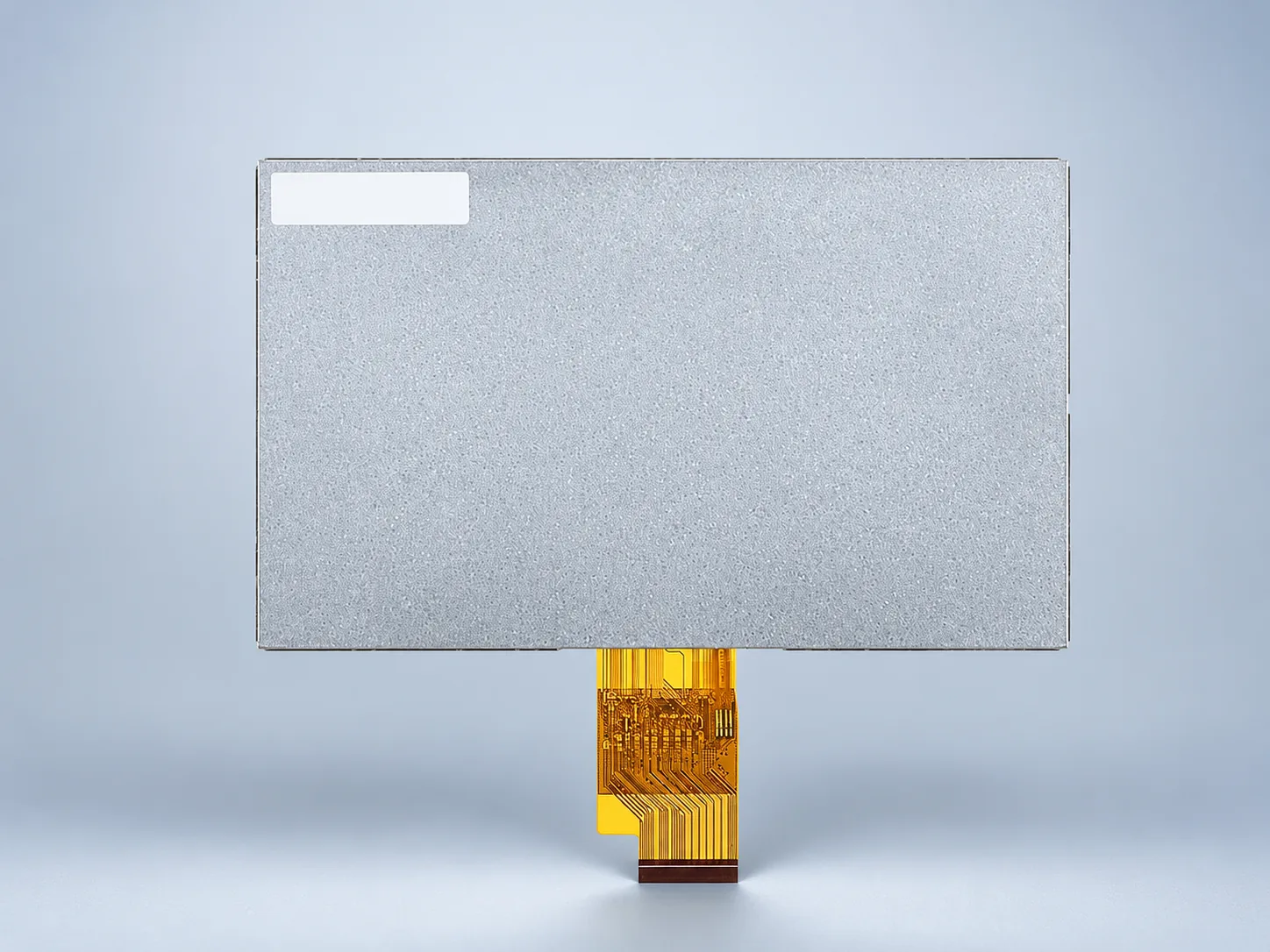

Rear view

Backplate and flexible-circuit routing reference.

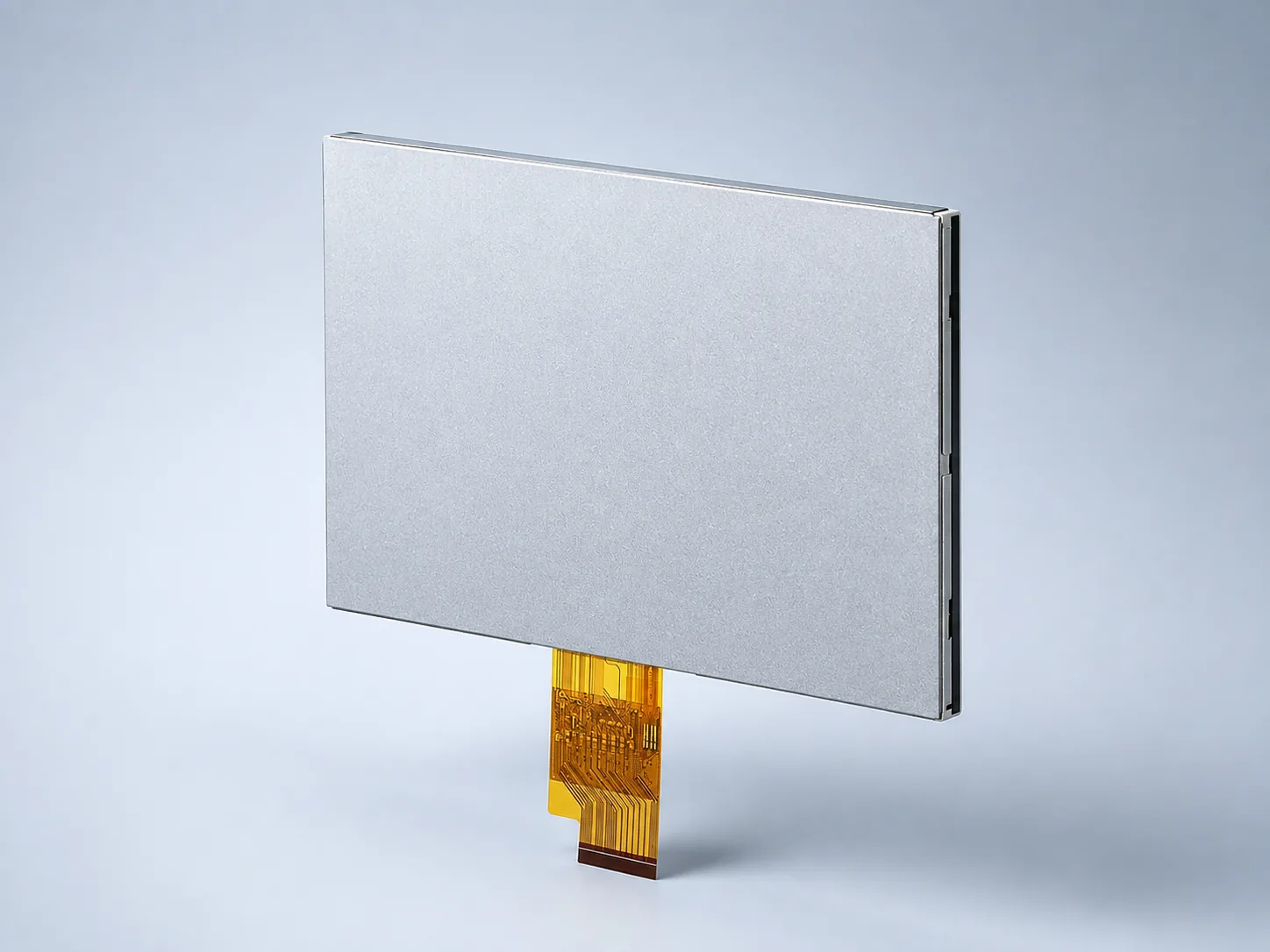

Rear structure detail

Use this view only as a visual reference; verify the approved drawing for connector position, tolerances and keep-out zones.

Application concept

An illustrative industrial HMI concept only; it is not a documented customer deployment or a mechanical integration drawing.

Mechanical reference

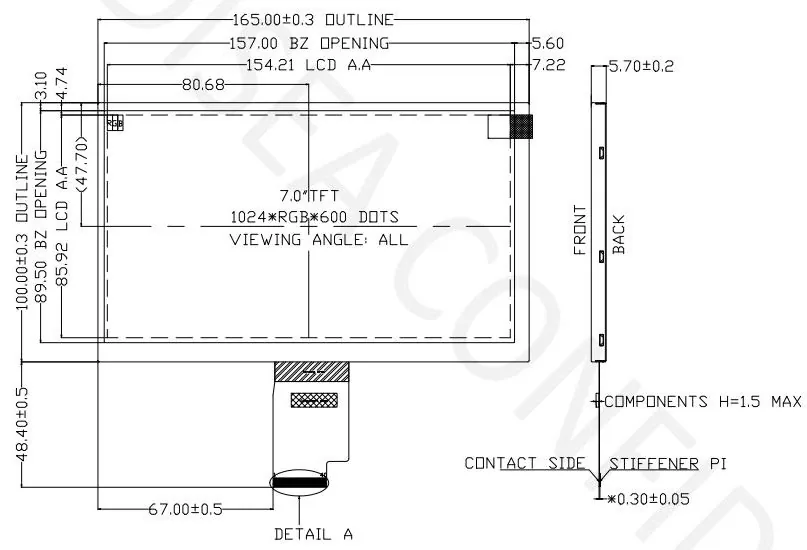

Outline, active area and FPC reference drawing.

DS-T070BAHA-02 mechanical drawing showing outline, active area, thickness and FPC references

Use the current approved drawing for production release, tolerances and keep-out zones.

Engineering checks before design-in

Use the current datasheet and drawing to validate the design details that cannot be established from a product list alone.

Compare this exact model with the other 7-inch candidates in the 7-inch TFT LCD resolution selection guide before choosing between 800×480, 1024×600 and 1280×800.

Mechanical fit

Confirm active area, outline, connector position and keep-out zones against the enclosure.

Host connection

Validate LVDS 6/8-bit timing, 40-pin pinout, driver configuration and electrical limits.

Optical and thermal design

Confirm reflection, cover lens, power, thermal behavior and the complete viewing environment for the product system.

Engineering-led selection

DS-T070BAHA-02 datasheet, pinout and sample review

Public catalog reference for DS-T070BAHA-02

DISEA standard TFT LCD module list · DS series 2026 V2.1 · PDF, 5 pages, 160 KB.

View the catalog reference (page 3) · Download full catalog ↓

Summary specifications only, not the controlled model-specific datasheet. Confirm the current datasheet, pinout and approved drawing for this exact model before design-in.

Engineering document request

The visible mechanical drawing is a reference image. Request the current datasheet, controlled drawing, display timing, connector/pinout and backlight electrical requirements before design-in.

Include the host output, enclosure constraints, application and viewing environment, sample quantity and expected demand. Documentation revision, availability and commercial terms are confirmed during review; the public catalog does not imply stock availability or replace controlled model-specific documents.

Request datasheet and sample review Discuss customization

Compare before choosing

Compare related published module configurations. Check the native host interface and sample validation checklist before approving a substitute or custom stack.

Review DS-T070BAHA-02 against your project.

Send the host platform, enclosure constraints, target quantity, operating condition and viewing environment for a fit review.

Request Project Review

Find Display Request Review

DS-T070BAHA-02 purchasing review

What must be confirmed before approving this 7-inch LVDS module?

The published 1024×600 resolution, 1000 cd/m² luminance and 40-pin LVDS description identify a shortlist candidate. They do not approve an existing host, cable or enclosure.

Host and cable

Request this exact model’s current timing, LVDS mapping, supply sequence and backlight requirements. Include both cable ends and the host-board reference; matching 40-pin connectors alone is insufficient.

Mechanical release

Compare the published mechanical reference with the enclosure, then request the approved drawing revision for tolerances, mounting, protrusions and FPC routing. The website image is a reference, not a controlled production drawing.

Sample and purchasing boundary

State the UI, operating conditions, sample quantity and expected demand. Agree acceptance checks and confirm commercial terms for the exact configuration. No integrated touch is listed for this model.

Compare the three 7-inch LVDS replacement paths if resolution, connector or enclosure constraints differ. For the operator-panel context, use the HMI integration brief.

Review this module against my existing display Request current model documents

A model-specific approved PDF is not currently published on this page. The public standard-module catalog is a summary reference, not a complete pinout, compatibility declaration or test report.
