DS-T078VYRA-01 is a 7.8-inch 400×1280 IPS bar TFT LCD with 600 cd/m² luminance, 4-lane MIPI, a 40-pin connection and no touch panel.
Confirm the current datasheet, pinout and mechanical drawing before design-in.
With a 59.40×190.08 mm active area, DS-T078VYRA-01 gives a 7.8-inch 400×1280 IPS bar-format option for a tall, narrow interface. It lists 600 cd/m² luminance, an OTA7290N driver and a four-lane MIPI, 40-pin connection; the 67.60×205.78×7.25 mm outline, orientation and host timing need to fit the enclosure together.
Consider the tall active area where vertically arranged status, instruction or process information fits the enclosure and viewing distance.
Evaluate the portrait user-interface layout, MIPI host support and mechanical outline for a purpose-built equipment control panel.
600 cd/m² supports bright indoor design goals; final readability depends on the complete front stack and ambient reflections.
| Item | DS-T078VYRA-01 |
|---|---|
| Diagonal size | 7.8 inch |
| Resolution | 400×1280 |
| LCD type | IPS Bar |
| Luminance | 600 cd/m² |
| Module interface | 4-lane MIPI, 40-pin |
| LCD driver IC | OTA7290N |
| Touch panel | No TP |
| Bonding type | Not specified in the supplied module list |
| Active area (W×H) | 59.40×190.08 mm |
| Module outline (W×H×D) | 67.60×205.78×7.25 mm |
| Operating temperature | −20 to 70 °C |
| Storage temperature | −30 to 80 °C |

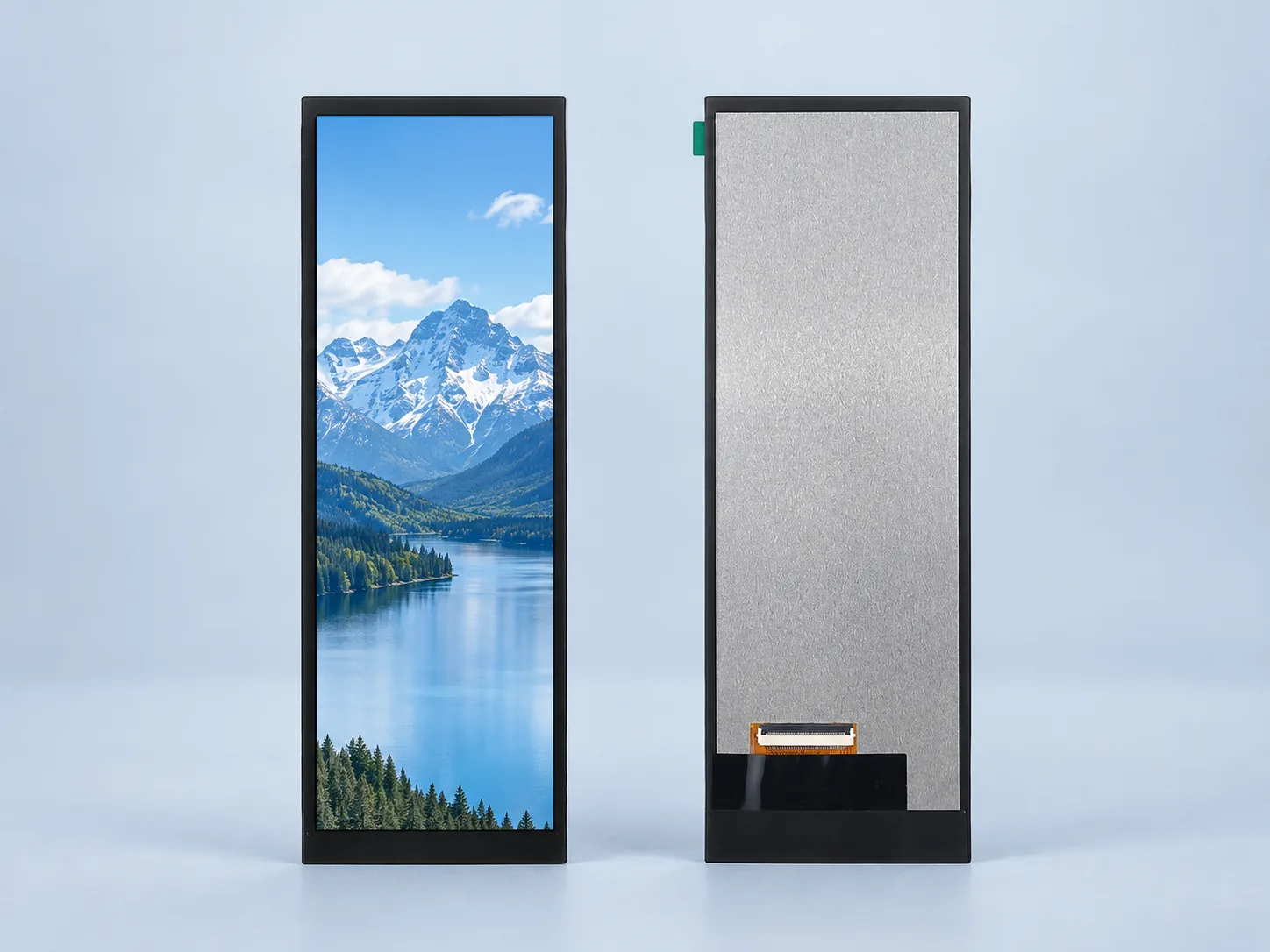

Product-view reference for the display face and rear housing.

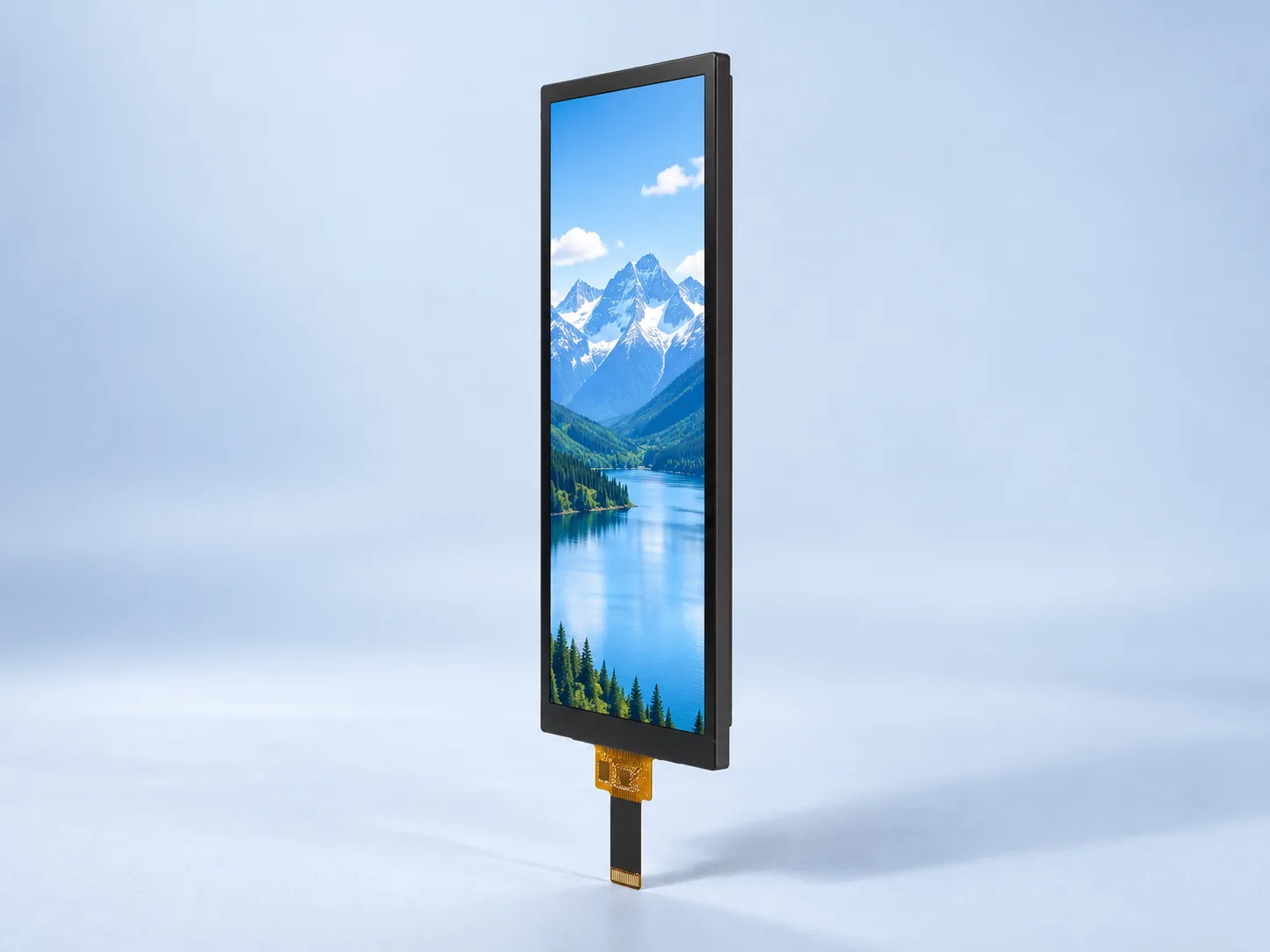

For visual reference only; use the mechanical drawing for dimensions.

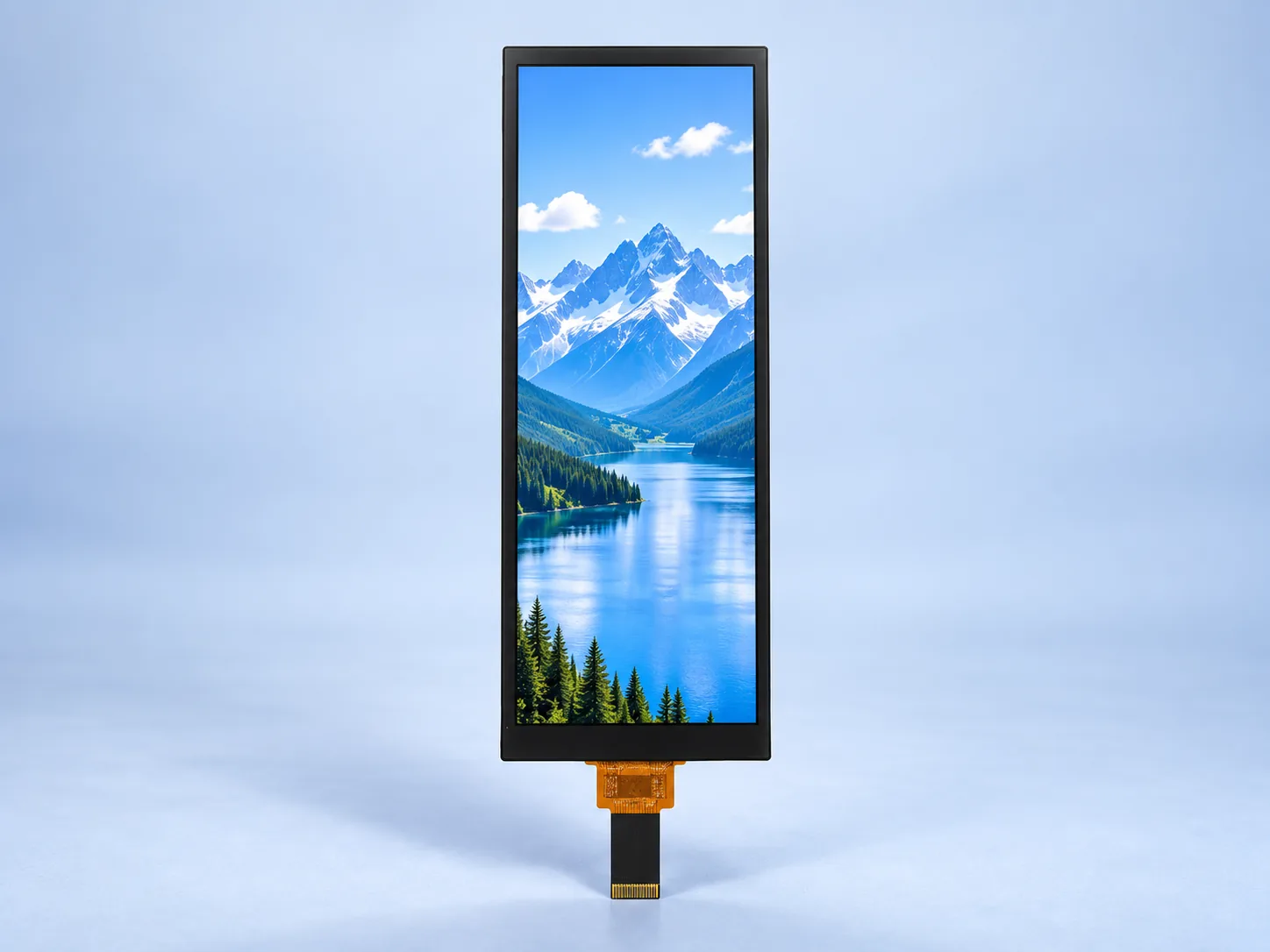

Confirm the approved drawing for FPC routing, pinout and tolerances.

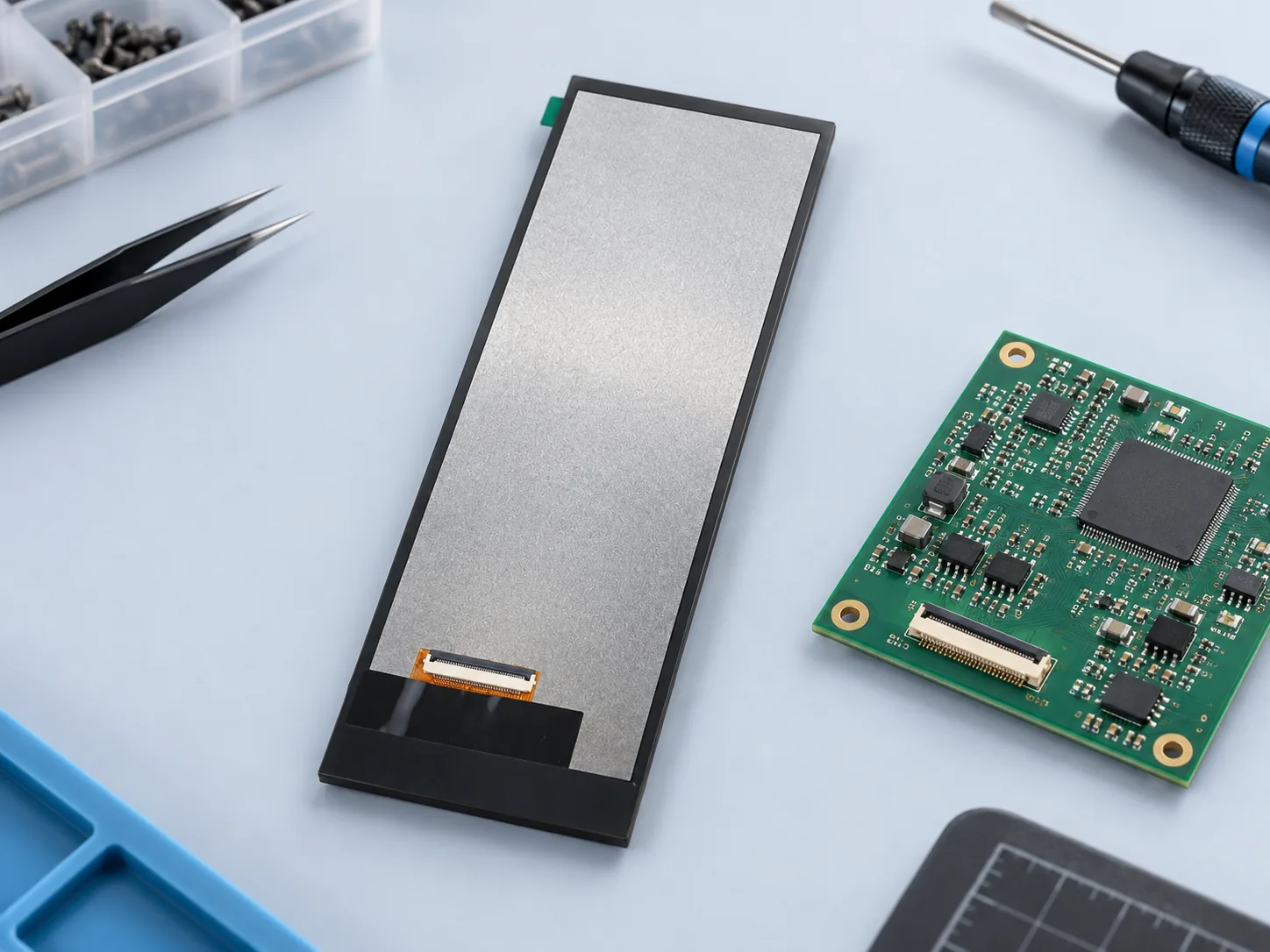

This image is a visual engineering reference only. Verify connector mating, pinout, keep-out zones and electrical limits against the current approved documents.
An illustrative portrait-format equipment display concept. It is not a documented customer deployment or a mechanical integration drawing.
Use the current approved drawing for production release, tolerances and keep-out zones.
Use the current datasheet and drawing to validate the design details that cannot be established from a product list alone.
The MIPI DSI lane and host-compatibility guide explains the timing, initialization, pinout and power-sequence checks required before choosing a host for this bar-format module.
DISEA standard TFT LCD module list · DS series 2026 V2.1 · PDF, 5 pages, 160 KB.
View the catalog reference (page 4) · Download full catalog ↓
Summary specifications only, not the controlled model-specific datasheet. Confirm the current datasheet, pinout and approved drawing for this exact model before design-in.

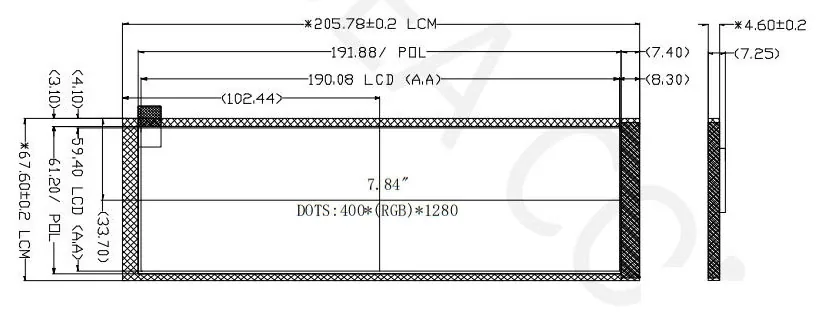

The visible mechanical drawing is a reference image. Request the current datasheet, controlled drawing, display timing, connector/pinout and backlight electrical requirements before design-in.
