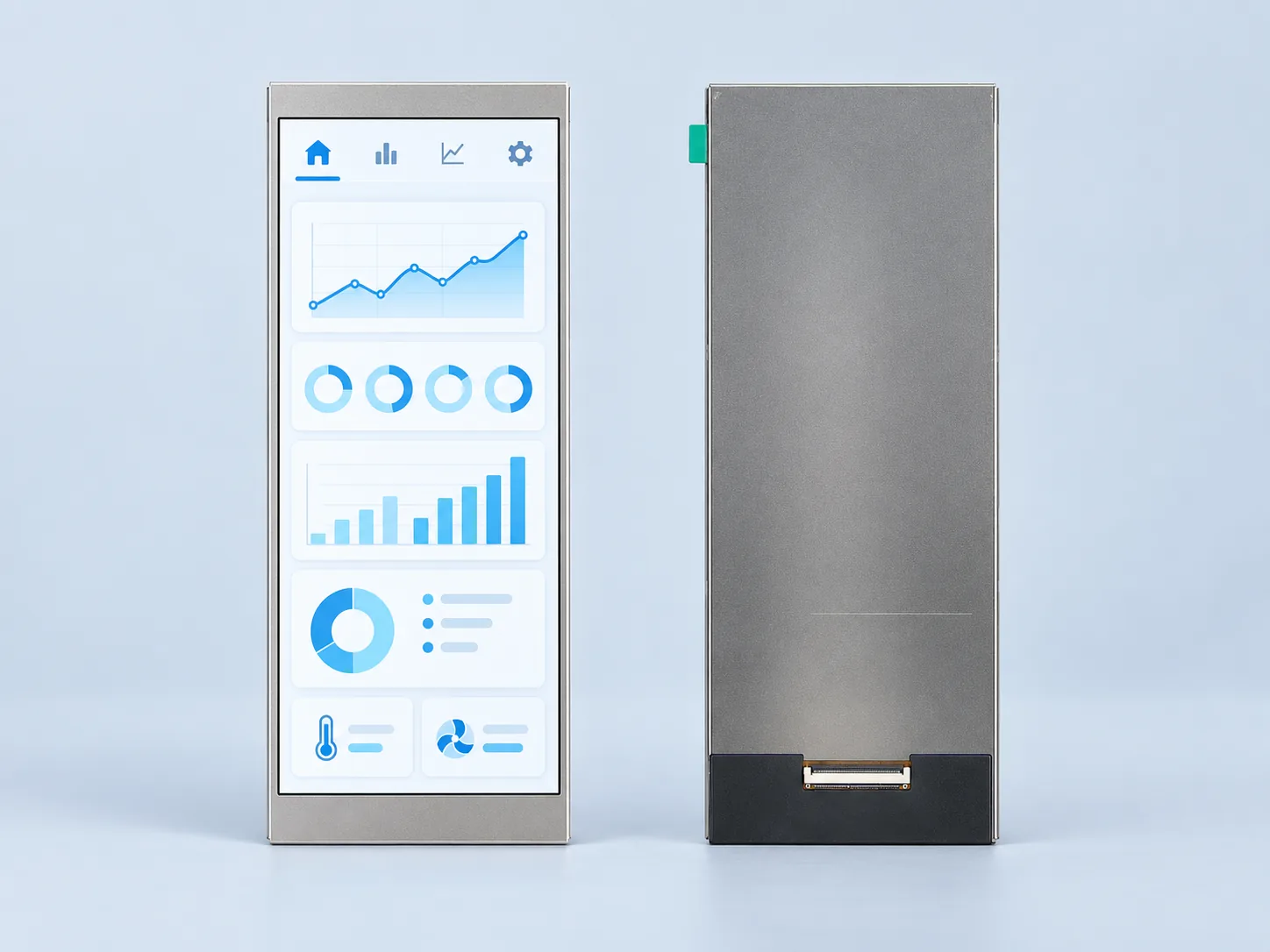

Front and rear
Visual form-factor reference; verify all physical details on the approved drawing.
6.8 inch480×1280IPS Bar450 cd/m²

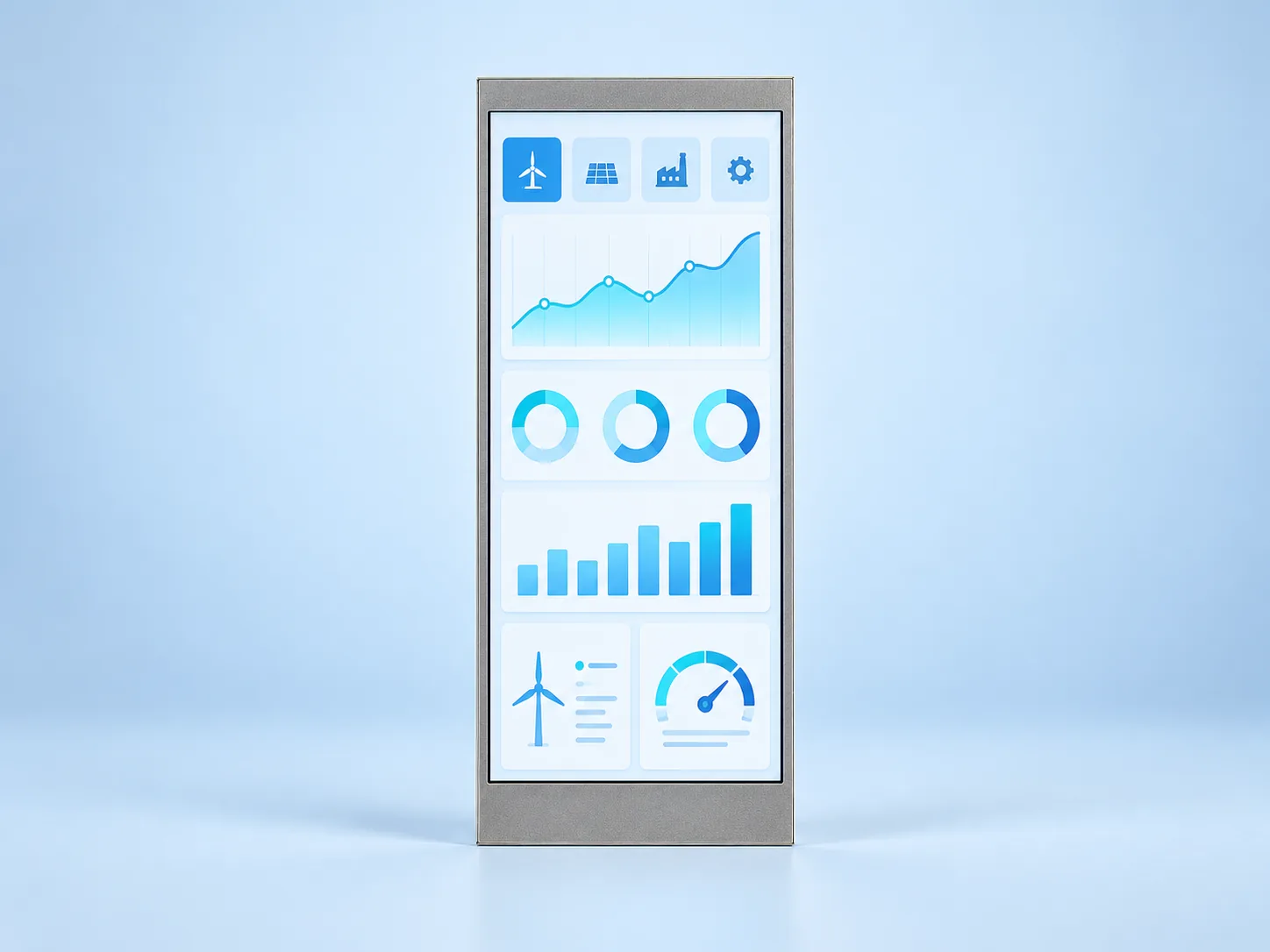

6.8-Inch 480×1280 450-Nit IPS MIPI Bar TFT for Wide-Temperature HMI
DS-T068BZSA-01 combines a narrow 480×1280 IPS bar format with 4-lane MIPI and a specified −20 to +70 °C operating range. The standard module has no touch panel.
ModelDS-T068BZSA-01
Size6.8 inch
Resolution480×1280
PanelIPS Bar
Luminance450 cd/m²
Interface4-lane MIPI, 40-pin
Confirm the current approved datasheet, pinout and drawing before design-in.
Potential project fit
A 6.8-inch bar TFT for narrow HMI layouts.
Portrait control panels
Evaluate the long, narrow pixel format for equipment with limited panel width and a vertically arranged interface.
Machine status displays
Check whether 480×1280 resolution provides enough room for status, alarms and process information at the intended viewing distance.
Temperature-sensitive equipment
The module list specifies −20 to +70 °C operation. Validate cold start, thermal design and the full assembled system for your duty cycle.
Module-list facts
DS-T068BZSA-01 specification
| Item | DS-T068BZSA-01 |
|---|---|
| Diagonal size | 6.8 inch |
| Resolution | 480×1280 |
| LCD type | IPS Bar |
| Luminance | 450 cd/m² |
| Module interface | 4-lane MIPI, 40-pin |
| LCD driver IC | FL7707N |
| Touch panel | No TP |
| Module outline (long side×short side×depth) | 181.20×66.85×4.70 mm (module-list value; confirm orientation and protrusions in drawing) |
| Operating temperature | −20 to +70 °C |
| Storage temperature | −30 to +80 °C |
The supplied module-list active-area value differs from the supplied drawing on one dimension; request the current approved drawing before setting the enclosure opening.
Module views
Form-factor and integration references.

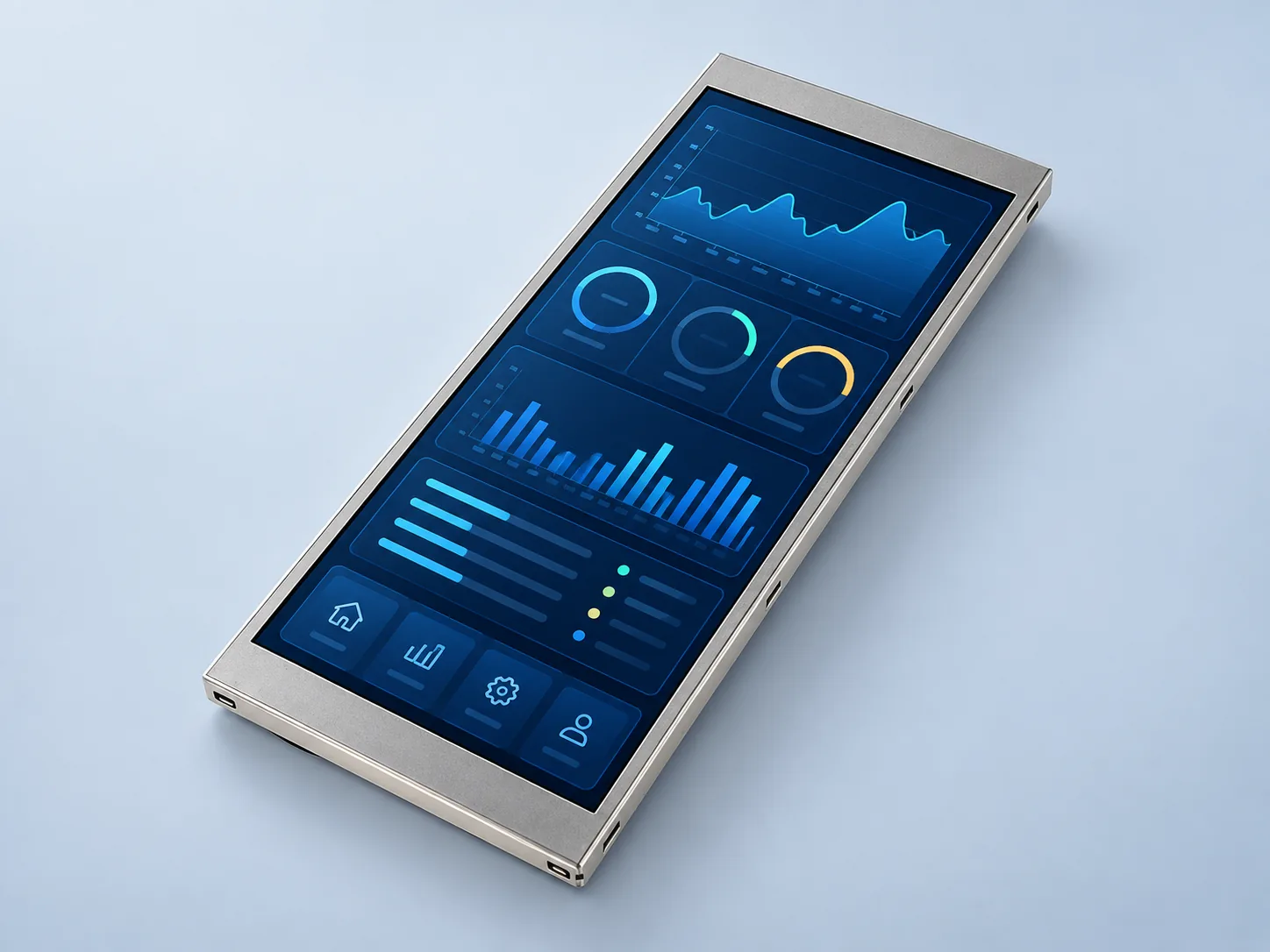

Angled view
Reference for layout discussion, not a dimensioned drawing.

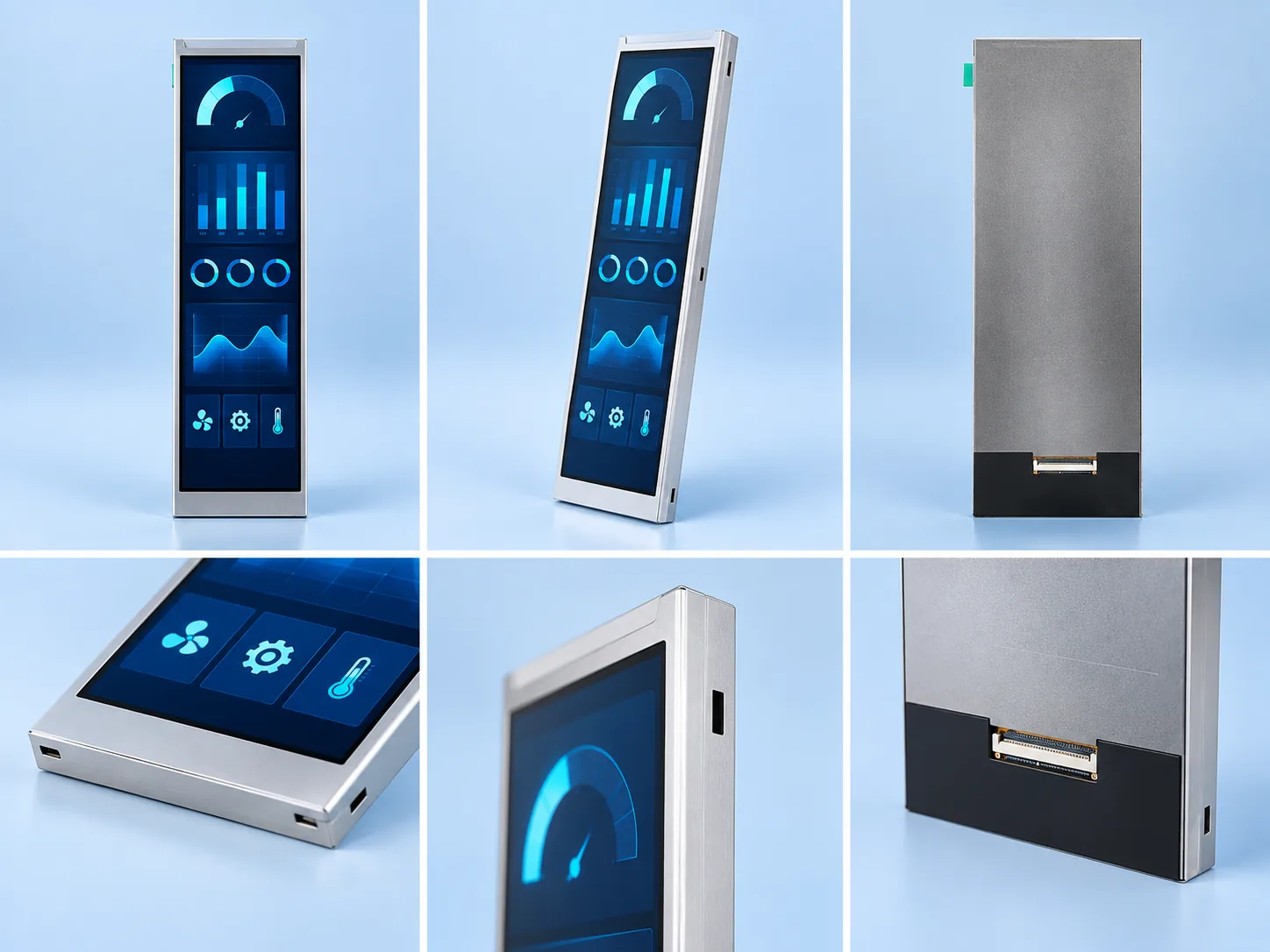

Visual details
Confirm connector, mounting and tolerances against the current approved documents.

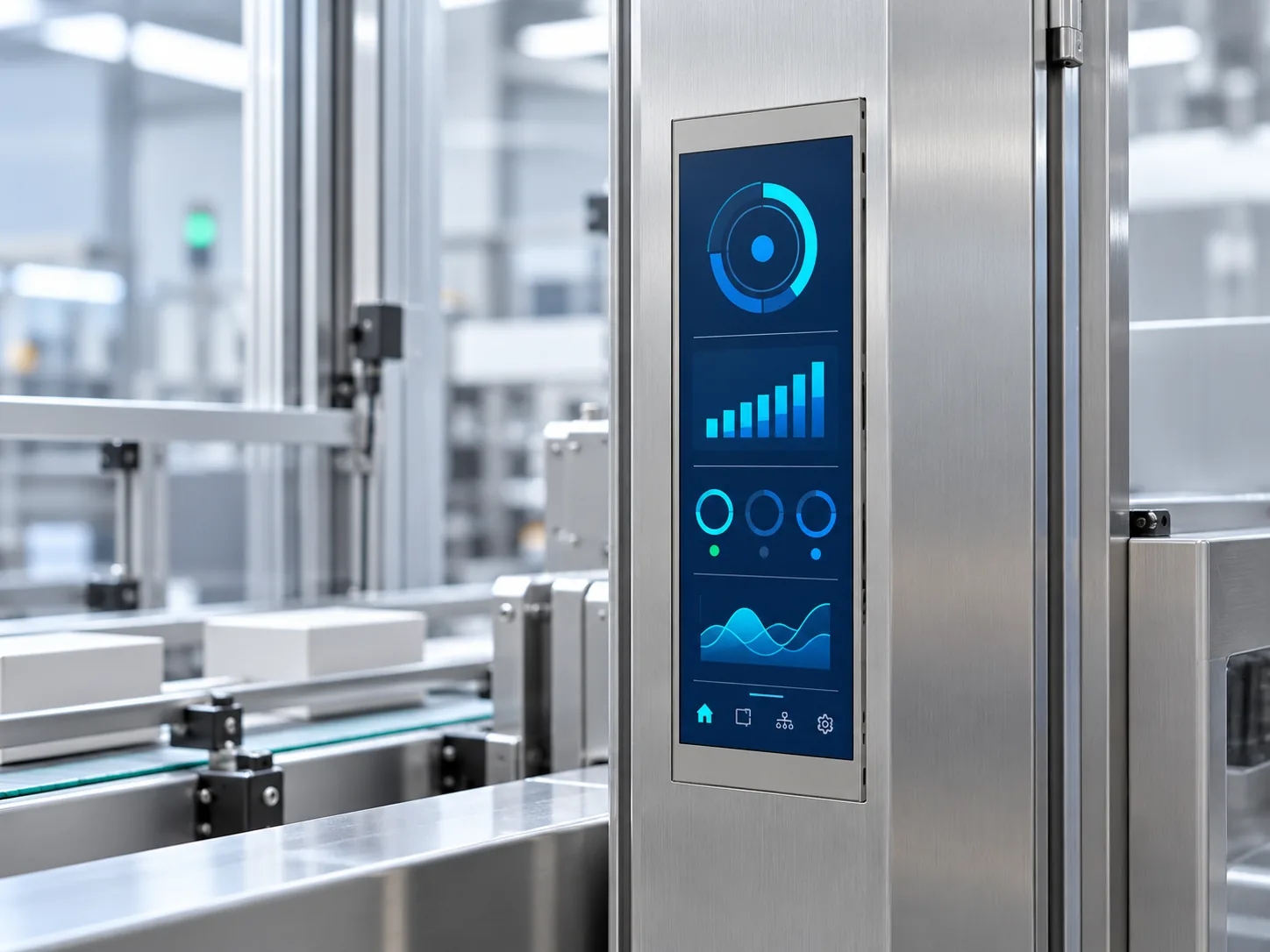

Application concept
Illustrative narrow equipment-panel concept only; it is not a documented customer deployment.

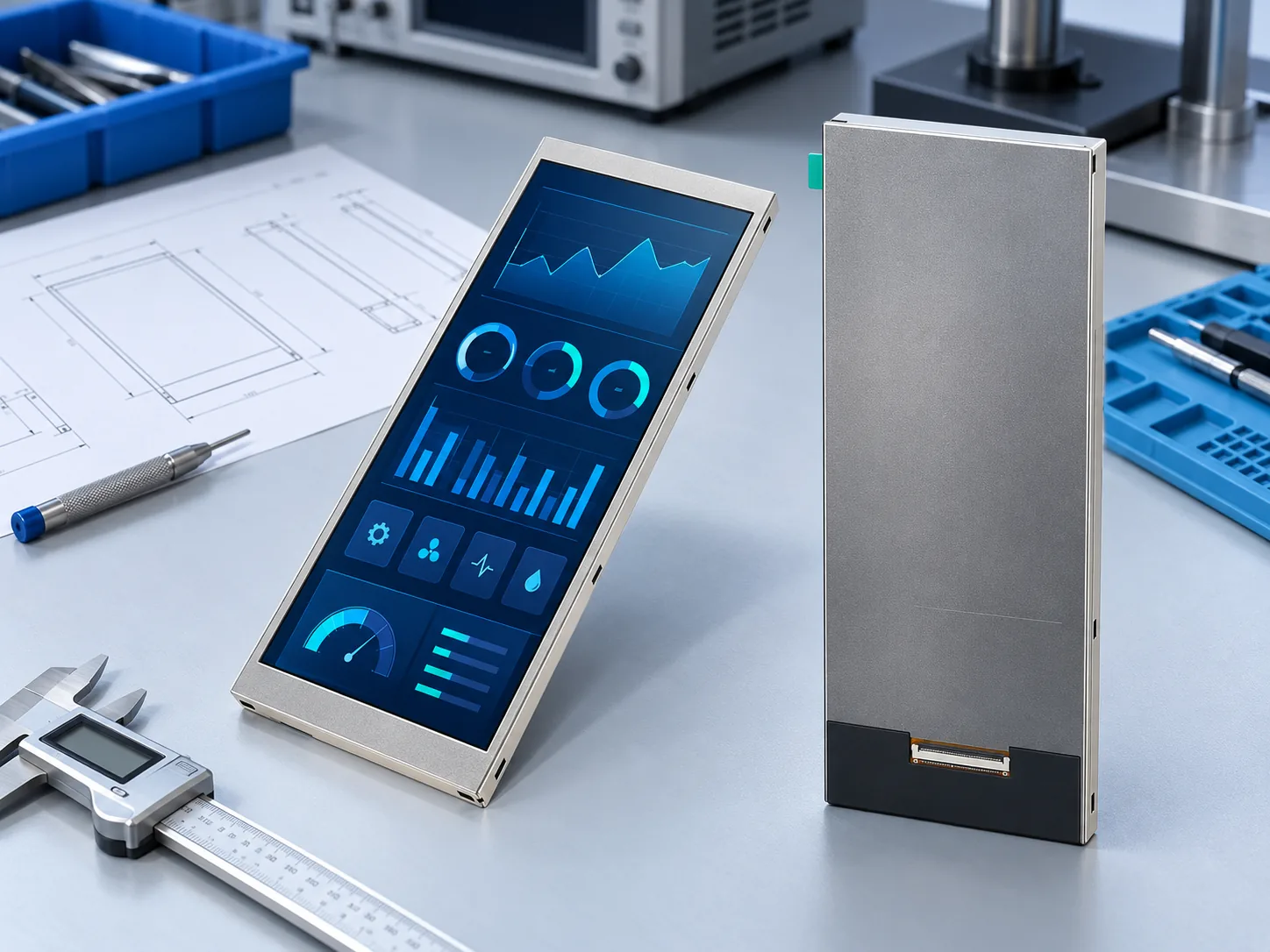

Engineering bench concept
Illustrative bench setting. Electrical design, mechanical mounting and the 40-pin connection require validation from current technical documents.
Mechanical reference
DS-T068BZSA-01 outline drawing.
The module list and supplied drawing show different active-area figures on one axis. Obtain the latest approved mechanical drawing before tooling, production release or setting the visible opening.
Engineering checks before design-in
The model list is a selection reference, not a substitute for the approved electrical and mechanical specifications.
1
Mechanical fit
Confirm orientation, active area, outline, protrusions and FPC route against the current drawing.
2
Host connection
Validate 4-lane MIPI timing, 40-pin pinout, driver initialization and power requirements with your host.
3
Viewing environment
450 cd/m² is the listed luminance. Check reflection, cover stack and installed readability for your environment; do not assume sunlight readability.
Review DS-T068BZSA-01 against your project.
Send the host platform, enclosure opening, temperature duty cycle and target quantity for an engineering fit review.
