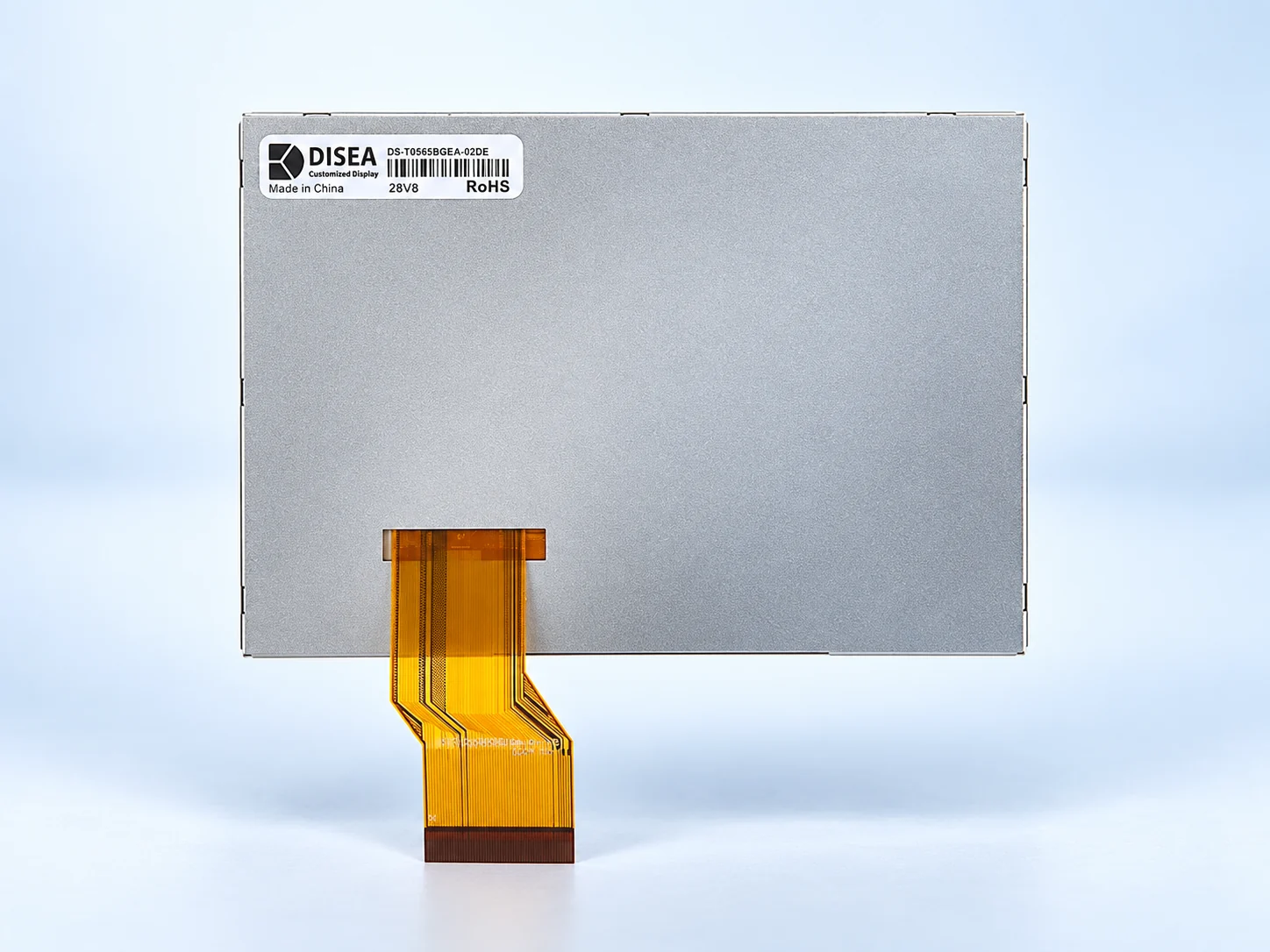

Rear structure reference
Rear-view presentation reference. Confirm the current drawing and FPC pin table for actual mounting and electrical integration.

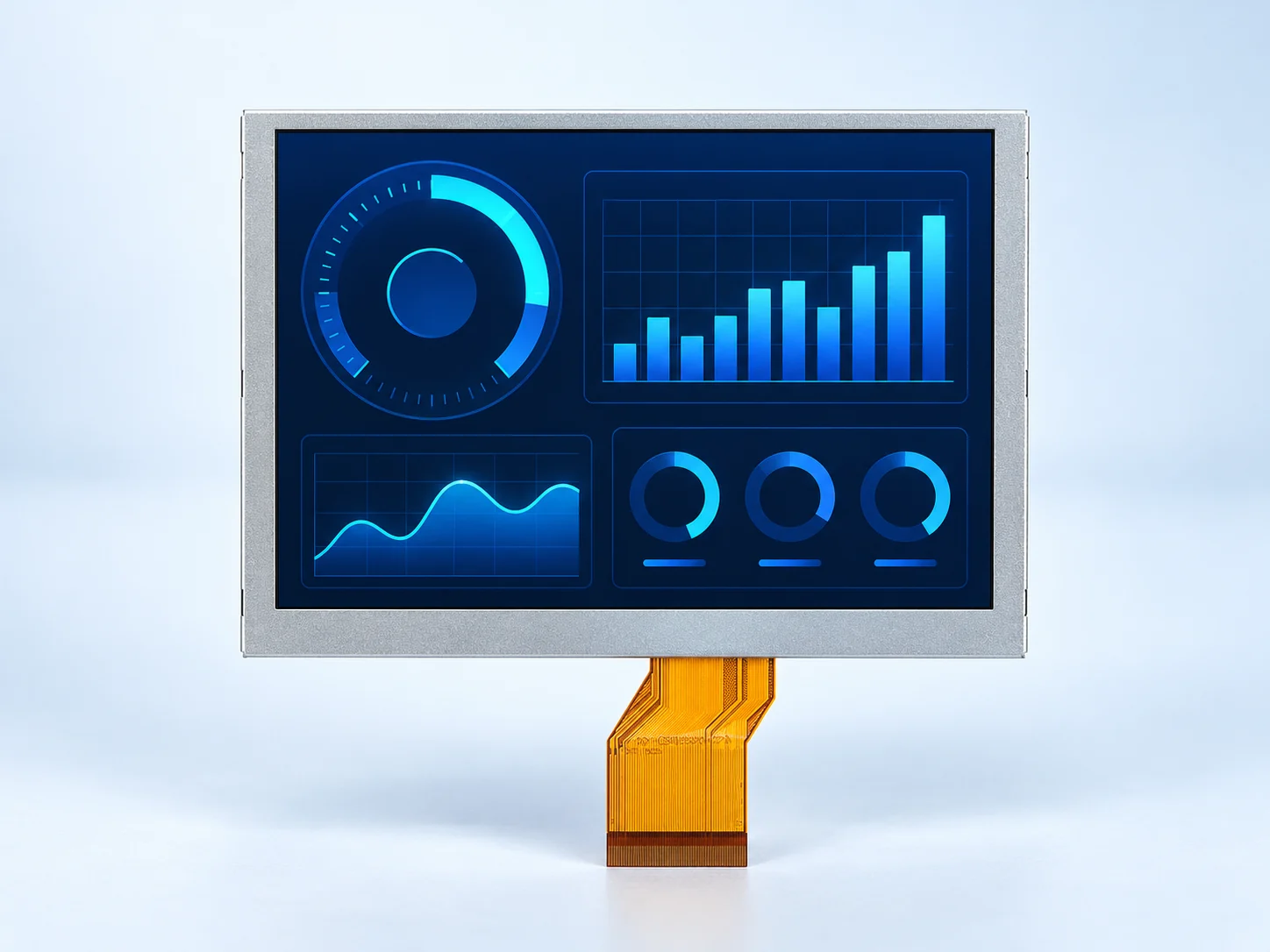

Supplied product visual. Screen graphics illustrate a possible UI; the published product is a bare LCD module.
5.65 inch640×480 VGAIPS750 cd/m²RGB
DS-T0565BGEA-02DE
5.65-Inch 640×480 IPS RGB TFT LCD, 750 Nits
DS-T0565BGEA-02DE is a 5.65-inch 640×480 IPS TFT LCD with 750 cd/m² luminance, a 24-bit 50-pin parallel RGB interface and a short FPC. The catalog configuration has no integrated touch panel and supports −20 to +70 °C operation.
ModelDS-T0565BGEA-02DE
Size5.65 inch
Resolution640×480 VGA
PanelIPS
Luminance750 cd/m²
InterfaceRGB 24-bit, 50-pin
Confirm host timing, FPC pinout, electrical limits and the current controlled drawing before design-in.
Compact 4:3 equipment interfaces
Evaluate a VGA IPS module for a native RGB host
The 115.20×86.40 mm active area provides a 4:3 display format for compact equipment interfaces. Review the actual UI, viewing distance and panel opening together.
Match the host pixel bus, data mapping, timing and FPC route to this exact 50-pin configuration. A matching resolution or pin count alone does not establish interchangeability.
This is an LCD component. The enclosure and control electronics in the illustration are application context and are not included in the published module configuration.
Review parallel RGB timing →

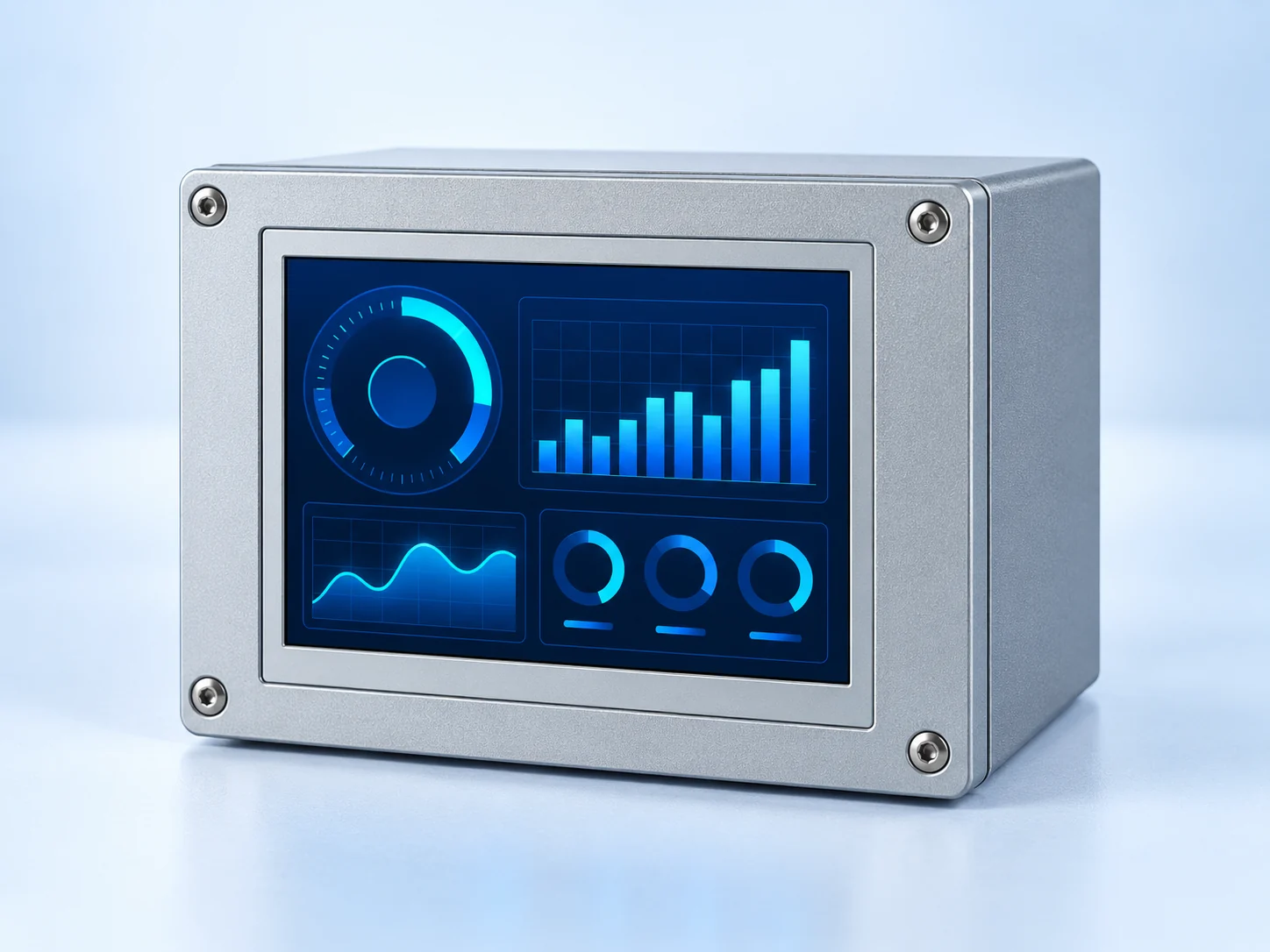

Small equipment integration concept
Illustrative enclosure and screen interface; not a finished instrument, touch assembly or documented customer installation.
Published catalog facts
Specification — DS-T0565BGEA-02DE
Source: DISEA DS-series standard module list, 2026 V2.1, page 3, row 119. Use the current controlled model-specific datasheet for electrical limits and design release.
| Item | DS-T0565BGEA-02DE |
|---|---|
| Model | DS-T0565BGEA-02DE |
| Diagonal size | 5.65 inch |
| Resolution | 640×480 (VGA) |
| LCD type | IPS TFT |
| Luminance | 750 cd/m² (750 nits) |
| Module interface | RGB 24-bit, 50-pin |
| FPC configuration | Short FPC |
| LCD driver IC | JD9168S |
| Touch panel | No TP (no integrated touch panel) |
| Active area (W×H) | 115.20×86.40 mm |
| Module outline (W×H×D) | 126.50×100.00×5.70 mm (published nominal values) |
| Operating temperature | −20 to +70 °C |
| Storage temperature | −30 to +80 °C |
The 750 cd/m² figure is catalog module luminance. Review the complete optical stack, reflections, power and thermal conditions for the actual installation.
Supplied visual references
Module views and engineering context

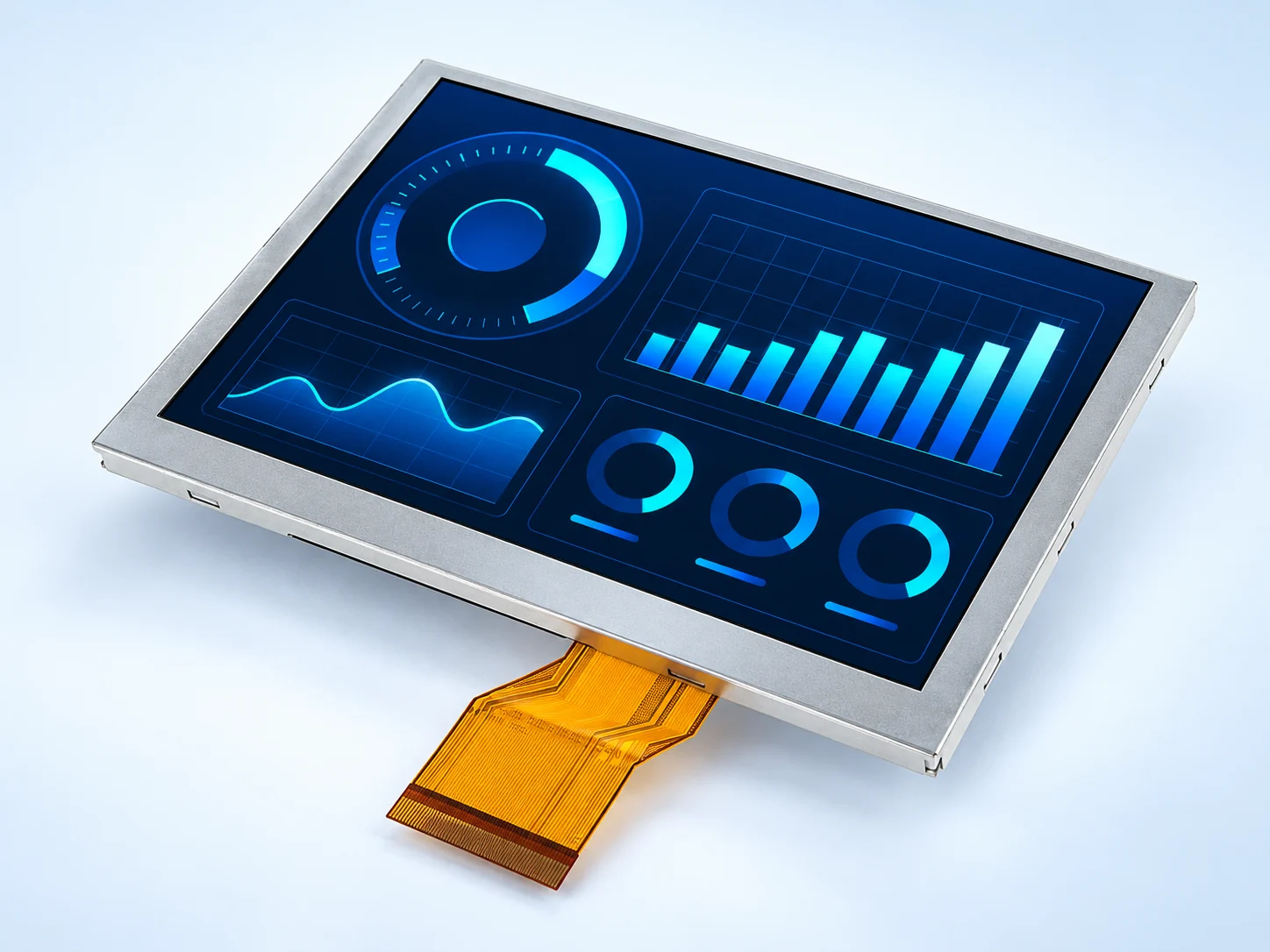

Angled module view
View the metal frame and FPC arrangement. The screen graphics are illustrative and are not supplied HMI software.

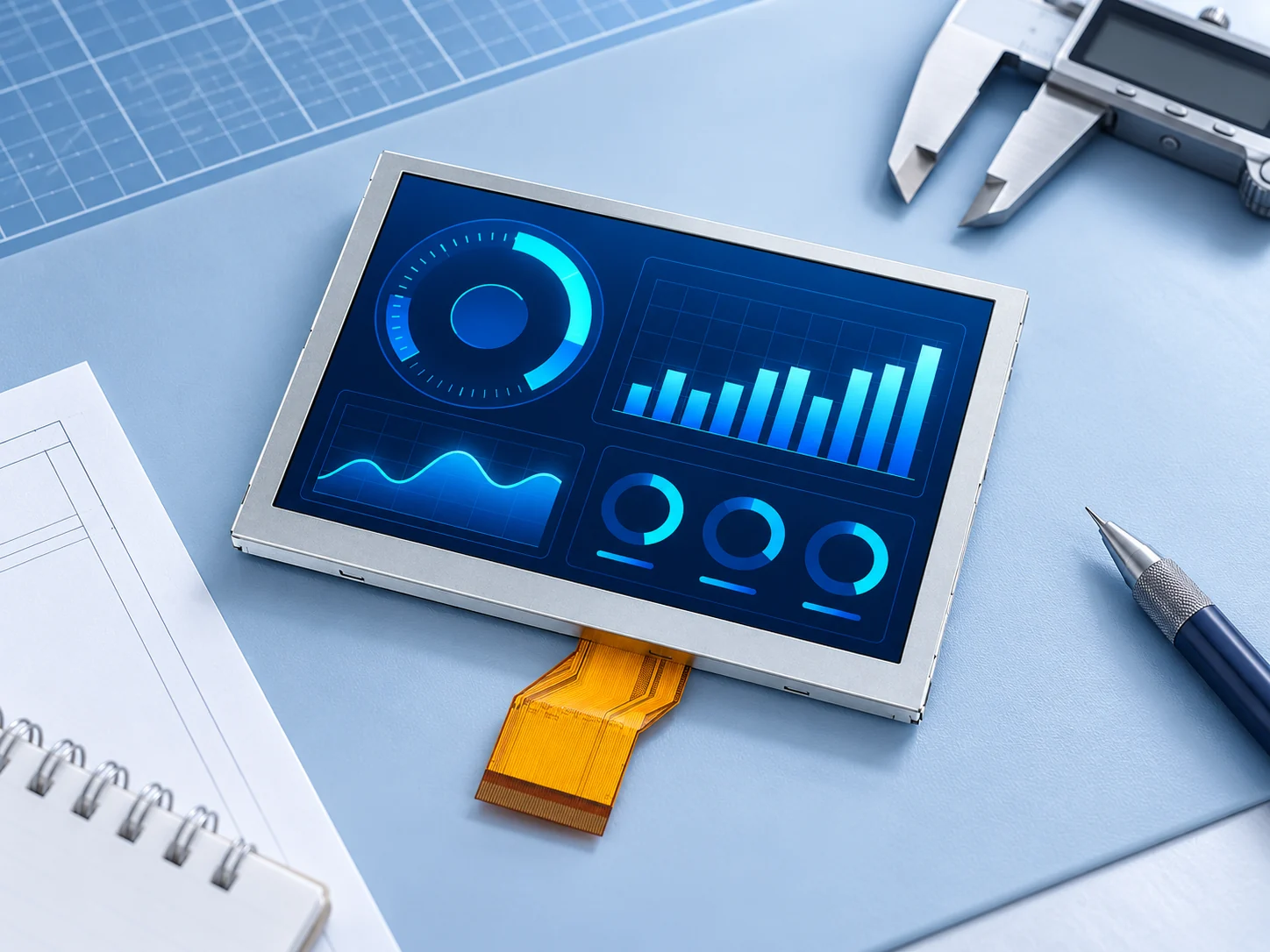

Engineering review concept
An illustrative workbench setting for selection and document review; the tools do not show a measured or approved test result.

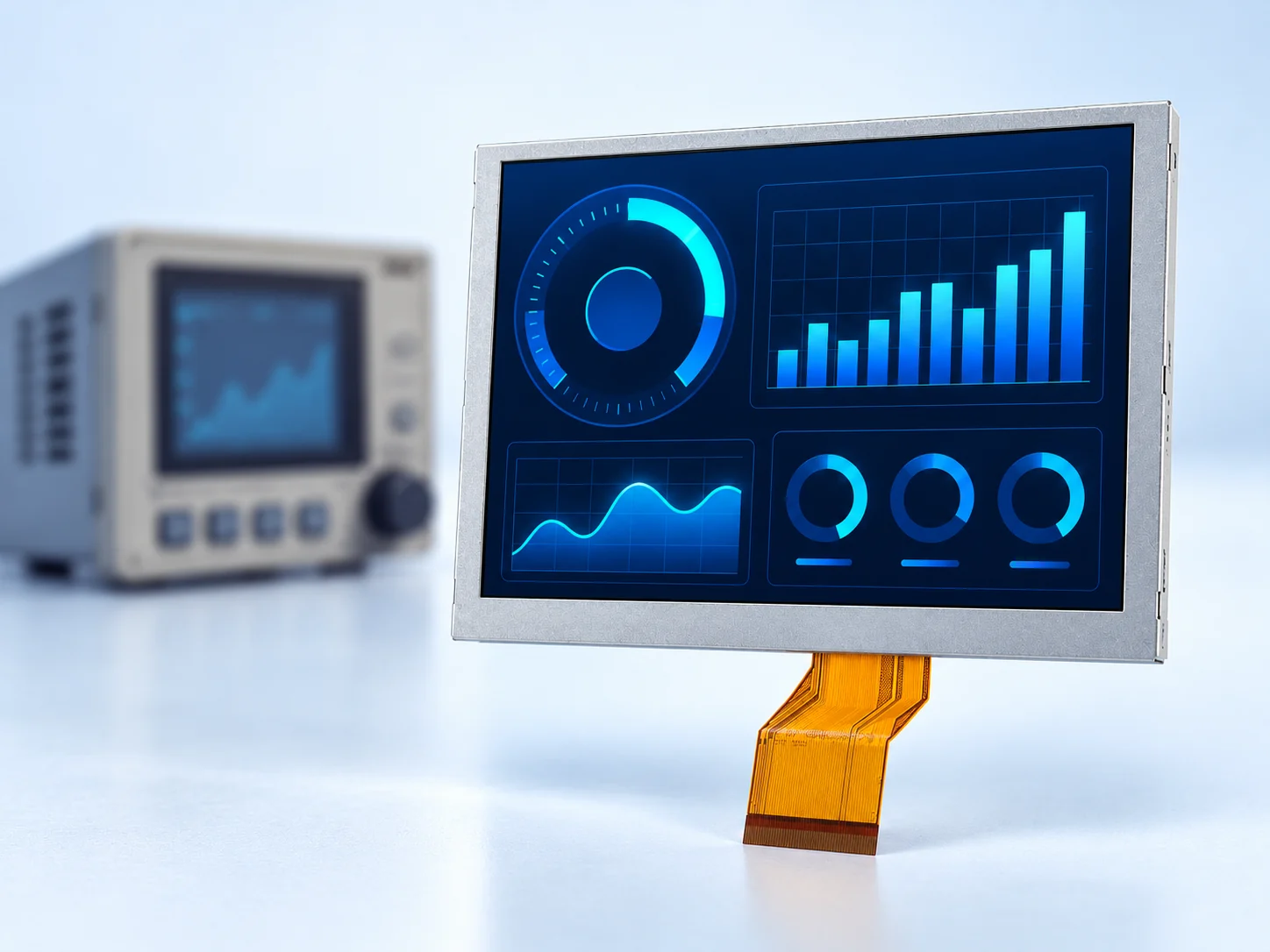

Illustrative equipment-review setting. The background instrument does not establish compatibility with a specific legacy panel.
Host and FPC review
Check the complete RGB integration boundary
1
Timing and color mapping
Confirm the 640×480 timing table, pixel clock, signal polarity and 24-bit color mapping against the current datasheet and host output.
2
Short FPC and connector
Review all 50 pins, mating connector, contact orientation, bend clearance and strain relief. Do not infer compatibility from pin count or the model suffix.
3
Mechanical and operating fit
Compare the 126.50×100.00×5.70 mm nominal outline, mounting and rear clearance with the enclosure. Define sample acceptance for the actual viewing and operating environment.

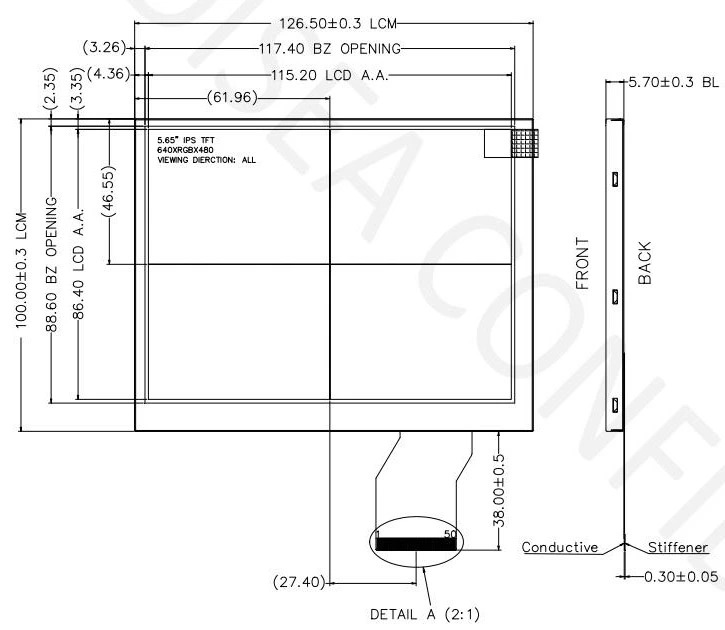

Original mechanical reference
DS-T0565BGEA-02DE reference drawing
Review the original reference drawing at full size before fixing the panel opening and FPC route.
The catalog lists a 126.50×100.00×5.70 mm nominal outline and a 115.20×86.40 mm active area. Confirm current drawing tolerances, FPC detail, connector mating and local clearances for the actual revision.
Documentation and samples
DS-T0565BGEA-02DE datasheet, pinout and sample review
Public catalog reference
The matching model appears in the DISEA standard module list, DS series 2026 V2.1, page 3, row 119.
View the catalog reference (page 3) · Download full catalog ↓
Summary specifications only. An approved model-specific PDF is not published here; request the current controlled datasheet, drawing, timing and FPC pin table.
Send the host and enclosure constraints
Include the host processor, RGB output, proposed timing, mating connector, existing panel if any, FPC route, viewing conditions, sample quantity and schedule.
The inquiry form has no attachment field. Email authorized drawings or screenshots to mkt@diseaelec.com, or follow up on WhatsApp using the same project reference.
Start a model-specific inquiry
Pricing, availability, current document revision and sample arrangements are confirmed for the configuration during project review.
