DS-T035HLWSA-01 is a 3.5-inch wide-temperature TFT LCD with 320×240 IPS resolution, 900-nit luminance, RGB 24-bit 54-pin interface and a −30 to 85 °C operating range.
Confirm the current datasheet, pinout and mechanical drawing before design-in.
DS-T035HLWSA-01 pairs a compact 3.5-inch 320×240 IPS format with 900 cd/m² luminance and a published −30 to 85 °C operating range. This no-touch module uses 24-bit RGB on a 54-pin connection; review text legibility at QVGA resolution and the documented FPC route before integrating it into a small control or instrument enclosure.
Consider where a compact 4:3 display format and high luminance fit the enclosure and viewing conditions.
Evaluate the active area, RGB interface and operating temperature against the host platform and instrument mechanics.
900 cd/m² supports high-brightness design goals; final readability also depends on cover lens, reflection and the complete front stack.
This standard module combines IPS viewing characteristics, 900-nit luminance, a 320×240 resolution and −30 to 85 °C operating and storage ranges.
| Item | DS-T035HLWSA-01 |
|---|---|
| Diagonal size | 3.5 inch |
| Resolution | 320×240 |
| LCD type | IPS |
| Luminance | 900 cd/m² |
| Module interface | RGB 24-bit, 54-pin |
| LCD driver IC | ST7272A |
| Touch panel | No TP |
| Bonding type | Not specified in the supplied module list |
| Active area (W×H) | 70.08×52.56 mm |
| Module outline (W×H×D) | 76.80×63.90×3.05 mm |
| Operating temperature | −30 to 85 °C |
| Storage temperature | −30 to 85 °C |

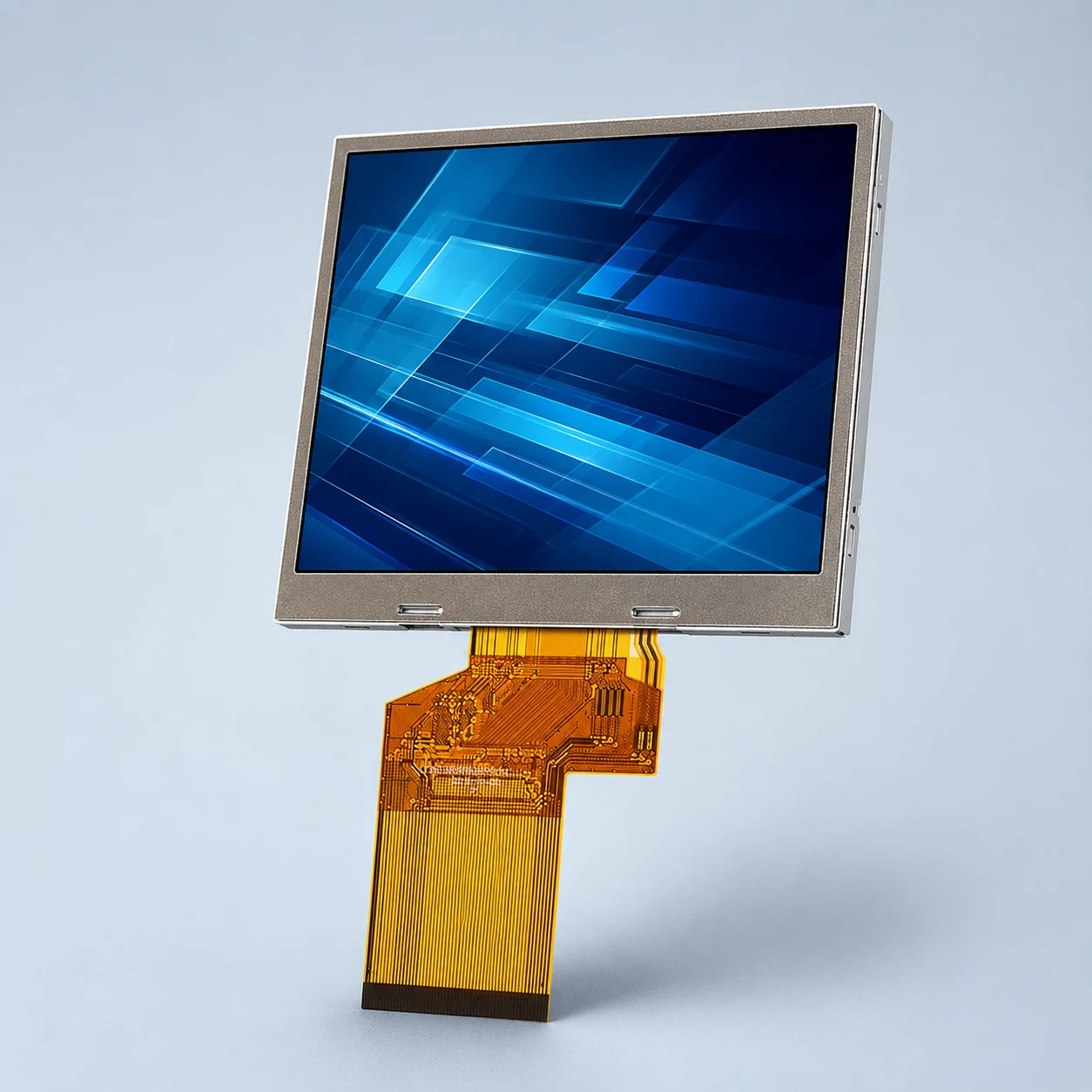

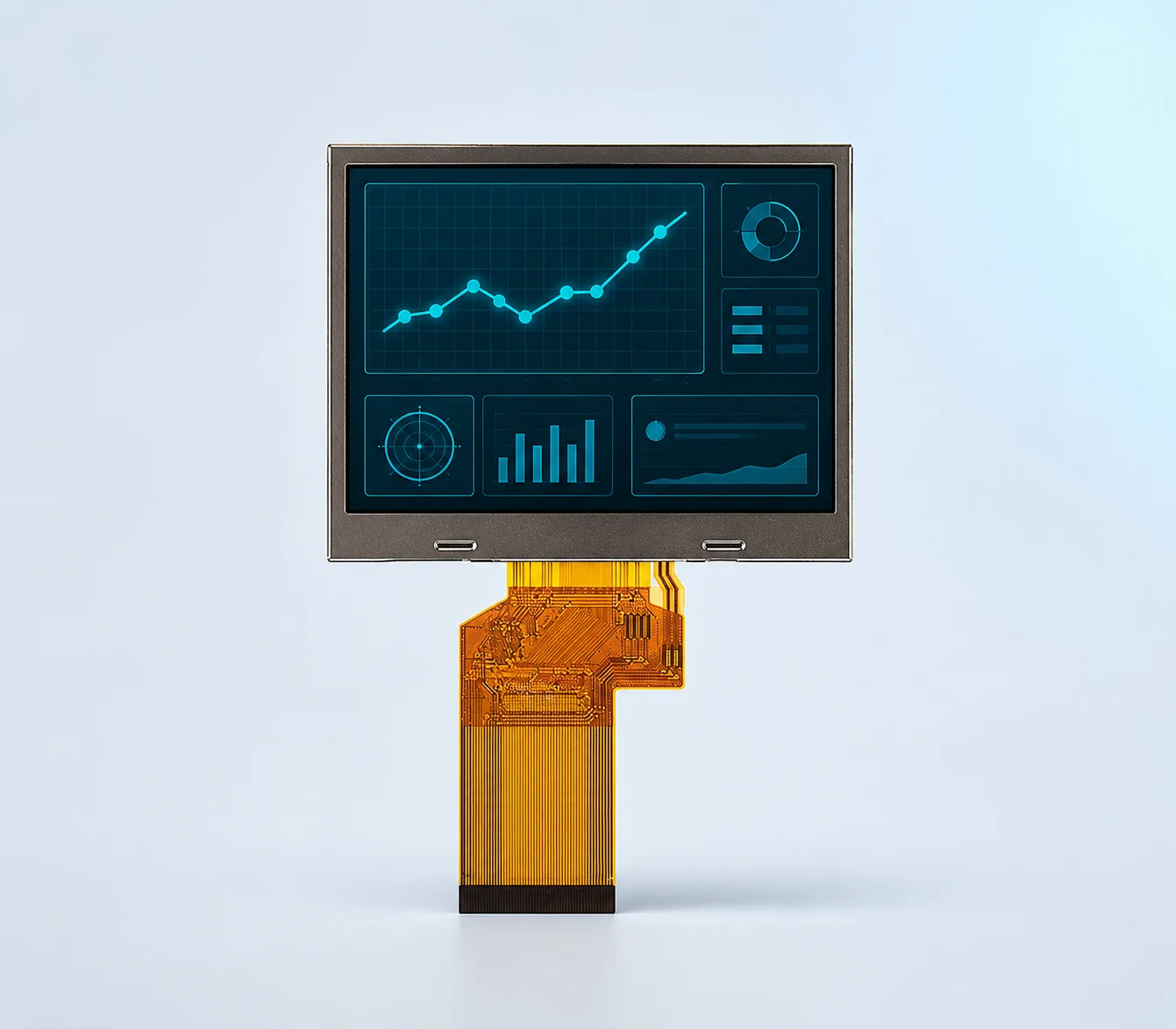

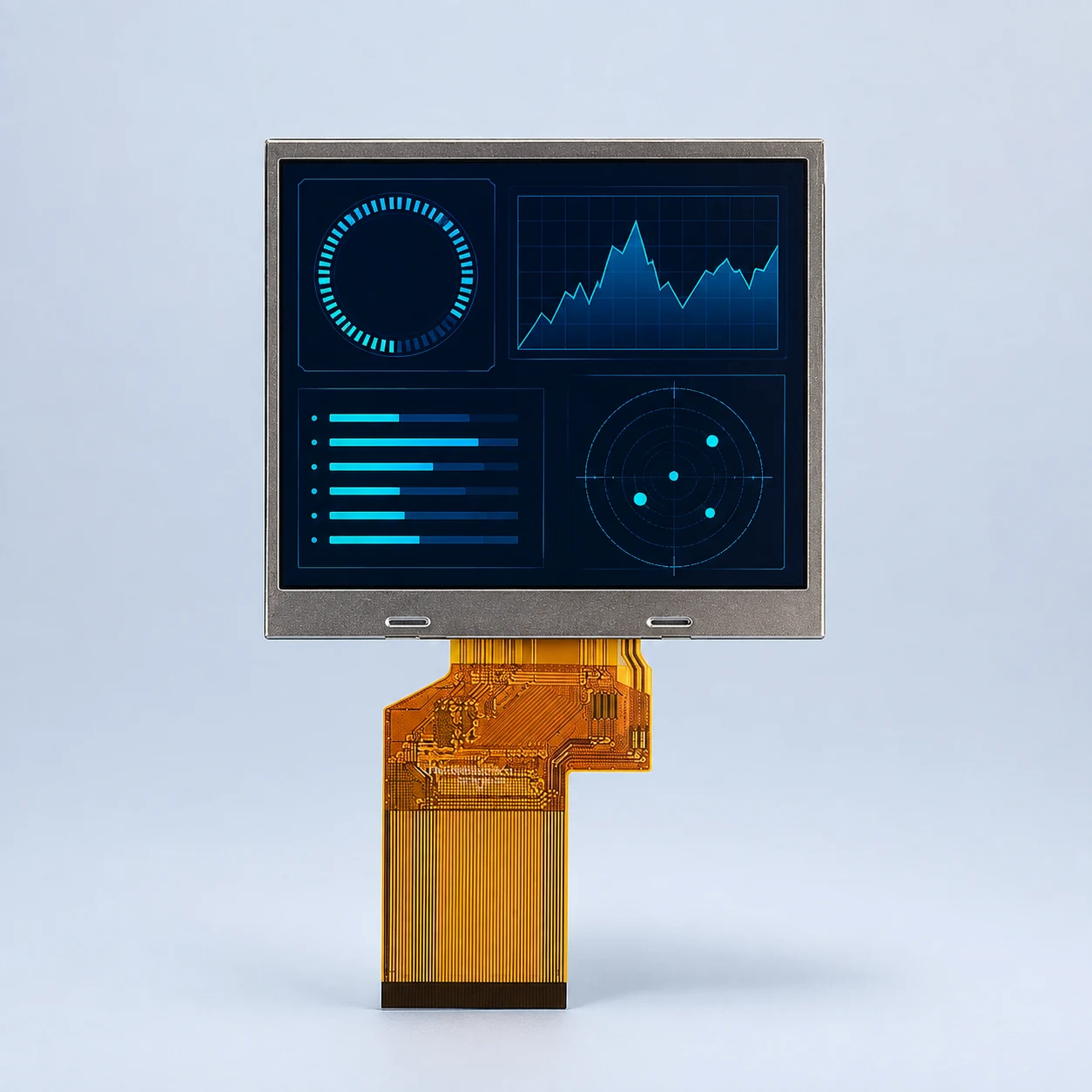

Module front with the FPC route visible.
For visual reference only; use the mechanical drawing for dimensions.

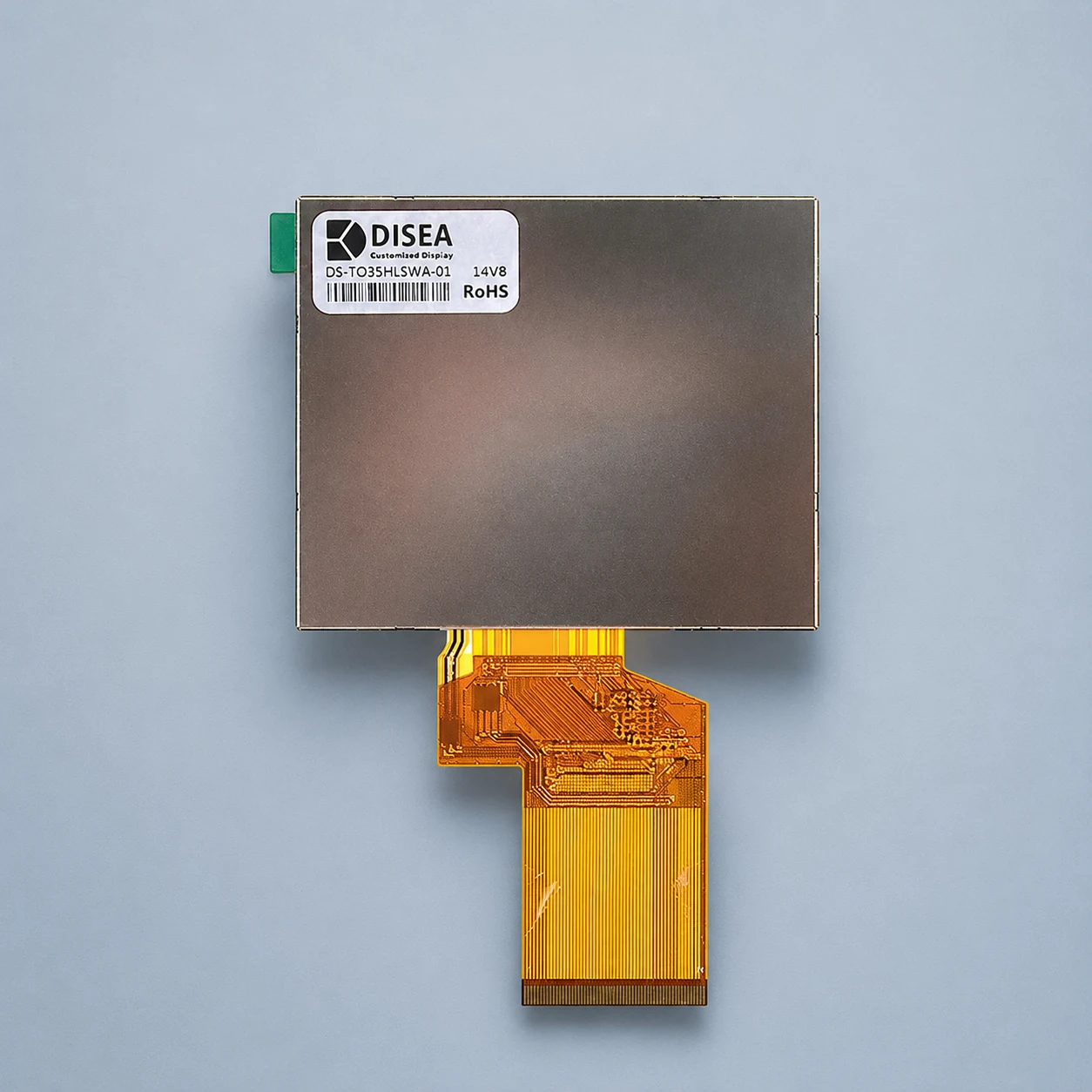

Backplate and FPC routing reference.
An illustrative high-brightness display concept for outdoor test equipment. It is not a documented customer deployment or a mechanical integration drawing.

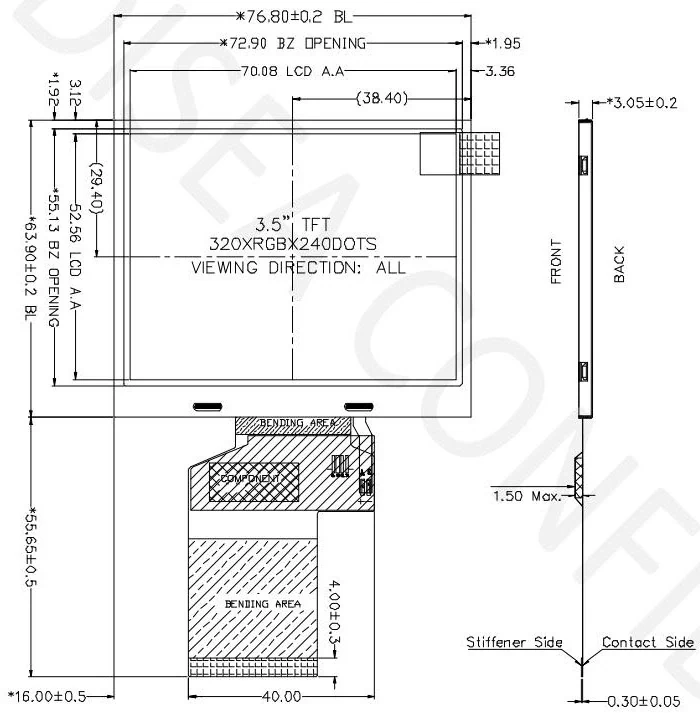

Use the current approved drawing for production release, tolerances and keep-out zones.
Use the current datasheet and drawing to validate the design details that cannot be established from a product list alone.
Use the RGB timing checklist to compare the host and panel documents, and the wide-temperature selection guide to plan cold-start and enclosure validation. Neither guide replaces this model’s approved limits.
No. The supplied product list records DS-T035HLWSA-01 as “NO TP”. If touch is needed, share the cover-glass, controller and operating-environment requirements for review.
Its published luminance is 900 cd/m². Final outdoor readability depends on the enclosure, cover lens, reflection, viewing angle, UI design and thermal conditions.
Confirm the current RGB 24-bit, 54-pin pinout, timing and electrical requirements from the latest model datasheet before design-in.
Use the current mechanical drawing for release. The supplied module list gives an active area of 70.08×52.56 mm and an outline of 76.80×63.90×3.05 mm.
DISEA standard TFT LCD module list · DS series 2026 V2.1 · PDF, 5 pages, 160 KB.
View the catalog reference (page 1) · Download full catalog ↓
Summary specifications only, not the controlled model-specific datasheet. Confirm the current datasheet, pinout and approved drawing for this exact model before design-in.
The visible mechanical drawing is a reference image. Request the current datasheet, controlled drawing, display timing, connector/pinout and backlight electrical requirements before design-in.
Include the host output, enclosure constraints, application and viewing environment, sample quantity and expected demand. Documentation revision, availability and commercial terms are confirmed during review; the public catalog does not imply stock availability or replace controlled model-specific documents.
