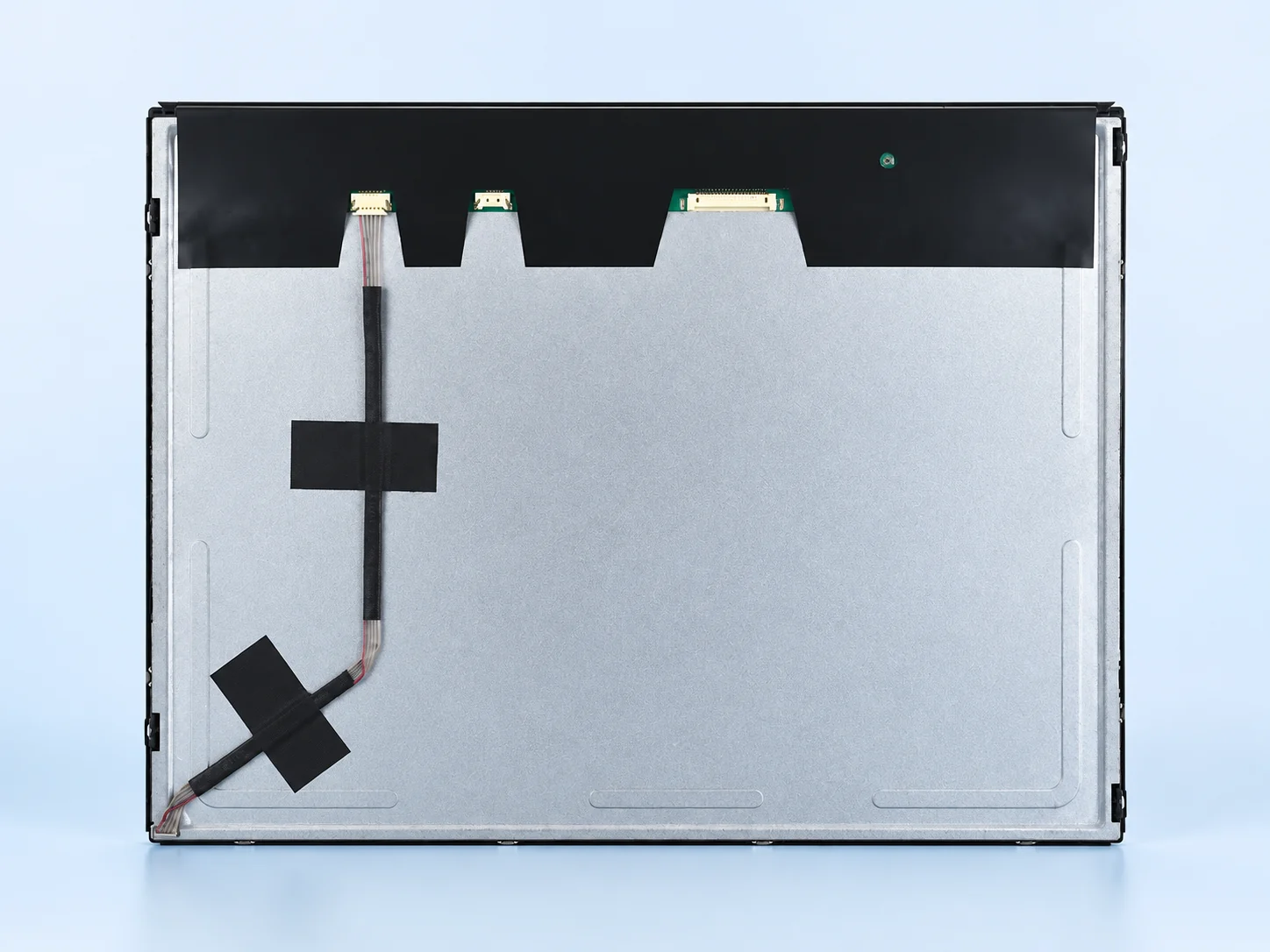

Rear structure reference
Compare the supplied rear-view visual with original product photos and the current controlled drawing; it is not a pinout or connector specification.

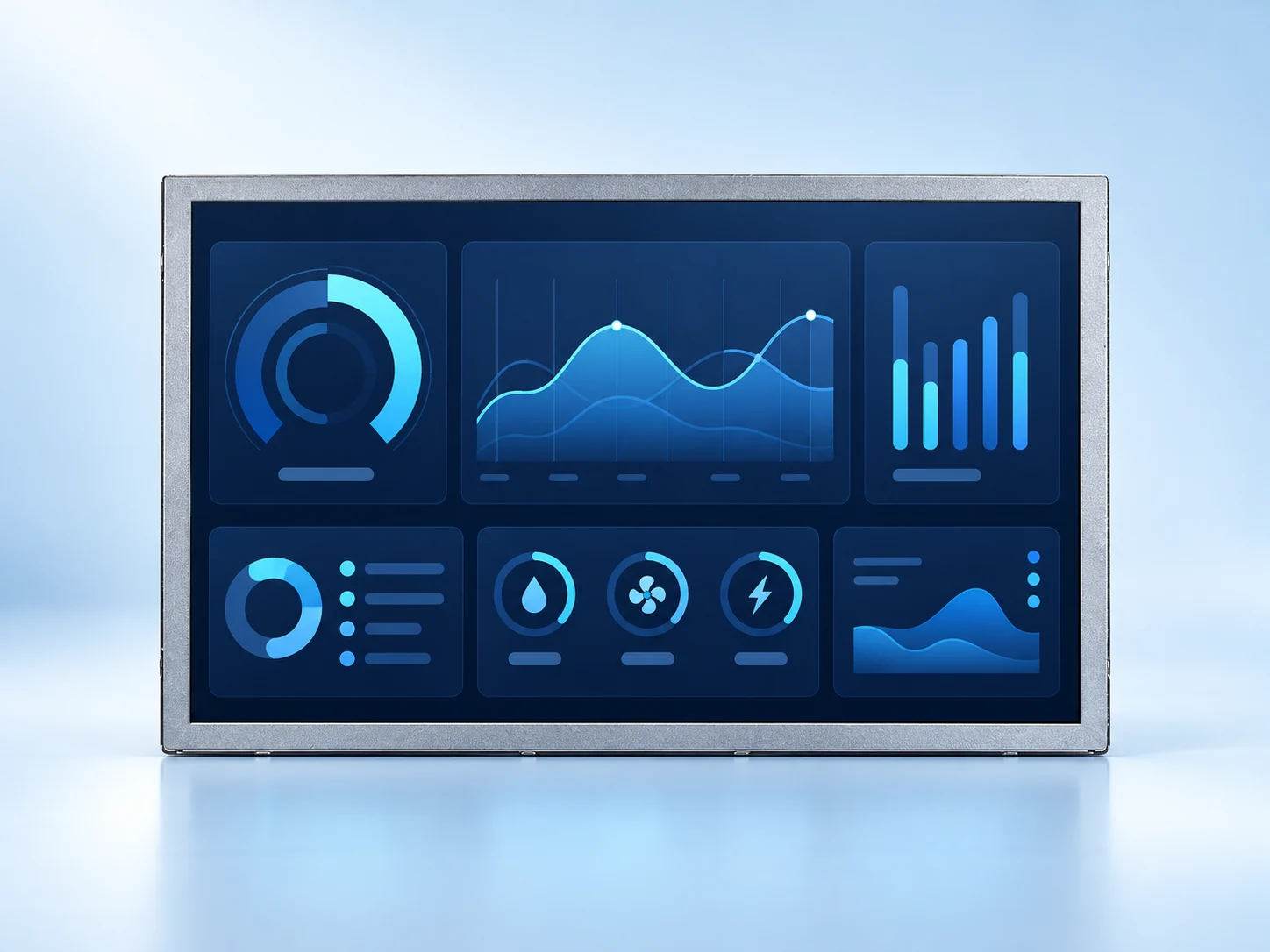

Supplied product visual. The blue on-screen interface is illustrative, not included HMI software or a touch-function claim.
15.0 inchXGA 1024×768IPS450 cd/m²LVDS
DS-T150QXHA-01
15-Inch 1024×768 IPS LVDS TFT LCD for Industrial HMI Replacement
DS-T150QXHA-01 is a 15-inch TFT LCD module with a 1024×768 XGA IPS panel, 450 cd/m² luminance and an 8-bit, 40-pin LVDS interface. The published configuration has no integrated touch panel and a −20 to +70 °C operating range.
ModelDS-T150QXHA-01
Size15.0 inch
Resolution1024×768 XGA
PanelIPS
Luminance450 cd/m²
InterfaceLVDS 8-bit, 40-pin
A legacy LCD replacement candidate, not a pre-approved drop-in substitute. Confirm the existing panel, host timing, pinout and current approved drawing.
Potential industrial HMI fit
A 15-inch XGA candidate for legacy operator-panel reviews
A 4:3 XGA image format can be relevant when an established HMI retains a 1024×768 user interface. It does not establish enclosure, cable, electrical or software compatibility.
Compare the existing LCD model and revision with the complete DS-T150QXHA-01 configuration before quoting a replacement. This is an LCD component, not a finished PLC terminal, HDMI monitor or ready-to-run control system.
Use the obsolete LCD replacement workflow →

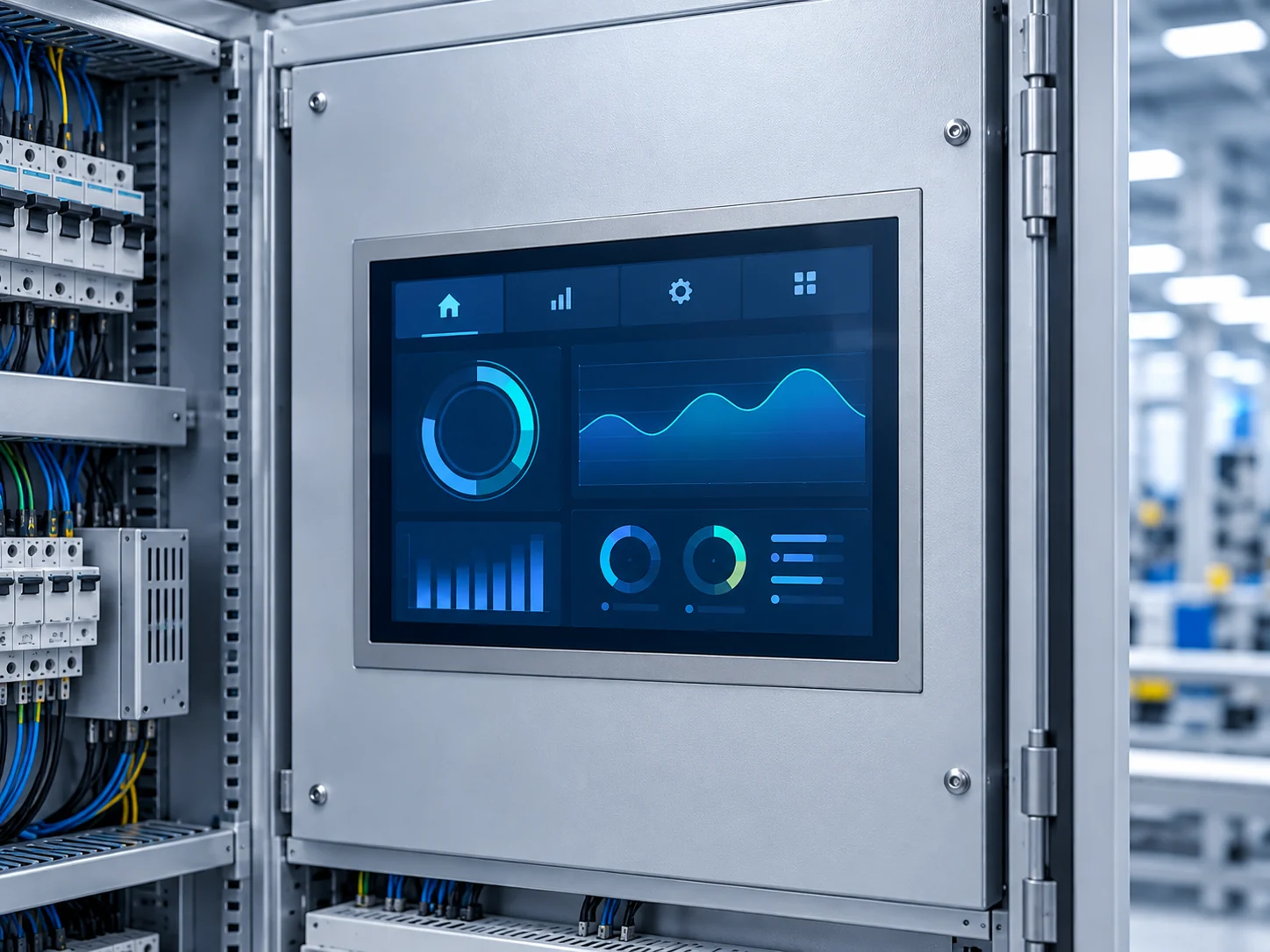

Industrial integration illustration
Conceptual installation only, not a documented customer project, supplied enclosure, touch assembly or equipment certification.
Published catalog facts
Specification — DS-T150QXHA-01
Source: DISEA DS-series standard module list, 2026 V2.1, page 4, row 220, together with the supplied reference drawing. Summary values do not replace the controlled model-specific datasheet.
| Item | DS-T150QXHA-01 |
|---|---|
| Model | DS-T150QXHA-01 |
| Diagonal size | 15.0 inch |
| Resolution | 1024×768 (XGA) |
| LCD type | IPS TFT |
| Luminance | 450 cd/m² |
| Module interface | LVDS 8-bit, 40-pin |
| Touch panel | No TP (no integrated touch panel documented) |
| Active area (W×H) | 304.13×228.10 mm (catalog rounded values) |
| Outline (W×H) | 326.50×253.50 mm |
| Module depth | Revision confirmation required: catalog lists 9.80 mm; supplied reference drawing marks 9.6±0.5 mm |
| Operating temperature | −20 to +70 °C |
| Storage temperature | −20 to +70 °C |
Confirm the depth revision before fixing enclosure clearances
The catalog gives 9.80 mm depth, while the supplied reference drawing marks 9.6±0.5 mm. The nominal values differ; confirm the current controlled version and any local protrusions. No single approved depth is asserted here.
Supplied visual references
Module views and engineering concepts
These supplied presentation images are not dimensional, electrical or sample-test evidence. The original reference drawing is provided separately below.

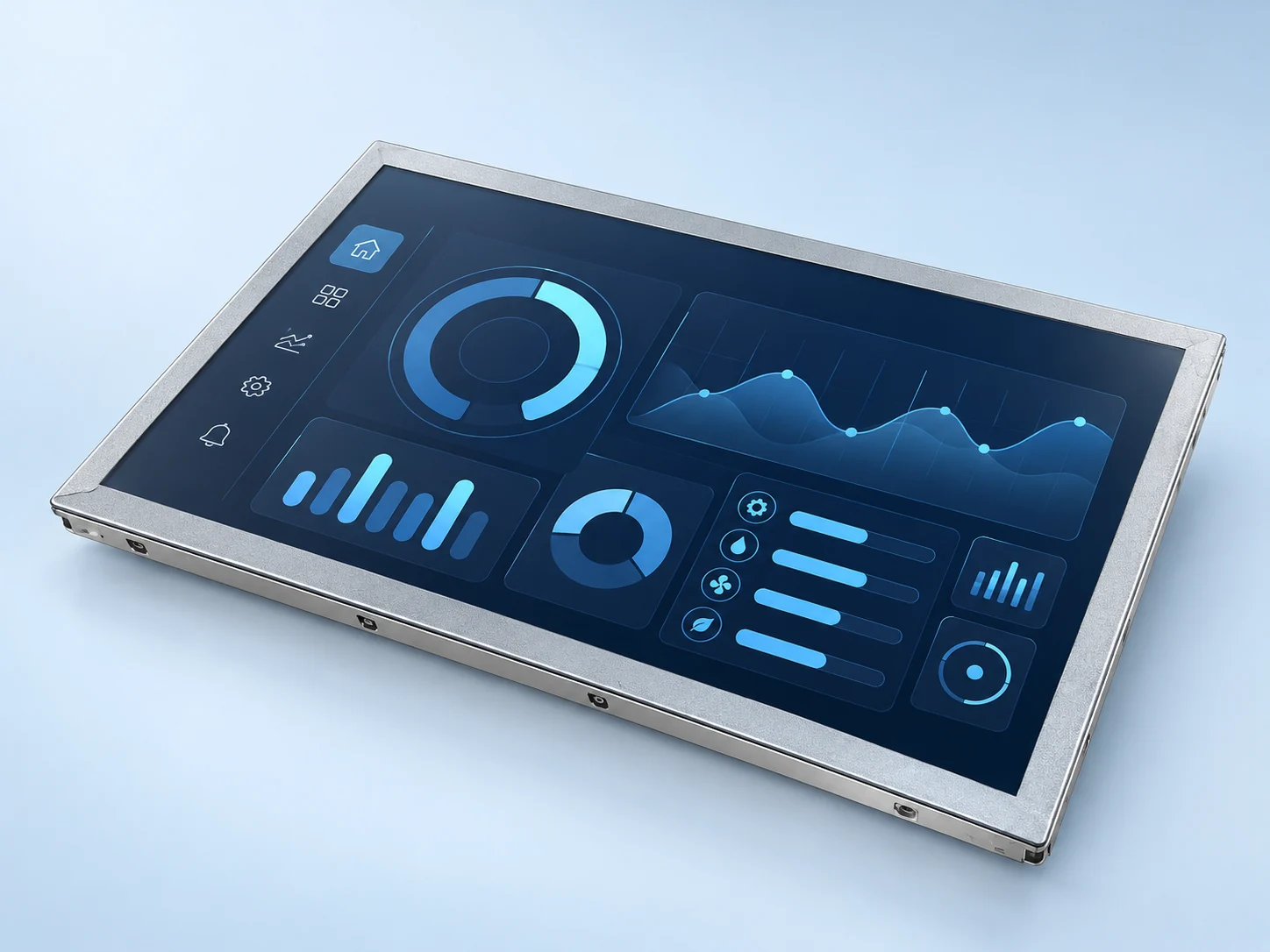

Angled module view
A supplied visual reference for the module form factor. Use the approved drawing, not image perspective, to confirm depth and mounting.

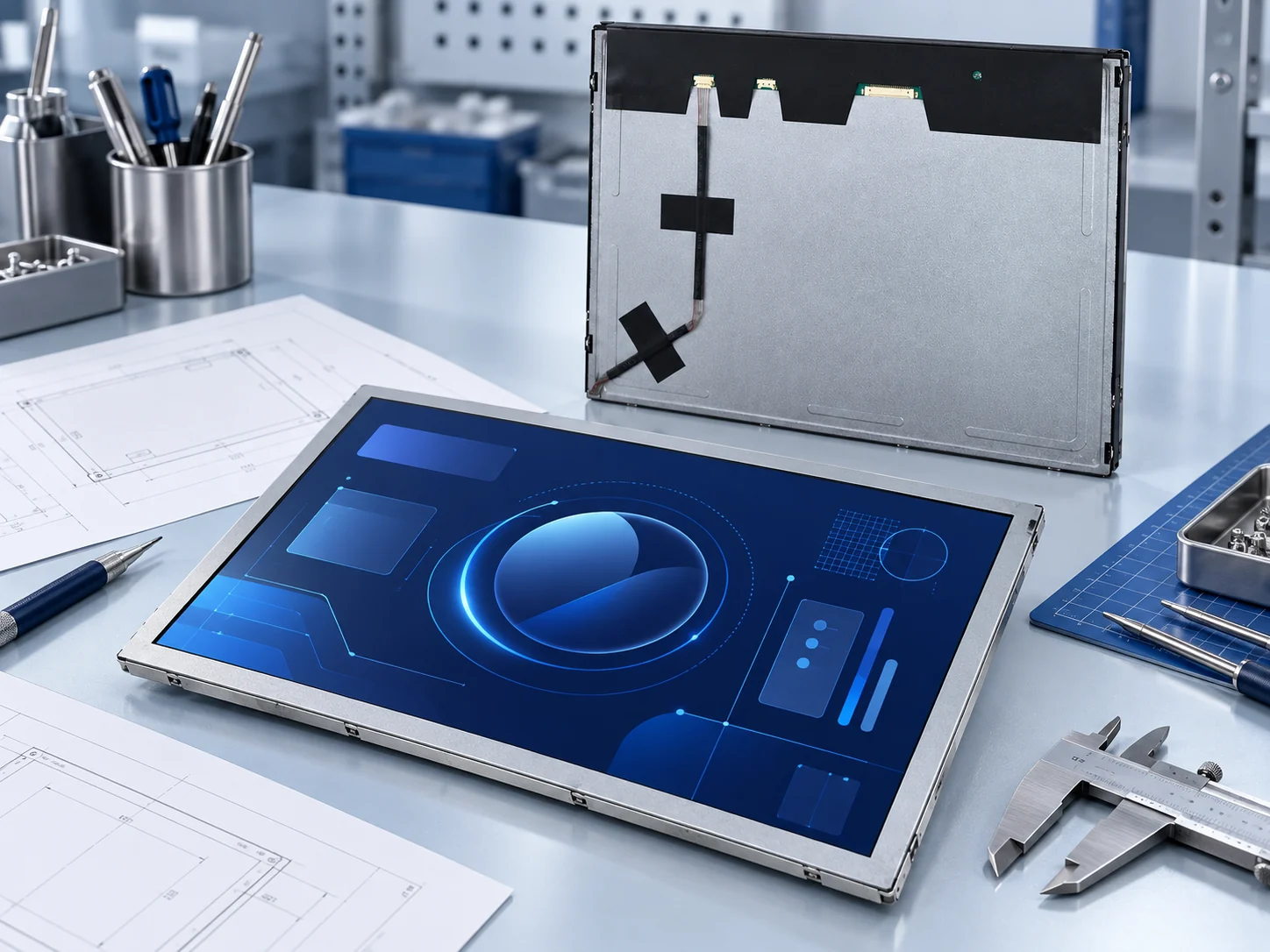

Engineering review concept
A conceptual evaluation setting, not a measurement result or completed validation report. On-screen graphics and surrounding tools are illustrative.

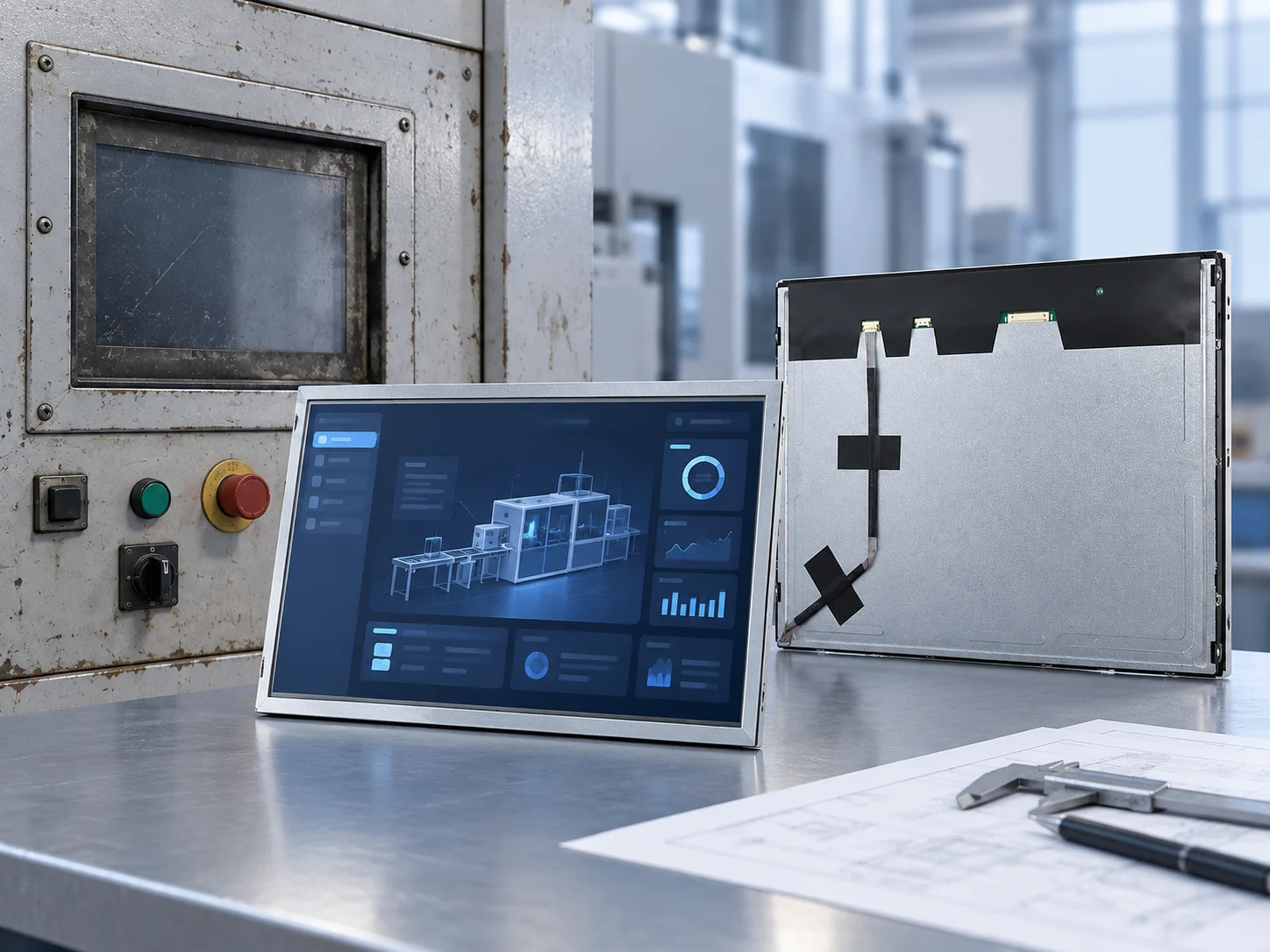

Illustrative replacement-review setting; no third-party model compatibility is established.
Legacy LCD replacement
Match the evidence, not only the 15-inch diagonal
1
Mechanical boundary
Compare the active area, bezel opening, 326.50×253.50 mm outline, mounts, rear access and confirmed depth revision.
2
Native LVDS and host timing
Confirm 1024×768 timing, 8-bit data mapping, the complete 40-pin pinout, supply requirements and backlight drive. Do not infer compatibility from pin count.
3
System acceptance
Review the actual UI, viewing conditions, 450 cd/m² configuration and −20 to +70 °C operation. No sunlight-readability, touch or equipment approval is implied.

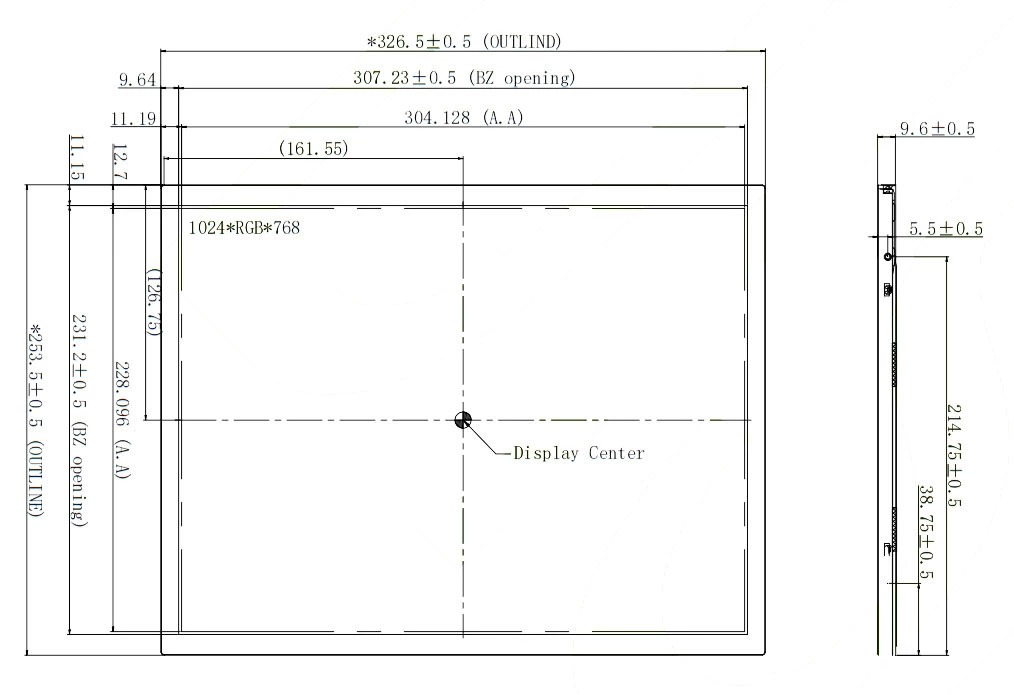

Original mechanical reference
DS-T150QXHA-01 reference drawing
Original mechanical reference supplied with the product materials. Open the full-size drawing to review the dimensions.
The drawing marks a 326.5±0.5 by 253.5±0.5 mm outline and a 304.128 by 228.096 mm active area. The catalog active-area values are rounded to 304.13 by 228.10 mm.
Depth remains a revision check: the drawing marks 9.6±0.5 mm and the catalog lists 9.80 mm. Request the current approved drawing, connector details and keep-out zones before design lock.
Documentation and samples
DS-T150QXHA-01 datasheet, pinout and replacement review
Public catalog reference, not an approved model datasheet
DISEA standard TFT LCD module list, DS series 2026 V2.1. The matching model is on page 4, row 220.
View the catalog reference (page 4) · Download full catalog ↓
An approved model-specific PDF is not published here. Request confirmation of the current controlled datasheet, drawing, electrical limits and pinout for the exact revision.
Send the old part and the constraints that must stay unchanged
Include the existing LCD part number and revision, host board, native LVDS output, UI resolution, cable mapping, enclosure drawing, operating conditions, sample quantity and schedule.
The inquiry form has no attachment field. Email authorized drawings or screenshots to mkt@diseaelec.com, or arrange file follow-up on WhatsApp with the same project reference.
Start a model-specific review
Pricing, availability, document revision and sample arrangements are confirmed for the actual configuration during project review. No stock level or third-party replacement compatibility is promised on this page.
