DS-T043BWSWA-02 4.3-inch 800×480 IPS wide-temperature TFT LCD display, front view with complete FPC

4.3 inch800×480IPS900 cd/m²

4.3 Inch 800×480 IPS Wide Temperature Industrial TFT LCD 900 Nits

DS-T043BWSWA-02 is a 4.3-inch 800×480 IPS RGB TFT LCD with 900 cd/m² luminance, a 24-bit 40-pin interface, no touch panel and a −30 to 80 °C operating range. Review this exact configuration against the host timing and enclosure.

ModelDS-T043BWSWA-02

Size4.3 inch

Resolution800×480

PanelIPS

Luminance900 cd/m²

InterfaceRGB 24-bit, 40-pin

Request Sample / Project Review Check Specs

Confirm the current datasheet, pinout and mechanical drawing before design-in.

Potential project fit

A 4.3-inch 800×480 IPS TFT LCD for high-brightness industrial interfaces.

DS-T043BWSWA-02 keeps the 4.3-inch 800×480 IPS format and 900 cd/m² luminance while listing a −30 to 80 °C operating range. It has a 24-bit RGB, 40-pin interface and no integrated touch panel; use it as a wider-temperature candidate only after checking cold-start behaviour, FPC fit and the finished equipment’s thermal conditions.

Industrial controls

Consider where the 4.3-inch landscape format, mounting outline and RGB interface fit the enclosure and host platform.

Test & measurement

Evaluate active area, interface timing and optical performance against the instrument mechanics and viewing conditions.

900-nit LCD display

900 cd/m² supports high-brightness design goals; final readability also depends on cover lens, reflection and the complete front stack.

Verified product facts

Specification

Item	DS-T043BWSWA-02
Diagonal size	4.3 inch
Resolution	800×480
LCD type	IPS
Luminance	900 cd/m²
Module interface	RGB 24-bit, 40-pin
LCD driver IC	ST7265
Touch panel	No TP
Bonding type	Not specified in the supplied module list
Active area (W×H)	95.04×53.86 mm
Module outline (W×H×D)	105.50×67.20×3.00 mm
Operating temperature	−30 to 80 °C
Storage temperature	−30 to 80 °C

Module views

Product, rear and FPC references.

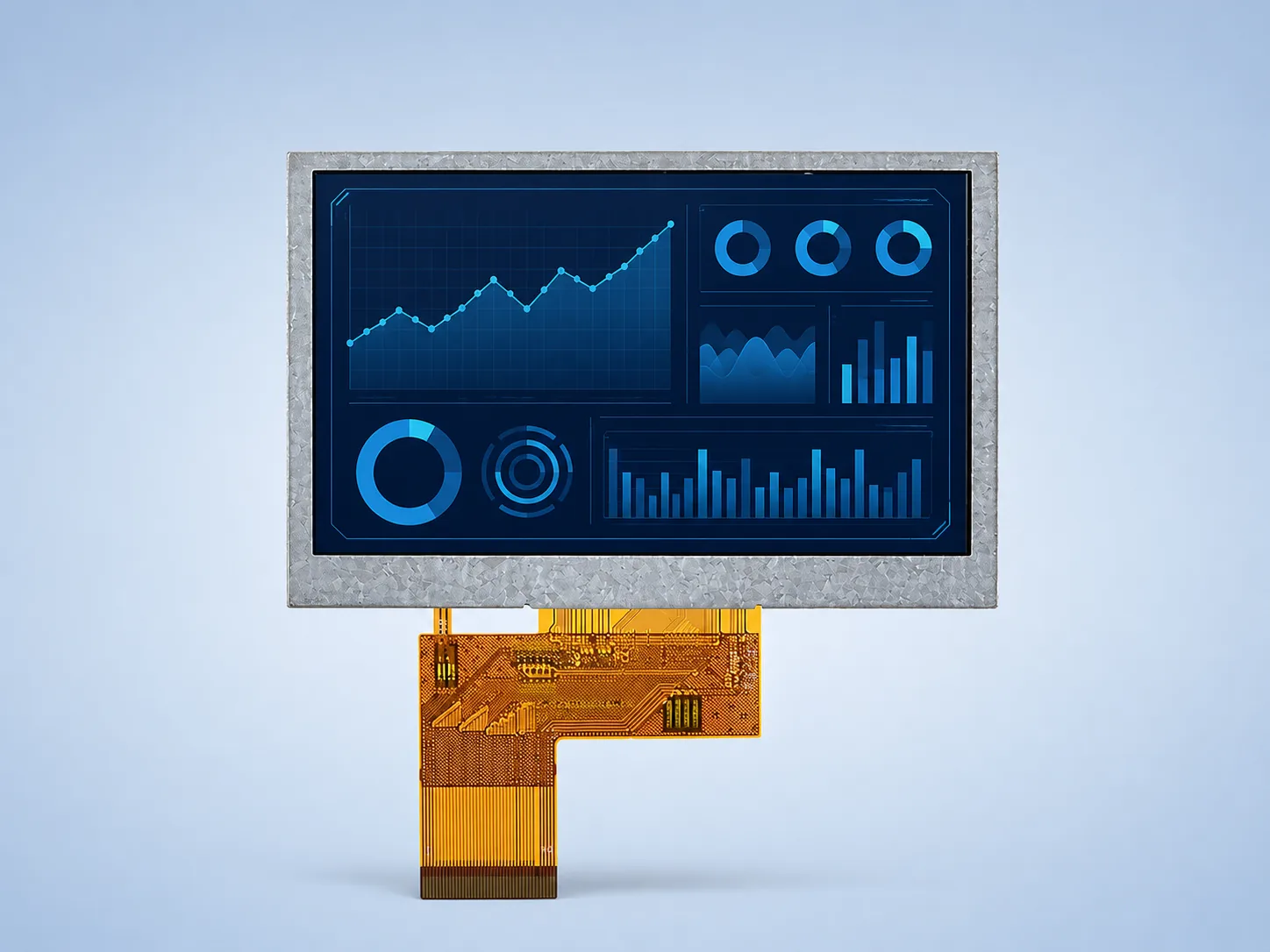

Front view

Module front with the complete FPC route visible.

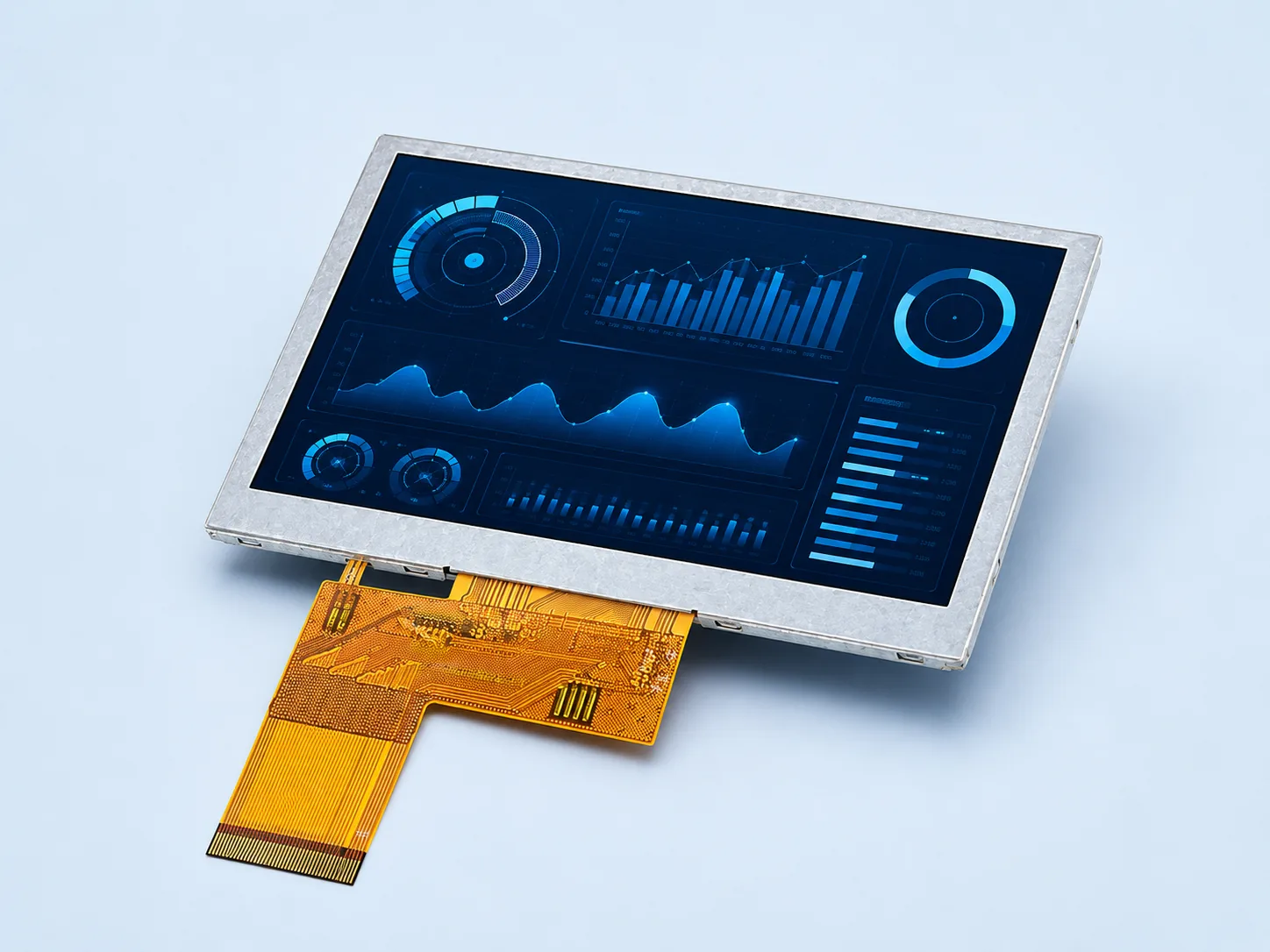

Angled view

For visual reference only; use the mechanical drawing for dimensions.

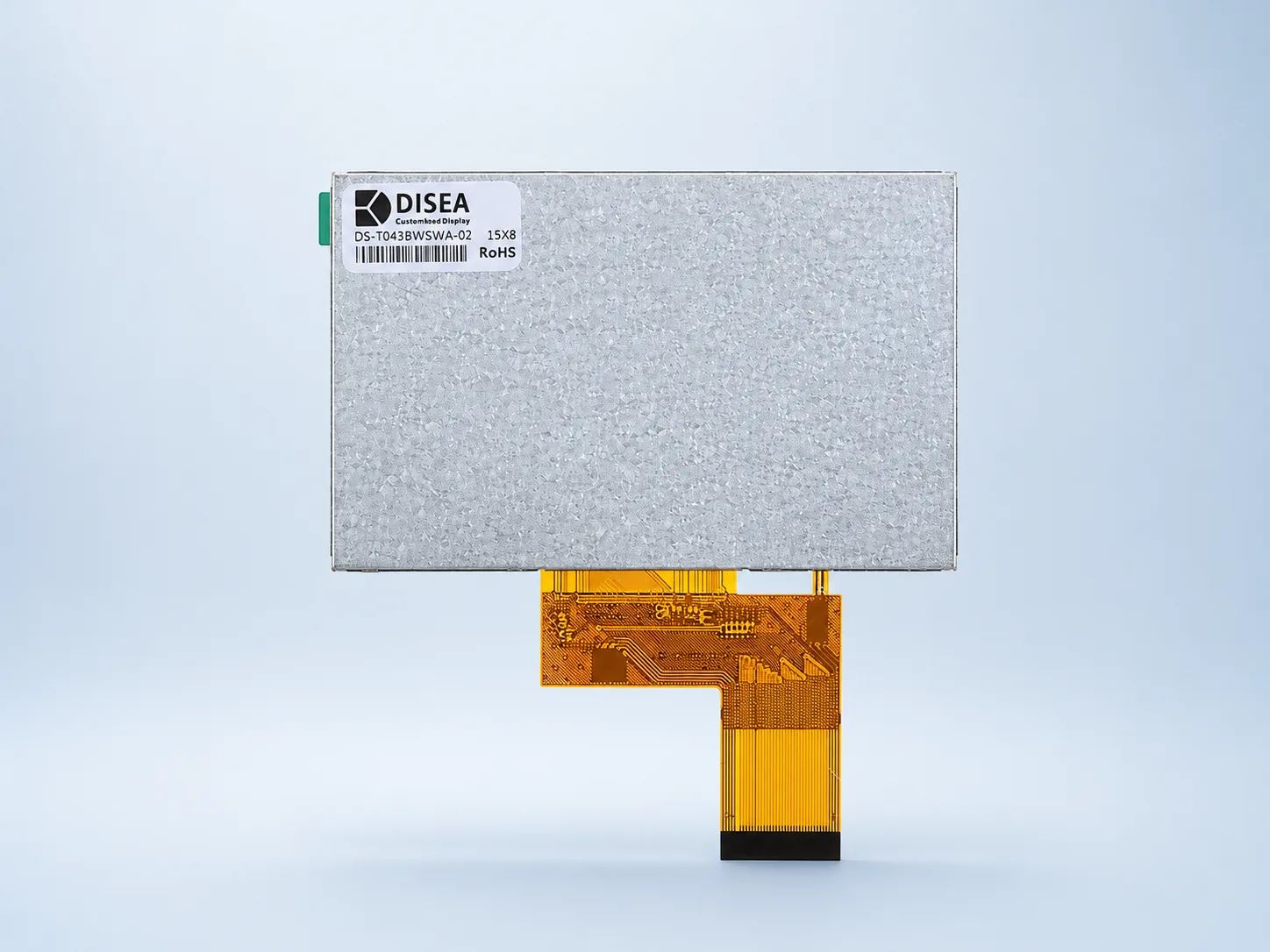

Rear view

Backplate and complete FPC routing reference.

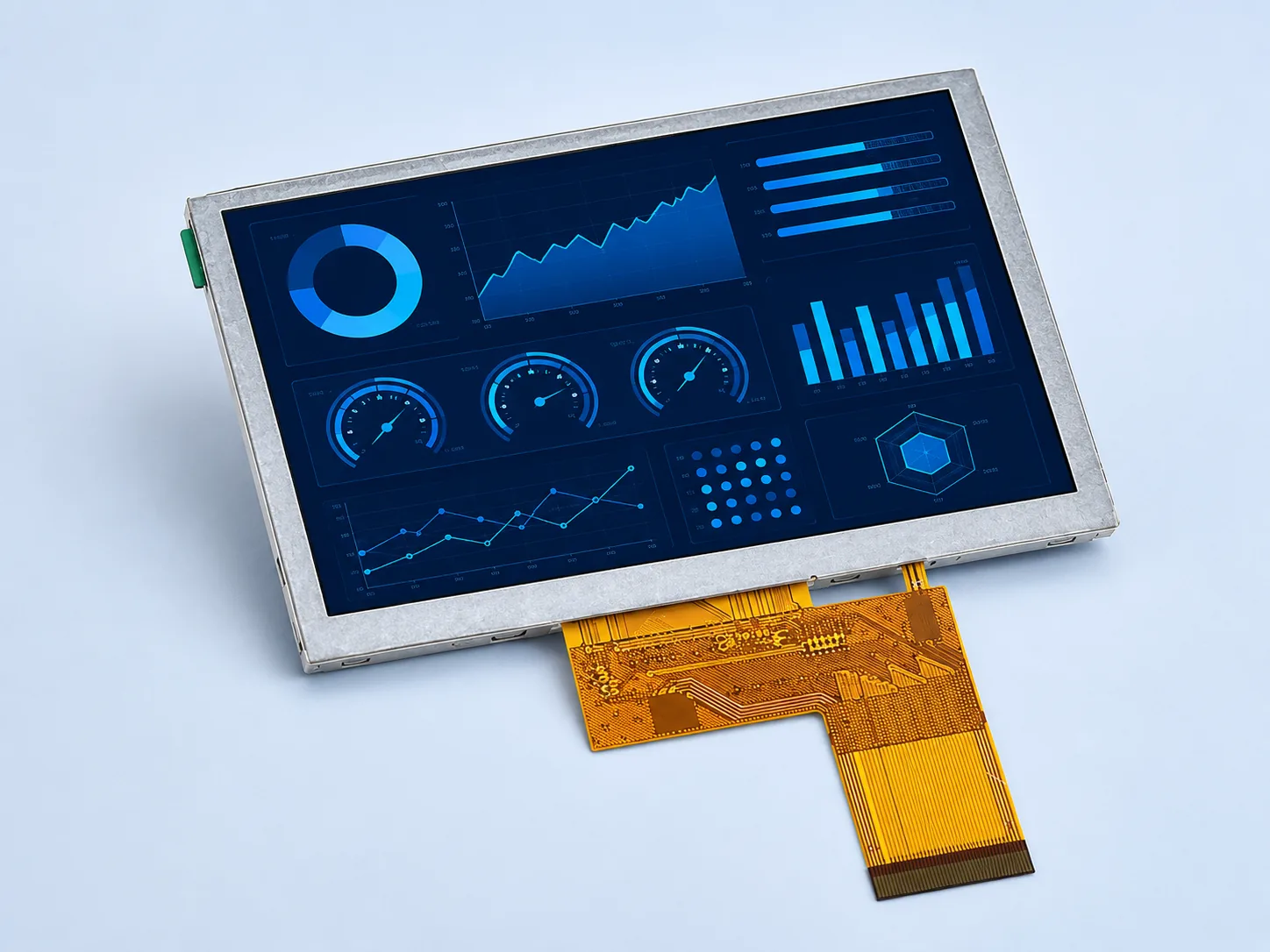

FPC detail view

Use this view only as a visual reference; verify the approved drawing for routing, pinout, tolerances and keep-out zones.

FPC detail of DS-T043BWSWA-02 TFT LCD module

Application concept

An illustrative wide-temperature display concept for industrial automation equipment. It is not a documented customer deployment or a mechanical integration drawing.

Illustrative outdoor industrial test equipment display concept

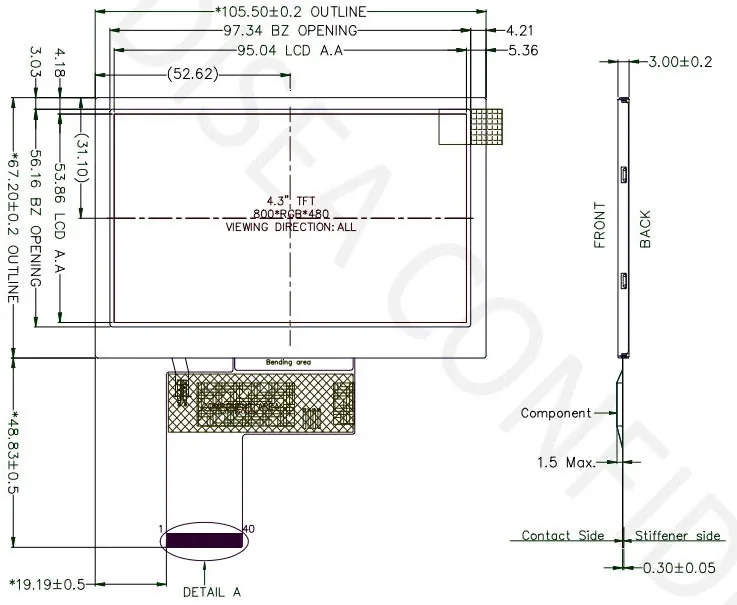

Mechanical reference

Outline and FPC reference drawing.

DS-T043BWSWA-02 mechanical drawing showing module outline, active area and FPC reference

Use the current approved drawing for production release, tolerances and keep-out zones.

Engineering checks before design-in

Use the current datasheet and drawing to validate the design details that cannot be established from a product list alone.

Mechanical fit

Confirm active area, outline, FPC route and keep-out zones against the enclosure.

Host connection

Validate RGB 24-bit timing, 40-pin pinout, driver configuration and electrical limits.

Viewing environment

Assess reflection, cover lens, power and thermal design as part of the full product system.

Engineering-led selection

DS-T043BWSWA-02 datasheet, pinout and sample review

Public catalog reference for DS-T043BWSWA-02

DISEA standard TFT LCD module list · DS series 2026 V2.1 · PDF, 5 pages, 160 KB.

View the catalog reference (page 2) · Download full catalog ↓

Summary specifications only, not the controlled model-specific datasheet. Confirm the current datasheet, pinout and approved drawing for this exact model before design-in.

Engineering document request

The visible mechanical drawing is a reference image. Request the current datasheet, controlled drawing, display timing, connector/pinout and backlight electrical requirements before design-in.

Include the host output, enclosure constraints, application and viewing environment, sample quantity and expected demand. Documentation revision, availability and commercial terms are confirmed during review; the public catalog does not imply stock availability or replace controlled model-specific documents.
