DS-T050BWSA-02 is a 5-inch 800×480 TFT LCD with IPS viewing. This 1000-nit industrial display module uses an RGB 24-bit 40-pin interface and has no touch panel.
Confirm the current datasheet, pinout and mechanical drawing before design-in.
DS-T050BWSA-02 is a 5-inch 800×480 IPS option for a bright control or instrument interface using 24-bit RGB through a 40-pin connection. Its 1000 cd/m² luminance and −20 to 70 °C operating range distinguish it from the bonded PCAP and wider-temperature 5-inch variants; confirm which exact configuration your host and enclosure require.
| Item | DS-T050BWSA-02 |
|---|---|
| Diagonal size | 5.0 inch |
| Resolution | 800×480 |
| LCD type | IPS |
| Luminance | 1000 cd/m² |
| Module interface | RGB 24-bit, 40-pin |
| LCD driver IC | ST7265 |
| Touch panel | No TP |
| Bonding type | Not specified in the supplied module list |
| Active area (W×H) | 108.00×64.80 mm |
| Module outline (W×H×D) | 120.70×75.80×2.85 mm |
| Operating temperature | −20 to 70 °C |
| Storage temperature | −30 to 80 °C |

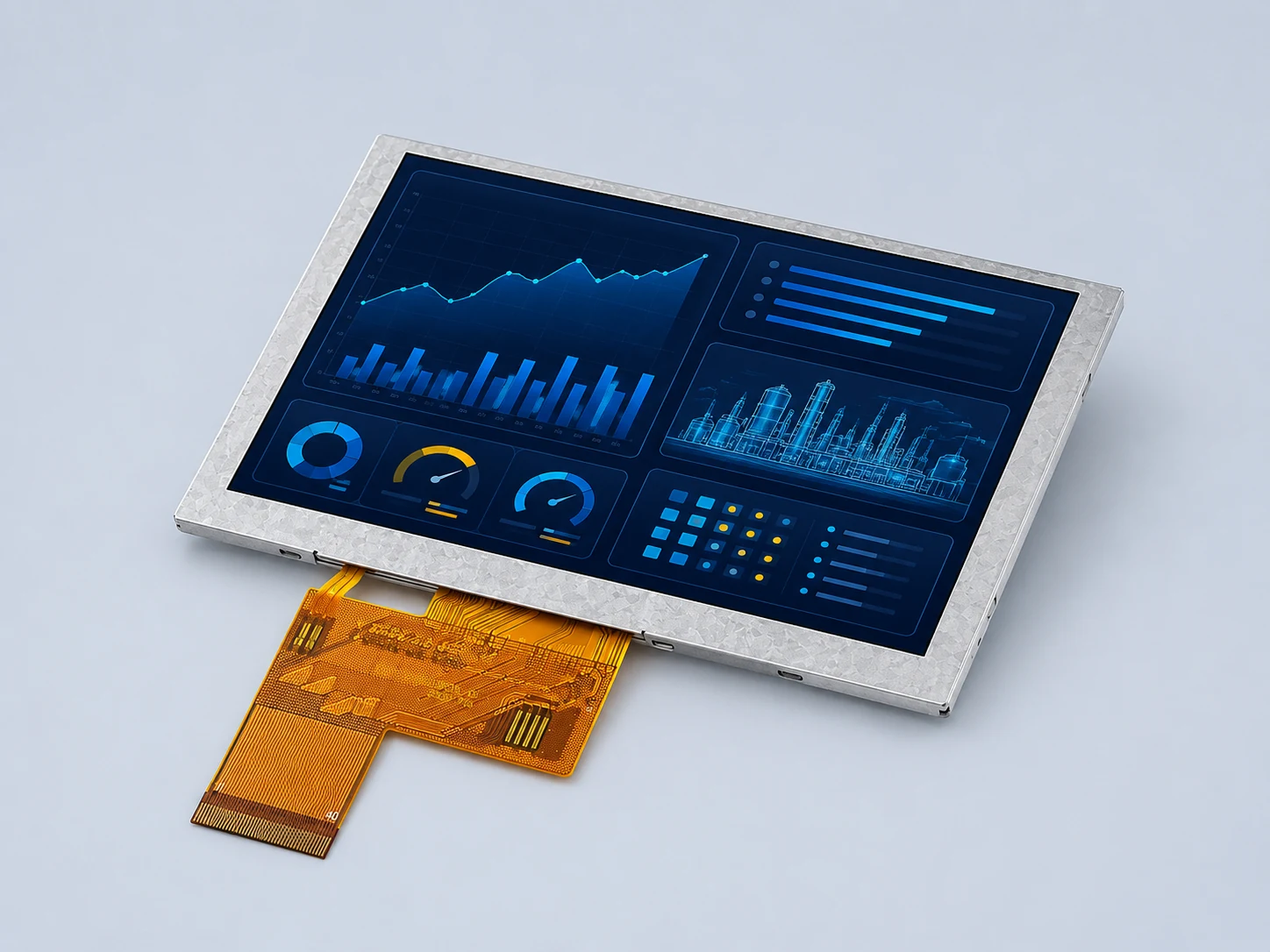

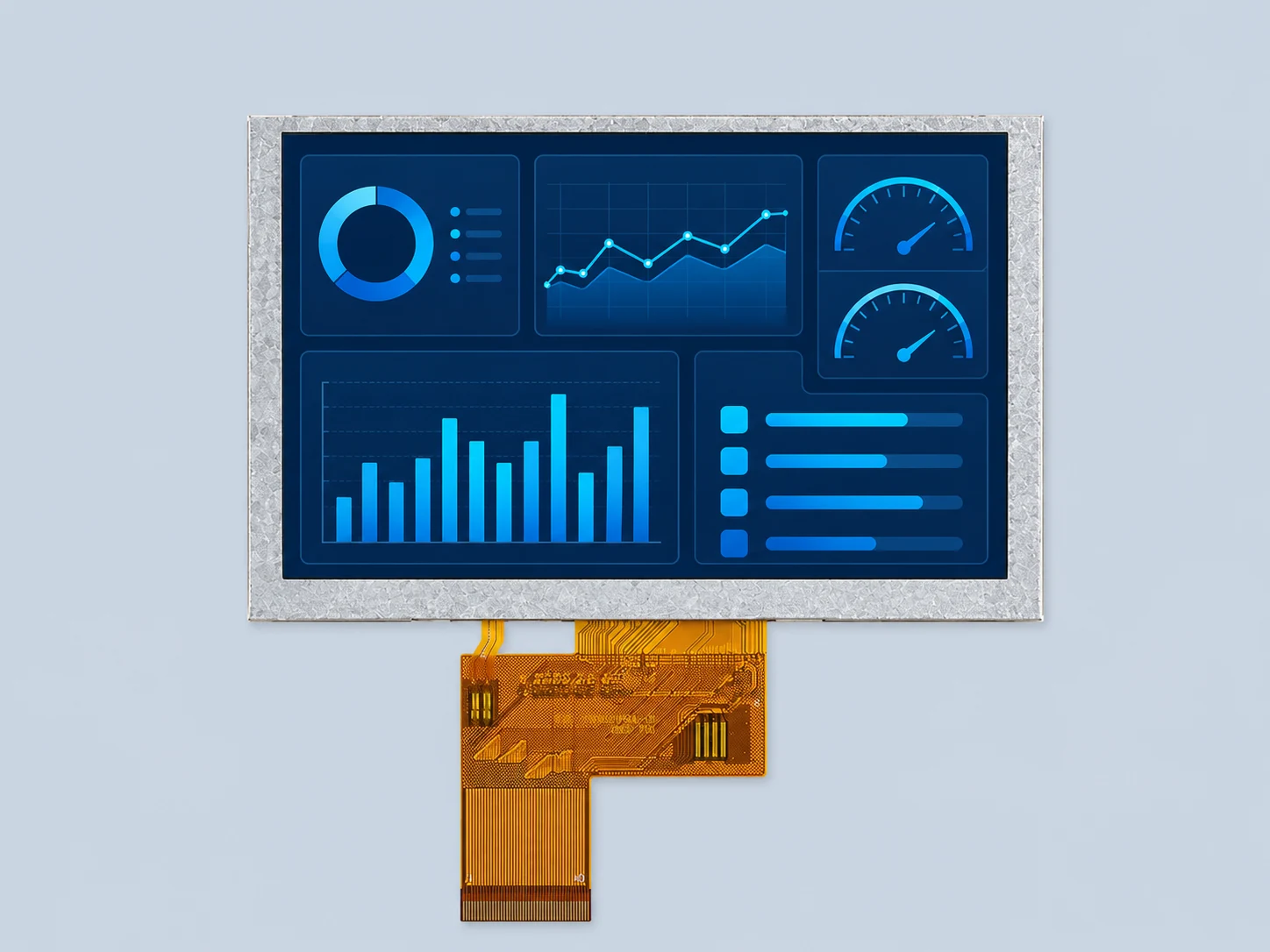

Module front and FPC visual reference.

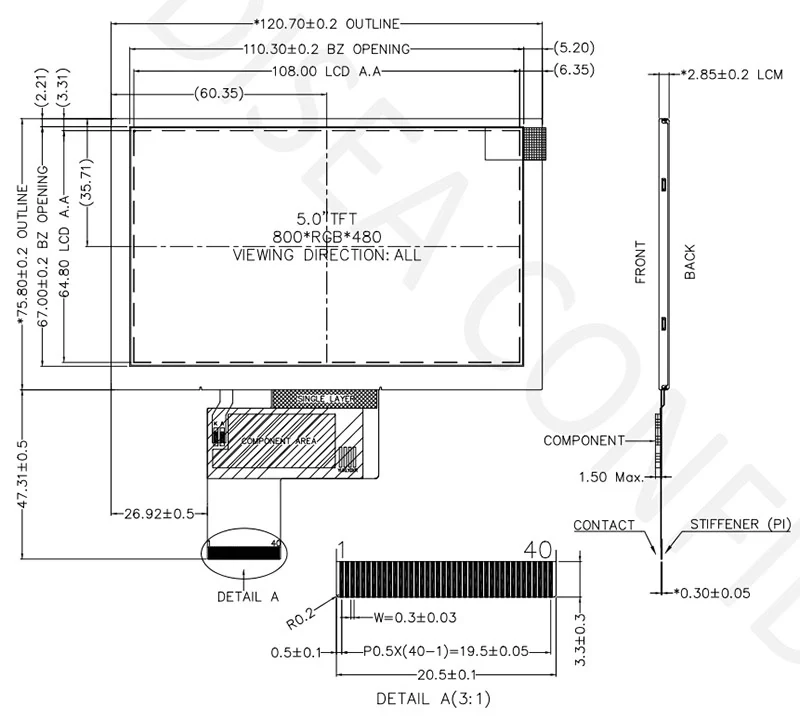

Use the drawing for engineering dimensions.

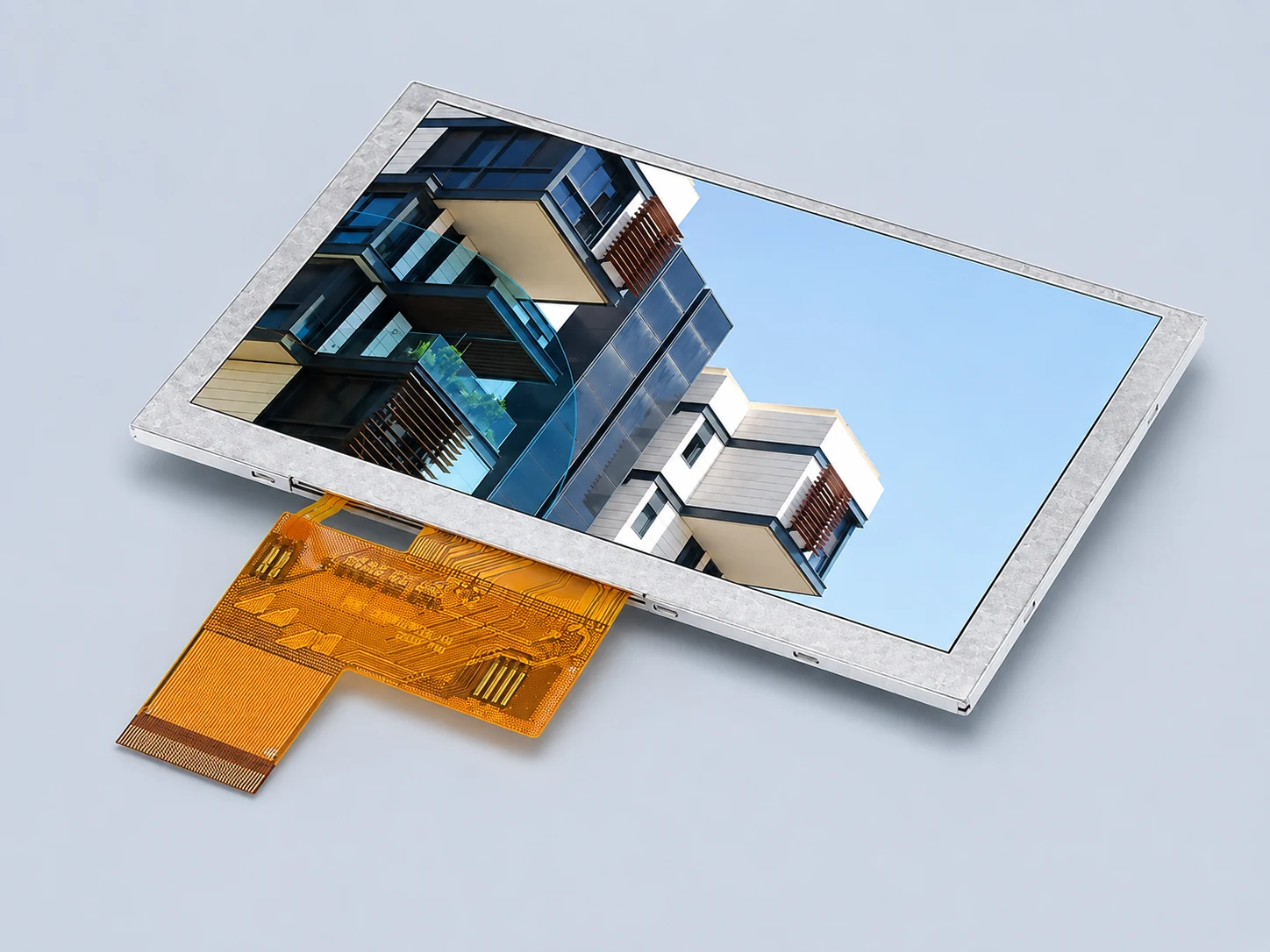

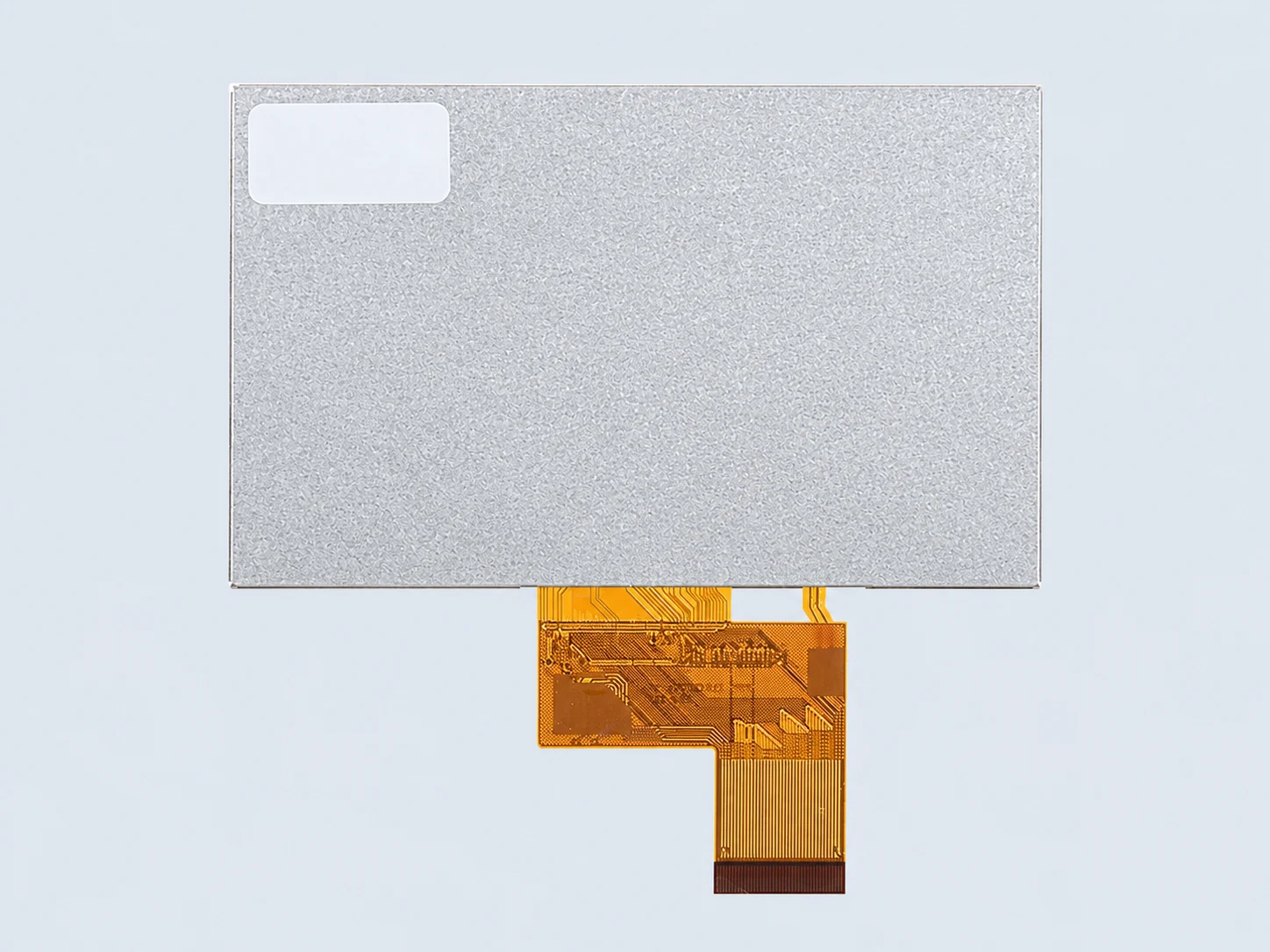

Backplate and FPC routing reference.
Use this image only as a visual reference; verify the approved drawing for routing, pinout, tolerances and keep-out zones.
Illustrative industrial test equipment concept only; it is not a documented customer deployment or mechanical integration drawing.
Use the current approved drawing for production release, tolerances and keep-out zones.
This module is a shortlist candidate when the project needs a 5-inch 800×480 IPS display, 1000 cd/m² luminance and a native RGB 24-bit 40-pin connection without an integrated touch panel. Final approval still depends on host timing, backlight power, thermal conditions and the released mechanical drawing.
Confirm voltage levels, pixel clock, control polarity, porch timing and the complete 40-pin mapping. Use the RGB timing guide before connecting a new host.
Evaluate the 1000 cd/m² backlight with the intended driver, dimming method, duty cycle and enclosure. Review brightness and heat together using the thermal trade-off checklist.
This exact module is documented as No TP. If integrated PCAP and optical bonding are required, compare the verified DS-T050BWSA-02CP configuration rather than assuming a field-added stack is equivalent.
No. The verified configuration on this page is specified as No TP.
It uses an RGB 24-bit, 40-pin module interface. Confirm the exact pinout, voltage levels and timing against the current datasheet before design release.
No. Luminance helps, but reflected light, the cover stack, viewing angle, UI contrast, power and temperature also affect the installed result. See the sunlight-readable selection guide.
Compare the active area, 120.70×75.80×2.85 mm module outline, FPC exit, RGB mapping, backlight drive, operating environment and required touch or cover stack with the project drawing.
DISEA standard TFT LCD module list · DS series 2026 V2.1 · PDF, 5 pages, 160 KB.
View the catalog reference (page 2) · Download full catalog ↓
Summary specifications only, not the controlled model-specific datasheet. Confirm the current datasheet, pinout and approved drawing for this exact model before design-in.
The visible mechanical drawing is a reference image. Request the current datasheet, controlled drawing, display timing, connector/pinout and backlight electrical requirements before design-in.
Include the host output, enclosure constraints, application and viewing environment, sample quantity and expected demand. Documentation revision, availability and commercial terms are confirmed during review; the public catalog does not imply stock availability or replace controlled model-specific documents.
Compare related published module configurations. Check the native host interface and sample validation checklist before approving a substitute or custom stack.
Send the host platform, enclosure constraints, target quantity and viewing environment for a fit review.
Still choosing the configuration? Compare all three 5-inch 800×480 RGB modules by luminance, touch, temperature and outline before requesting a sample.
