DS-T043BPSA-02CP 4.3-inch 480×272 IPS TFT LCD with optically bonded PCAP touch

4.3 inch480×272IPSPCAP

4.3 Inch 480×272 IPS Sunlight-Readable TFT LCD Display with PCAP, 850 Nits

DS-T043BPSA-02CP combines a 4.3-inch 480×272 IPS panel, 850 cd/m² luminance and an optically bonded capacitive touch panel. The module uses an RGB 24-bit 40-pin interface with ST7282A LCD driver and ILI2310 touch controller.

ModelDS-T043BPSA-02CP

Size4.3 inch

Resolution480×272

PanelIPS

Luminance850 cd/m²

InterfaceRGB 24-bit, 40-pin

Request Sample / Project Review Check Specs

Confirm the current datasheet, touch-controller requirements, pinout and mechanical drawing before design-in.

Project fit

Choosing DS-T043BPSA-02CP for your equipment

DS-T043BPSA-02CP adds ILI2310 PCAP and optical bonding to a 4.3-inch 480×272 IPS display while listing 850 cd/m² luminance. Its 24-bit RGB, 40-pin display connection and −20 to 70 °C range are part of the exact assembly to review; daylight readability, water response and enclosure sealing need final-system validation.

Verified product facts

Specification

Item	DS-T043BPSA-02CP
Diagonal size	4.3 inch
Resolution	480×272
LCD type	IPS
Luminance	850 cd/m²
Module interface	RGB 24-bit, 40-pin
LCD driver IC	ST7282A
Touch panel	PCAP / CTP
Touch controller IC	ILI2310
Bonding type	Optical bonding
Active area (W×H)	95.04×53.86 mm
Module outline (W×H×D)	105.56×67.26×4.41 mm
Operating temperature	−20 to 70 °C
Storage temperature	−30 to 80 °C

Touch integration

High brightness with an optically bonded PCAP stack.

The 480×272 IPS panel provides a wide active format with 850 cd/m² luminance, while the integrated PCAP uses an ILI2310 touch controller. Optical bonding is listed for this exact model in the supplied module list.

✓

4.3-inch high-brightness format

480×272 pixels with 850 cd/m² luminance.

✓

Integrated capacitive touch

PCAP touch with ILI2310 controller.

✓

Optically bonded stack

Bonding type is verified for DS-T043BPSA-02CP.

Module views

Front, angled and rear references.

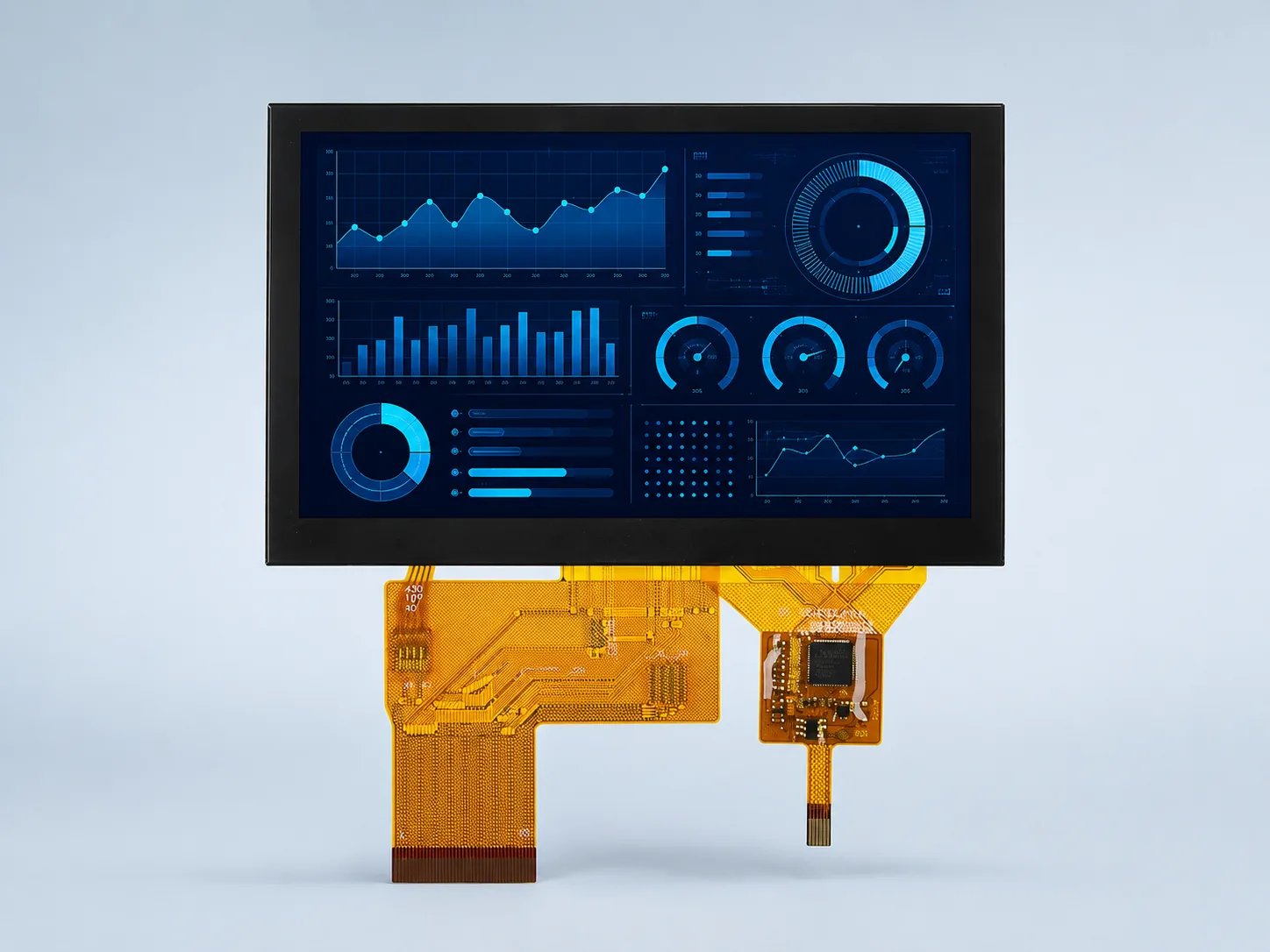

Front view

PCAP cover lens, active display and complete FPC reference.

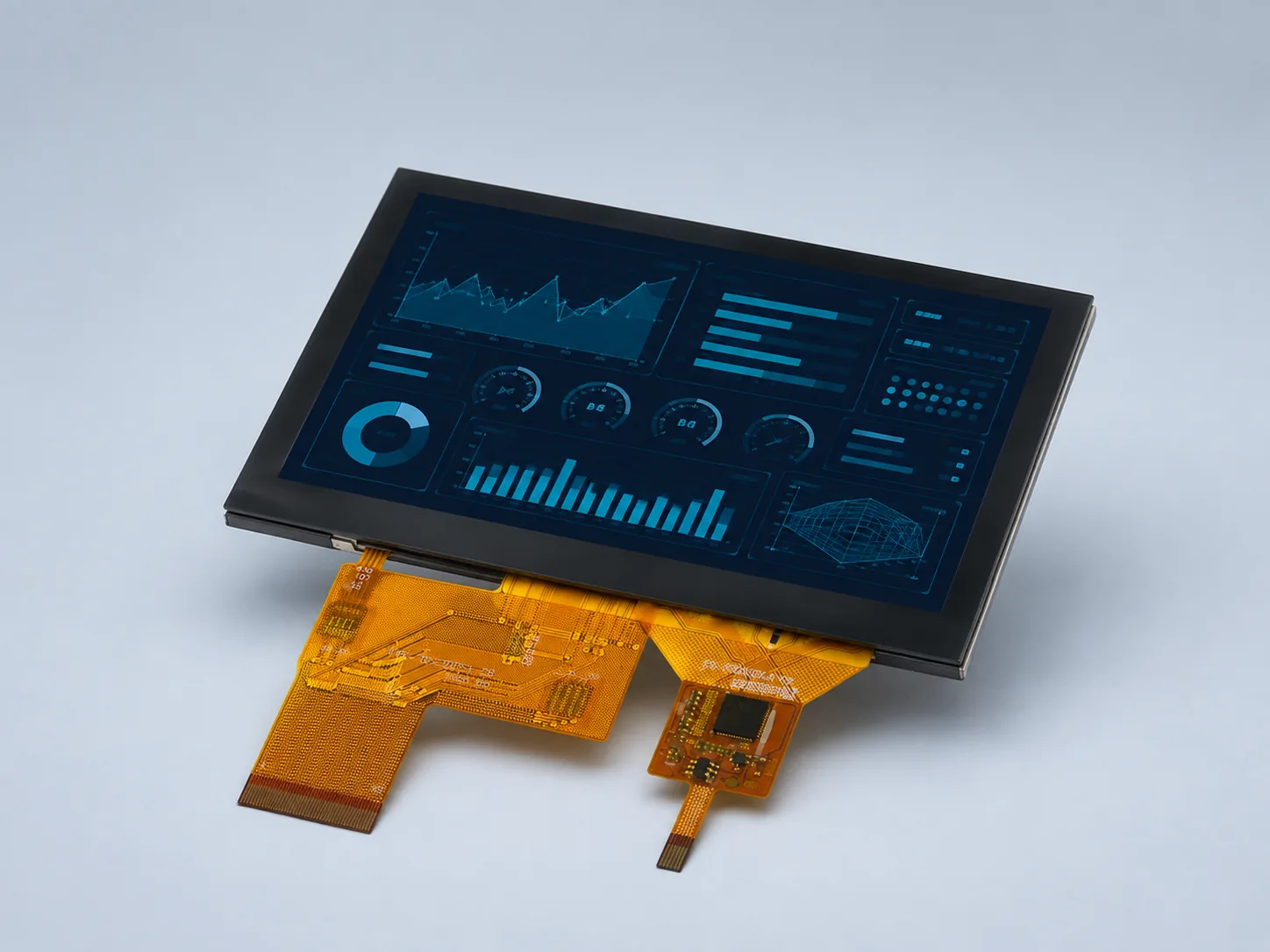

Angled view

Use the approved drawing for engineering dimensions and tolerances.

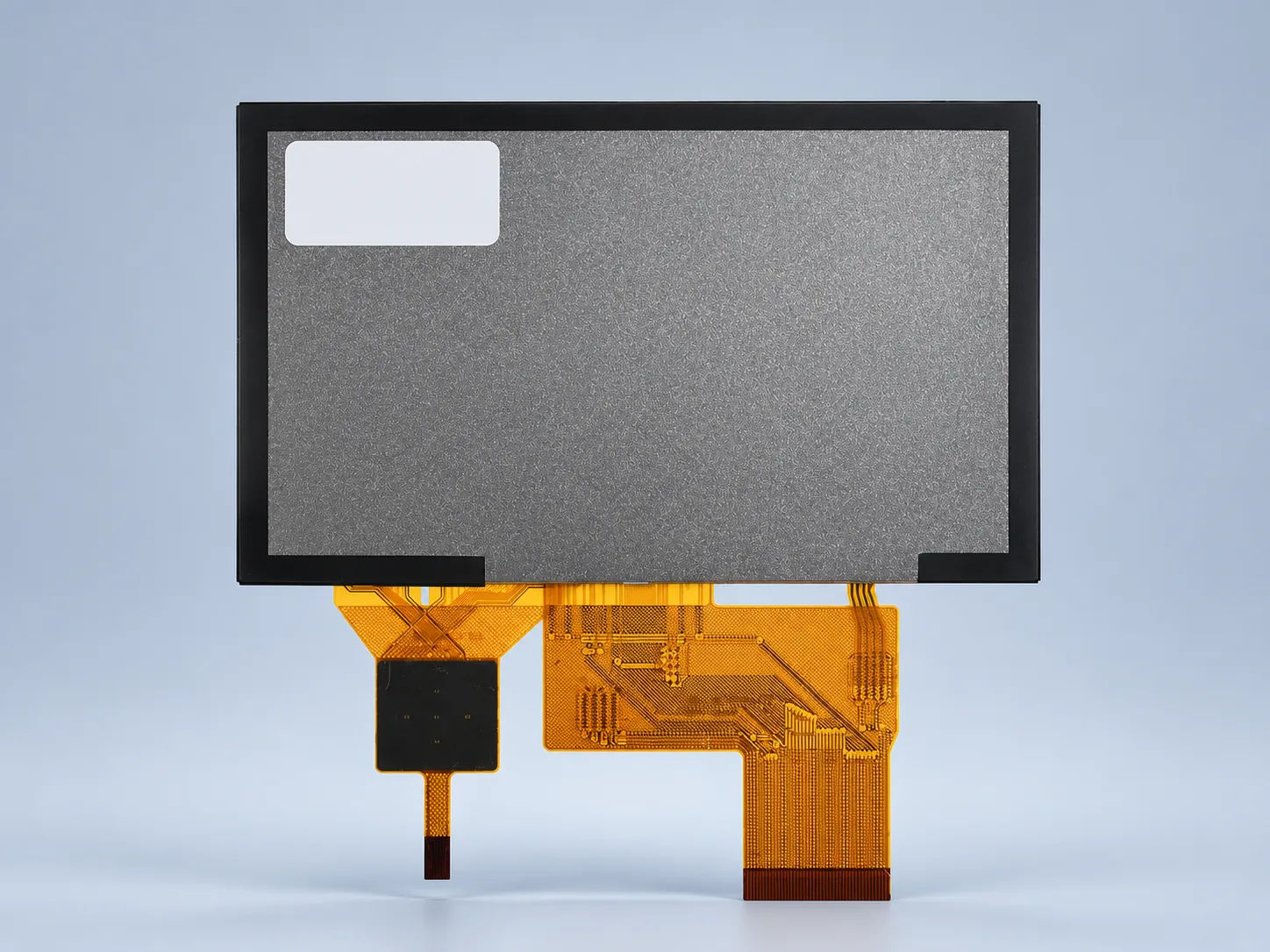

Rear view

Backplate, main FPC and touch-tail routing reference.

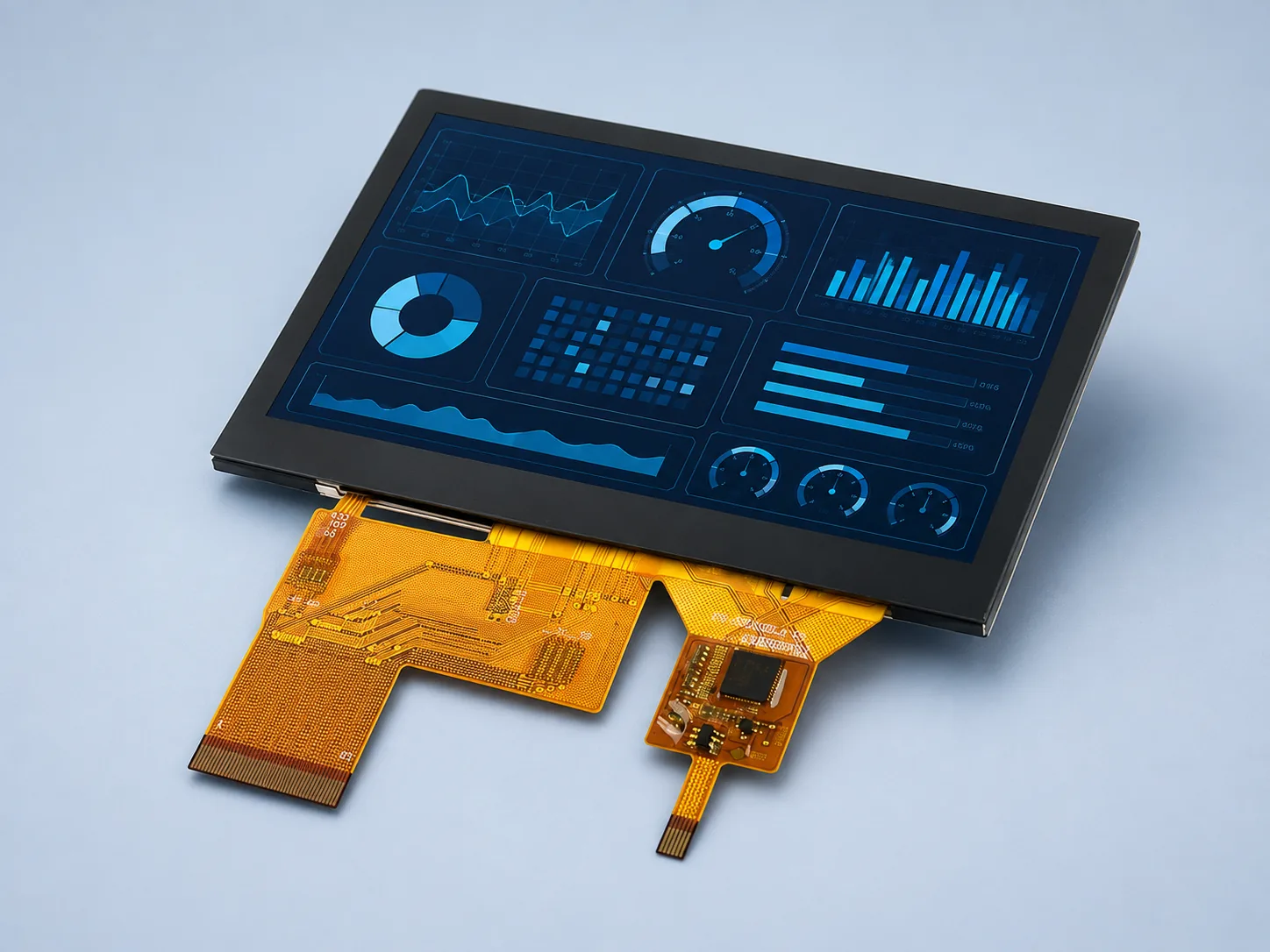

FPC and touch-controller detail

Use this view as a visual reference only; confirm routing, pinout, tolerances and keep-out zones from the approved drawing.

FPC and PCAP controller detail of DS-T043BPSA-02CP TFT LCD module

Application concept

Illustrative outdoor industrial-control concept only; it is not a documented customer deployment or mechanical integration drawing.

Illustrative outdoor industrial control equipment using a 4.3-inch sunlight-readable PCAP display

Mechanical reference

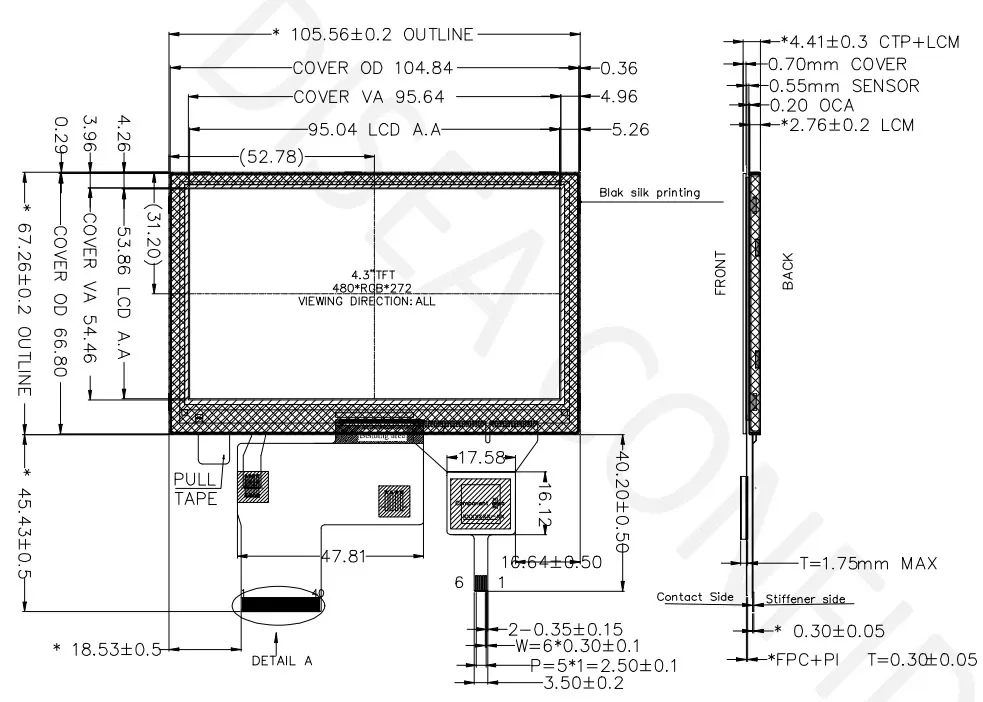

Outline, PCAP stack and FPC reference drawing.

DS-T043BPSA-02CP mechanical drawing showing cover, module outline, active area, thickness and FPC reference

Use the current approved drawing for production release, tolerances and keep-out zones.

Buyer questions

Project FAQ

Does DS-T043BPSA-02CP include capacitive touch?

Yes. The supplied module list identifies a PCAP/CTP touch panel with ILI2310 touch controller for this exact model.

Is the touch panel optically bonded?

Yes. Optical bonding is specified for DS-T043BPSA-02CP in the supplied standard module list.

Which display interface does the module use?

The module list specifies RGB 24-bit, 40-pin. Confirm the latest pinout, timing and electrical requirements before design-in.

Which dimensions should the enclosure use?

The supplied list gives a 95.04×53.86 mm active area and a 105.56×67.26×4.41 mm module outline. Use the approved mechanical drawing for release.

Engineering-led selection

DS-T043BPSA-02CP datasheet, pinout and sample review

Public catalog reference for DS-T043BPSA-02CP

DISEA standard TFT LCD module list · DS series 2026 V2.1 · PDF, 5 pages, 160 KB.

View the catalog reference (page 2) · Download full catalog ↓

Summary specifications only, not the controlled model-specific datasheet. Confirm the current datasheet, pinout and approved drawing for this exact model before design-in.
