DS-T035SGV-01CP 3.5-inch 640×480 IPS TFT LCD with optically bonded PCAP touch

3.5 inch640×480 VGAIPSPCAP

3.5 Inch 640×480 IPS TFT LCD Display with Capacitive Touch and Optical Bonding

DS-T035SGV-01CP is a 3.5-inch 640×480 VGA IPS TFT LCD with an optically bonded capacitive touch panel. The module uses an RGB 24-bit 54-pin interface and ST1633i touch controller.

ModelDS-T035SGV-01CP

Size3.5 inch

Resolution640×480

PanelIPS

Luminance320 cd/m²

InterfaceRGB 24-bit, 54-pin

Request Sample / Project Review Check Specs

Confirm the current datasheet, touch-controller requirements, pinout and mechanical drawing before design-in.

Project fit

Choosing DS-T035SGV-01CP for your equipment

DS-T035SGV-01CP is a compact 3.5-inch 640×480 IPS assembly with optical bonding and ST1633i PCAP touch, suitable for reviewing handheld or instrument UI layouts. Its 320 cd/m² luminance and 24-bit RGB, 54-pin connection should be checked against the viewing conditions and host; the higher VGA pixel count does not establish outdoor readability.

Verified product facts

Specification

Item	DS-T035SGV-01CP
Diagonal size	3.5 inch
Resolution	640×480 VGA
LCD type	IPS
Luminance	320 cd/m²
Module interface	RGB 24-bit, 54-pin
LCD driver IC	NV3502C
Touch panel	PCAP / CTP
Touch controller IC	ST1633i
Bonding type	Optical bonding
Active area (W×H)	70.08×52.56 mm
Module outline (W×H×D)	76.90×64.24×5.09 mm
Operating temperature	−20 to 70 °C
Storage temperature	−30 to 80 °C

Touch integration

VGA detail with an optically bonded PCAP stack.

The 640×480 IPS panel provides a 4:3 VGA format, while the integrated PCAP uses an ST1633i touch controller. Optical bonding is listed for this exact model in the supplied module list.

✓

3.5-inch VGA format

640×480 pixels in a compact 4:3 active area.

✓

Integrated capacitive touch

PCAP touch with ST1633i controller.

✓

Optically bonded stack

Bonding type is verified for DS-T035SGV-01CP.

Module views

Front, angled and rear references.

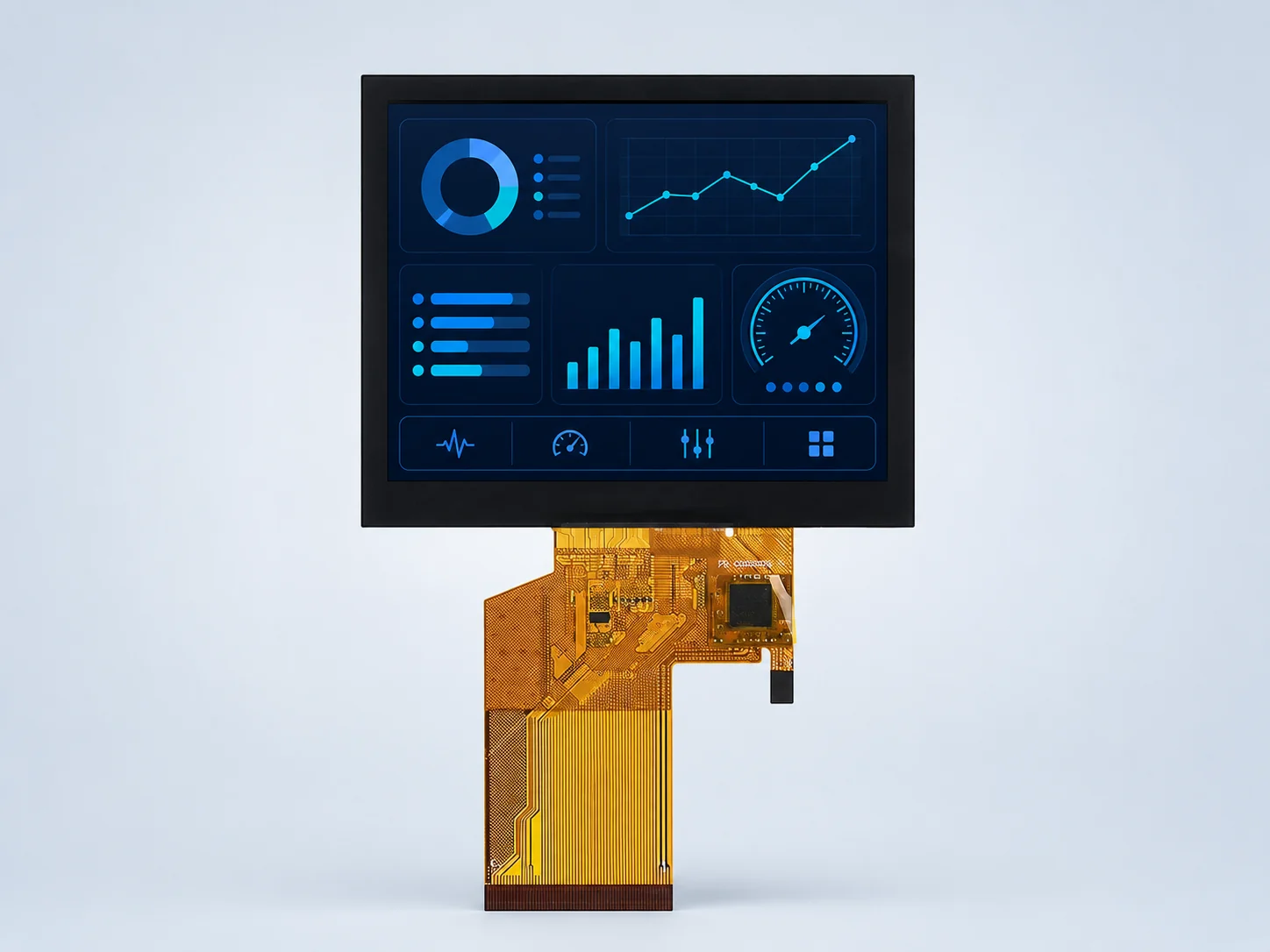

Front view

PCAP cover lens, active display and complete FPC reference.

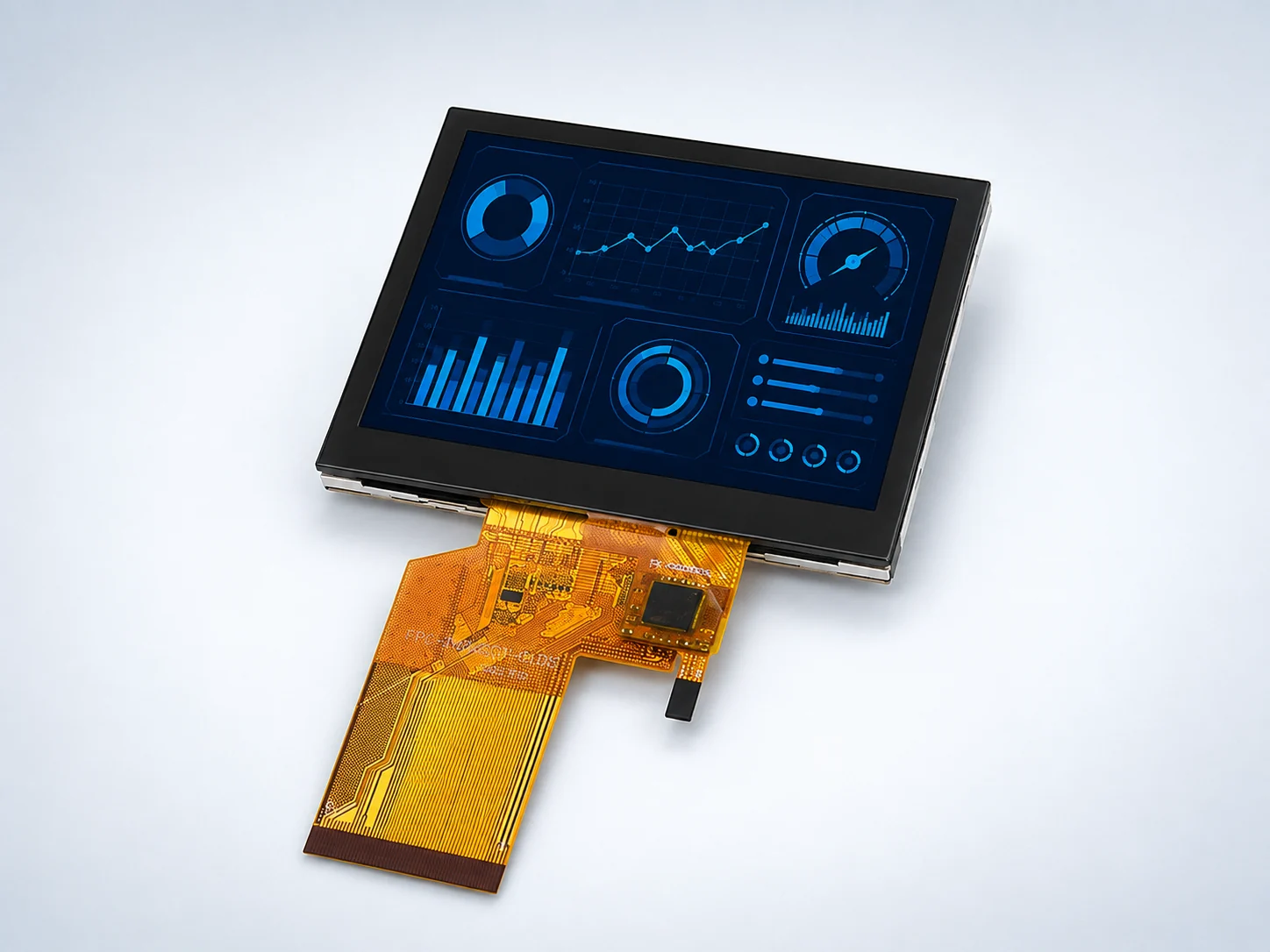

Angled view

Use the approved drawing for engineering dimensions and tolerances.

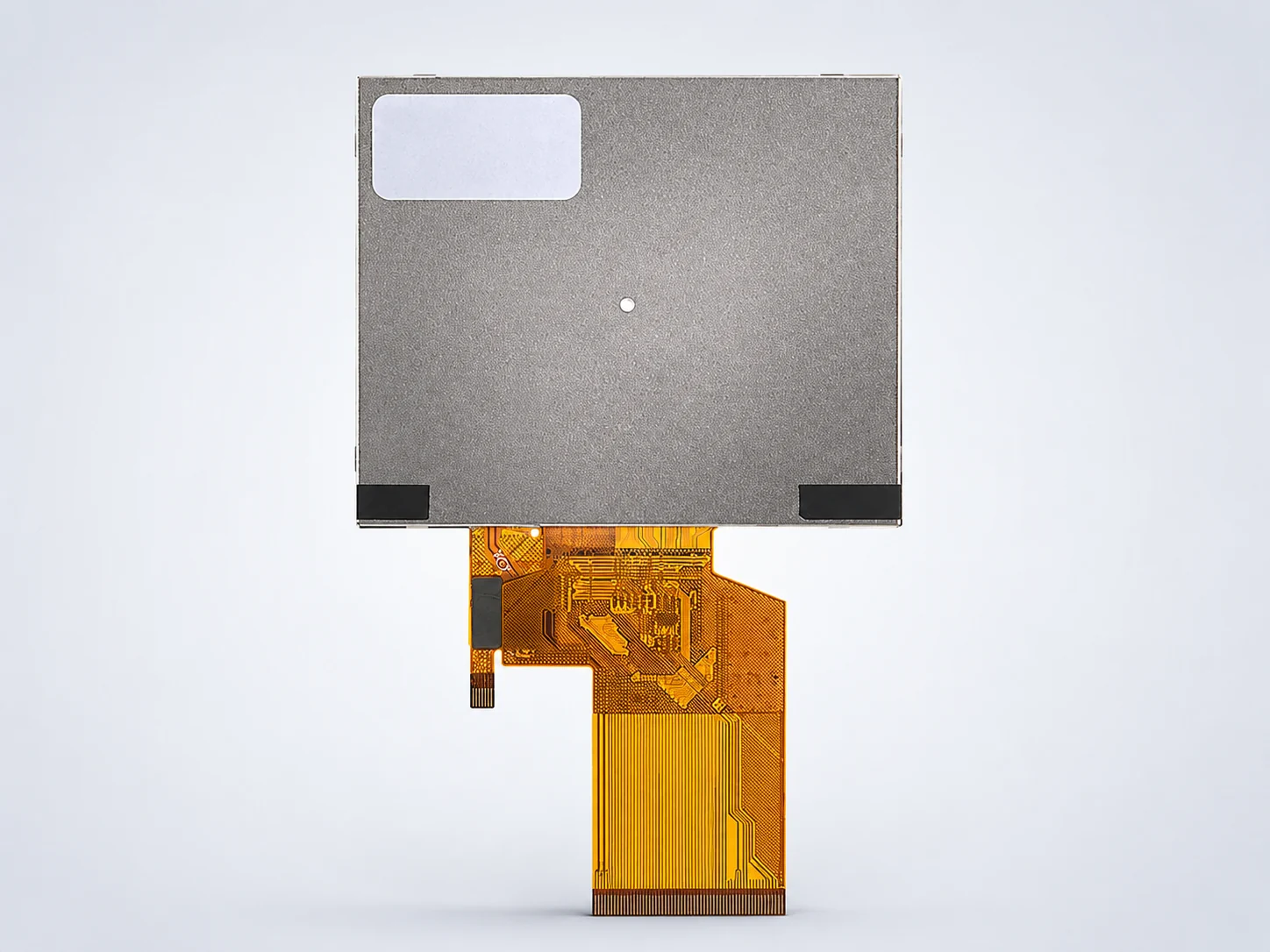

Rear view

Backplate, main FPC and touch-tail routing reference.

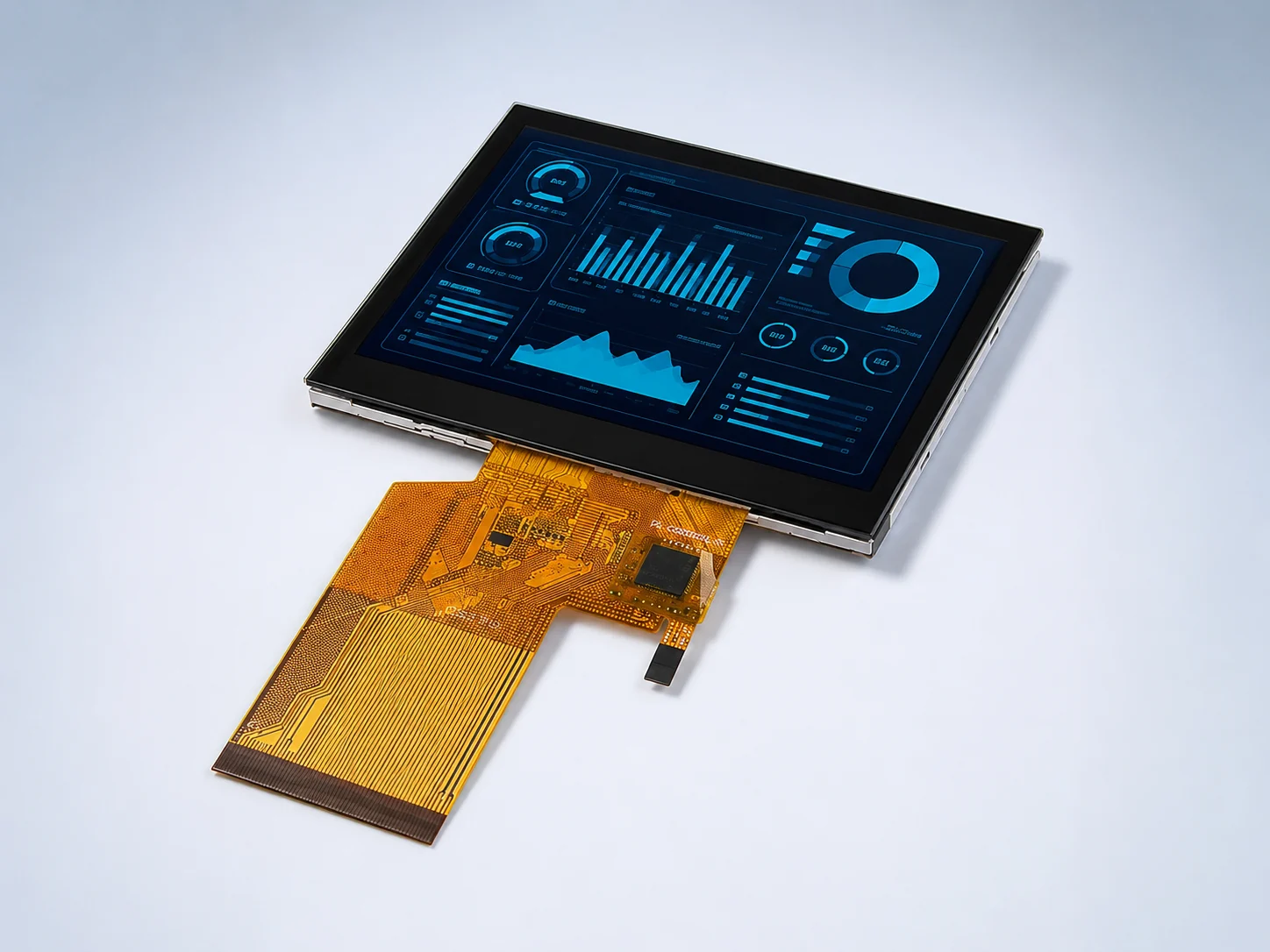

FPC and touch-controller detail

Use this view as a visual reference only; confirm routing, pinout, tolerances and keep-out zones from the approved drawing.

FPC and PCAP controller detail of DS-T035SGV-01CP TFT LCD module

Application concept

Illustrative industrial test-equipment concept only; it is not a documented customer deployment or mechanical integration drawing.

Illustrative compact industrial test equipment using a 3.5-inch touch display

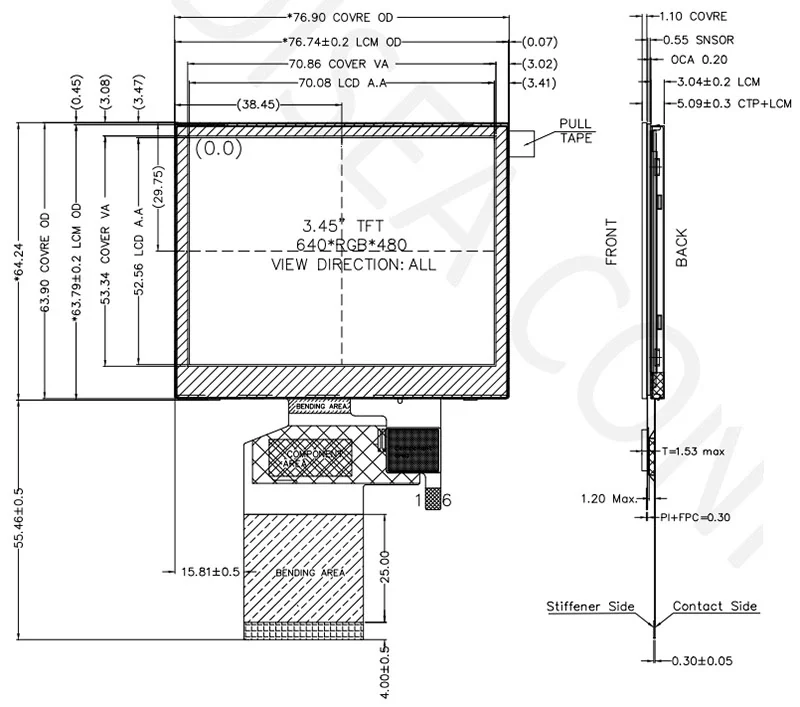

Mechanical reference

Outline, PCAP stack and FPC reference drawing.

DS-T035SGV-01CP mechanical drawing showing cover, module outline, active area, thickness and FPC reference

Use the current approved drawing for production release, tolerances and keep-out zones.

Buyer questions

Project FAQ

Does DS-T035SGV-01CP include capacitive touch?

Yes. The supplied module list identifies a PCAP/CTP touch panel with ST1633i touch controller for this exact model.

Is the touch panel optically bonded?

Yes. Optical bonding is specified for DS-T035SGV-01CP in the supplied standard module list.

Which display interface does the module use?

The module list specifies RGB 24-bit, 54-pin. Confirm the latest pinout, timing and electrical requirements before design-in.

Which dimensions should the enclosure use?

The supplied list gives a 70.08×52.56 mm active area and a 76.90×64.24×5.09 mm module outline. Use the approved mechanical drawing for release.

Engineering-led selection

DS-T035SGV-01CP datasheet, pinout and sample review

Public catalog reference for DS-T035SGV-01CP

DISEA standard TFT LCD module list · DS series 2026 V2.1 · PDF, 5 pages, 160 KB.

View the catalog reference (page 1) · Download full catalog ↓

Summary specifications only, not the controlled model-specific datasheet. Confirm the current datasheet, pinout and approved drawing for this exact model before design-in.

Engineering document request

The visible mechanical drawing is a reference image. Request the current datasheet, controlled drawing, display timing, connector/pinout and backlight electrical requirements before design-in, plus touch-controller and touch-connection documentation for this assembly.

Include the host output, enclosure constraints, application and viewing environment, sample quantity and expected demand. Documentation revision, availability and commercial terms are confirmed during review; the public catalog does not imply stock availability or replace controlled model-specific documents.

Request datasheet and sample review Discuss customization

Compare before choosing

Compare related published module configurations. Check the native host interface and sample validation checklist before approving a substitute or custom stack.

Review DS-T035SGV-01CP against your project.

Send the host platform, enclosure constraints, cover-lens requirements, target quantity and operating environment for a fit review.

Request Project Review
